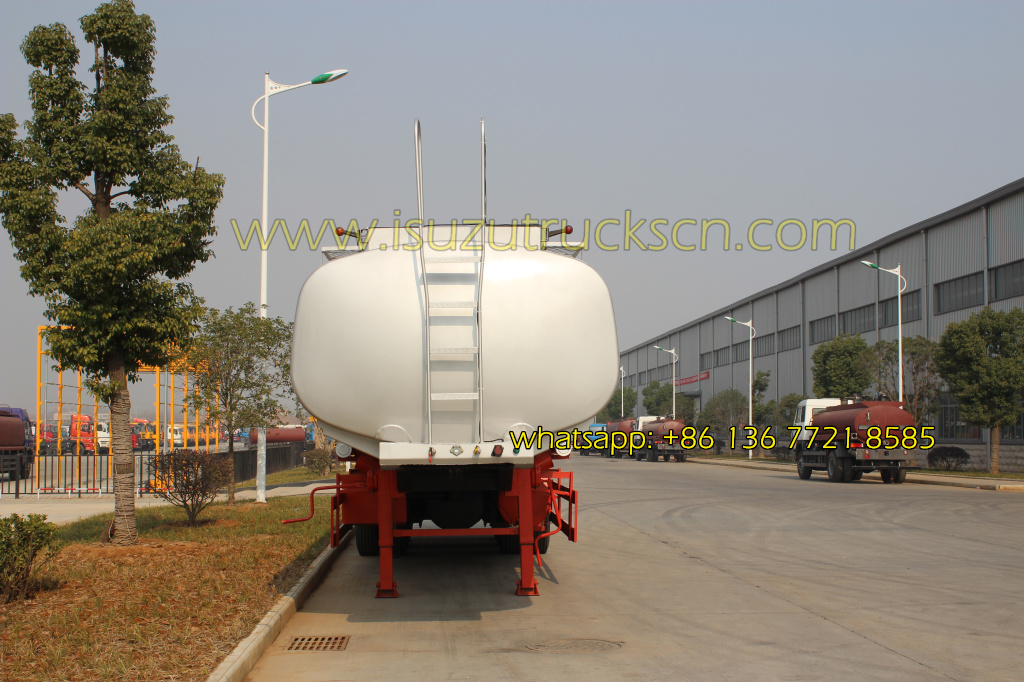

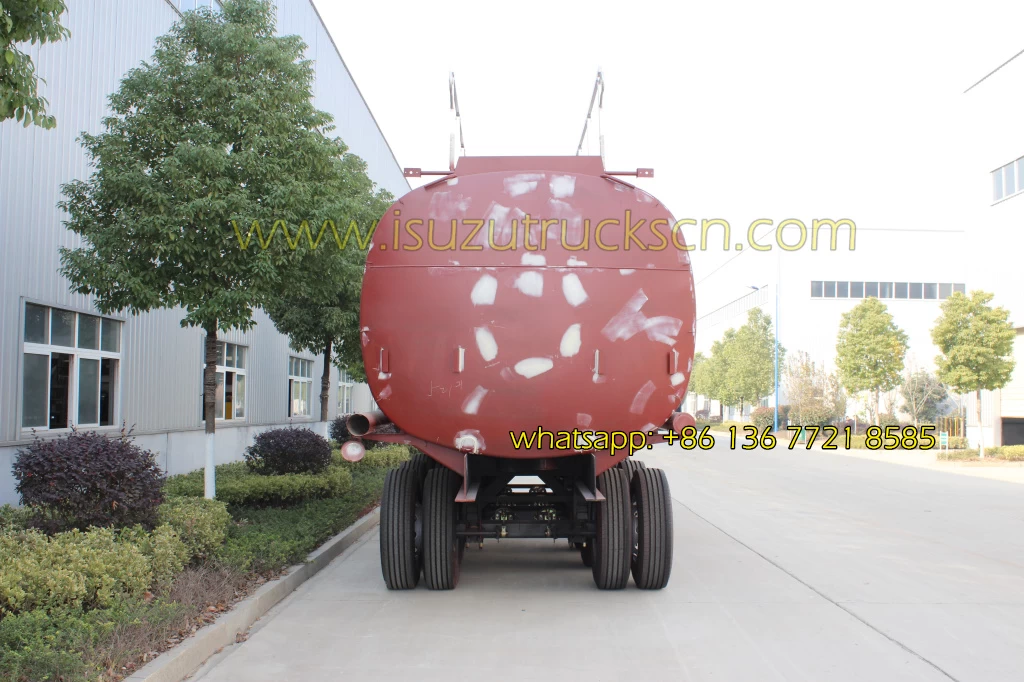

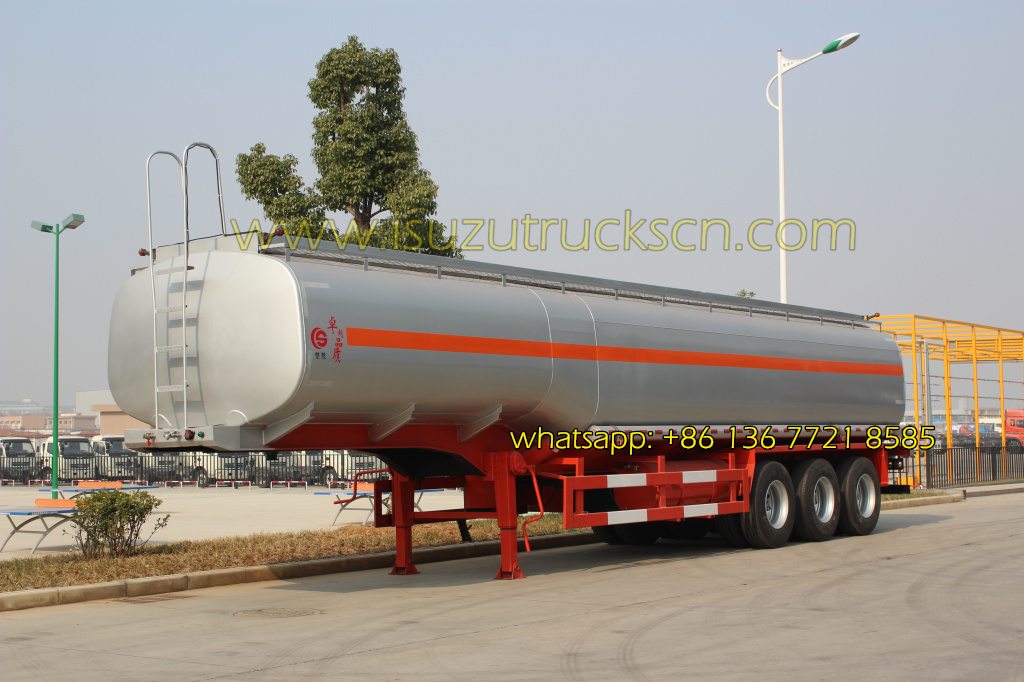

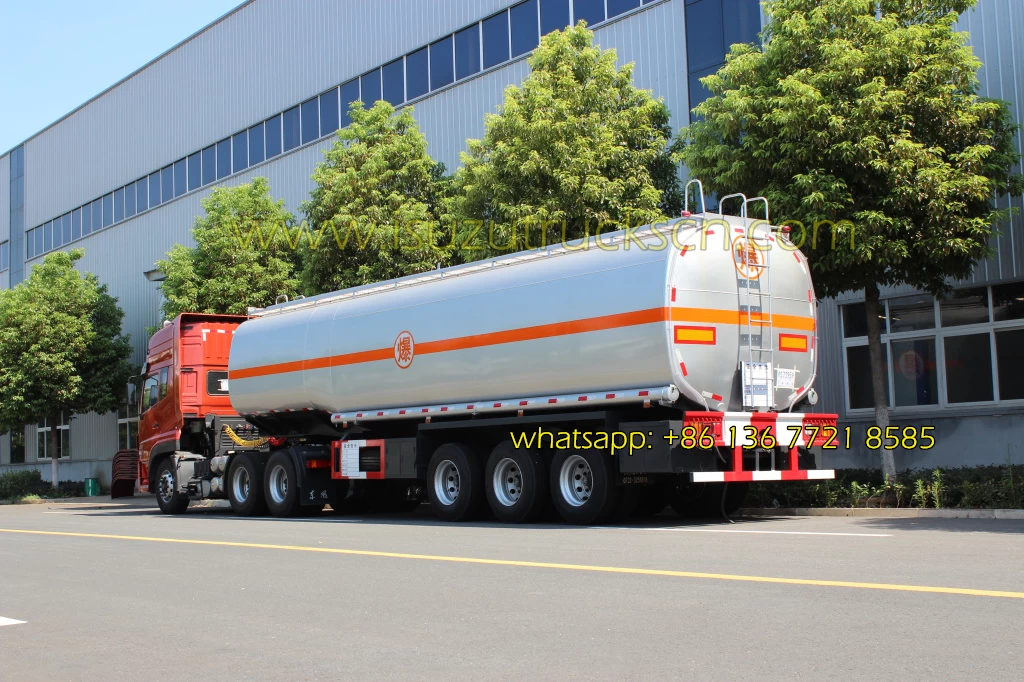

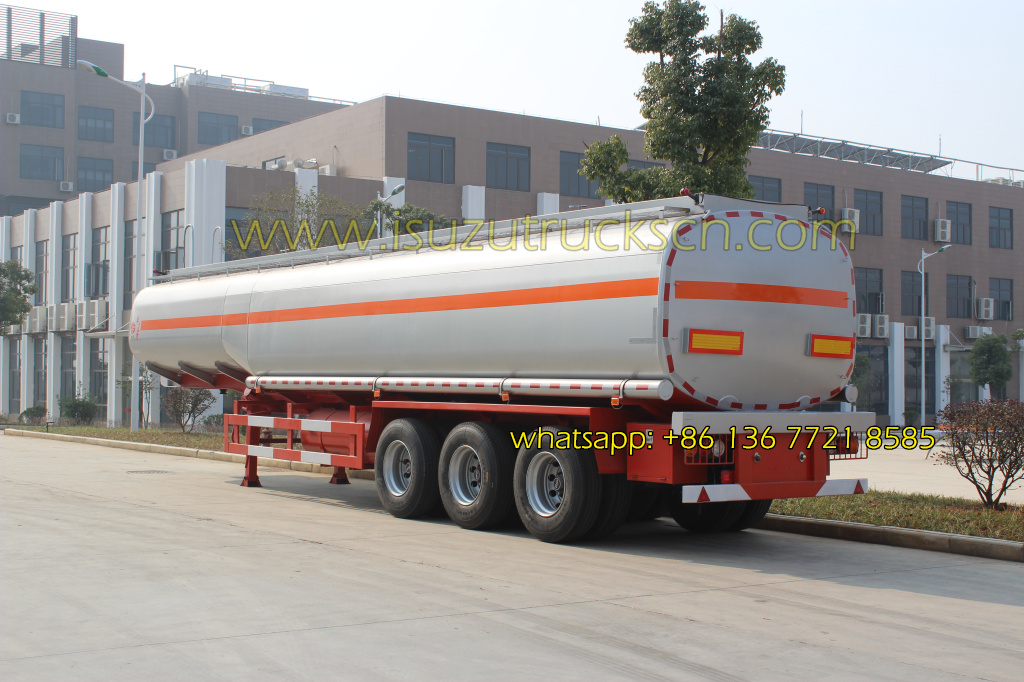

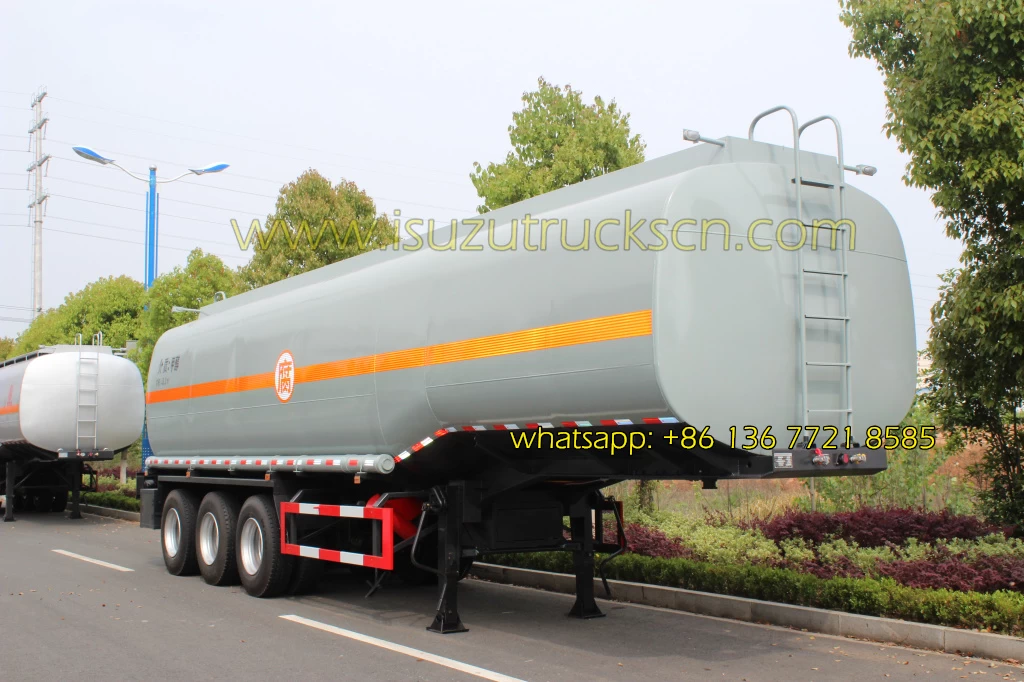

50,000 Litre Fuel Tank Trailer

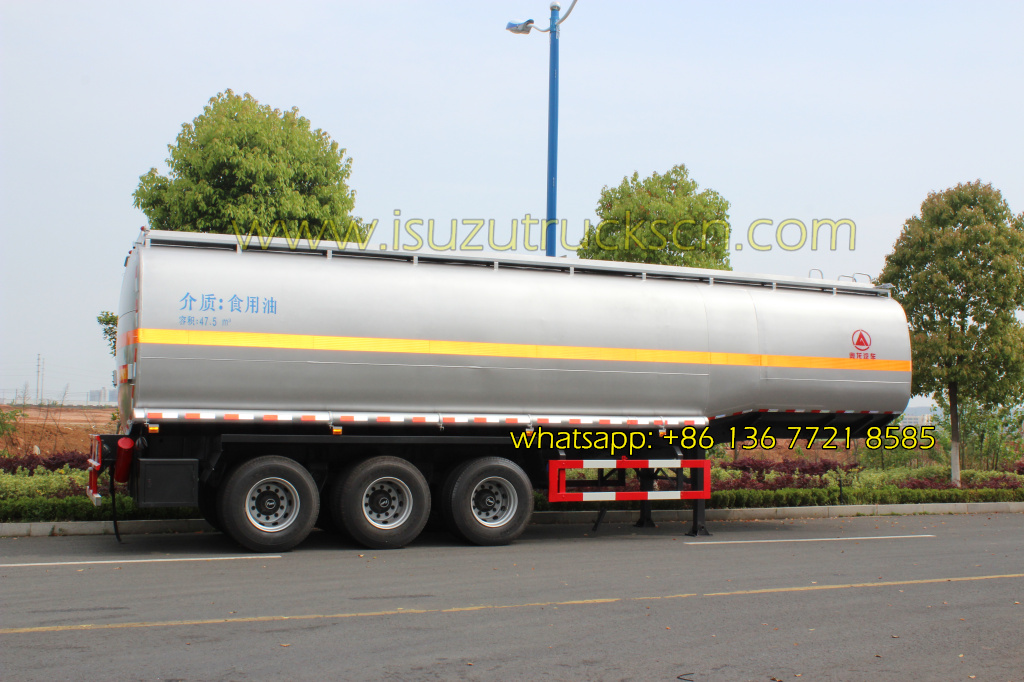

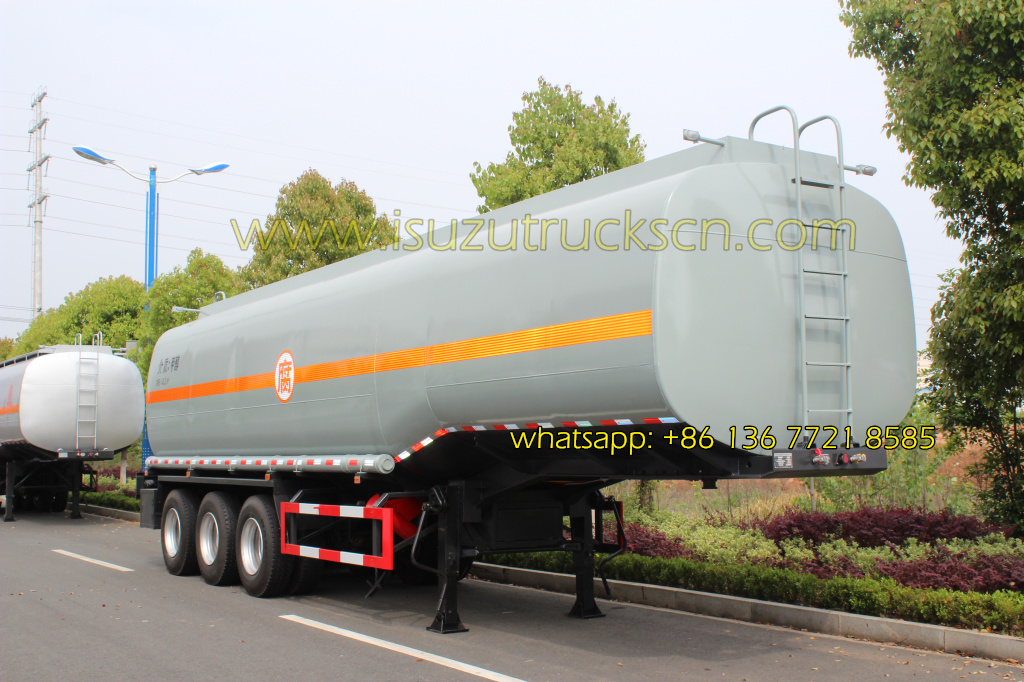

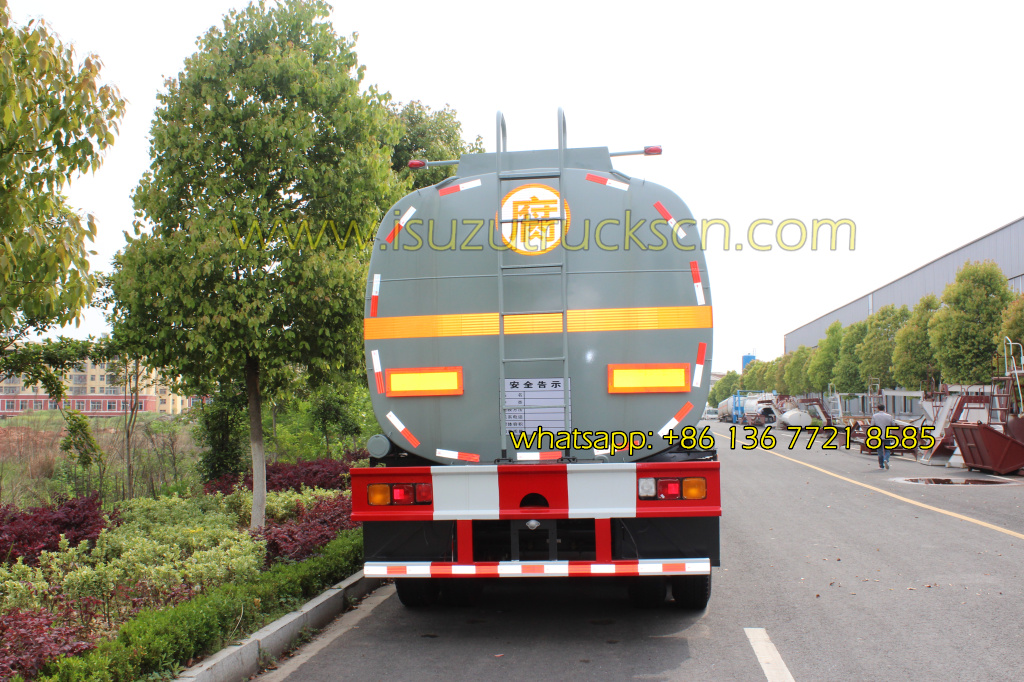

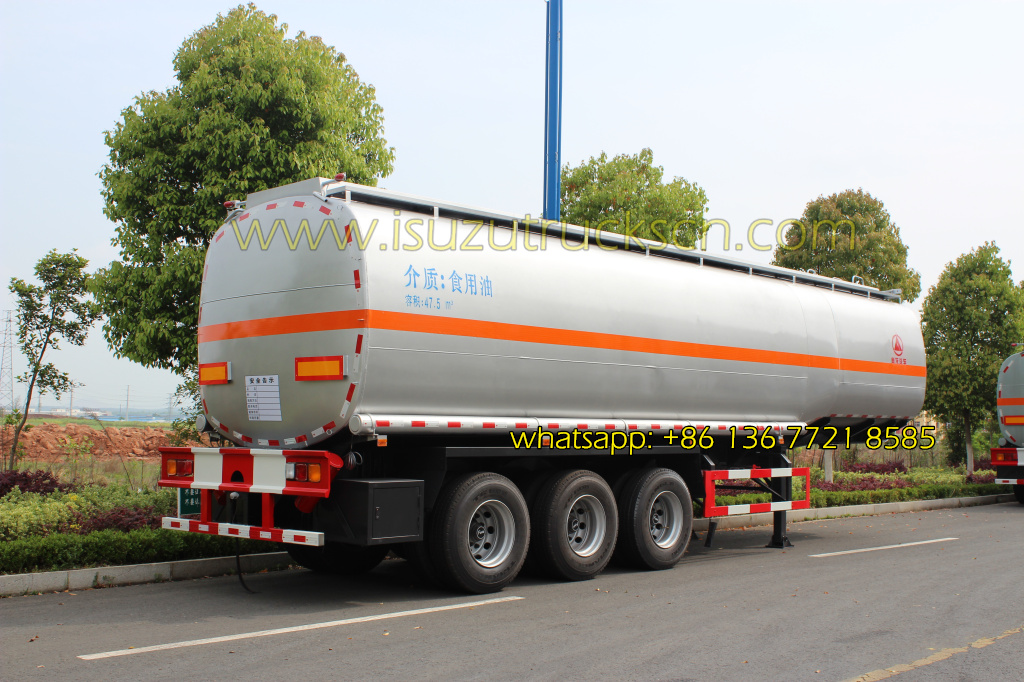

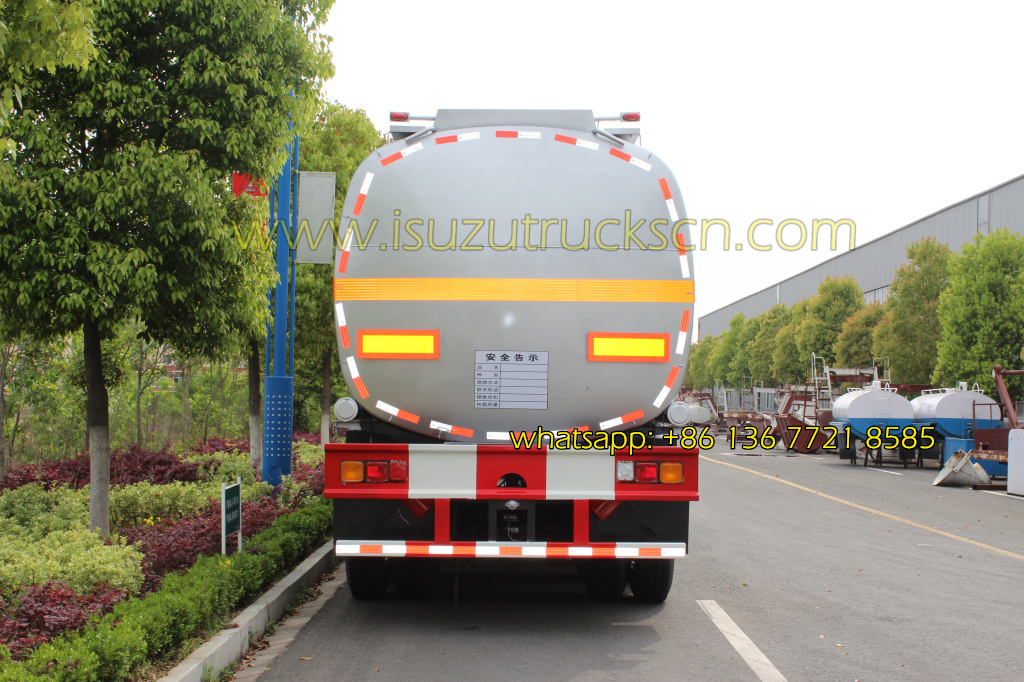

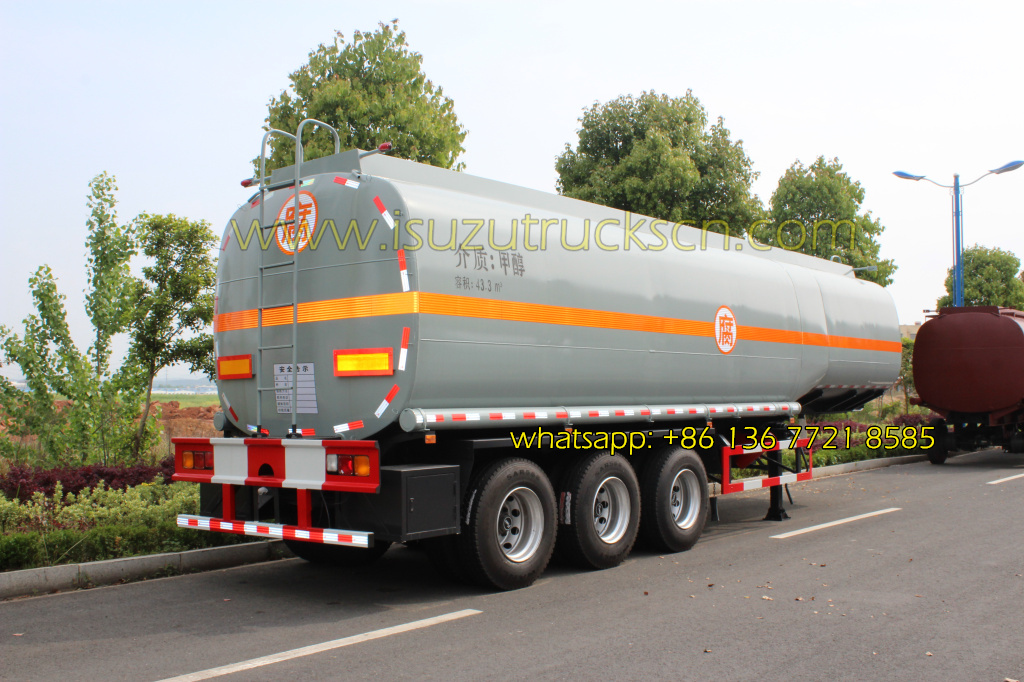

PT9402GYY fuel tanker semi trailer manufactured from carbon steel Q235, is available with standard tank volume of 40m3 and wheelbase of 5800mm+1310mm+1310mm. Stainless steel or aluminum alloy semi trailers can be made for your choice as well. The liquid tanker semi trailer applies 3 FUWA13T axles, JOST90mm or 50mm towing pin. As required, we can mount bottom valve, bottom loading system, or other additional configurations to the fuel tanker semi trailer. Applicable chemical liquids include oil products, ethyl alcohol, and so on.
|
Overall Dimension
|
Total length (mm)
|
12900
|
Mass Parameters
|
Max. total mass (Kg)
|
39970
|
|
|
Total width (mm)
|
2490
|
|
|
Total width (mm)
|
3800
|
Rated load mass (Kg)
|
28000
|
|
|
Wheelbase (mm)
|
7200+1310+1310
|
|
|
Kerb mass (Kg)
|
11970
|
|
|
Tread (mm)
|
1830
|
|
|
Ground clearance of towing pin bottom plate (mm)
|
1250
|
|
|
Through-put Capacity
|
Front turning radius (mm)
|
1550
|
Rear overhang (mm)
|
1830
|
|
|
Radius clearance (mm)
|
2350
|
Departure angle (º)
|
17
|
|
|
Min. turning diameter (m)
|
24
|
Min. ground clearance (mm)
|
360
|
|
|
Main Configuration
|
Item
|
Standard configuration
|
Optional configuration
|
|
|

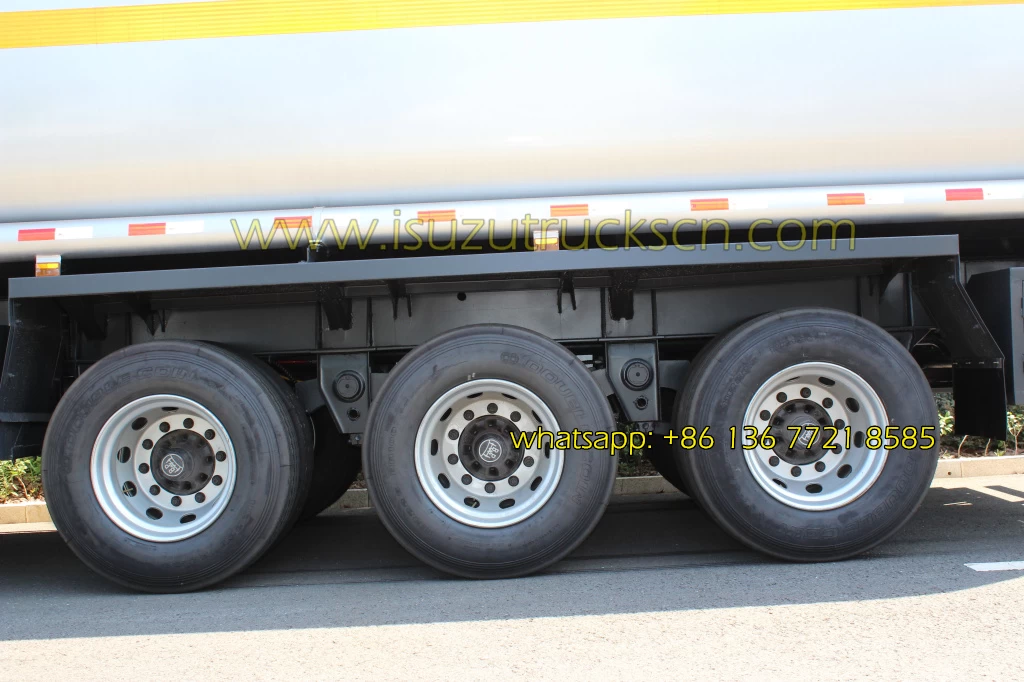

Axle
|
FUWA 13T, 3sets
|
FUWA 16T
|
|
|
Towing pin
|
JOST 90 ＃
|
50 ＃
|
|
|
Support leg
|
FUWA linkage leg
|
JOST
|
|
|
Suspension
|
Baohua brand Triple suspension
|
|
|
|
Leaf spring
|
8pcs
|
|
|
|
Rim
|
Rishang wheel: 22.5 ×9.00
|
Zhengxing(Fujian) brand Wheel rim
|
|
|
Tyre
|
Double Coin 12R22.5 vacuum tyre, 12+1 sets
|
11.00R20
|
|
|
Braking system
|
Dual circuit air brake;
Service brake, parking brake, emergency brake (air break braking)
|
|
|
|
Electric system
|
24V, minus earth(connect with tractor)
|
|
|
|
ABS
|
Homemade 4S/2M
|
Xi'an Zhengchang,Hande
|
|
|
Fire extinguisher
|
2 sets
|
|
|
|
Special Configuration
|
Item
|
Standard configuration
|
Optional configuration
|
|
|
Volume (m3)
|
50
|
|
|
|
Size (mm)
|
12650×2496×1920(L×W×H)
|
|
|
|
Tank materials
|
Carbon steel Q235
|
Stainless steel 304
|
|
|
Discharge valve
|
Aluminum alloy DN80
|
Stainless steel, DN80, DN100
|
|
|
Bottom valve
|
None
|
Optional
|
|
|
Cover
|
Amount: 2pcs; Materials: carbon steel; Diameter: φ500
|
Stainless steel, aluminum alloy
|
|
|
Discharge hose
|
Amount: 2 sets; Length: 4m; The hose diameter is same as that of ball
valve.
|
|
|

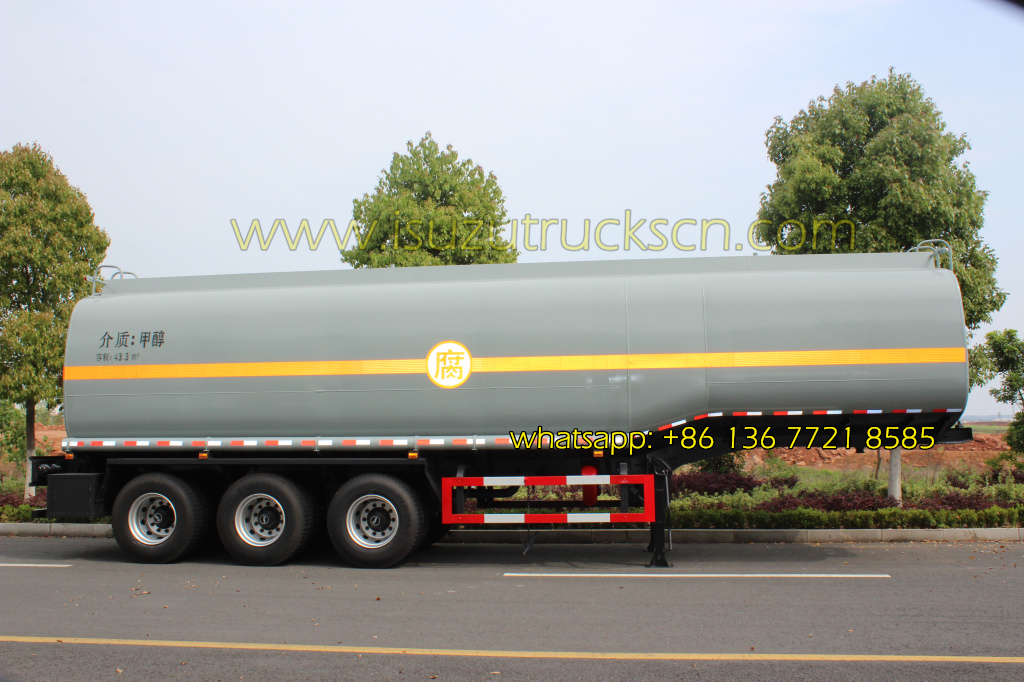

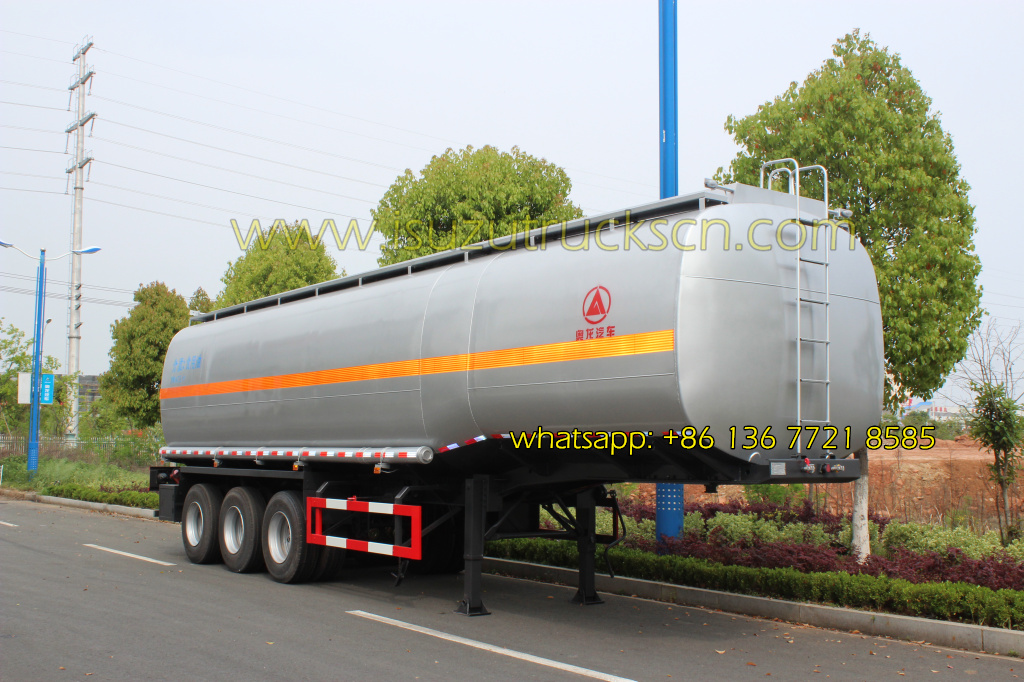

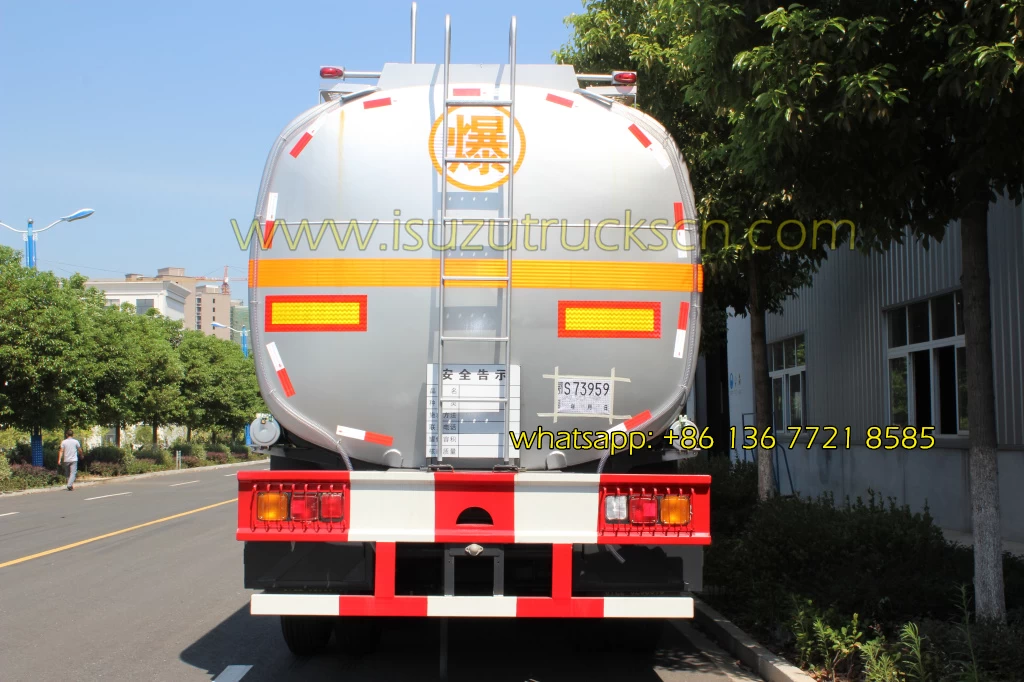

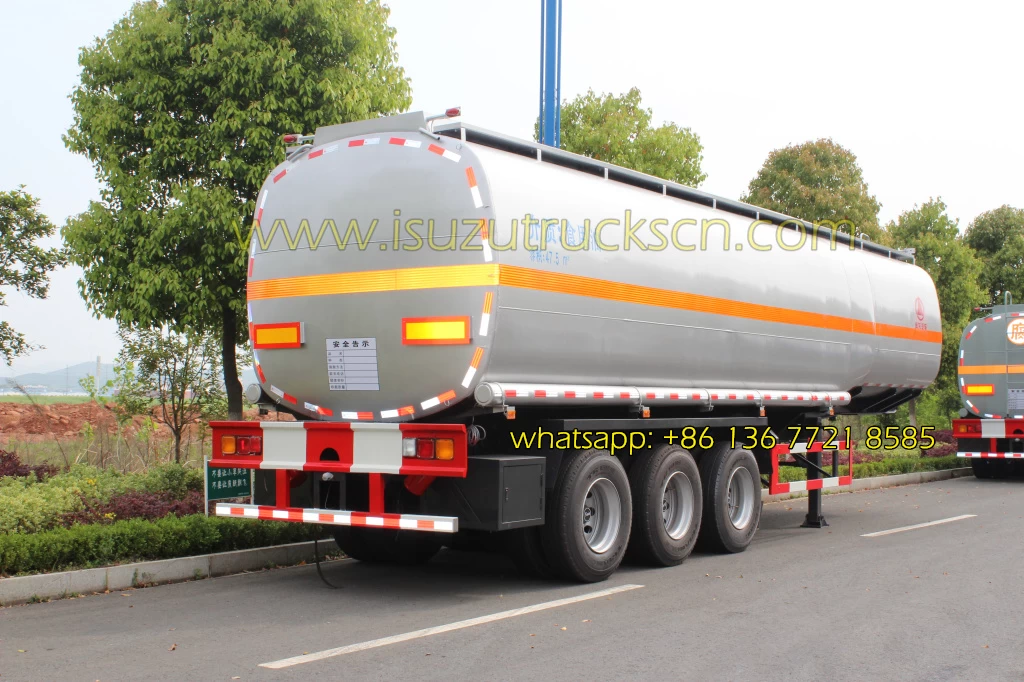

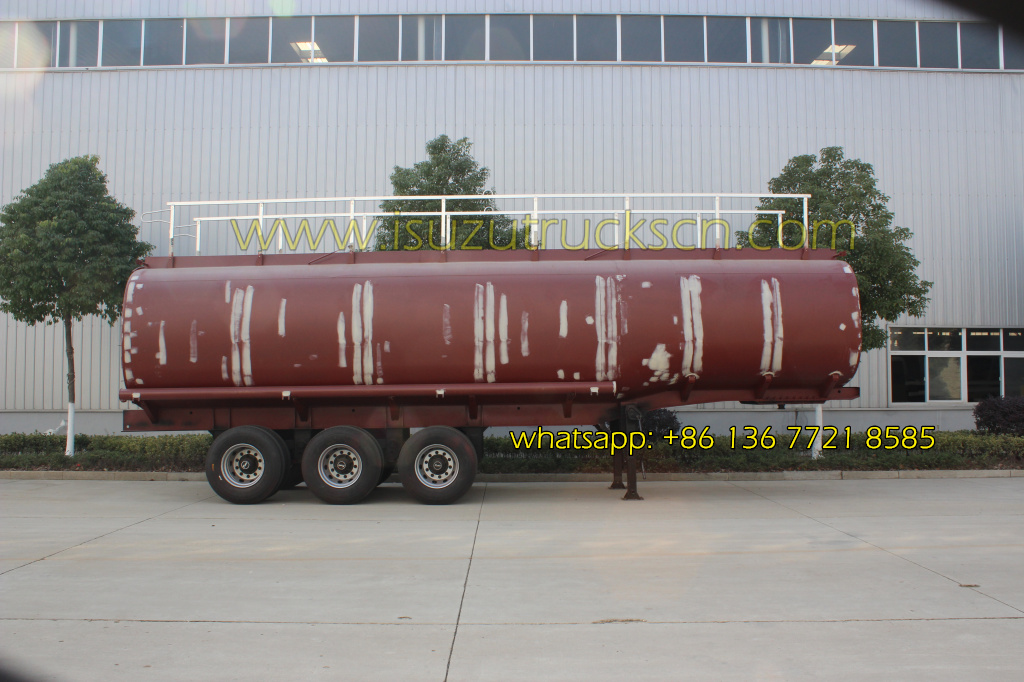

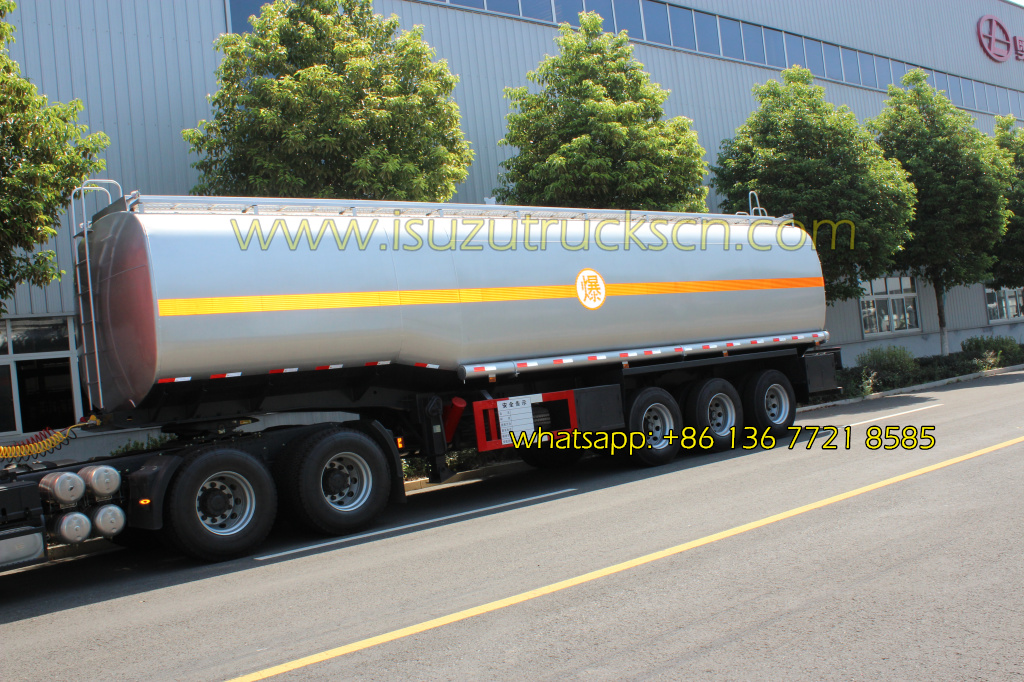

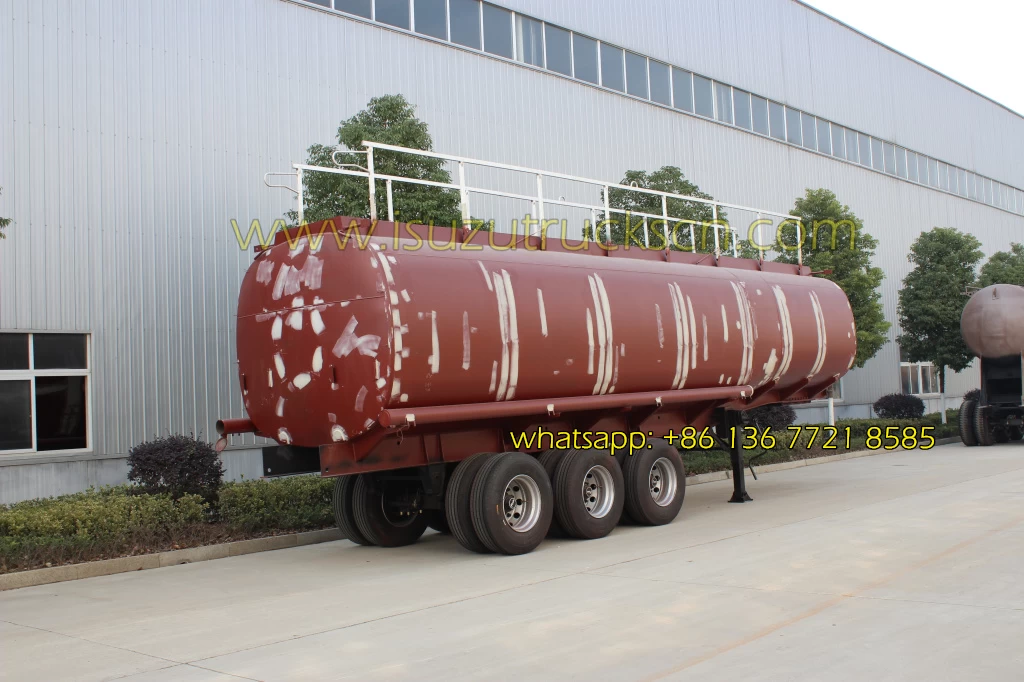

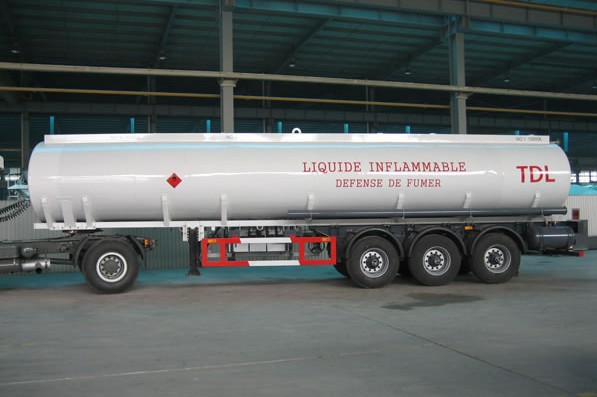

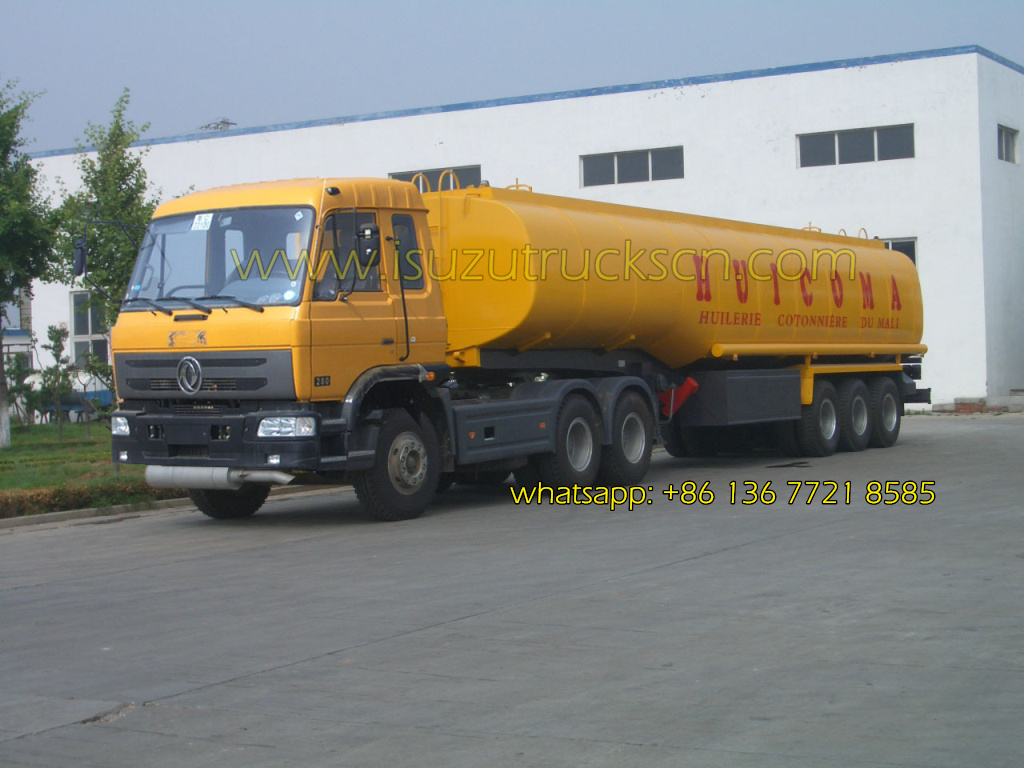

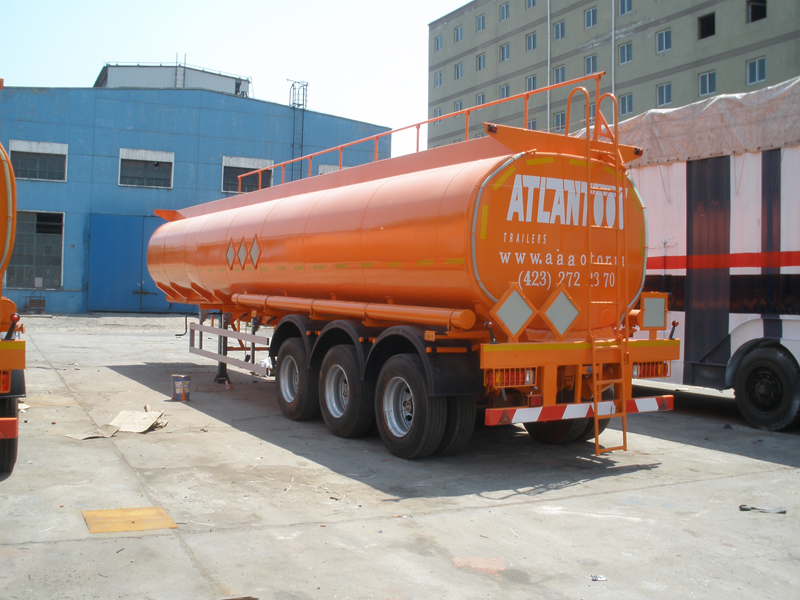

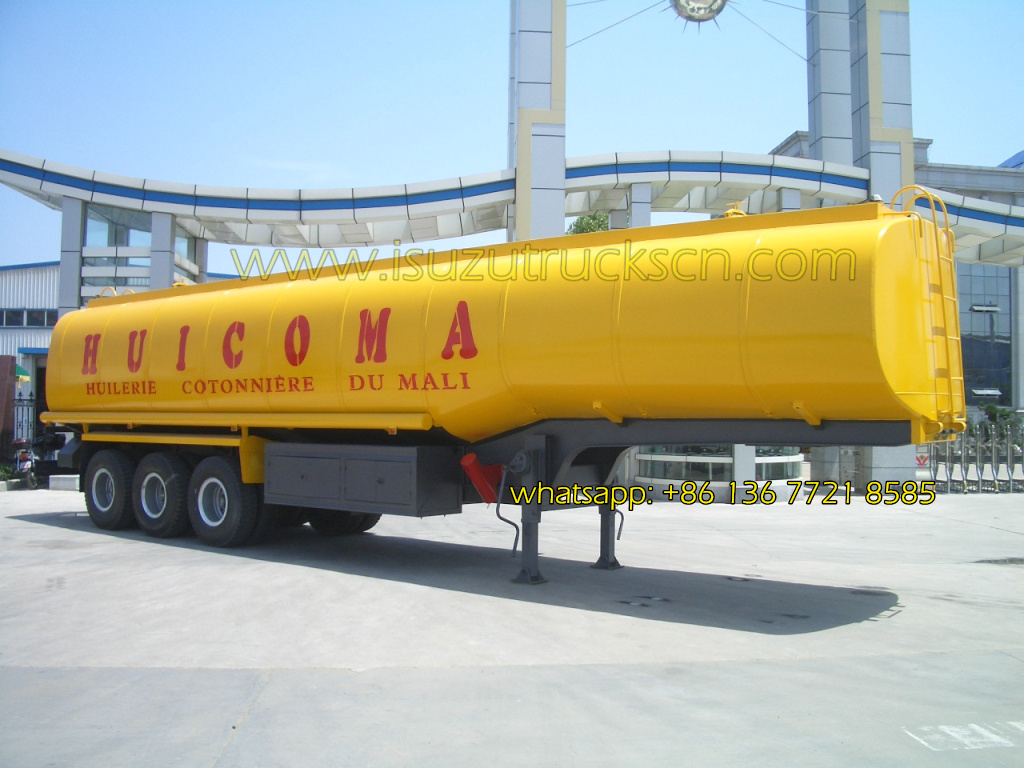

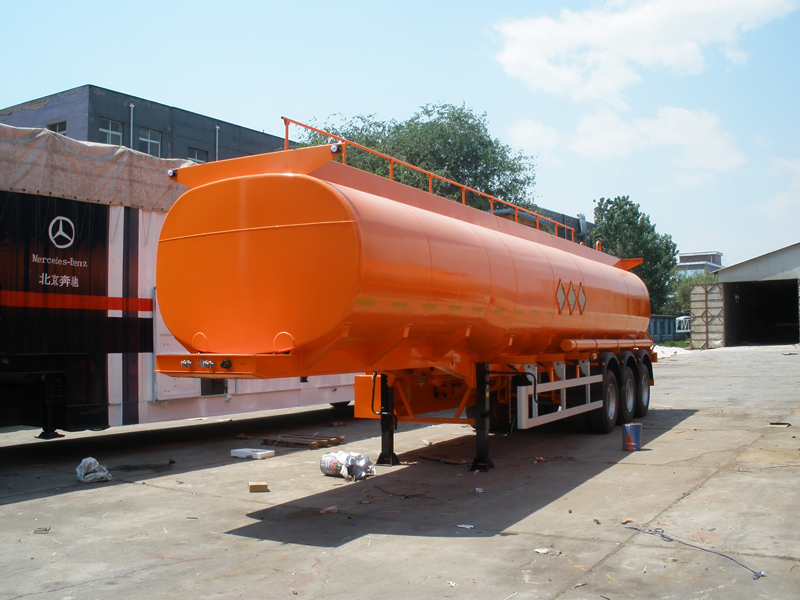

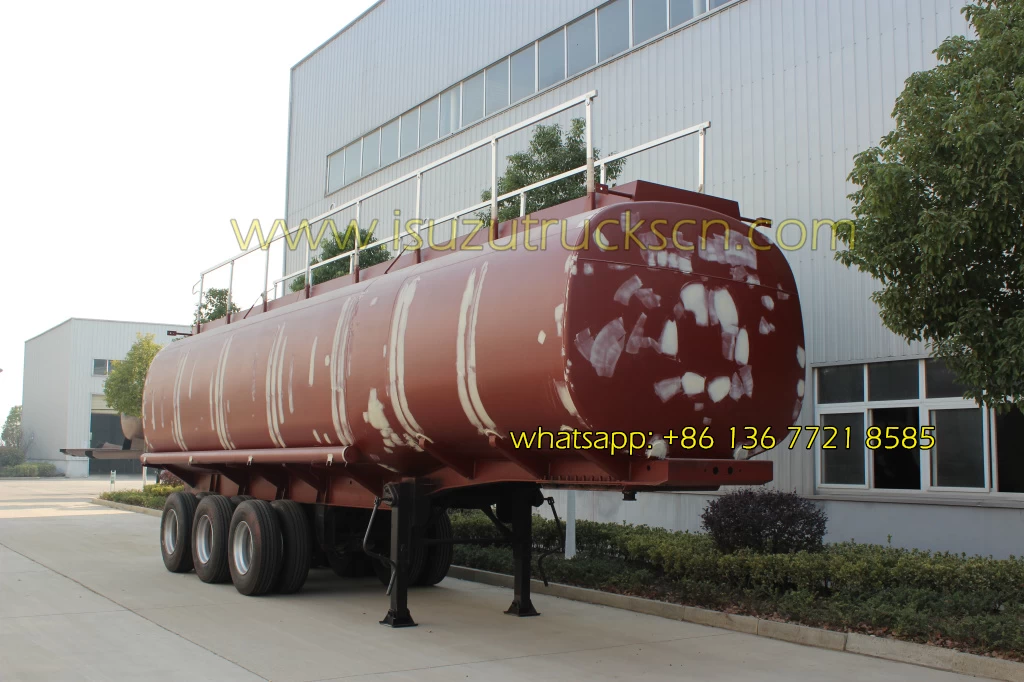

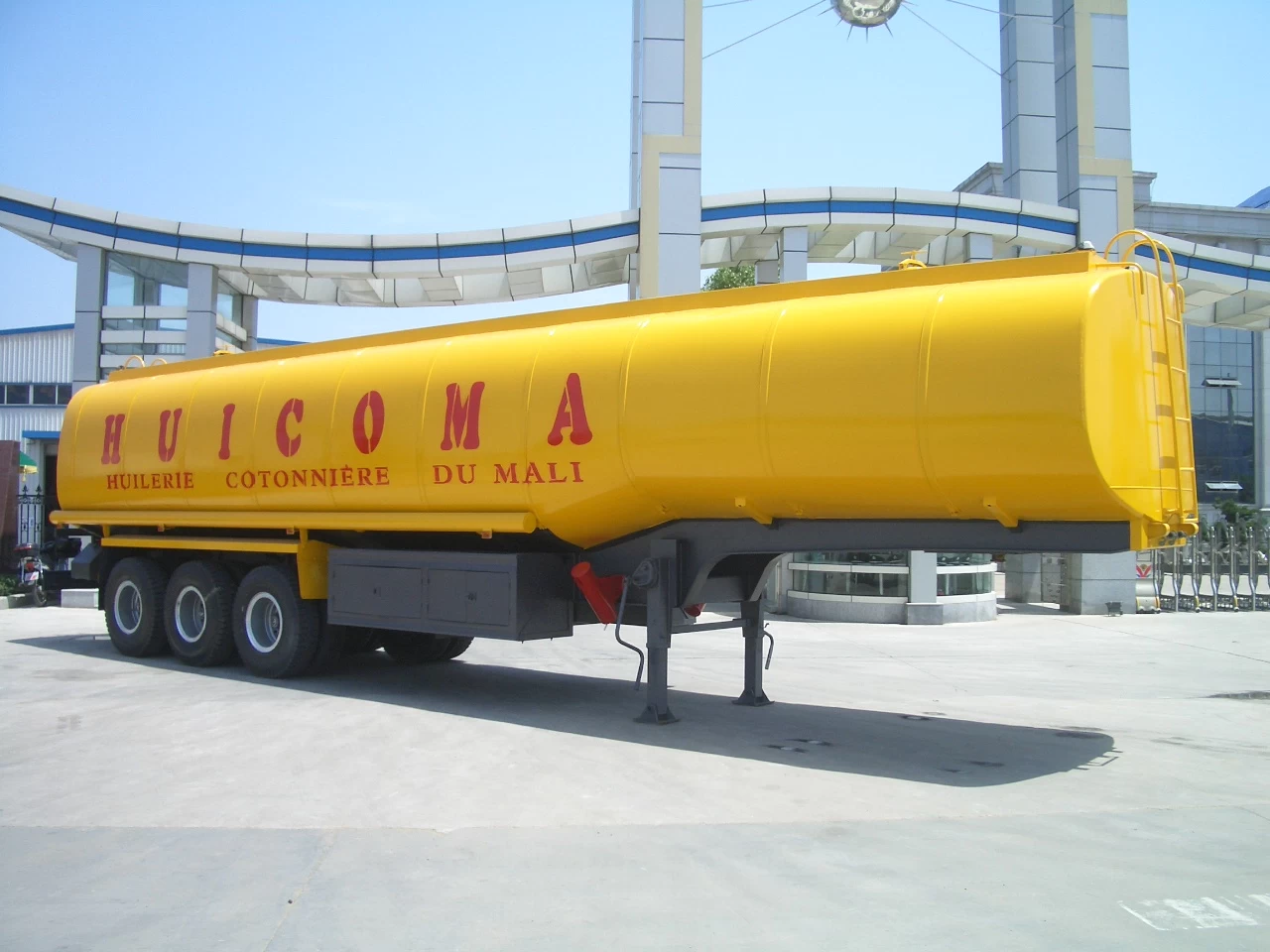

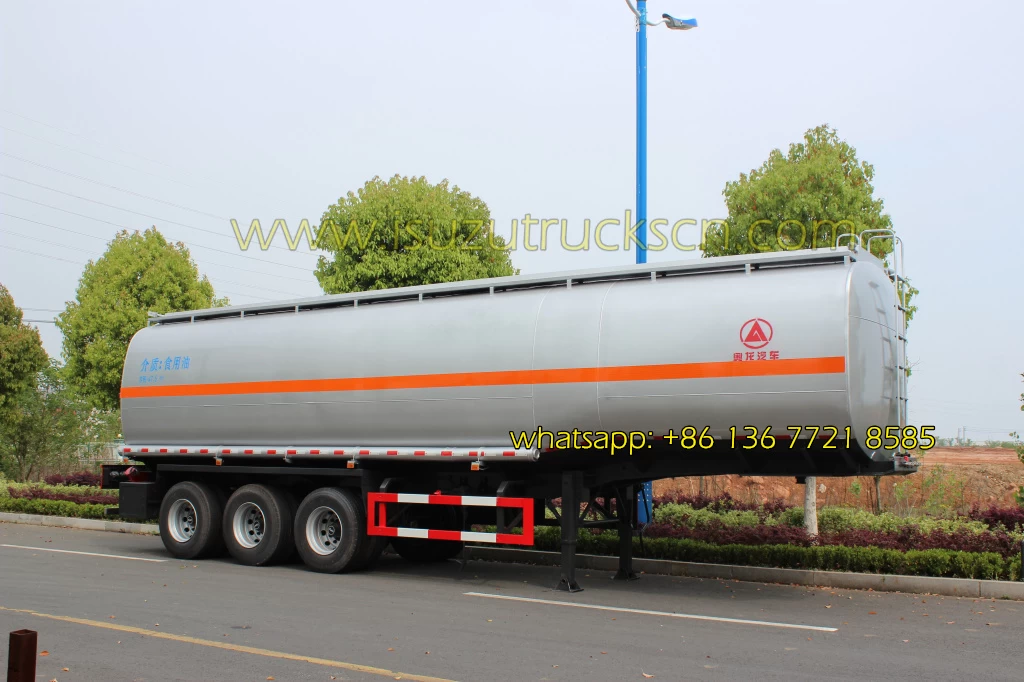

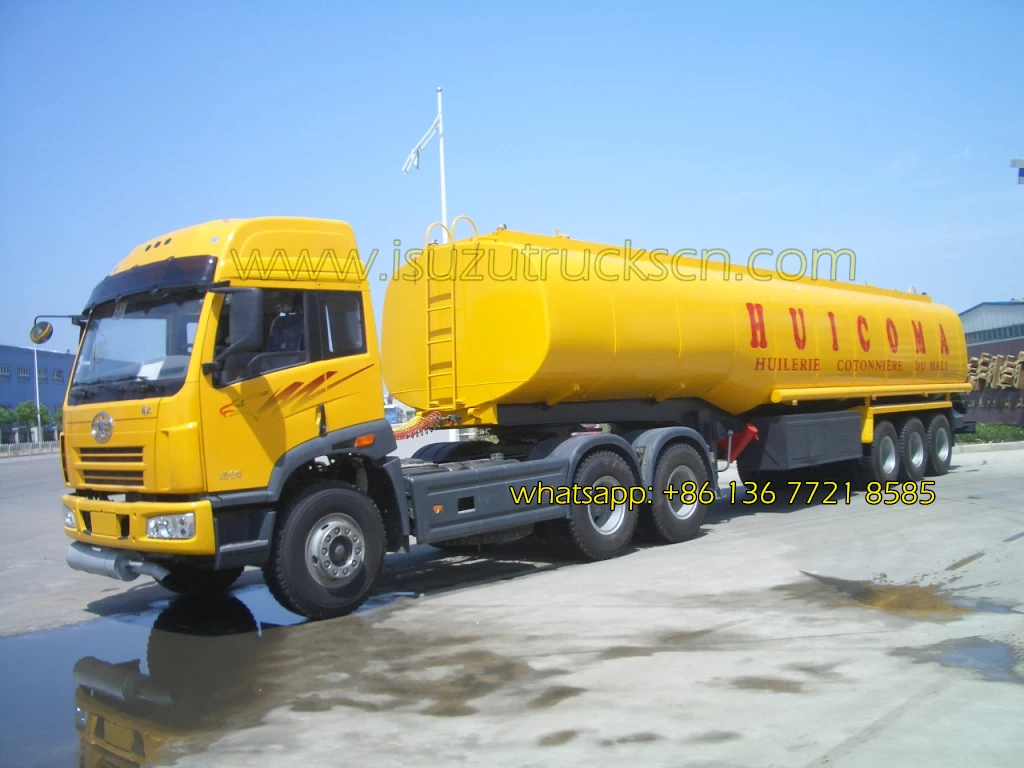

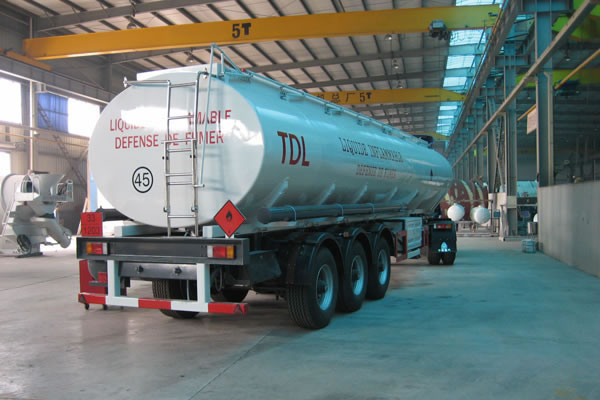

More customer build example:

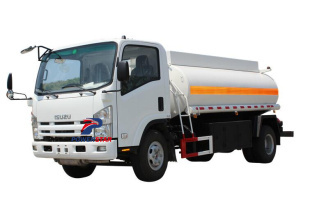

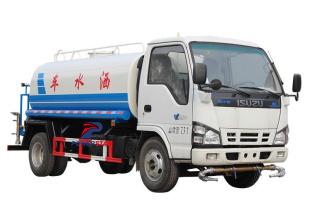

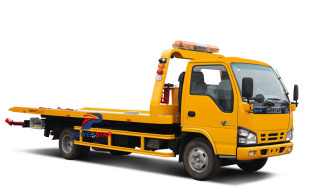

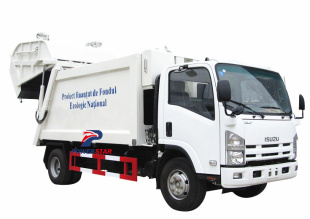

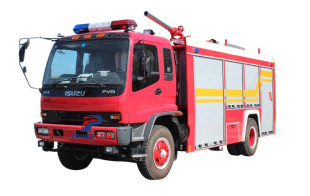

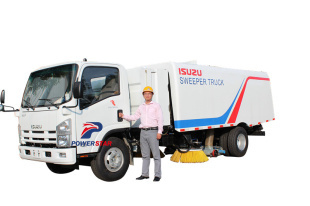

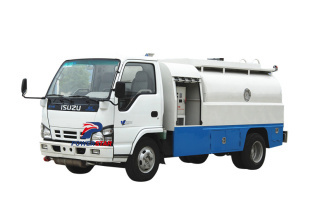

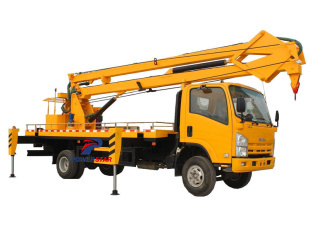

HOT sale Isuzu Trucks
