50 T heavy Low flatbed semitrailer exporter

TOP design 3 axle low bed semitrailer, Q345 I-beam, BPW axle with 12-20T optional, JOST landing legs and kingpin for top performance. our 50T capacity low flatbed semitrailers widely export Africa countries.



Low bed semi trailers are widely used for heavy duty goods transportation as its low working platform. So that, there's enough upper loading space. Its low gravity makes the vehicle running safety. We CEEC TRUCKS can design low bed trailer model according to your special goods transportation demands.



50 T 3-axle Low Flatbed Semitrailer exporter



50T low flatbed semi trailer

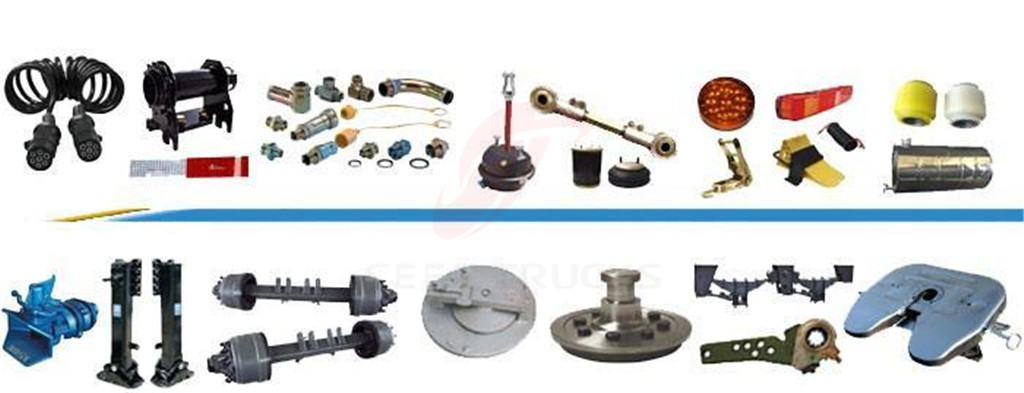

All the CEEC Low bed semi-trailer adopts famous brand as:

Axle: Famous brand axle support trailer durable and high attendance rate.

FUWA brand, BPW brand optional

Chassis: select the best material support stronger beam and trailer chassis.

China best carton steel material Q234, Q345B, T700.

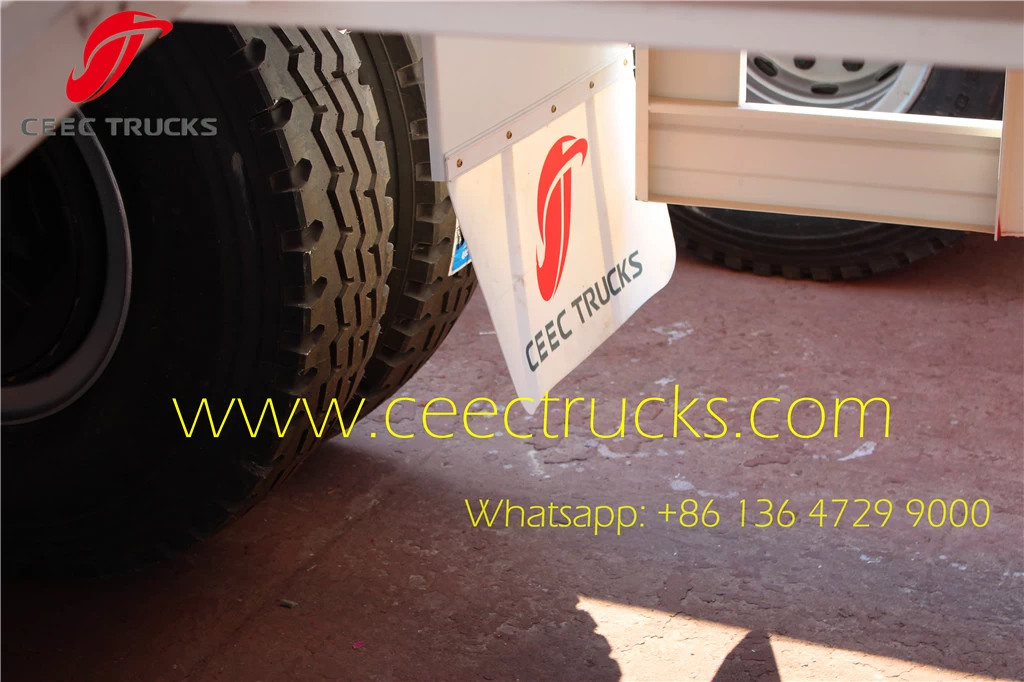

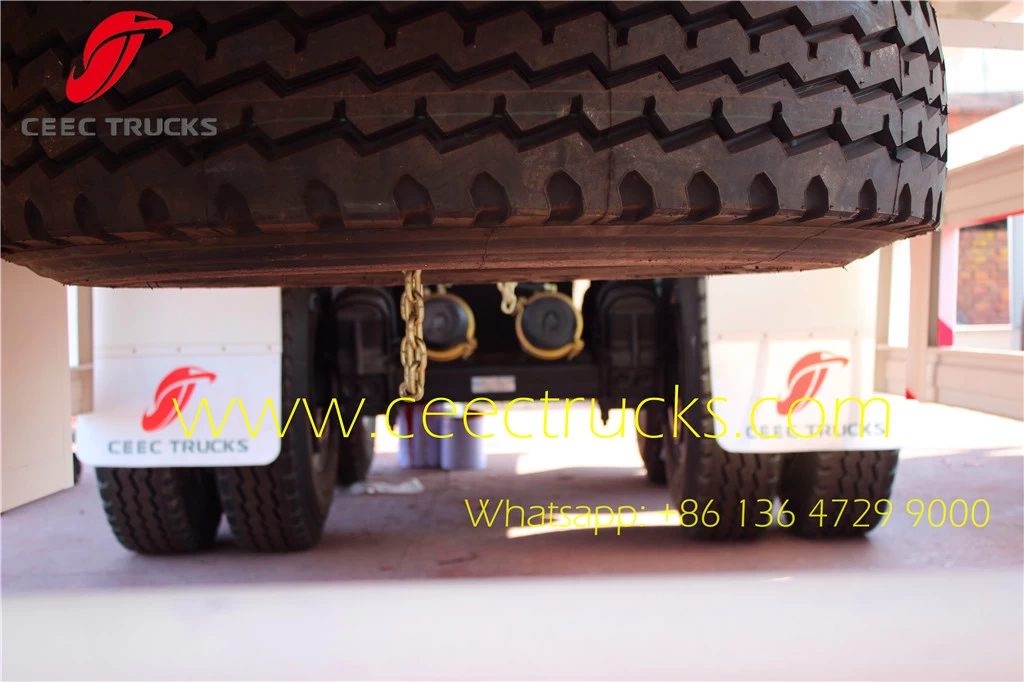

Tire: Famous brand tire and good quality support trailer running safety and smoothly for a variety of road conditions.

Tire Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5 optional

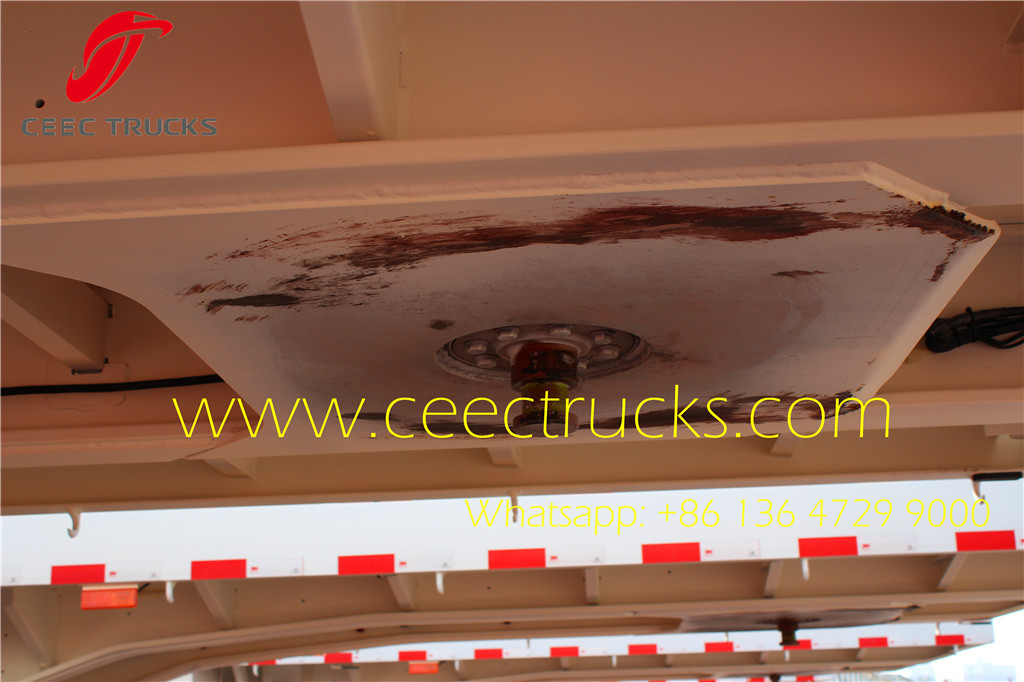

King pin: Detachable type support fast and easy replace, JOST brand optional.

Suspension: Mechanical suspension / Air suspension optional

Emergency valve: Fast response, low failure support safety and protect tire durable. WABCO brand.

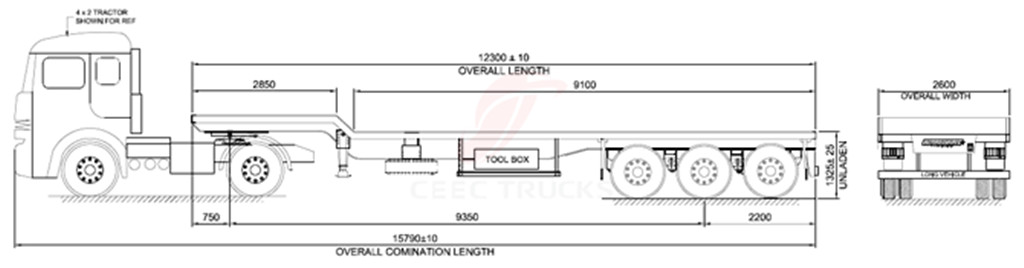

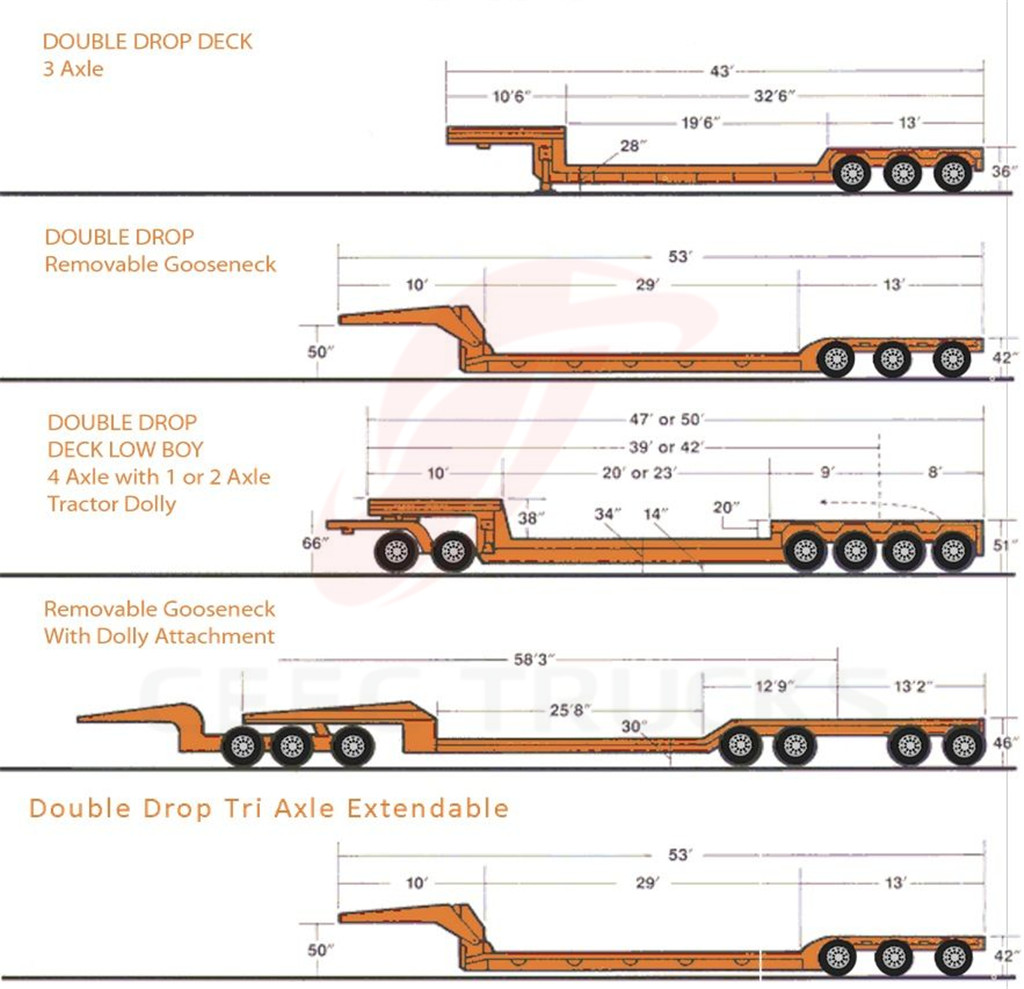

3 axle low bed semitrailers drawing



– Main beam material: Q345b

CEEC TRAILER 2-axle low bed semi trailer main beam is used in carbon steel Q345B.

Q345– good mechanical properties, high mild, good ductility and weldability, is mainly used as the low-pressure containers, tanks, vehicles, cranes, mining machinery, power plants, bridges, etc. under dynamic load configuration



-Shot blasting and Painting

 CEEC TRAILER trailer frame all shot blasting, shot peening.

Shot blasting and peening can improve use life, Improve the fatigue strength, Remove surface intensity and painting adhesion.

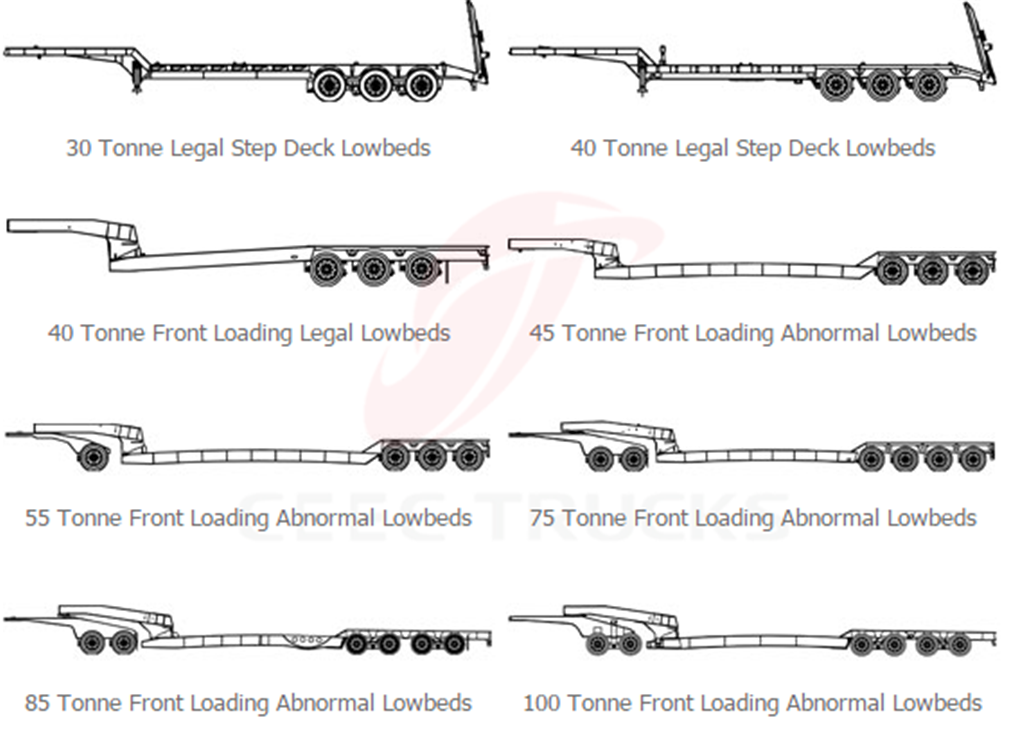

3 axle low bed semitrailers drawing

-Assembly

The entire frame is positioned in a dedicated carriage assembly, welded, reasonable structure, high strength, beautiful appearance

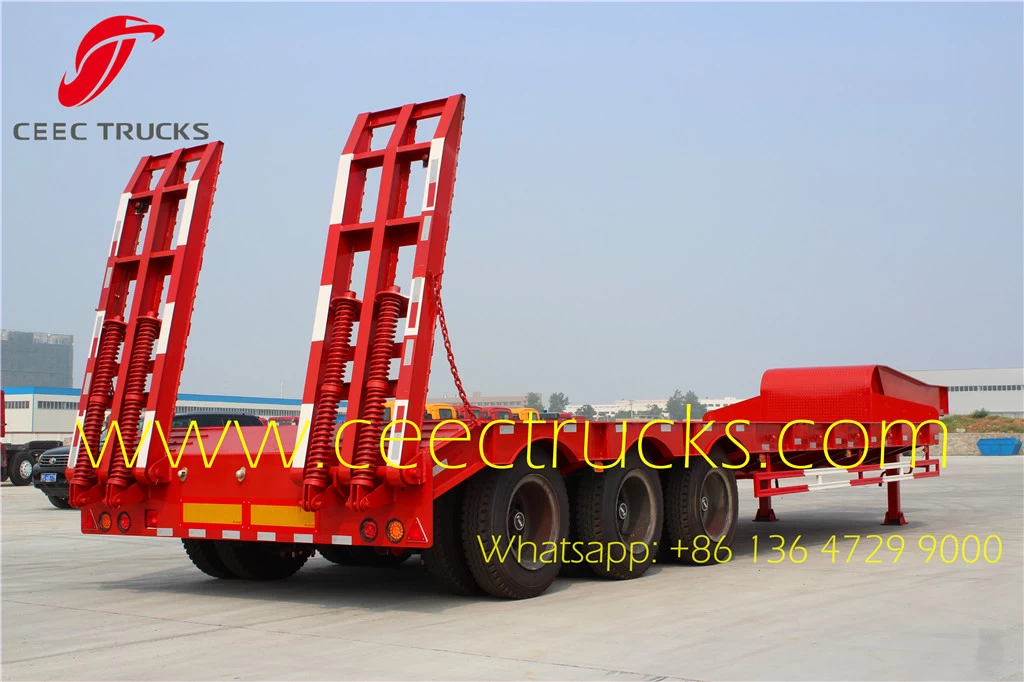

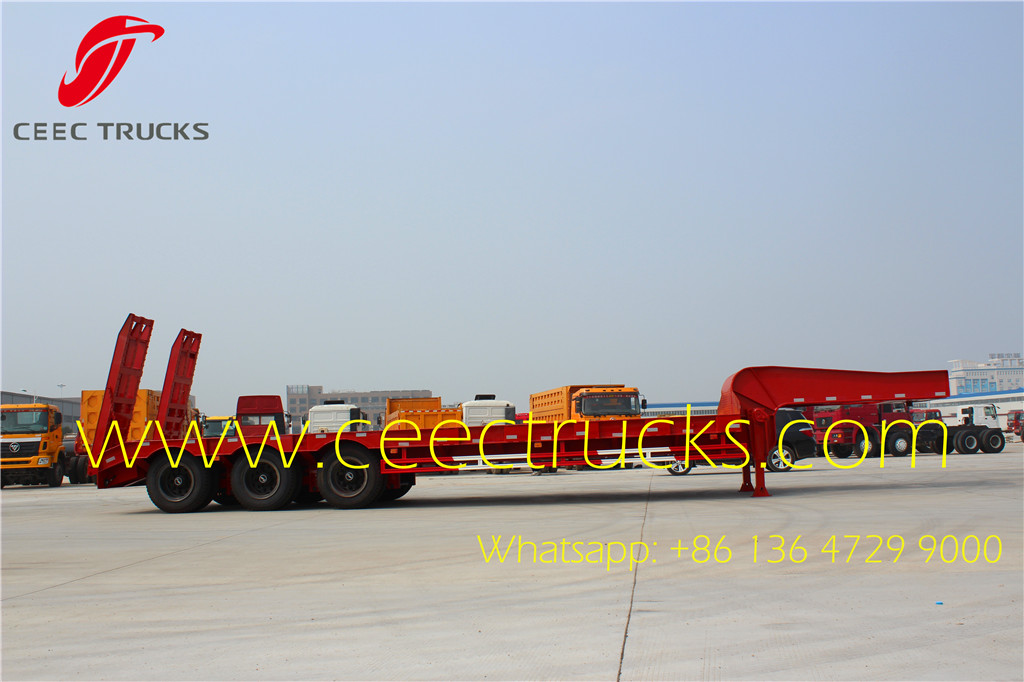

50T low flatbed semi trailer



CEEC TRUCKS produced 2-axle low bed semi trailer, 3 axle low loader, 4 axle low bed semitrailers, and multi tires low bed semitrailer are widely export africa countries: Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.

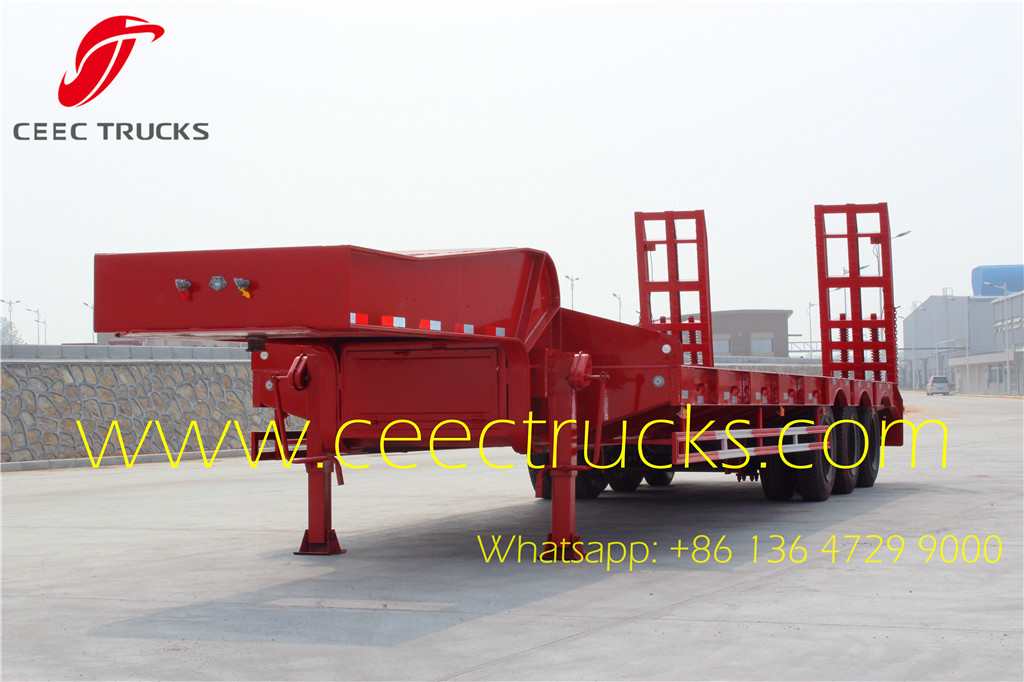

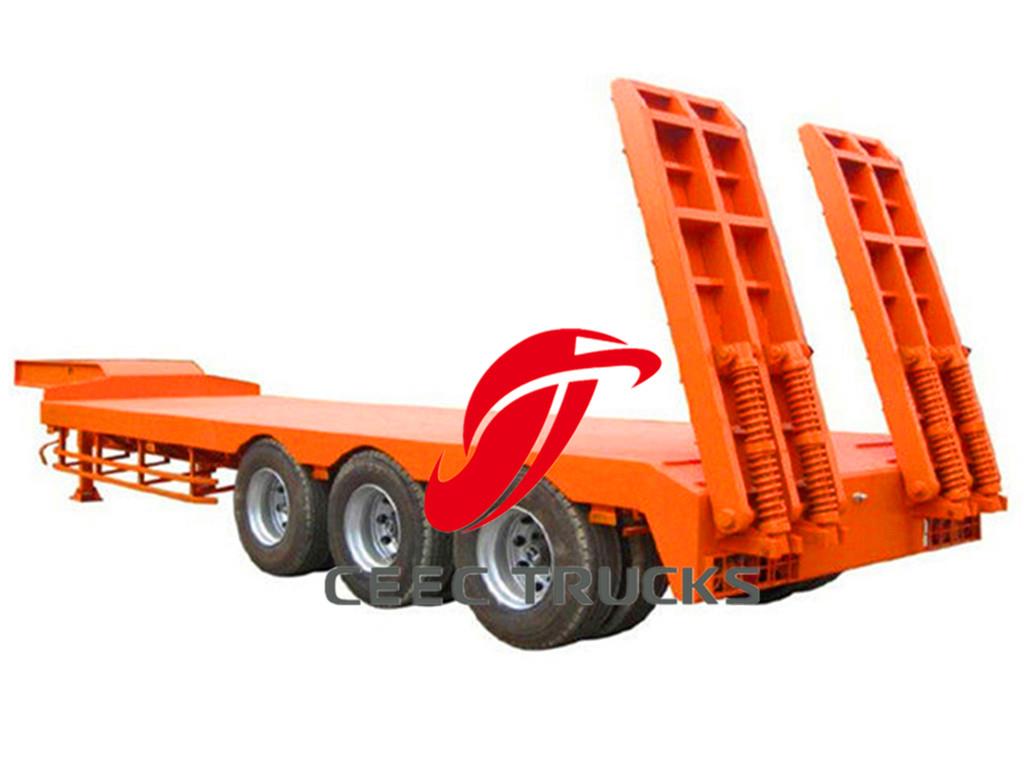

50T low flatbed semi trailers

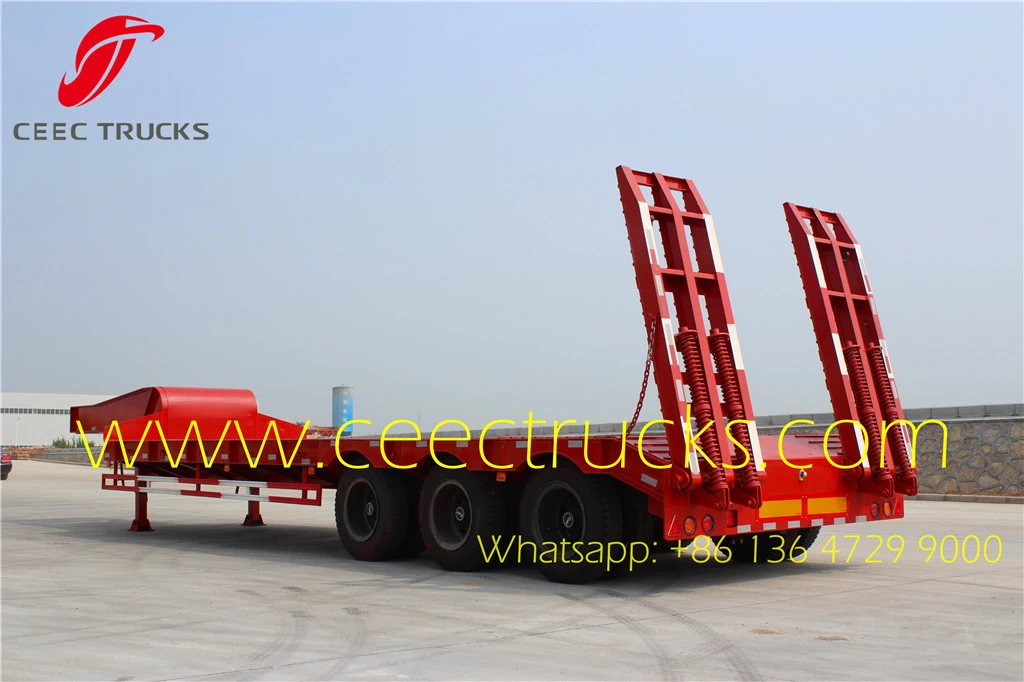

50T low flatbed semi trailers

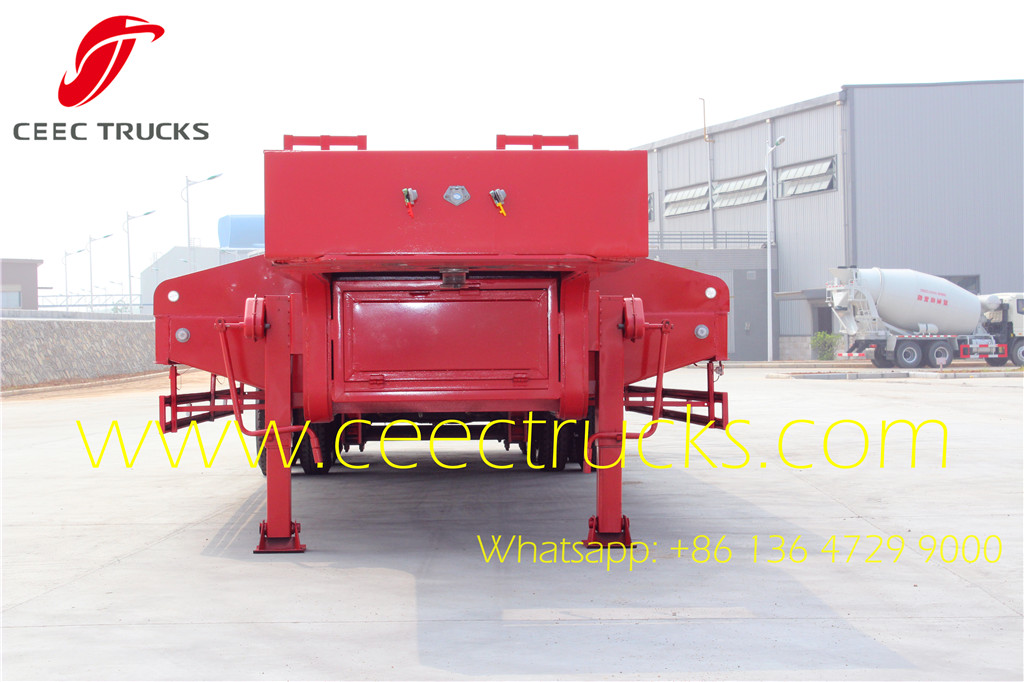

50T low flatbed semi trailers    50T low flatbed semi trailers



Similar Key Words: 60ton Platform lowboy trailer,50ton Extendable lowbed trailer, 60ton container low loader truck trailer,70-90ton Detachable goose neck trailer, 80ton hydraulic goose neck lowboy trailer, 100ton 2 lines 4 axles low bed trailer, 120ton 3 lines 6 axles low loader trailer,etc.

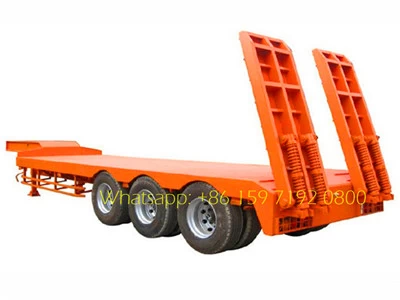

3 axle low bed semitrailers



3 axle 50T low bed semi trailer

Function

Big machine and cargo transport

Overall dimension

13000*3000*1650mm

Working plate size

9000*3000mm*1650mm

Curb weight

9000kgs

Loading weight

60000kg

Main beam

Carbon steel Q345B.The height 500 mm, upper plate 16mm,down plate 18mm,middle plate 10mm.

Side beam

16mm channel steel

Traction pin

2” (50mm) or 3.5’’(90mm) optional

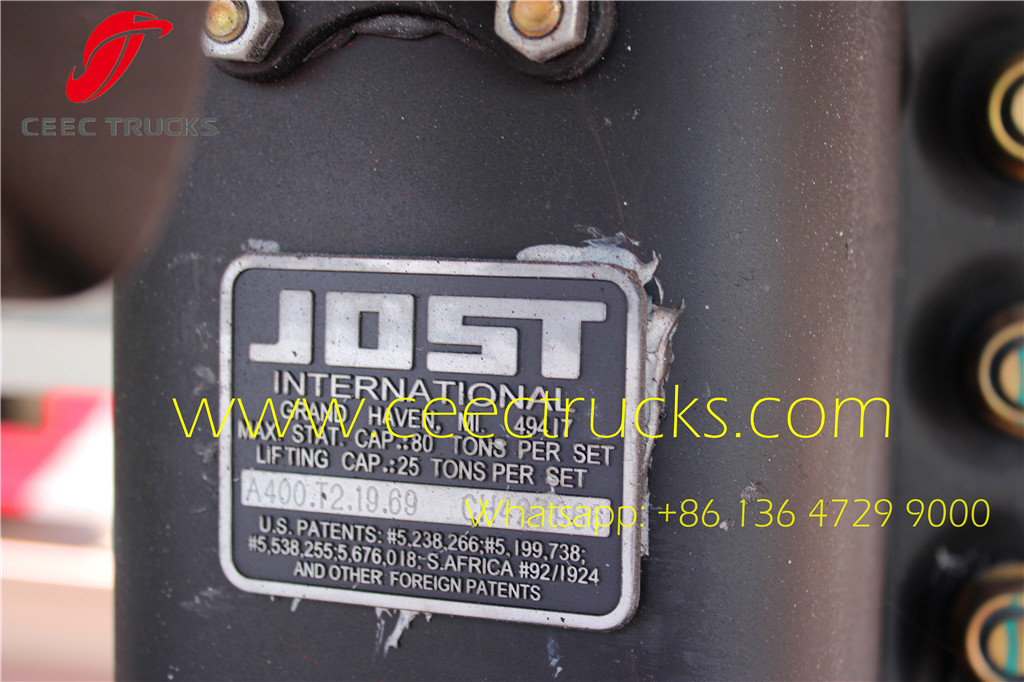

Land gear

Standard 28ton

Axle

13ton * 3 axle Fuwa brand

Wheelbase

8310+1310+1310mm

suspension

Mechanical suspension / Air suspension customized

Spring leaf

90mm*13mm*10pcs  10/10/10 leaf spring suspension

Tire

Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5

Tire quantity

12 units

Rim

9.00-22.5 12pcs

platform thickness

5mm Diamond plate

valve

WABCO RE 6 relay valve

Brake Chamber

T30/30+T30 6 brake chamber,one piece of 45L air tanks

Tool box

1 unit 1m*0.5m*0.5m

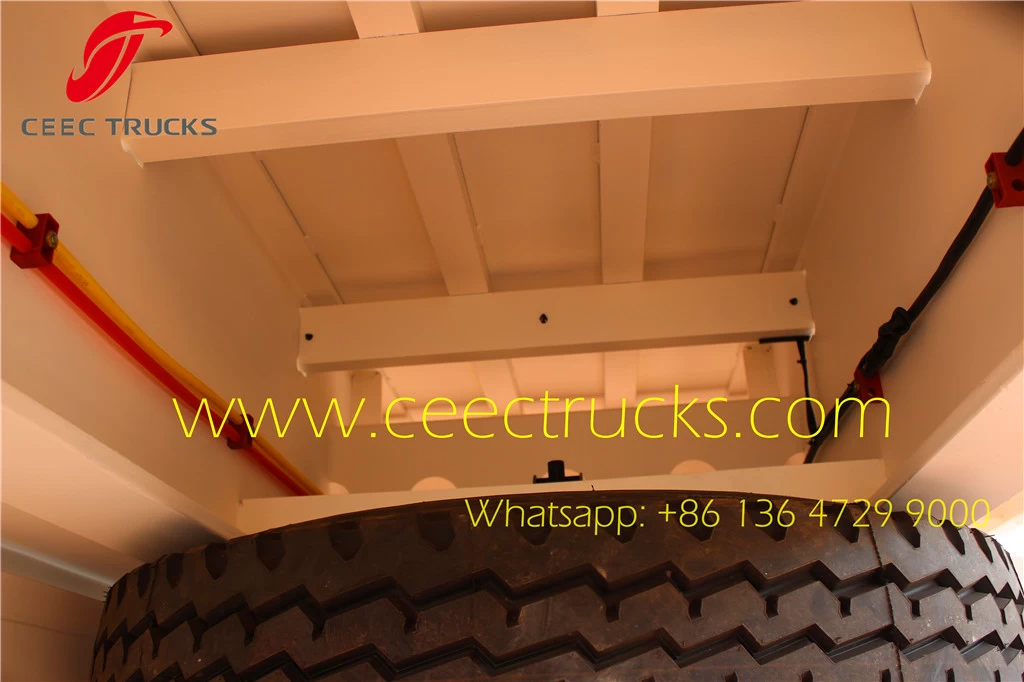

Spare wheel carrier

2 units

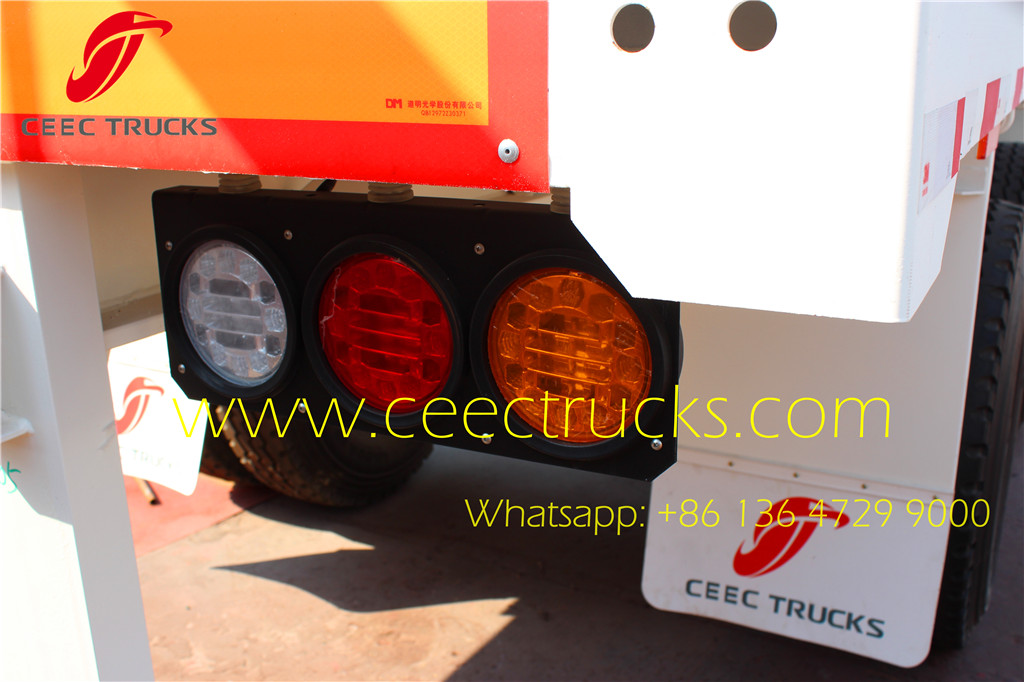

Marker lamp

LED type

Voltage

24V

Receptacle

7ways (7 wire harness)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint



50T low flatbed semi trailers



50T low flatbed semi trailers     50T low flatbed semi trailers



50T low flatbed semi trailers     50T low flatbed semi trailers

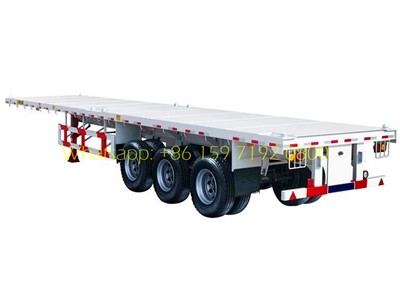

China Best Semitrailer on sale
