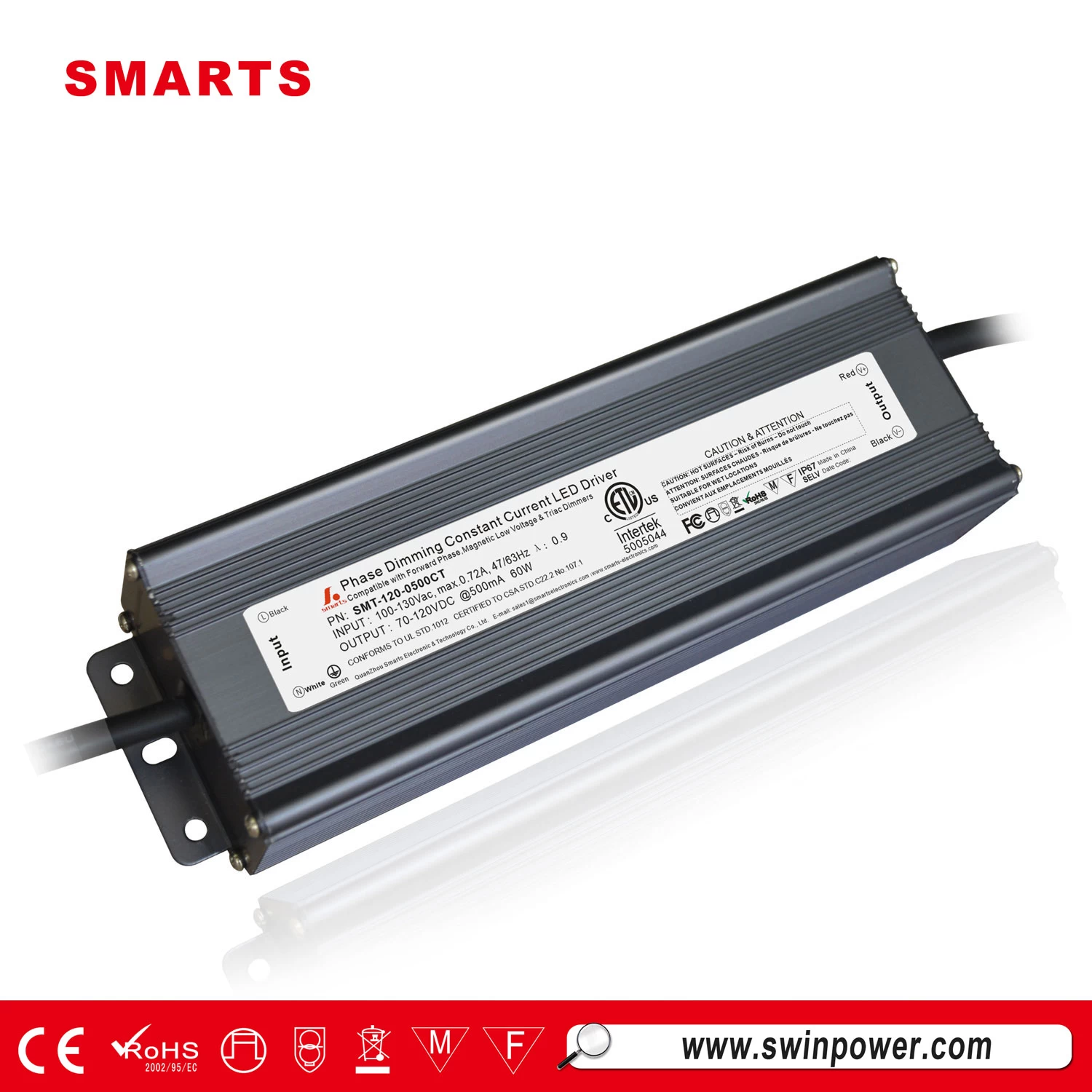

500mA 60W constant current led driver for triac dimming control
500mA triac dimmable led driver are high efficiency high reliablity,save energy,protected environment,longh life .The universal AC input of this series led driver is 100-130vAC/170-265vAC.
Specification
|
Model
|
SMT-120-0500CT
|
SMT-086-0700CT
|
SMT-070-0900CT
|
SMT-056-1050CT
|
|
Output
|
DC Current
|
500mA
|
700mA
|
900mA
|
1050mA
|
|
|
Current Accuracy
|
±5%
|
|
|
Voltage Range
|
80-120V
|
45-86V
|
35-70V
|
40-56V
|
|
|
Rated power
|
60W
|
60W
|
63W
|
58W
|
|
Input
|
Voltage Range
|
100-130VAC / 170～265VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor （Typ.）
|
PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V
|
|
|
Full Load Efficiency（Typ.）
|
>85%
|
>85%
|
>85%
|
>85%
|
|
|
AC Current（Typ.）
|
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
|
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over voltage
|
≦270VAC
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN-61347-1-2
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
|
EMC IMMUNITY
|
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
0.34Kg/pcs
|
|
|
Size
|
200*68*45mm （L*W*H）
|
|
|
packing
|
324*298*176mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a
0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Problem analysis:
Question:
What is Dimming Operation for triac dimmable constant current led driver ?
Answer:
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.Compatible with Leading edge or tailing edge triac dimmers.
please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
