50L Vacuum Emulsifying Toothpaste Making Machine


Vacuum Toothpaste Making Machine is a multi-functional complete system of mixing, dispersing, homogenizing, emulsifying and powder absorption. It is a special equipment for producing medicinal ointment, high-end cream, lotion and toothpaste




Product Description:

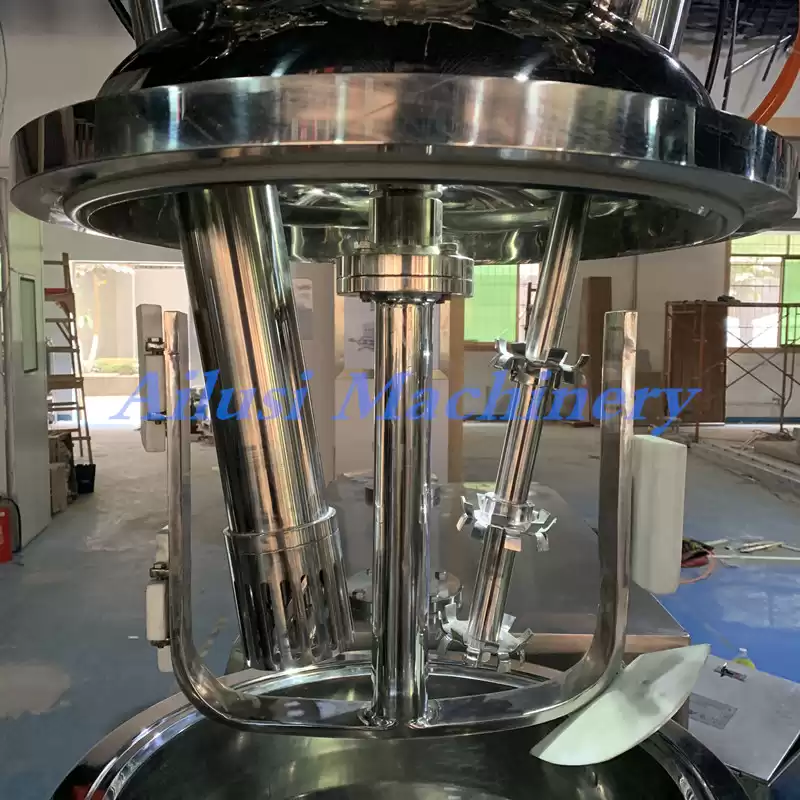

1. Polytetrafluoroethylene scraping board cater to the body of the blending groove and scrape out viscosity material on the boiler wall.

2. Two set disperser is installed on bottom to increase motor power more thoroughly and strongly. One powder mixer pot, for mixing powder, During a few produce, it can exert dispersing effect fully

3. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut、rubbing, centrifugal to make sure exquisite and slick paste; machine body and pipe surface mirror polishing  accords with Daily Chemical and GMP regulation.


Homogenizer Mixer Type and Liquid Application electric Toothpaste Making Machine is mainly composed of water pot, oil pot, powder pot, emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.


Customer can choose frequency conversion timing disperser and highest rotate speed is 1440 r/min.

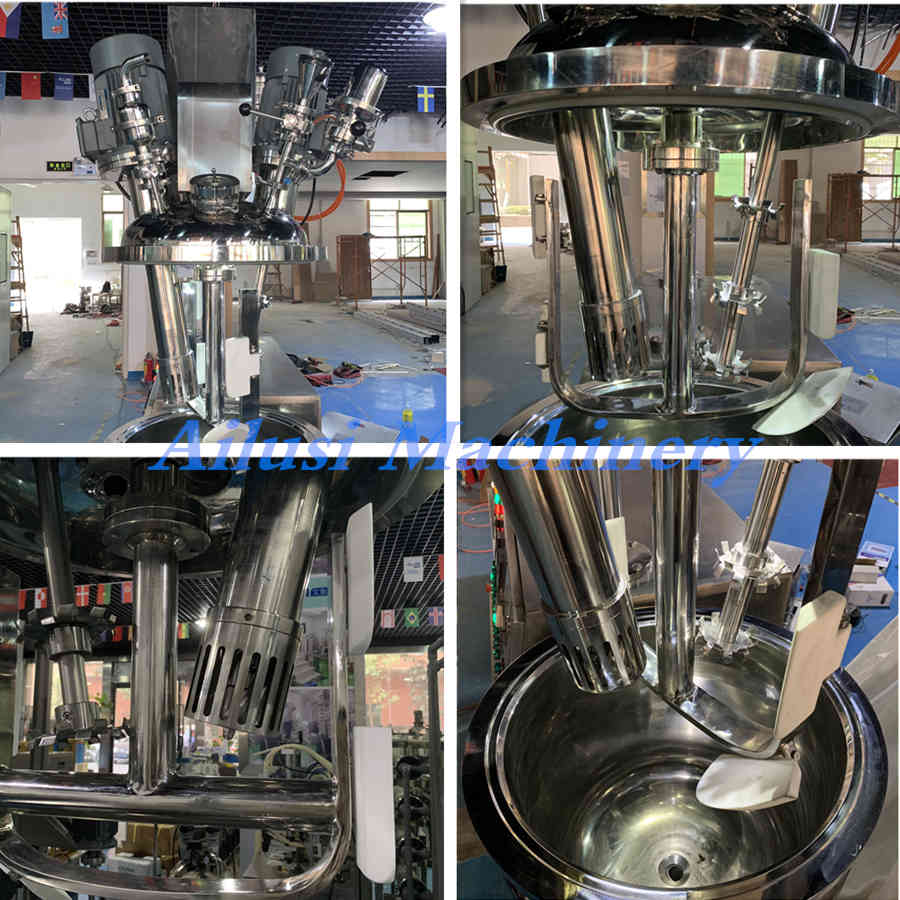

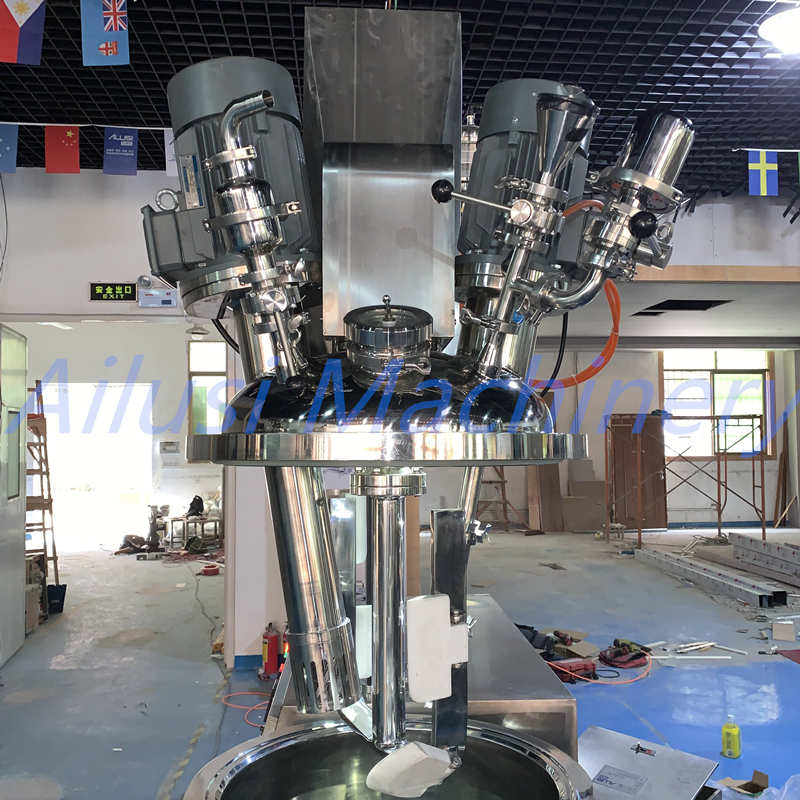

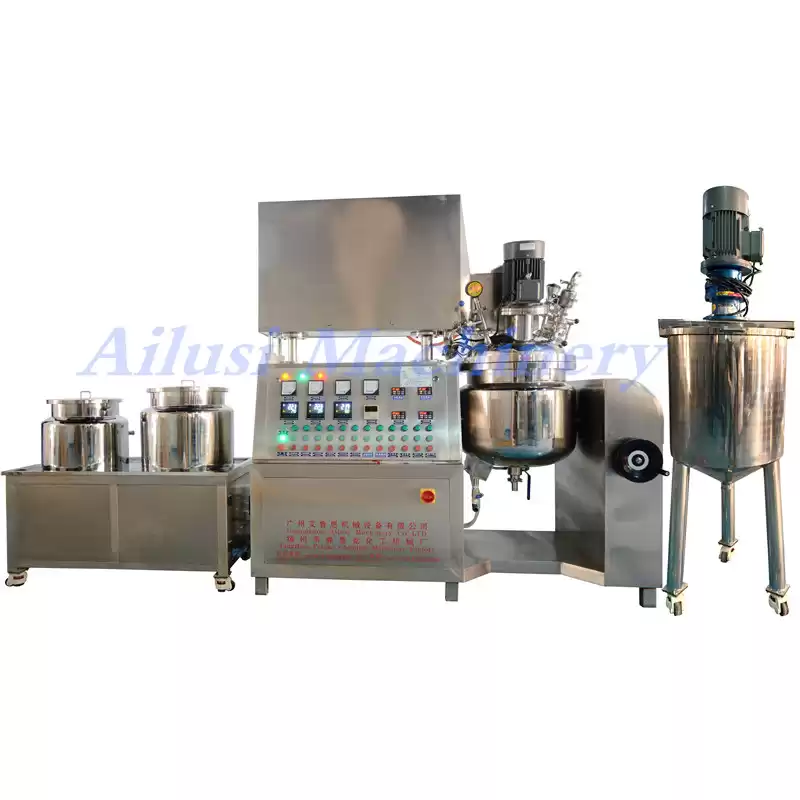

Toothpaste Making Machine

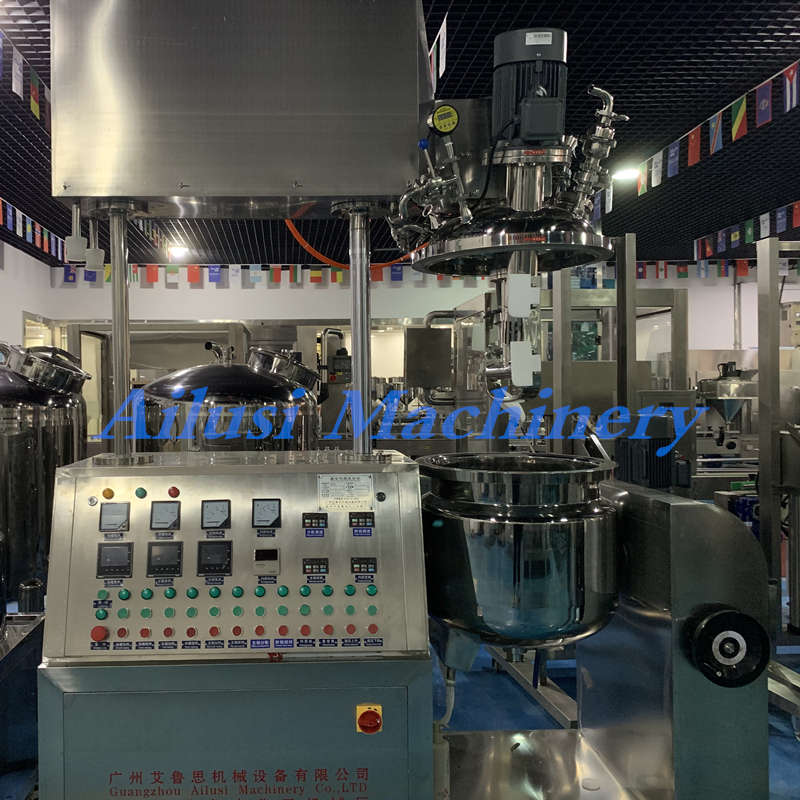

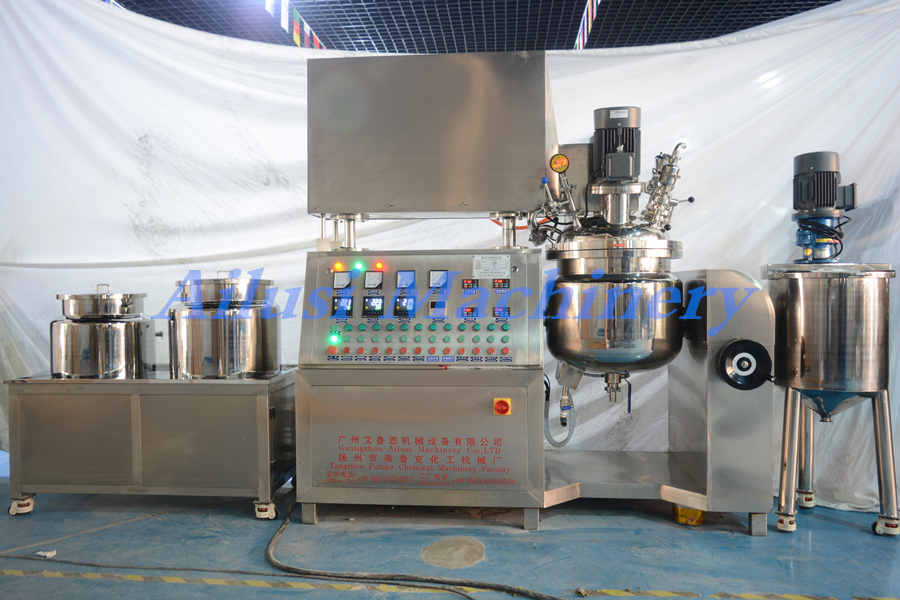

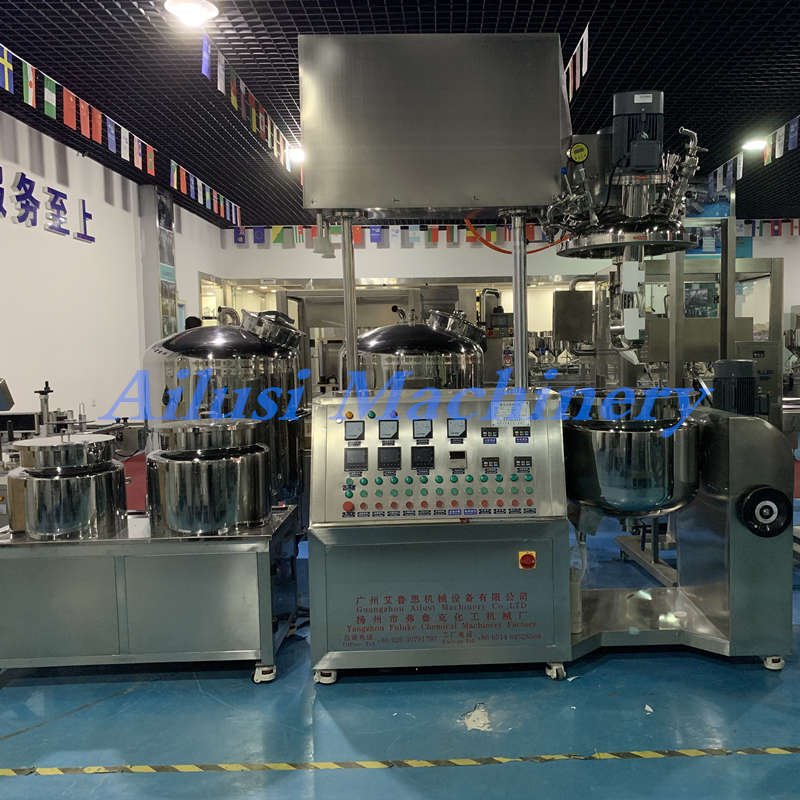

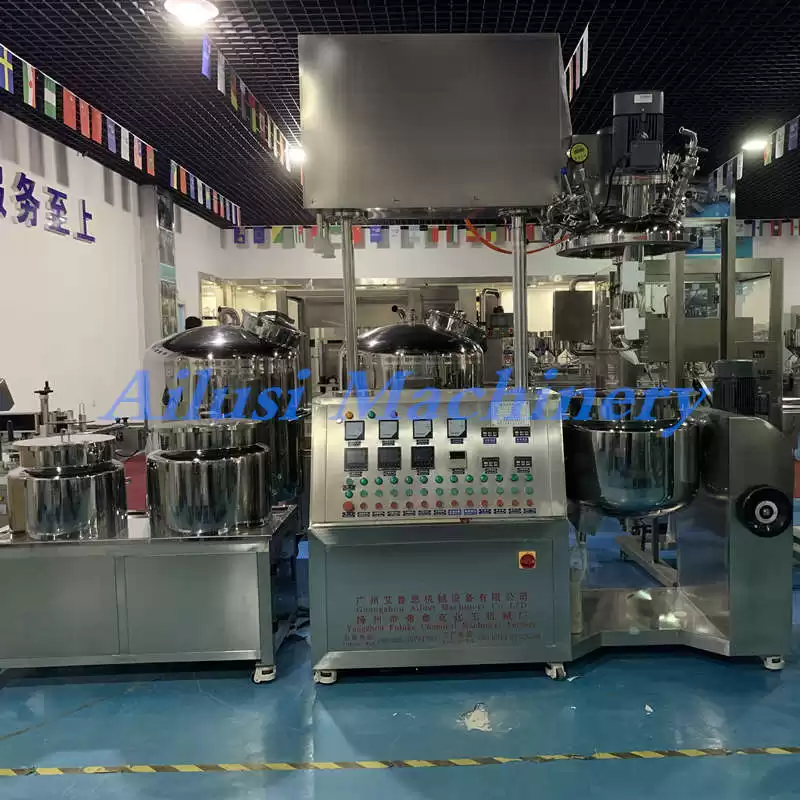

Vacuum toothpaste Making machine

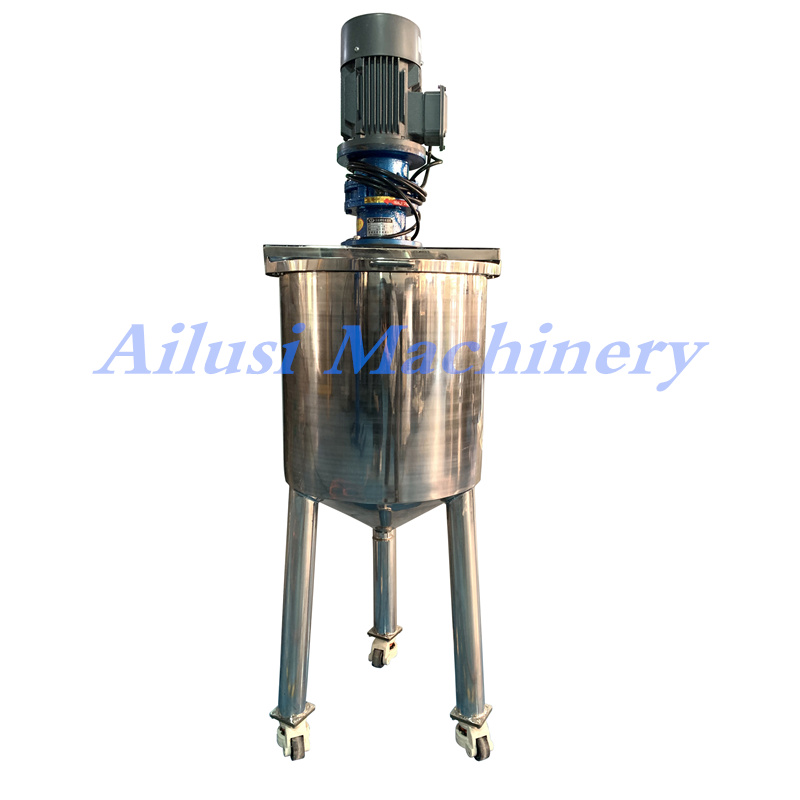

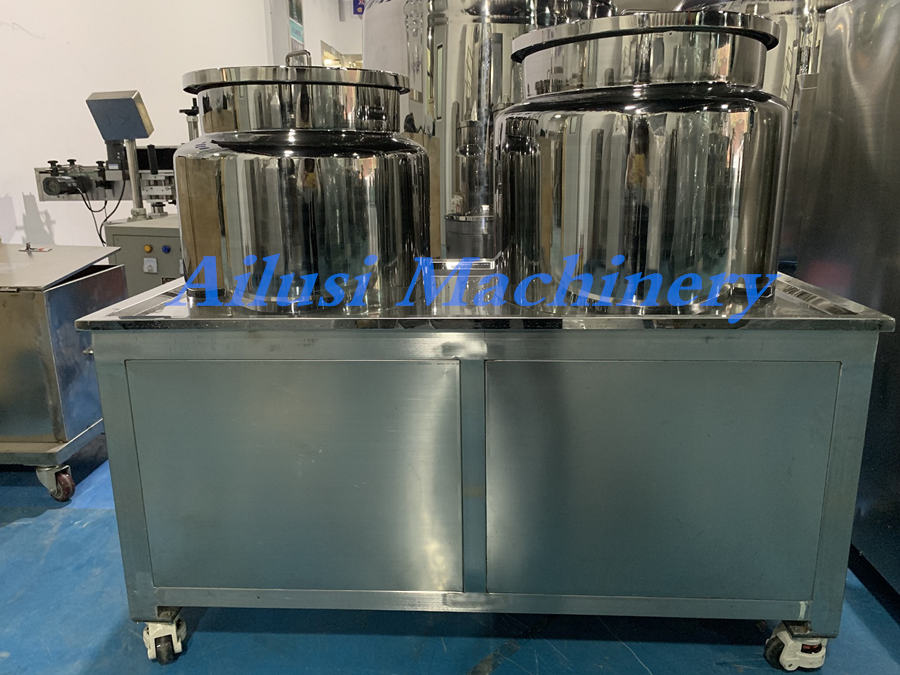

Oil and water tank of Vacuum mixer

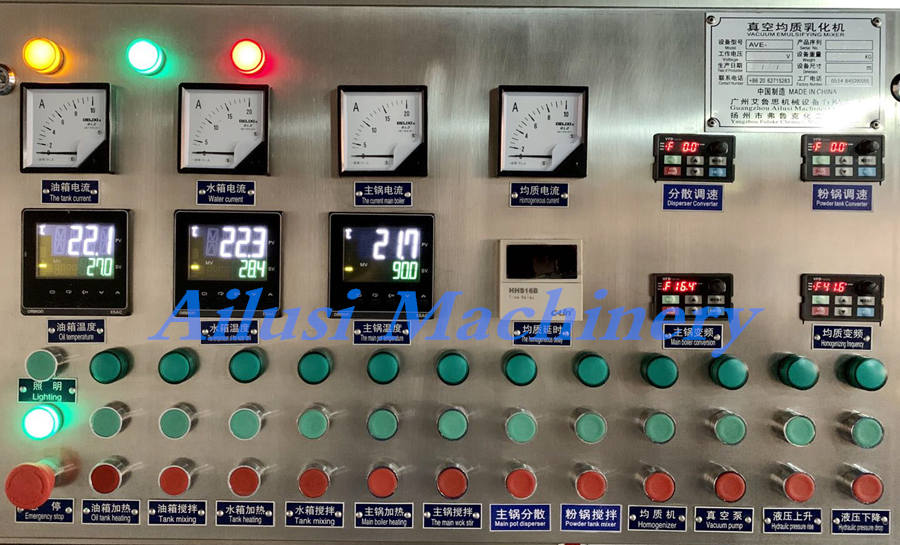

Electric box of Vacuum toothpaste mixer


Product Parameters:

Working capacity (L)

Agitator power (kw)

Speed (rpm)

Homogenizer power (kw)

Speed (rpm)

Oil/Water tank (L)

Agitator power (kw)

Speed (rpm)

Hydraulic (KW)

50

1.5

0~75

2

0~3600

20/45

0.37/0.37

0~1440

0.75kw

100

2.2

0~75

3

0~3600

40/90

0.55/0.55

0~1440

0.75kw

200

3

0~75

5.5

0~3600

80/180

0.75/0.75

0~1440

1.1kw

300

4

0~75

5.5

0~3600

120/270

1.1/1.1

0~1440

1.5kw

500

4

0~75

7.5

0~3600

200/450

1.5/1.5

0~1440

1.5kw

1000

5.5

0~75

11

0~3600

400/900

2.2/2.2

0~1440

2.2kw

2000

7.5

0~75

15

0~3600

800/1800

2.2/2.2

0~1440

-

3000

11

0~75

18.5

0~3600

1200/2700

3/3

0~1440

-


Packing:

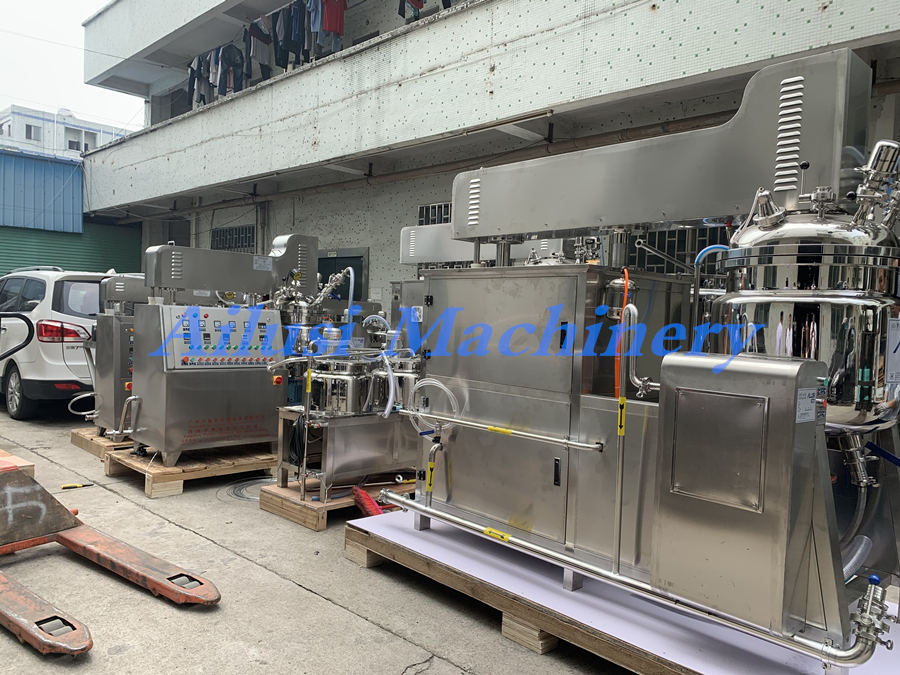

Packaging of Vacuum emusifying mixer


Our Servers:

We provide Turn-key project service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service.

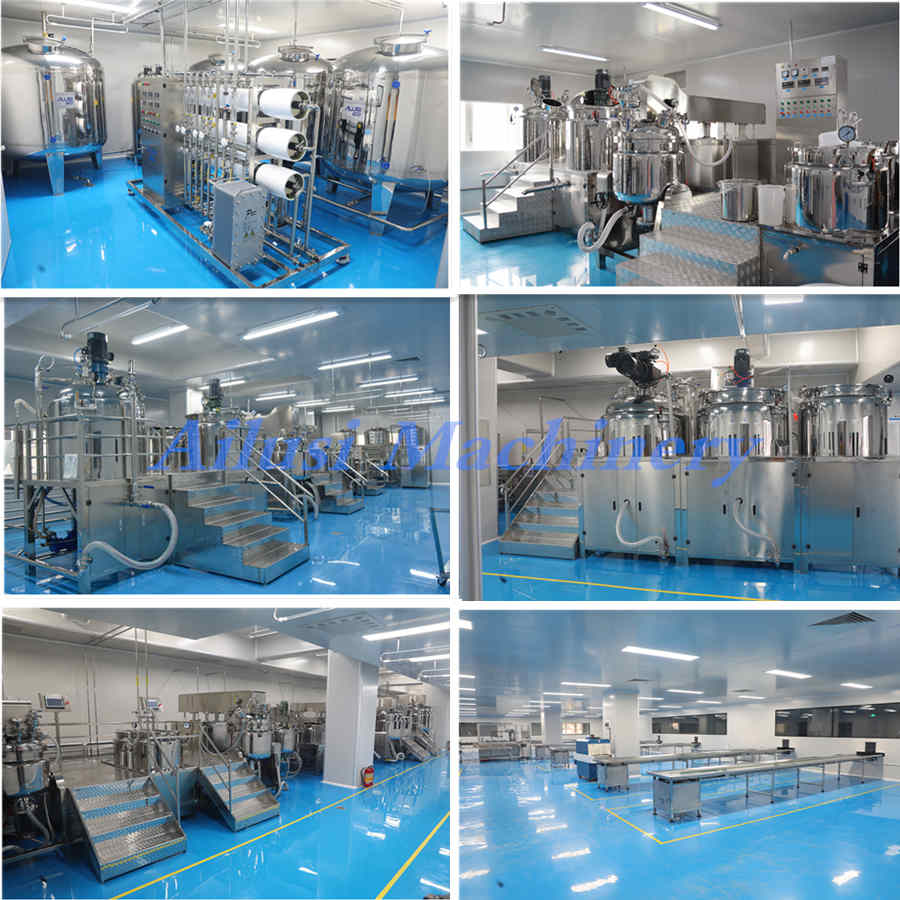

Case of factory
