50W Fixed Attenuator 7-16 DIN Male to N Type Female DC-3GHz/4GHz 1-50dB Avaliable

7-16 DIN Attenuator Features:

  • 7-16 DIN connector input, out connector can be N or 7-16 DIN;
  • Maximum frequency of 18GHz;
  • A female gender in and a female or male gender out;
  • Attenuation values range from 1dB to 60dB.



50W Fixed Attenuator 7-16 DIN Male to N Type Female DC-3GHz/4GHz 1-50dB Avaliable

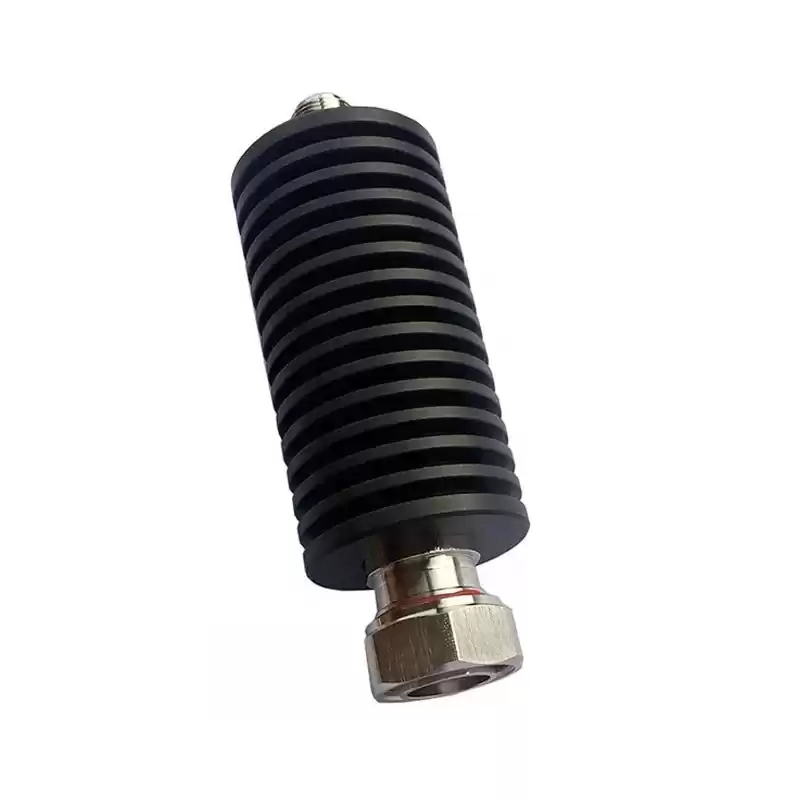

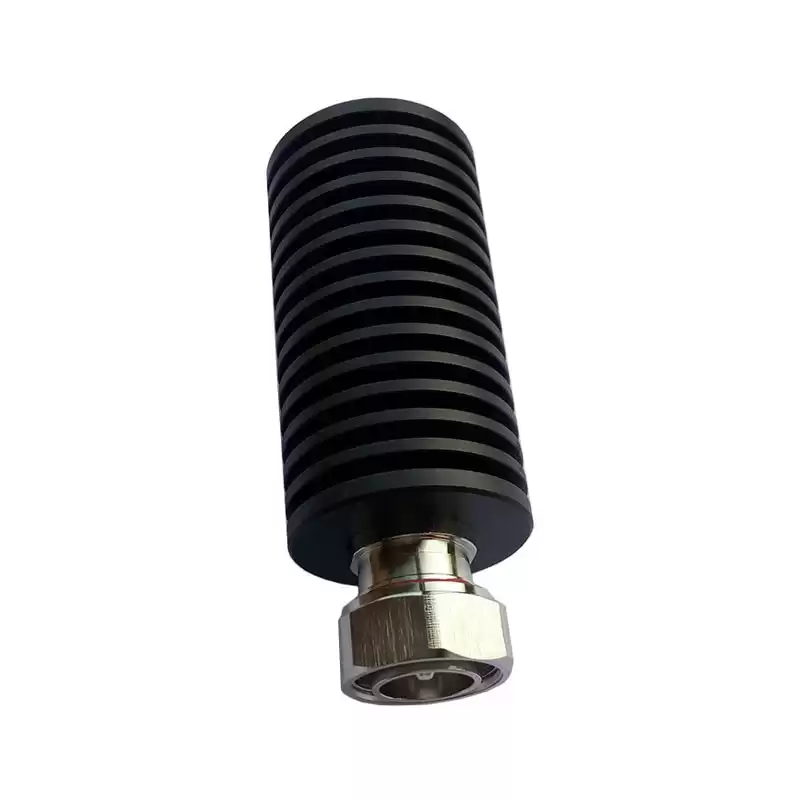

The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 7-16 DIN Attenautor is a High Power Coaxial Attenuator from 25 to 100W, and we offer 50ohm loads terminations male and female type. This 50W 7-16 DIN to N Attenuator has a 7-16 DIN male gender on side 1 and a N Type female connector on side 2. attenuation Max value is 50dB, frequency Max is 18GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector 7-16 DIN Male to N Female
VSWR ≤1.3
Power 50W
Impedance 50Ω
Attenuation value 1-50dB
Attenuation 1, 3, 6, 10, 15, 20, 30, 40, 50dB available
1-10dB±0.8dB, 15-30dB±1dB, 40-50dB±1.5dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Cluster communication
  • satellite communication
  • Hopping radio
  • Radar, electronic navigation
  • Electronic confrontation
  • Aerospace equipment systems
