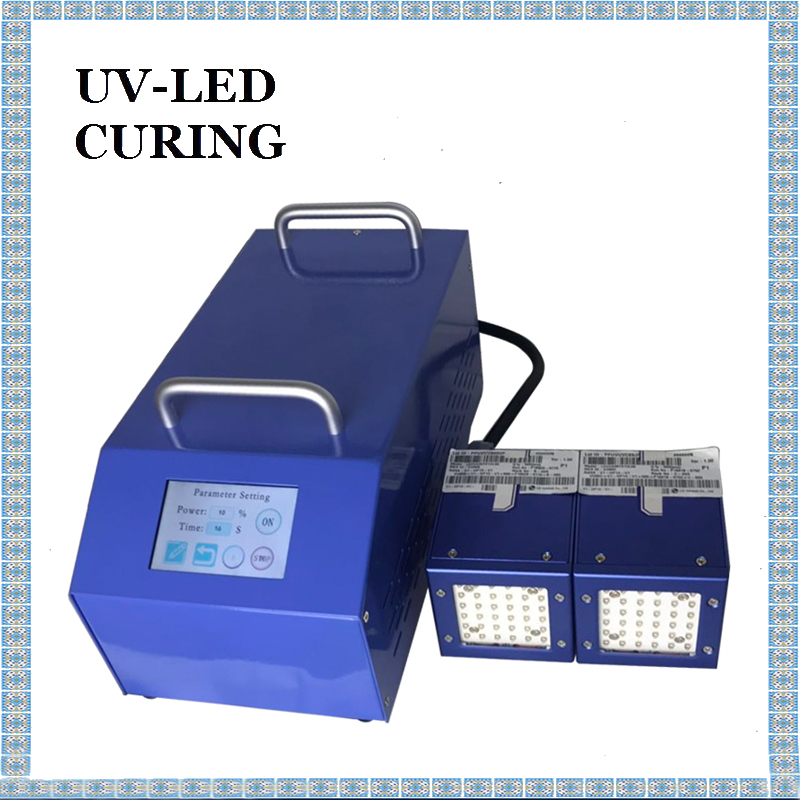

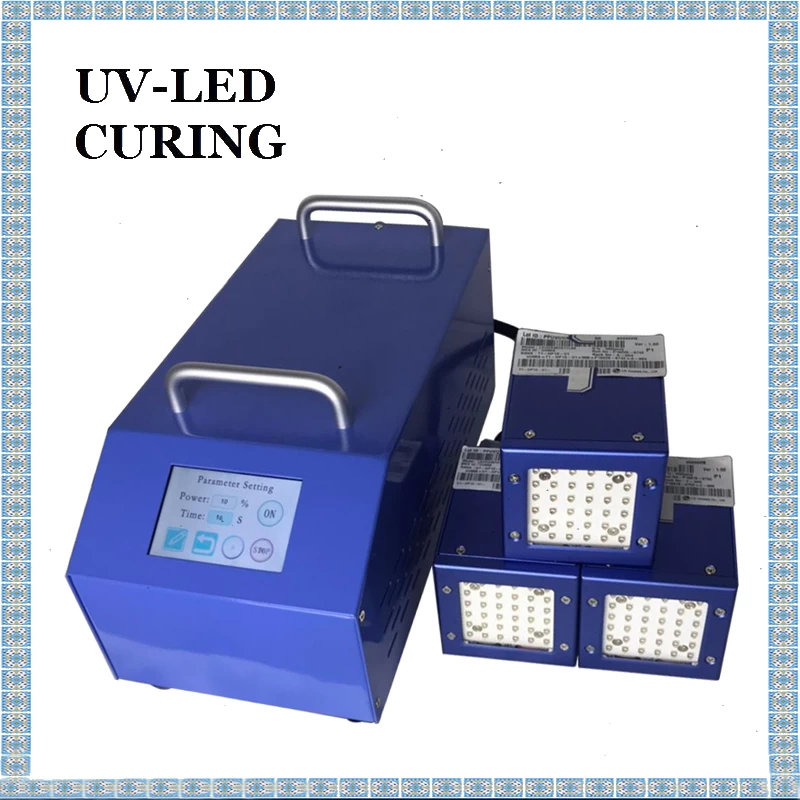

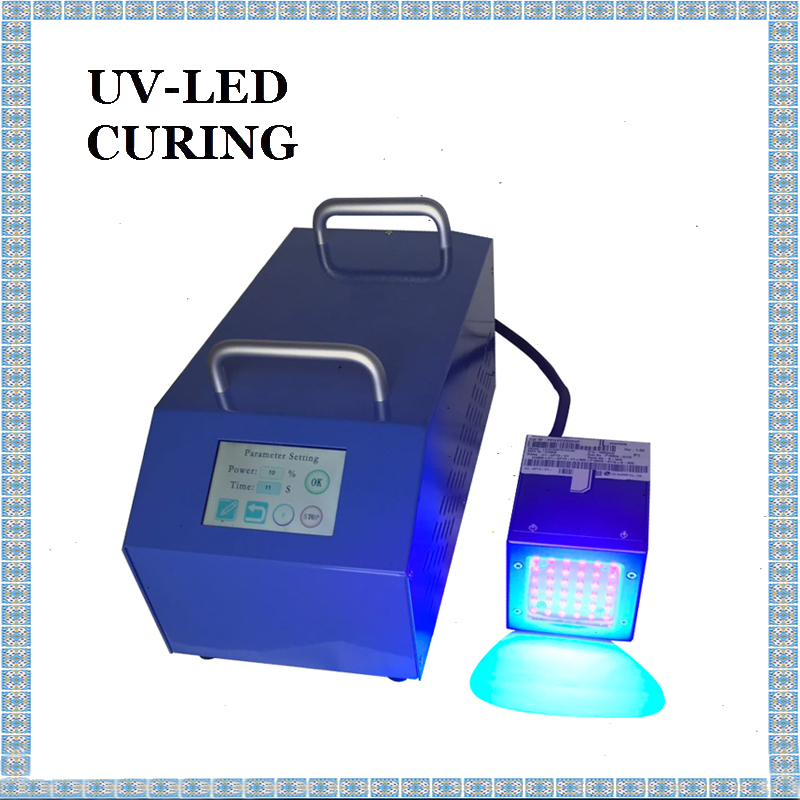

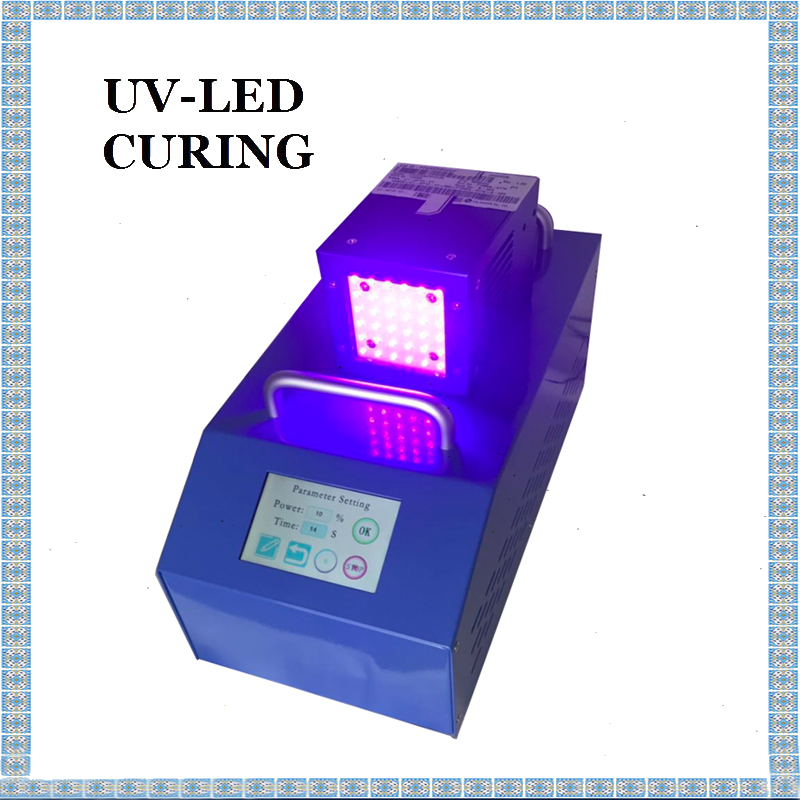

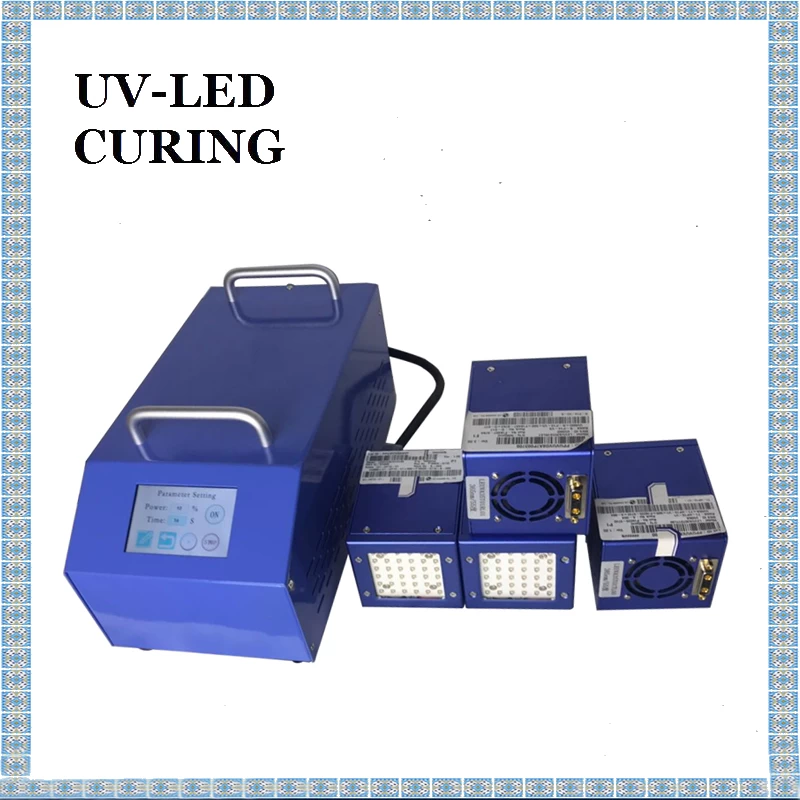

Industrial Specialized DSX-50x50 LED UV Ink Drying Systems meet the requirement of four stations at the same time and can also work independently. A four-channel LED UV Curing Machine is a controller that drives four curing end irradiating heads. The four irradiation heads may be in four different ultraviolet bands or the same wavelength.
Controller Specification of High Intensity UV LED Printing Machine for 3D Print :
|

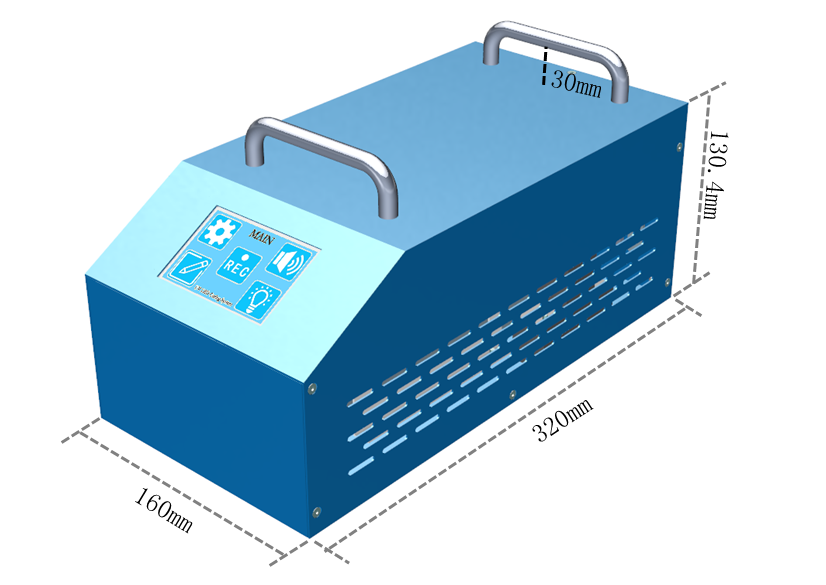

Outside Dimension
|
L320*W160*H130.4mm
|
Power Consumption
|
50W
|
|
Cooling
|
Air cooling
|
Power Input
|
100-240V AC 50-60 HZ
|
|
Material / Weight
|
Black sheet metal / about 3.5 kg
|
Drive the Number of Luminous Heads
|
One or more that can be independently controlled
|
|
Set the Lock
|
Built-in password changable
|
Display and Operation Mode
|
Touch screen, adjustable time, strength, mode
|
|
RS232 Serial Port Communication
|
Query and adjust intensity, time, mode
|
External Terminals
|
Can be connected with single machine, PLC and other equipment for control and working state feedback
|
|
Error Alert
|
Overheating, connection failure warning
|
LED Time Accumulation
|
Actively record cumulative usage time
|

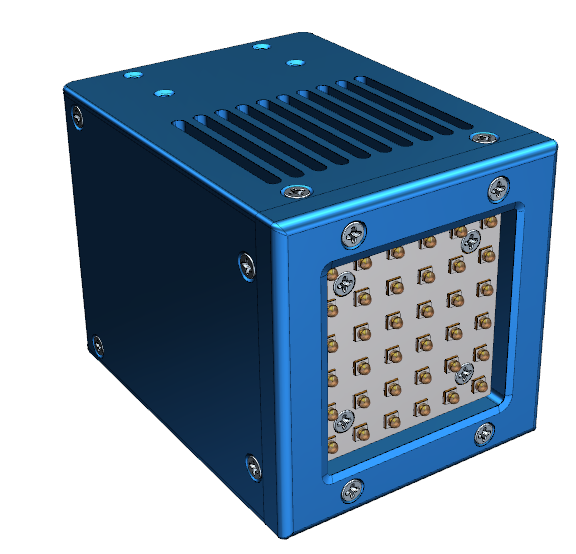

Irradiation Head Specification of Manual UV Adhesive Curing Lamp for Bonding :
|
Irradiation Area
|
50 * 50mm
|
Electric Power
|
100W
|
|
Outside Dimension
|
L78 * W112 * H8 mm
|
Recommend Highly
|
5-20 mm
|
|
Cooling
|
Air cooling
|
wavelength
|
365 / 385 / 395 / 405
|
|
Material / Weight
|
Sheet metal / 0.8kg
|
Luminous Power (mW/cm2)
|
1000-2000mW/cm2 by EIT
|
|
Predicted Service Life
|
20000 H
|
|
Power Supply Parameters
|
130V 0.6A
|
Length of Cable
|
2 / 5 m
|
