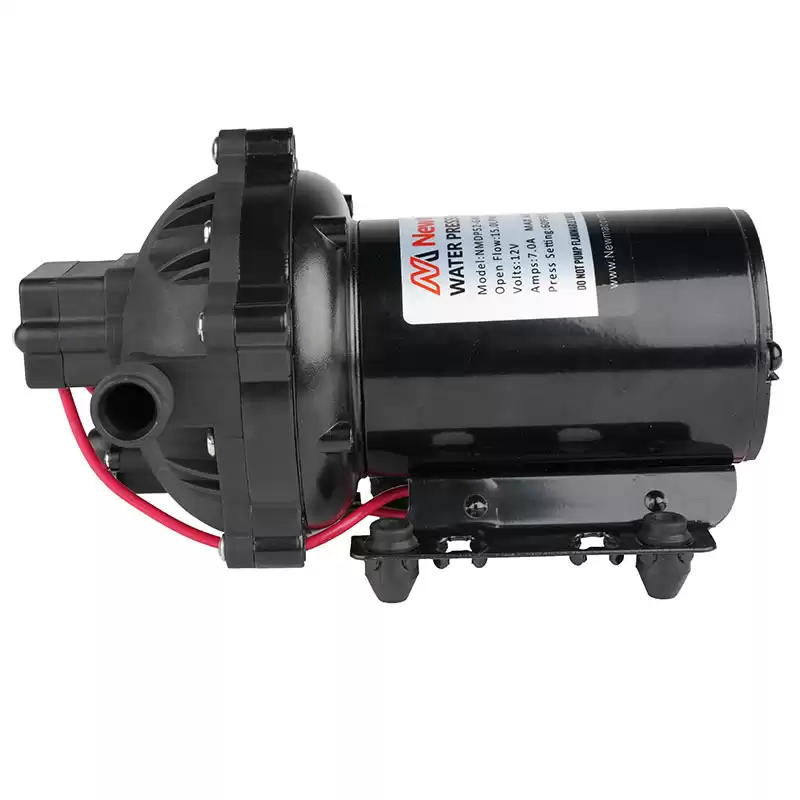

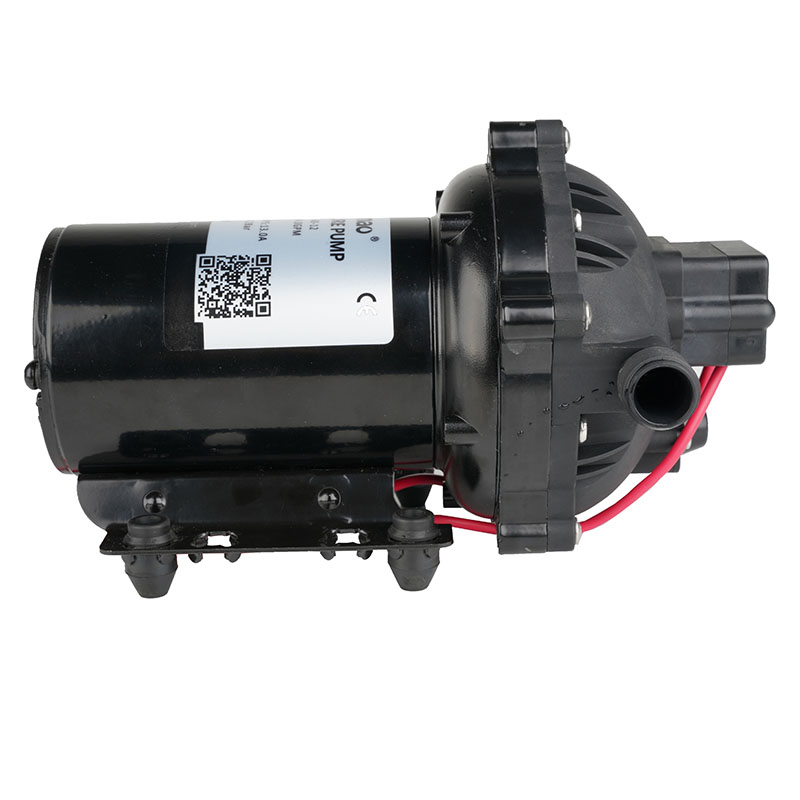

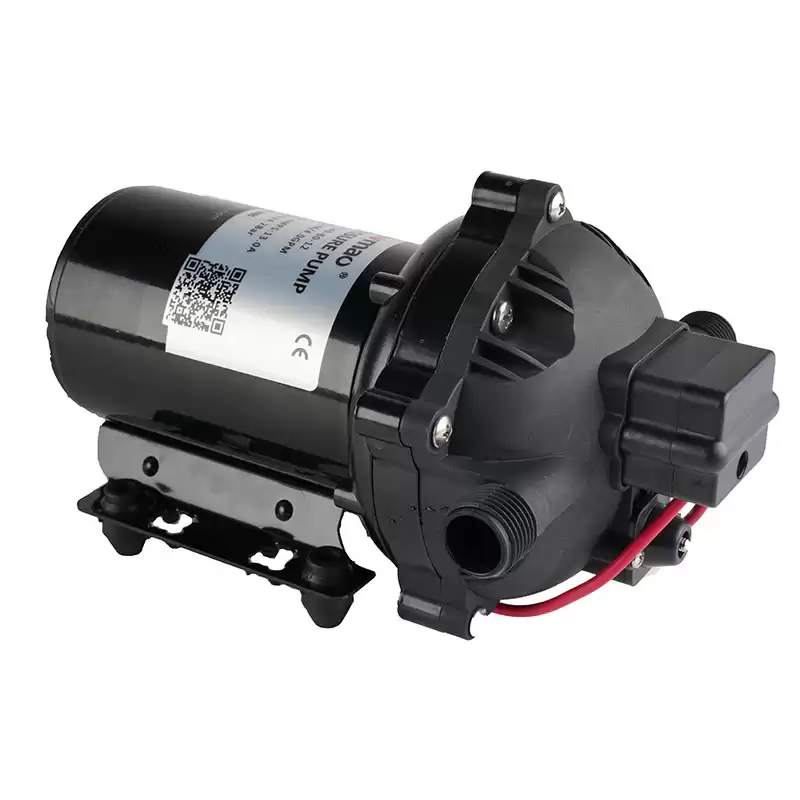

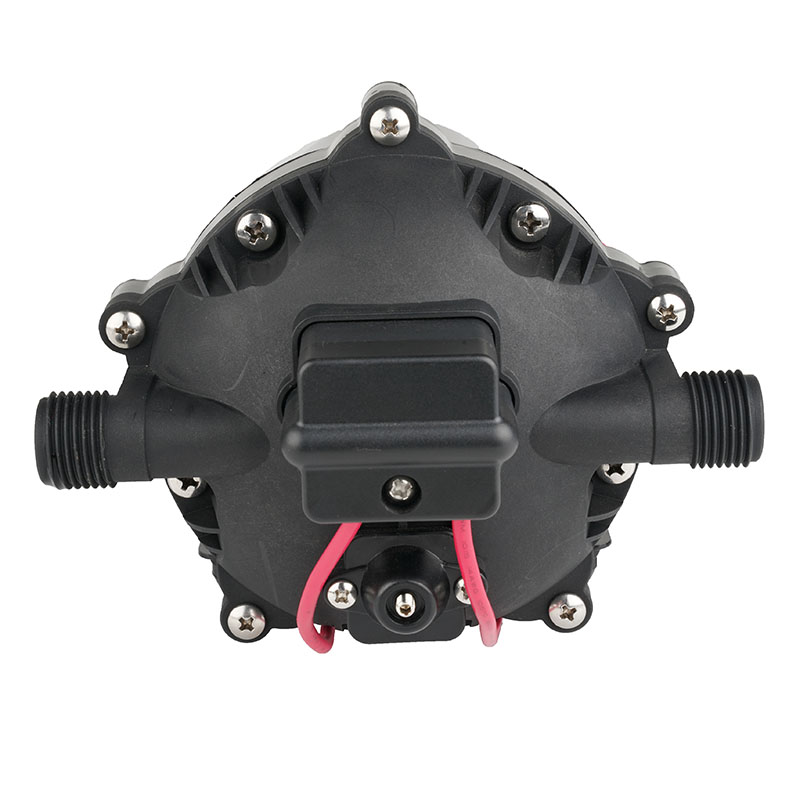

52 series caravan trialer boost high pressure fresh water pump

Ensure a steady and robust flow of fresh water with our high-pressure fresh water pump. Designed for homes, RVs, and boats, this pump delivers exceptional water pressure, making it perfect for strong, invigorating showers, efficient dishwashing, and consistent faucet flow. Say goodbye to weak water streams, and enjoy the luxury of a high-pressure water supply.

Facebook Twitter Pinterest LinkedIn 分享

About this item

Voltage：12V/24V

Open Flow：3.0-5.0GPM / 11.5-18.9LPM

Shut-off Pressure：60-70PSI / 4.2-4.8BAR

Priming Capabilities：6 feet (1.8 m) suction lift

Max Recommended Temperature：140° F (60° C）Max.

Material：EPDM(Valves) / Santoprene(Diaphragm)

Ports：1/2"-14 MNPT

Specification

Type 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type Pressure switch/ bypass
Max Recommended Temperature 60° C（140° F）
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 70 PSI ：56 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports

1/2"-14 MNPT
Weight 5.9 lbs (2.7 kg)
Leads 14 AWG, 13" (33 cm) long with 2-Pin connector / Leads
Duty Cycle Continuous
Max.Amp Draw 18.0 A
Fuse 27.0 A



Model

Voltage

Open flow

(GPM/LPM)

Max draw

Shut-off pressure

(PSI / BAR)

Ports

Wire connections

NMDP52-G30-60-12

12V

3.0 / 11.5

10A

60 / 4.2

1/2"-14 MNPT

2-pin / Lead

NMDP52-G30-60-24

24V

3.0 / 11.5

5.5A

60 / 4.2

1/2"-14 MNPT

2-pin / Lead

NMDP52-G40-60-12

12V

4.0 / 15.0

13A

60 / 4.2

1/2"-14 MNPT

2-pin / Lead

NMDP52-G40-60-24

24V

4.0 / 15.0

7.0A

60 / 4.2

1/2"-14 MNPT

2-pin / Lead

NMDP52-G50-60-12

12V

5.0 / 18.9

17A

60 / 4.2

1/2"-14 MNPT

2-pin / Lead

NMDP52-G50-60-24

24V

5.0 / 18.9

9.0A

60 / 4.2

1/2"-14 MNPT

2-pin / Lead

NMDP52-G50-70-12

12V

5.0 / 18.9

18A

70 / 4.8

1/2"-14 MNPT

2-pin / Lead

NMDP52-G50-70-24

24V

5.0 / 18.9

10A

70 / 4.8

1/2"-14 MNPT

2-pin / Lead



Dimensions
