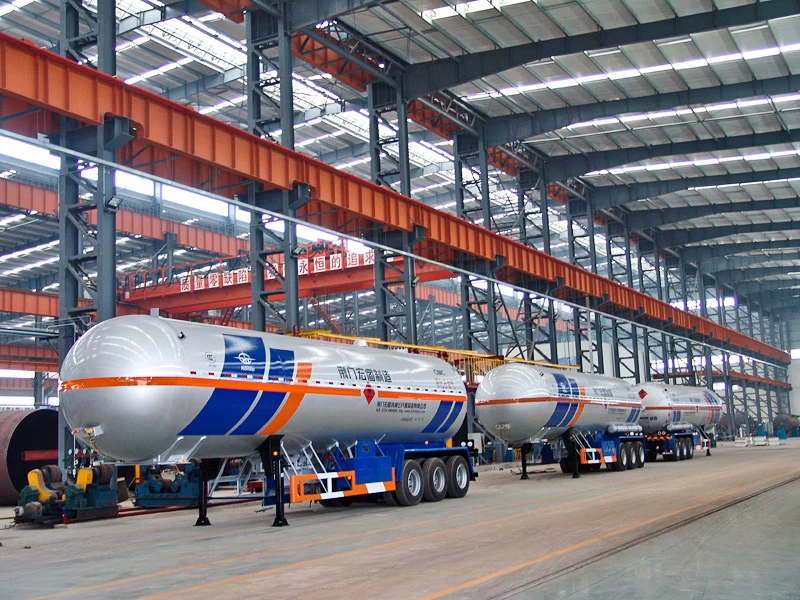

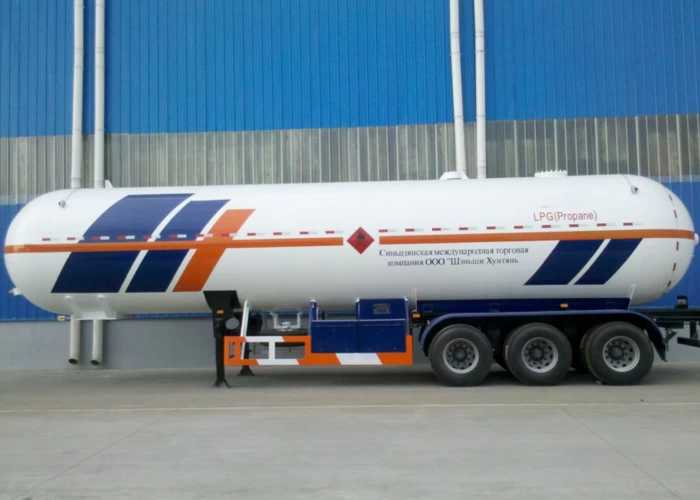

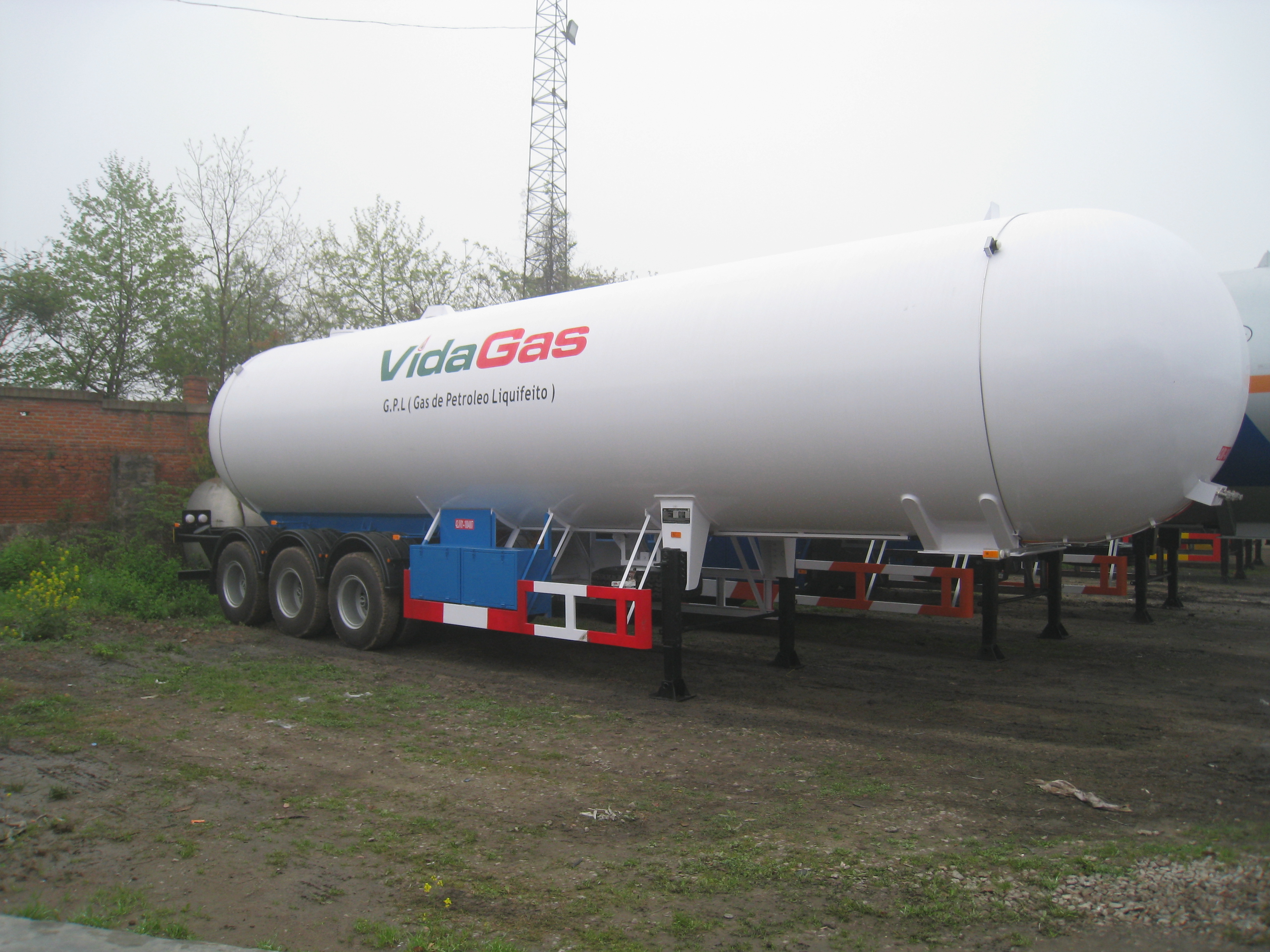

3 Axle 58000 Liters Liquid Propane Butane Transport LPG Tank Trailer
Applications:
LPG Tanker trailer (also called LPG truck trailer, LPG Storage and transport trailer, LPG Carriage tanker trailer ) is a Trailer designed to carry Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), which also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles. As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years.
| 58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer with 3 axles for LPG |
| Model |
9583GYQ |
Capacity |
58.1m³ |
| Truck |
To be provided by the end user |
QTY |
AS LISTED ABOVE |
| Design pressure |
1.61MPa |
MAWP |
1.61 MPa |
| Code & Material |
Q370R |
Heads |
One Elliptical head and one Spherical head |
| Height from the 5th wheel top surface to the ground (when the truck is at empty):To be provided by the end user mm |
| Nitrogen replacement is required. |
| Tank |
Pressure relief valve |
2 pcs
|
|
| Level gauge |
On the side of the tank
|
|
| Drain |
No |
|
| Manway |
DN450 |
|
| Steel baffle |
Steel |
|
| Filling & Discharge System |
Control method |
Mechanical |
|
| Liquid discharge |
Single liquid discharge system |
Side of the trailer |
| Valve box |
Double valve boxes |
Side of the trailer |
| Other Fittings |
Tool box |
Double tool boxes |
Side of the trailer |
| Mudguard |
Steel mudguard |
|
| Ladder |
No |
|
| Level gauge armrest |
No |
|
| Water tank or hose box |
NO |
|
| Fire extinguisher |
2 × 8kg |
|
| King pin |
JOST 2〞king pin |
|
| Landing gears |
JOST separate winding, |
A400 |
| model A400 |
|
| Running Gear |
Slanted or horizontal |
|
|
| Suspension |
Chinese Spring suspension |
4pcs |
| Spare wheel carrier |
Single |
|
| ABS |
KORMEE brand |
4S/2M |
| Rim |
Steel rim |
9×22.5 |
| Axle |
BPW brand |
3 PCS 12Ts capacity |
| Tire brand |
Double coin |
13 PCS (Including one spare tire) |
| Tire dimension |
12R22.5 |
Tubeless |
| Light |
LED lamps; 24V voltage. |
|
| Side protection |
Steel |
|
| Parking brake |
Pneumatically operated |
|
| Earthing |
Electrostatic strip |
|
| Surface |
Reflective stickers |
3M reflective stickers |
|
| Painting & logo |
TO BE CONFIRMED IN THE CONTRACT |
|
| Special Requirement |
TO BE CONFIRMED IN THE CONTRACT |
| VALVE Accessories |
| No. |
Name |
Brand |
Model |
Size |
QTY per unit |
| 1 |
Safety Valve |
Chinese Brand |
A412F-25/NA42F25 |
DN80 |
2 |
| 2 |
Emergency shut-off Valve（Liquid Phase ） |
Chinese Brand |
QGJ43F-25 |
DN50 |
1 |
| 3 |
Emergency shut-off Valve（Gas Phase ） |
Chinese Brand |
QGJ43F-25 |
DN25 |
1 |
| 4 |
Ball Valve（Liquid Phase） |
Chinese Brand |
CQA41F-25P |
DN50 |
2 |
| 5 |
Ball Valve（Gas Phase） |
Chinese Brand |
CQA41F-25P |
DN25 |
2 |
| 6 |
Level Gauge |
Chinese Brand |
YWJ-25A |
DN100 |
1 |
| 7 |
Pressure Gauge |
Chinese Brand |
YTN-102 |
M20*1.5 |
2 |
| 8 |
Thermometer |
Chinese Brand |
WTQ-280 |
M33X2 |
1 |
