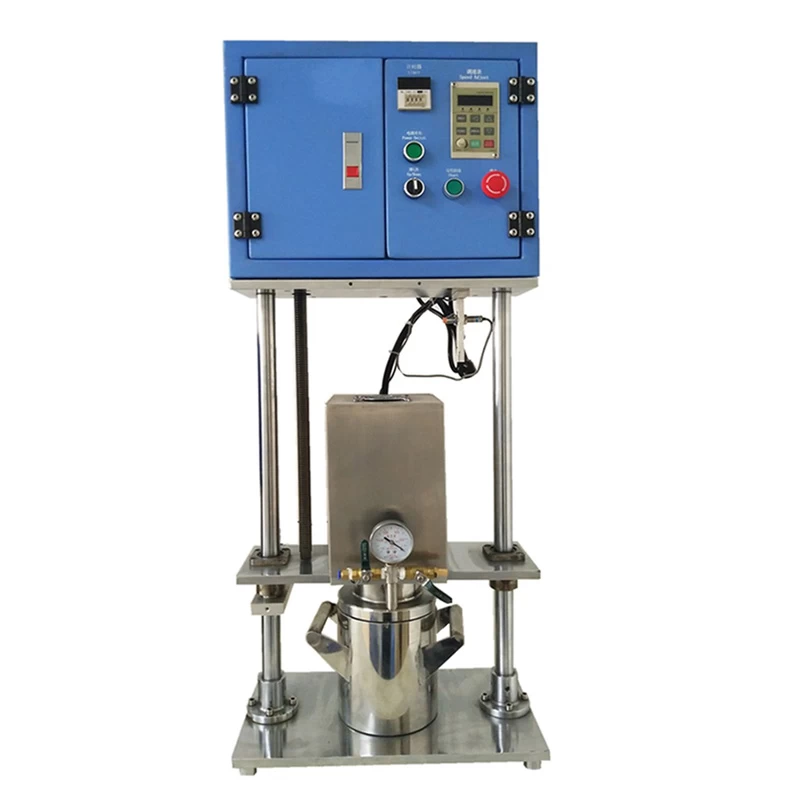

5L Electric Vacuum Mixer with Helical Blade for Battery Lab Research

Electric vacuum mixing machine is designed for making large batch of chemical compound via blending and mixing in single container under vacuum driven by electricity only.



5L Small Helical Blade Vacuum Mixing Machine for Li Battery Electrode Slurring Making


Vacuum mixing machine is designed for making large batch of chemical compound via blending and mixing in single container under vacuum driven by electricity only.

The vacuum mixing machine is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.

Thisvacuum mixing machine is excellent for preparing lithium battery materials LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.


Model

Vacuum mixing machine AOT-SFM-6E


Features

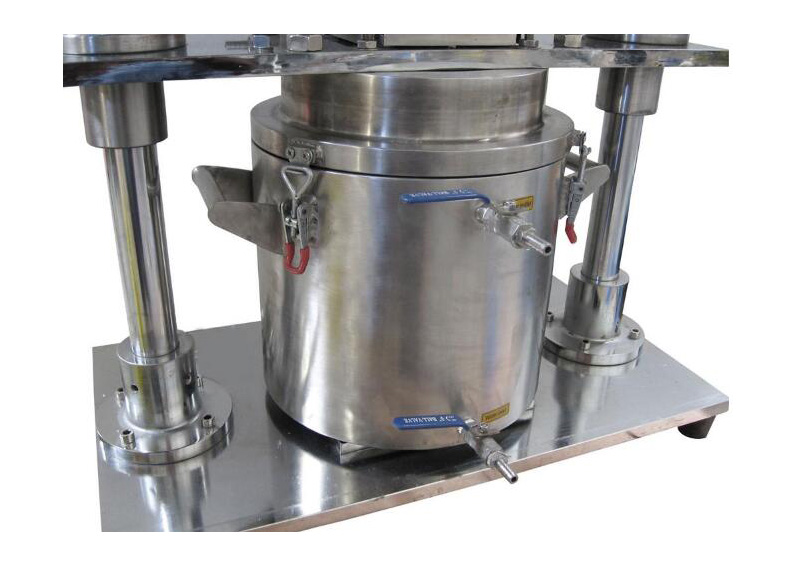

5 liter 304 stainless steel container with double layer water cooling jacket.

Advanced T type sealing to keep vacuum pressure up to 12 hours.

Double Step Rotary Vane Vacuum Pump, is included for immediate operation

Container is opened or closed by electric motor (no air pump is required any more)

Programmable controller to set time, speed, rotation direction.

Voltage

110-240V AC single Phase, 50/60Hz

(build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz)

Rate Power

750 W

Rotor Rod Speed

0 -1400 RPM variable

Lifting

Electric motor ( no compress are pump required any more )

Water Requirement

16 L/min water flow required to cool mixing tank

Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket)

Suggest you order recirculating water chiller by click picture picture left to save water

(water chiller is not included)

Vacuum Pump

Double Step Rotary Vane Vacuum Pump, is included

Vacuum gauge is built in with minimum vacuum level -0.1 MPa

304SS Container

Size

270mm O.D. x 210mm I.D. x 230mm H

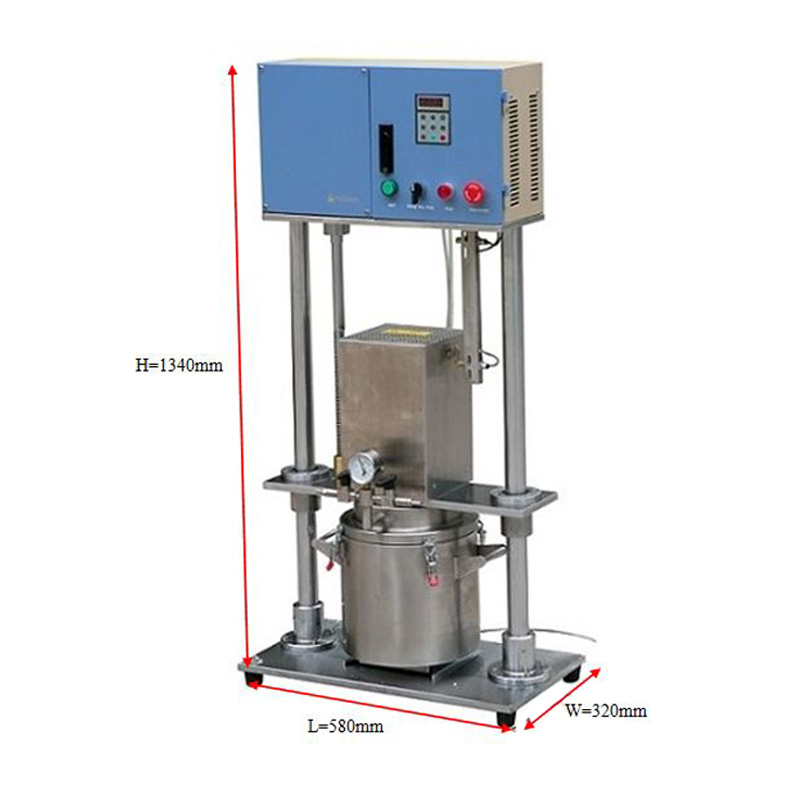

Dimensions

580mm(L) x 320mm(W) x 1340mm(H)

Net Weight

119 kg (262 lbs)

Warranty

One year limited warranty with lifetime support

Vacuum Mixing Machine for Lab Battery Slurry

Lab Vacuum Mixing Machine

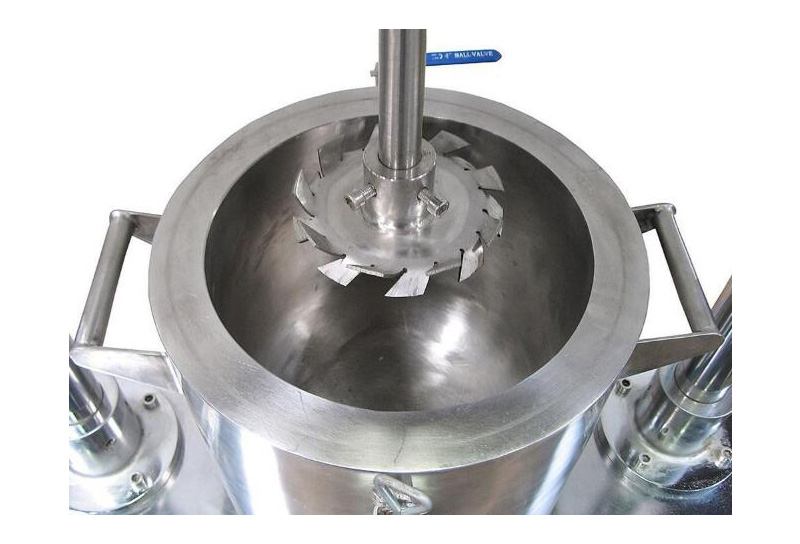

Lab Vacuum Mixing Machine with Different Blade and Tank

Optional:

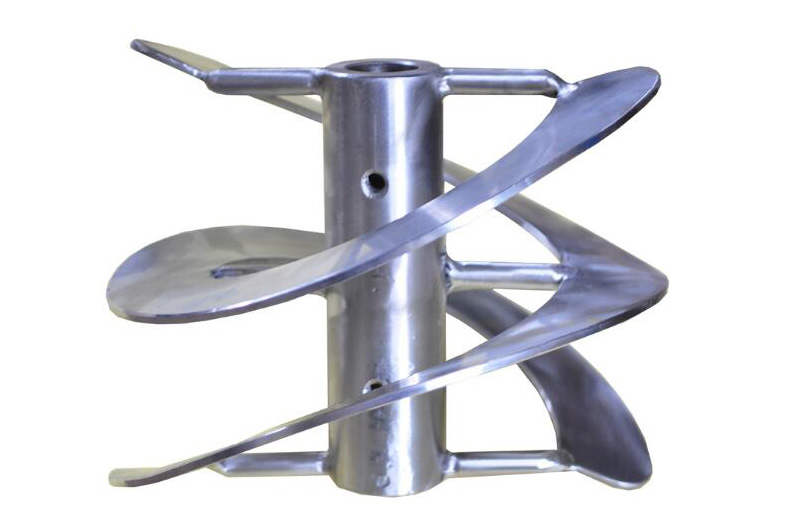

Vacuum Mixing Machine with Mixing Blade
