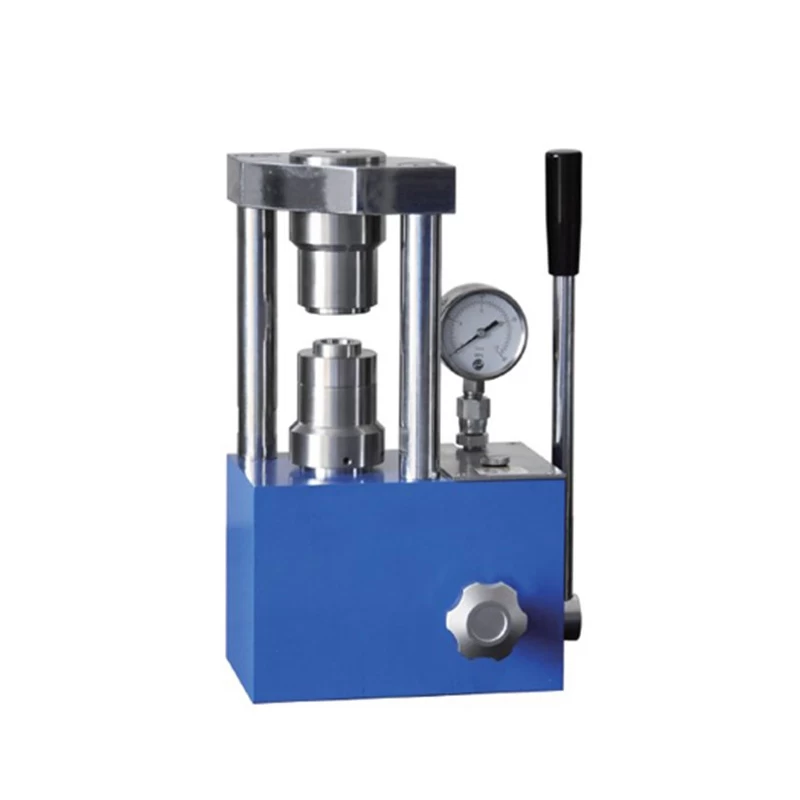

5T Pressure Manual Coin Cell Crimping Machine for Lab Battery Research

This Laboratory Hydraulic Coin Cell Crimping Machine has the advantages of small volume, high pressure and high precision of pressure control. Suitable for all kinds of CR20XX series button battery.



5 Ton Pressure Manual Coin Cell Crimping Machine with Optional Die


Main Features

1.Small size, light weight,No oil linkage, easy to carry.

2.High speed steel imported from Japan

3.Digital display pressure gauge0.1MPa, Pressure control is more accurate.

4.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

5.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

6.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

7.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

8.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

9.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage

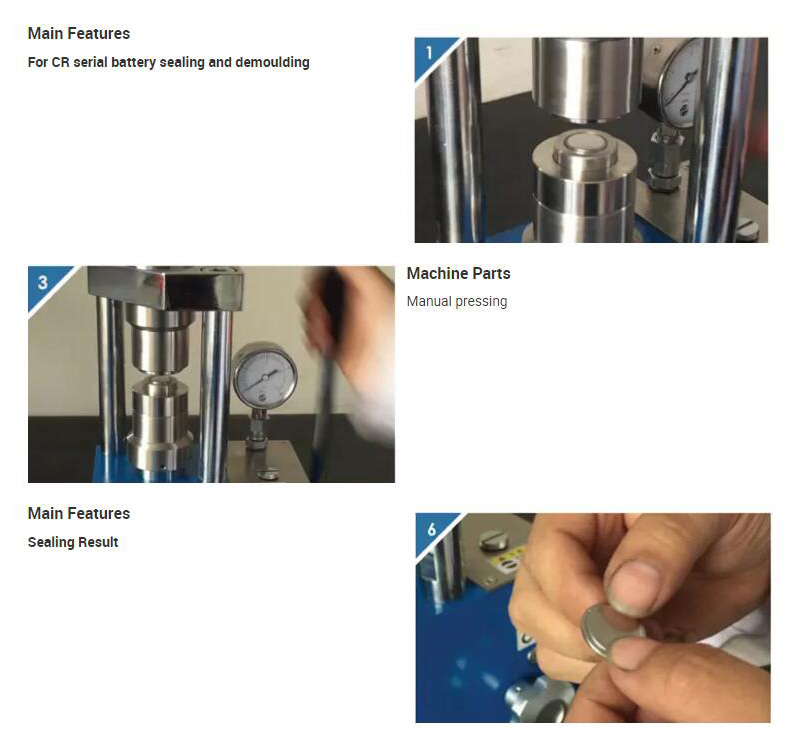

Button Battery Crimping Machine

Model No.

Hydraulic Manual Coin Cell Crimping Machine AOT-HCM-5T

Press Range

0~5T (0~31MPa)

Piston Diameter

O.D 45mmm

Main Structure

All in one structure,don't have leak point

Pressure gauge

Pointer Pressure gauge

Standard Mold

CR20xx Sealing Mold

Optional Mold

CR16, CR20,CR24,CR30 etc

Sealing pressure

0.8~1.2T

Demoulding Mold

CR16, CR20,CR24,CR30 etc

Column

2 pieces column

Demoulding Pressure

less than 0.4T

Outer dimension

225*155*320mm

Gross weight

28Kg


ThisLaboratory Hydrauliccrimping machine also can be a pressingmachine by replacing the mold, it has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.


manual tablet press machine

hydraulic coin cell crimper machine

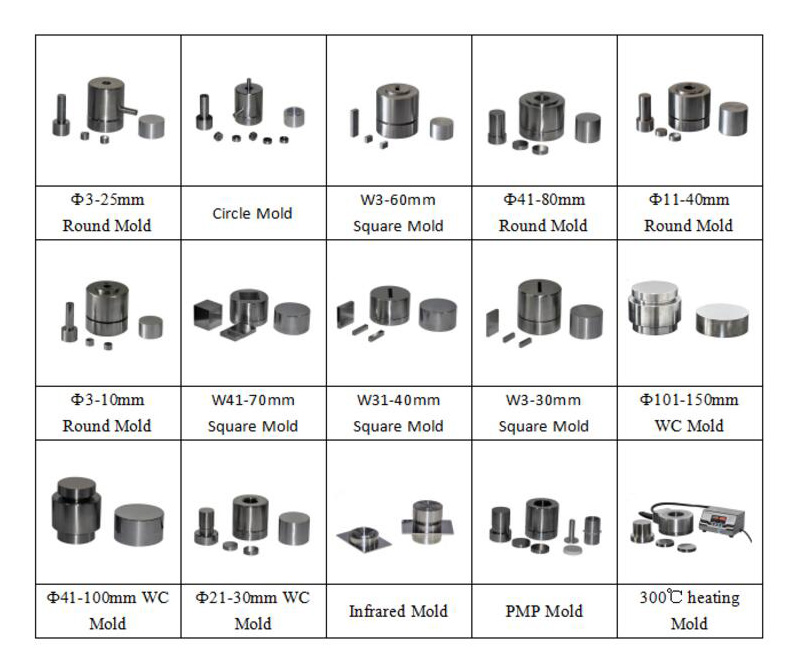

Other Molds for your choice:

Hydraulic pressing molds
