5V10mA Lab Coin Cell Battery Tester with Dual Testing Range

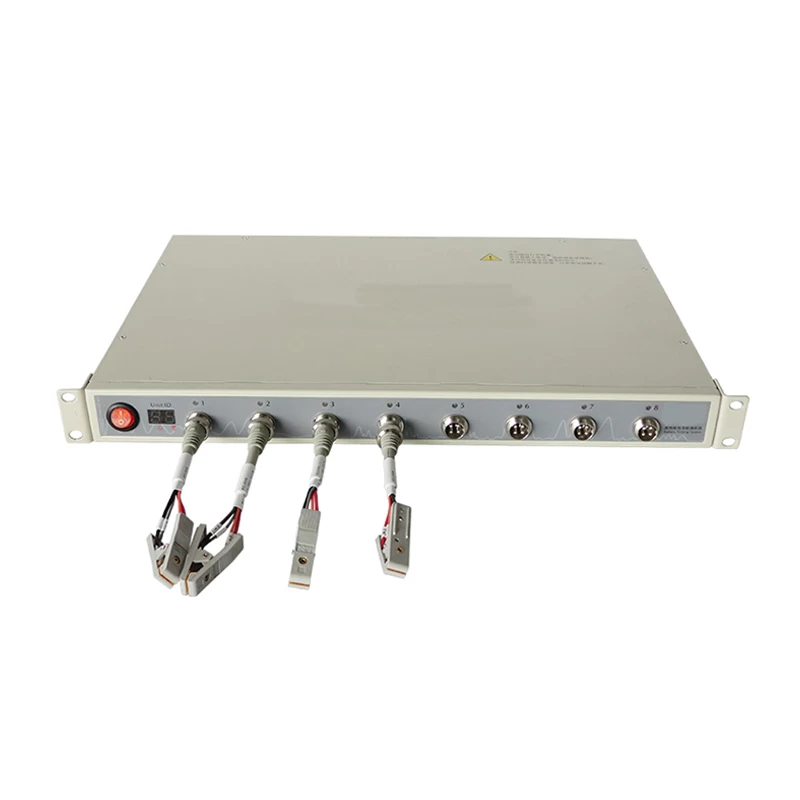

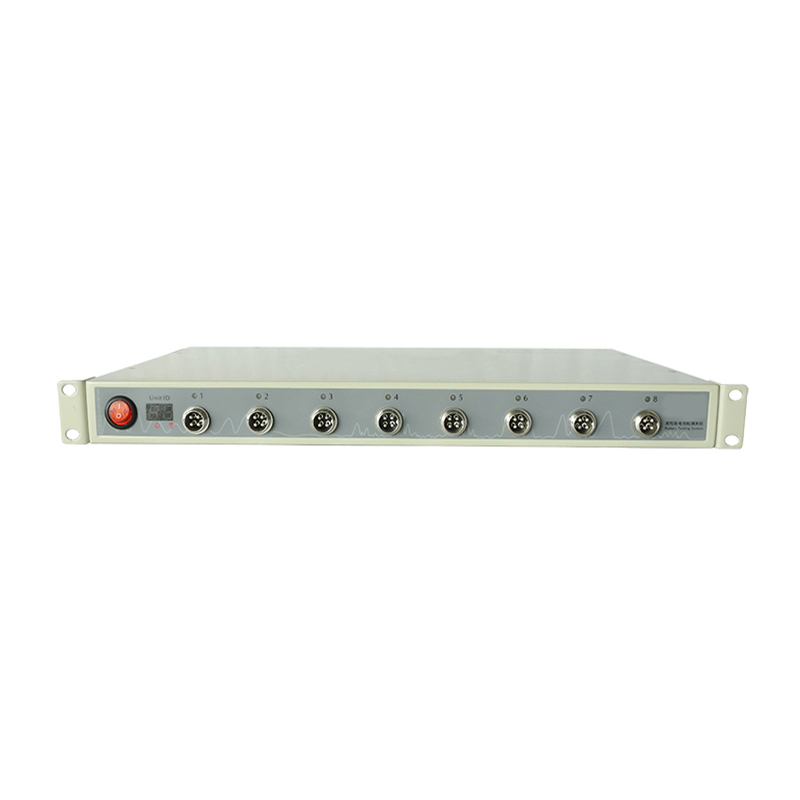

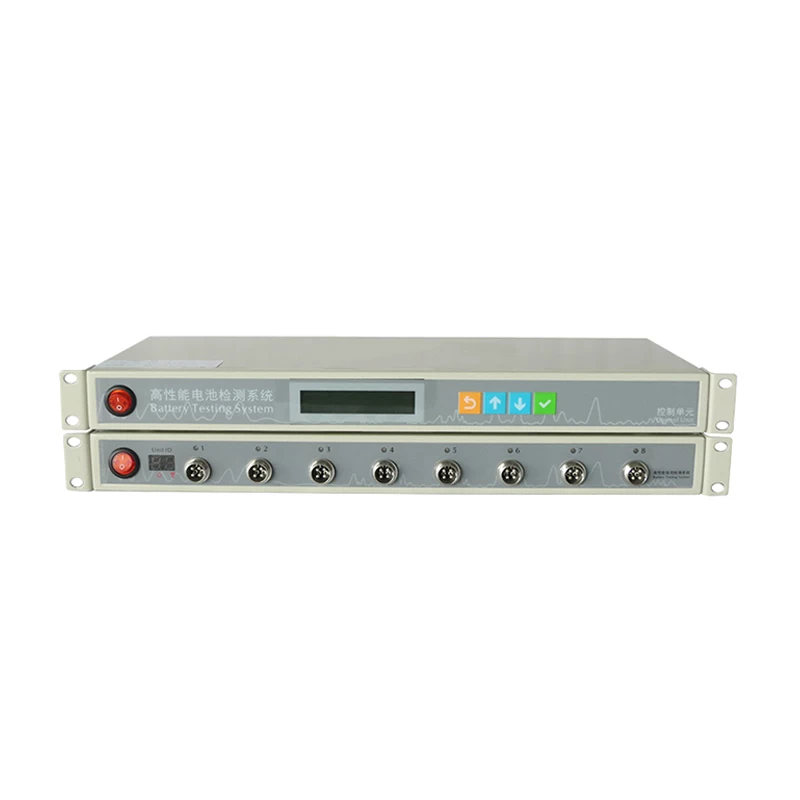

It is an eight-channel battery analyzer to analyze small coin cells from 0.001 mA to 10 mA, up to 5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
|
Item
|
Technology parameters
|
|
Model
|
AOT-BTS-5V10mA Coin cell tester
|
|
Input Power
|
AC 220V ±10% 50Hz
|
|
resolution
|
AD：16bit；DA：16bit
|
|
Input Resistance
|
≥10 GΩ
|
|
Input Power
|
25W
|
|
Voltage
|
Constant Voltage Range
|
25mV~5V
|
|
Discharge Min Voltage
|
0V
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Current
|
Per Channel Current Range
|
Range1: 5uA-1mA , Range2: 1mA-10mA
|
|
Accuracy
|
± 0.05% of FS
|
|
Constant voltage cutoff current
|
Range1：2uA；Range2：0.02mA
|
|
Stability
|
± 0.05% of FS
|
|
Power
|
Per Channel Output Power
|
0.05W
|
|
Stability
|
± 0.1% of FS
|
|
Time
|
Current Response Time
|
1ms (0-Full Range)
|
|
Step Time Range
|
≤(365*24 )hour/step，
Time Form Support 00：00：00(h、min:s、ms)
|
|
Data Recording
|
Record Condition
|
Minimum Time Interval: 100ms
|
|
Minimum Voltage Interval: 10mV
|
|
Minimum current interval：Range1：2uA；Range 2：0.02mA
|
|
Record Frequency
|
10Hz
|
|
Charge
|
Charge Mode
|
Constant Current Charge、Constant Voltage Charge、
Constant Current and Constant Voltage Charge、CPC
|
|
End Conditon
|
Voltage, current, relative time, capacity -△V
|
|
Discharge
|
Discharge Mode
|
CCD、CPD、CRD
|
|
End Condition
|
Voltage、Current、Relative Time、Capacity -△V
|
|
Pulse
|
charge
|
CCC, CPC
|
|
Discharge
|
CCD, CPC
|
|
Min Pulse Width
|
500ms
|
|
Pulse number
|
A single pulse step supports 32 different pulses
|
|
Automated Switch
|
Automated swith from charge to discharge for each pulse
|
|
End Condition
|
Voltage, Test Time
|
|
Cycle
|
Loop Measure Range
|
1~65535 times
|
|
Max Steps Per Loop
|
254
|
|
Nested Loop
|
Nested loop Function，Max Support 3 Layers
|
|
Protection
|
Software Protection
|
Power-down Data Protection
|
|
Off-line Testing Function
|
|
Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
|
|
Hardware Protection
|
Additional Anti-reverse Protection Model
|
|
Channel Features
|
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
|
|
Channel Control Mode
|
Independent Control
|
|
DCIR testing
|
Support
|
|
Voltage and Current Testing Sample
|

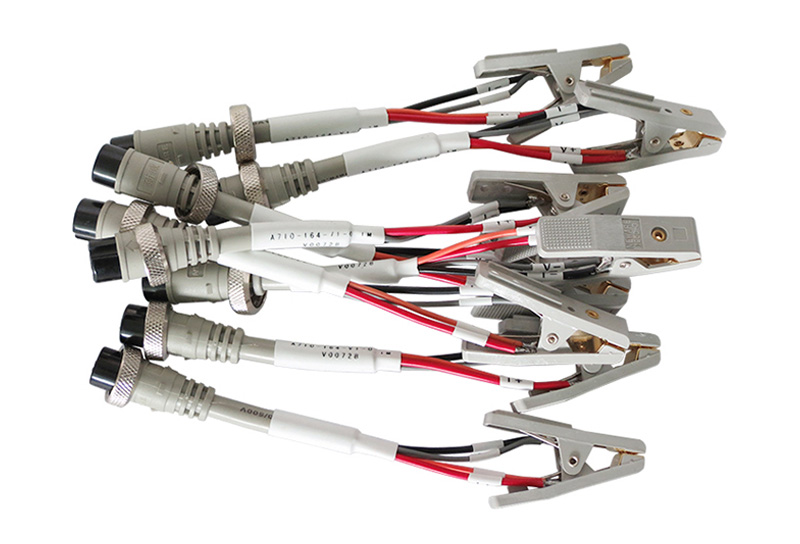

4-wire connecting
|
|
Noise
|
<85dB
|
|
Database
|
MySQL Database
|
|
A Means of Communication of Upper Machine
|
TCP/IP Protocol
|
|
Data Output
|
EXCEL、TXT、Graph
|
|
Communication Interface
|
Ethernet Port
|
|
Per Unit Main Channels No.
|
8
|
|
Dimensions
|
250*200*60(mm)
|
