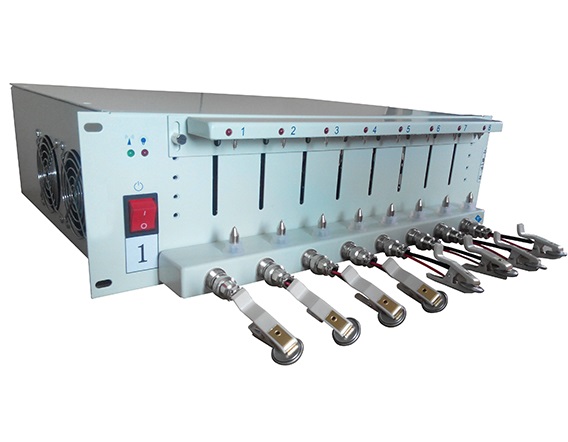

5V1A 3A 5A 6A 8 Channel 18650 Cylindrical Cell & Pouch Cell Phone Battery Analyser Lithium Battery Capacity Tester




1. This tester can analyze polymer and cylindrical batteries from 0.1mA to 6 A, up to 5V.

2 The battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.


Project index

Parameter index

Input Power

AC 220V ±10% / 50Hz

resolution

AD:16bit;DA:16bit

Input Resistance

≥1MΩ

Input Power

425W

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Per Channel Voltage Range

Charge:25mV~5V;Discharge:1.0V~5V

Accuracy

± 0.05% of  FS

Stability

0.05% of  FS

Current

Per Channel Output Current Range

Range1:0.5mA~0.1A;Range2:0.1A~6A;Range3: 3A-6A

Accuracy

± 0.05% of  FS

CV cut-off current

Range 1: 0.2mA  Range2: 6mA; Range3: 12mA;

Stability

0.05% of  FS

Power

Per Channel Output Power

30W

Stability

± 0.1%  of  FS

Time

Current Response Time

The Current gets to 6A Hardware Response Time is 1ms

Step Time Range

0.1s≤Single Step Time Range≤365*24 h,

Time Form Support 00:00:00(h,min,s)

Data Recording

Record Condition

Minimum Time interval:100ms

Minimum Voltage interval:10mV

Minimum Current interval:Range 1: 0.2mA  Range2: 12mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge,Constant Voltage Charge,

CC-CV Charge ,CP-Charge

End Condition

Voltage,Current,Relative Time,Capacity,Minimum Voltage interval

Discharge

Discharge Mode

Constant Current Discharge  CP-D CR-D

End Condition

Current,Current,Relative Time,Capacity,Minimum Voltage interval

Pulse Model

Charge

Constant Current,Constant Power

Discharge

Constant Current,Constant Power

Min Pulse Width

500ms

Pulse Number

Single Pulse Step Support 32 different Pulse

Charge r To Discharge

One Pulse Step Can Support Continuous Charge And Discharge Change

Stop Condition

Voltage, Relative Time

DCIR Testing

Support Custom Access Point And Count The DCR

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function,Max Support 3 Layers

Protection

Software Protection

l Power-down Data Protection

l Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time

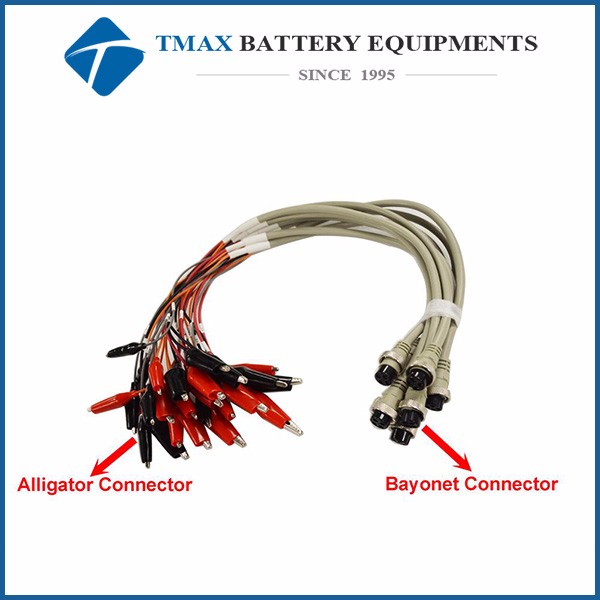

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Data Management

MySQL Database

Communication Means

TCP/IP Protocol

Data Output

EXCEL,TXT

Communication Interface

Ethernet Port

Main Channels

8

Dimensions

3U,W*D*H:480*730*130(mm)per unit

the total rack is 760*660*1960mm . The gross weight  is 180KG

Additional Function

















Test: Temperature; voltage

Temperature range: minus 25C-110C( Thermistor)

Temperature accuracy:± 1C

Temperature resolution:0.1C

Voltage range:-5V-5V

Voltage accuracy:± 0.1%  of  FS

Can set the parameter: Upper and lower limit of voltage; Upper and lower limit of temperature ;single cell voltage difference



Equipment Working Environment

Project index

Parameter index

Working Temperature Range

0℃~40℃

Storage Temperature Range

-10℃~45℃

Working Environment Relative Humidity Range

30% ~ 80% RH

Storage Environment Relative Humidity Range

30% ~ 90% RH
