5V2A 256 Channel Cylindrical Lithium Battery Testing Equipment Capacity Grading Machines

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Certificate CE ROHS Certificate

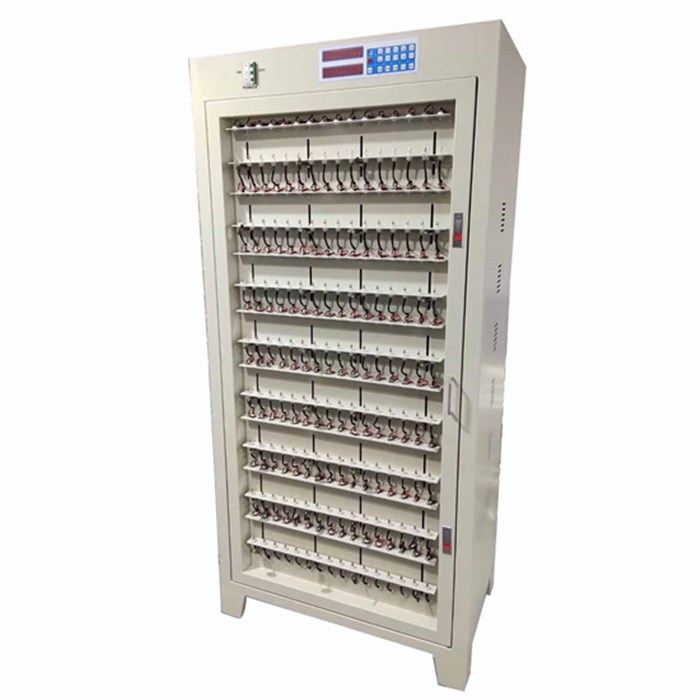

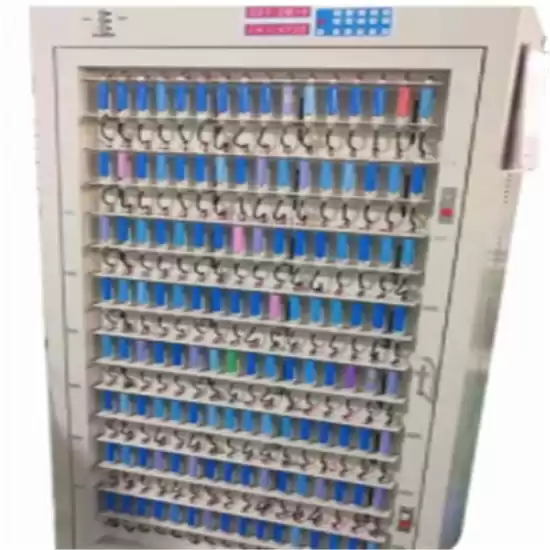

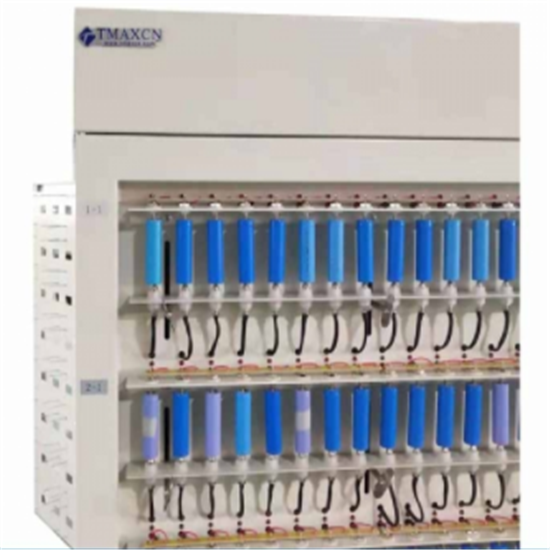

5V2A 256 Channel Cylindrical Lithium Battery Testing Equipment


FEATURE

This equipment is mainly composed of the computer system, communication interface, control software, and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.

SPECIFICATION

Model

Battery Tester TMAX-BT0502-256-C

Voltage supply

AC 220V ±5%  50HZ

Max Power Dissipation

4500w

Channel

256

Dimension

800*500*1900mm

Support battery height range

10-95mm( stepless adjustment)

Clamp spacing

35mm

Voltage measurement range

DC100-4500mV

Voltage accuracy

±0.1%FS ±0.1%RD

Voltage measurement range

DC100-4500mV

Voltage resolution

1mV

Constant voltage range

DC2000~4500mV

Minimum discharge voltage

2000mV

Charge discharge current range

DC5~2000mA

Current accuracy

±0.1%FS ±0.1%RD

Current  resolution

1mV

Time measurement range

999min/step

Time measurement error

±0.1%

Working temperature

0~40

Relative humidity

≤85%
