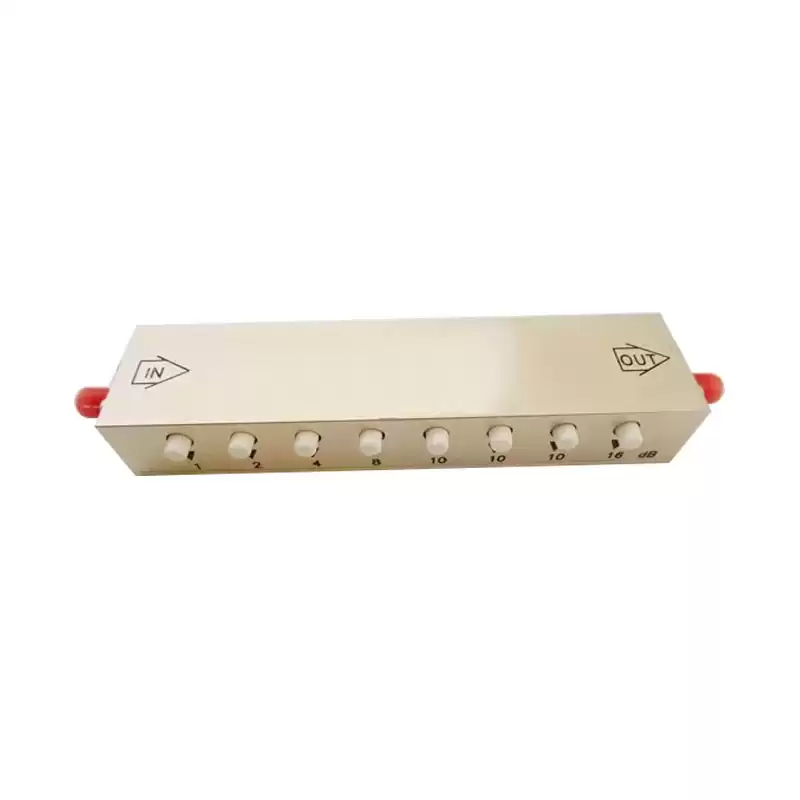

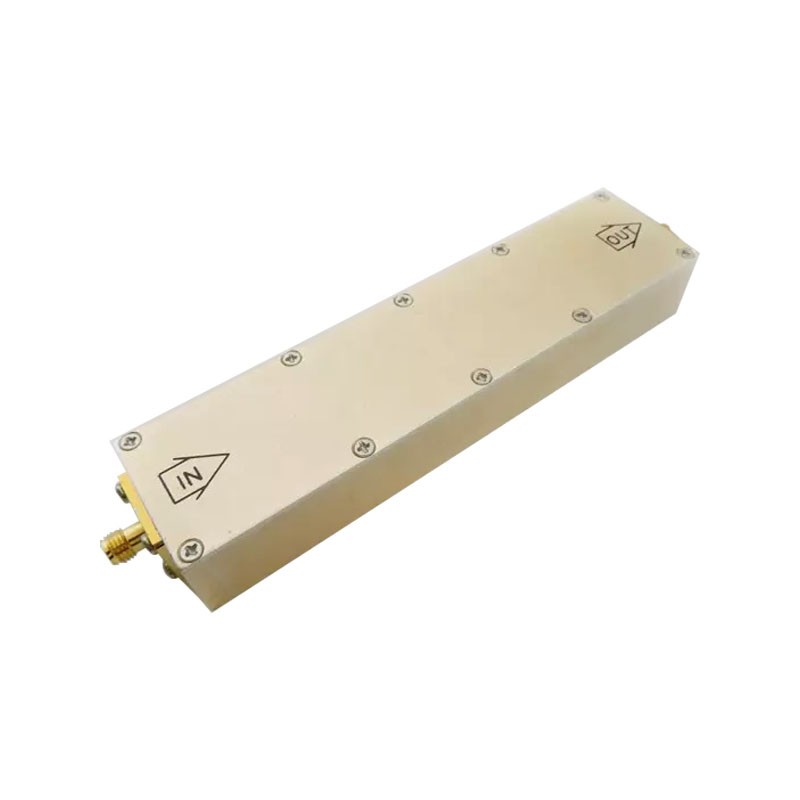

5W 60db Step Attenuator Step Variable Attenuator SMA K-K 0-60db 50ohm

SMA Attenuator Features:

  • SMA connector input, out connector can be N or SMA;
  • Maximum frequency of 26GHz;
  • A female gender in and a female or male gender out;
  • Attenuation values range from 1dB to 60dB.



5W 60db Step Attenuator Step Variable Attenuator SMA K-K 0-60db 50ohm



Step attenuators are very much similar to fixed attenuators. The only difference is that one can select an attenuation value in a step attenuator by using digital control or manually by push-buttons or by a rotary switch.Variable attenuators are used in laboratories, when it is necessary to obtain small value of voltage or current for testing purposes. This 5W 60db SMA K-K step variable attenuator are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design.



Specifications

ELECTRICAL DATA
Frequency DC~2.5GHz/3GHz
Connector SMA Female to Female
VSWR ≤1.4
Power 2W/5W/10W
Impedance 50Ω
Attenuation value 0-60dB

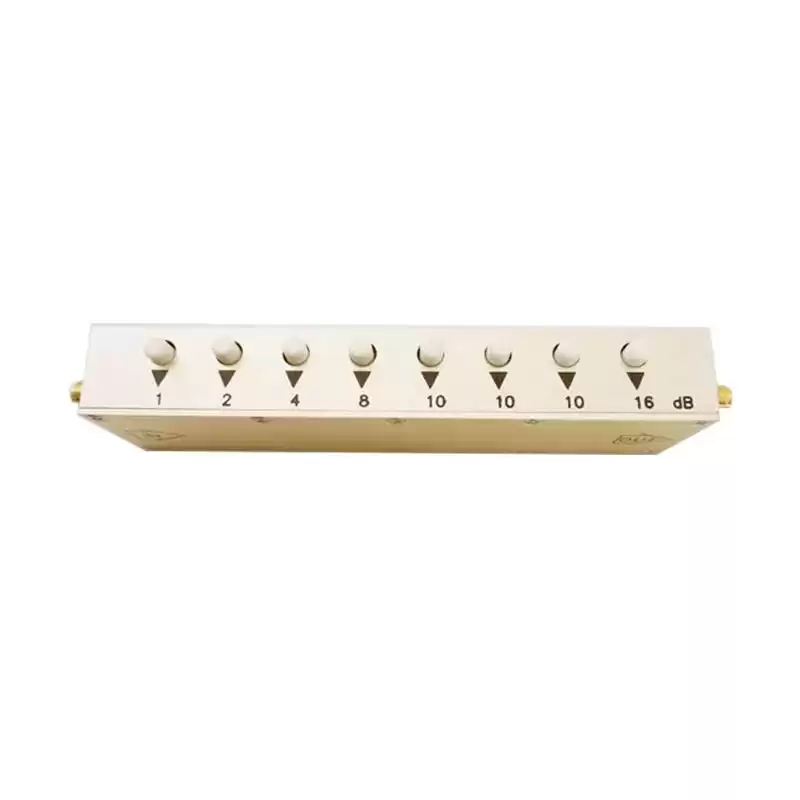

Attenuation (1,2,4,8,10,10,10,16)0-60dB 1dB step
±0.8dB(0-10dB) ,±1.25dB(10-50dB),±3dB≥50dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ternary alloy
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black or Other



Applications

  • Mobile Communication Network Optimization
  • In-door distribution system
  • Cluster communication
  • Satellite communication
  • Shortwave communication
  • Aerospace equipment systems
