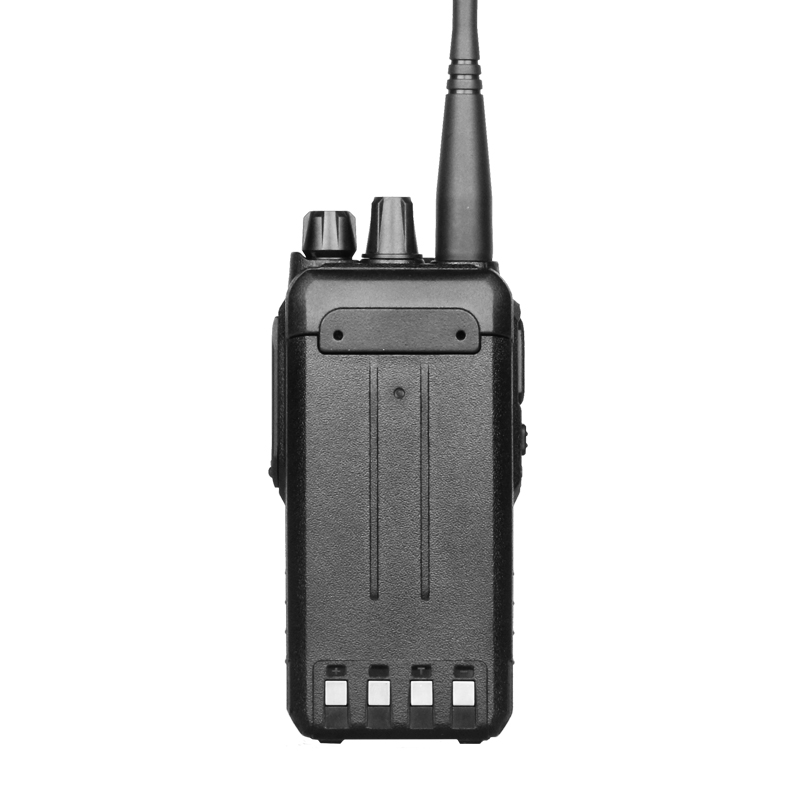

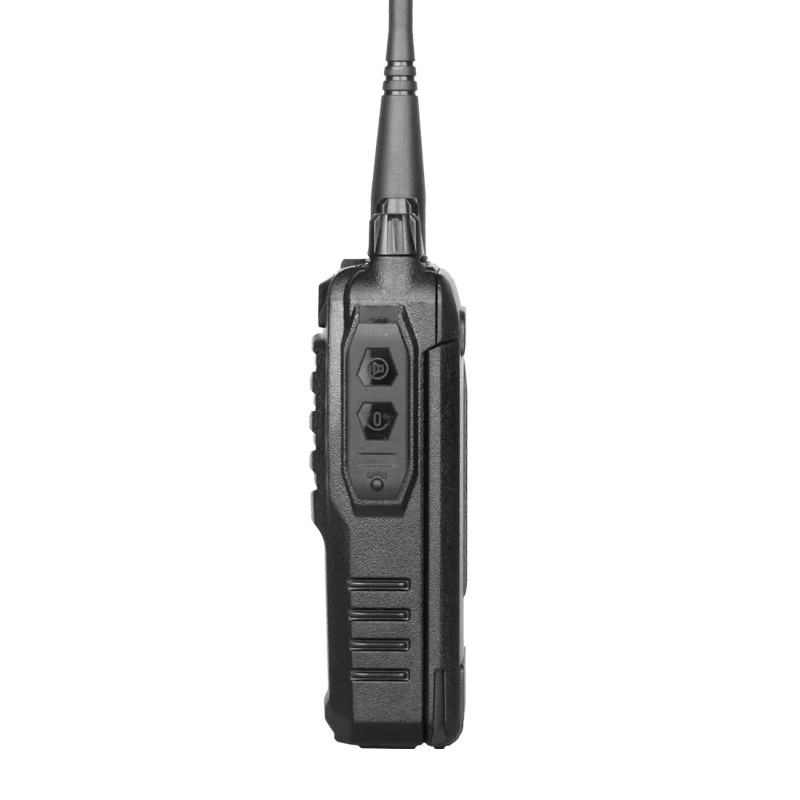

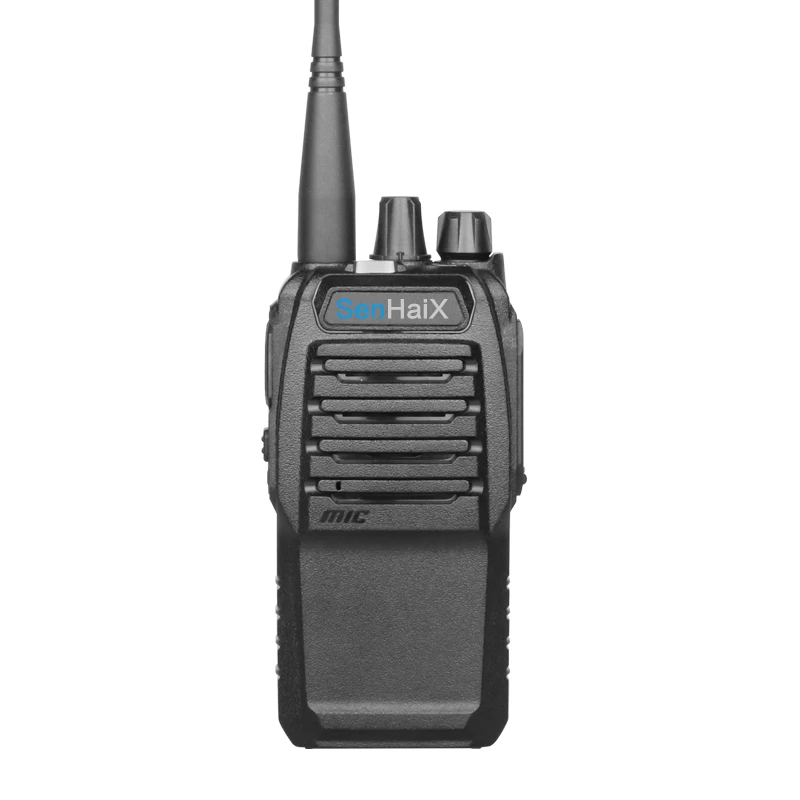

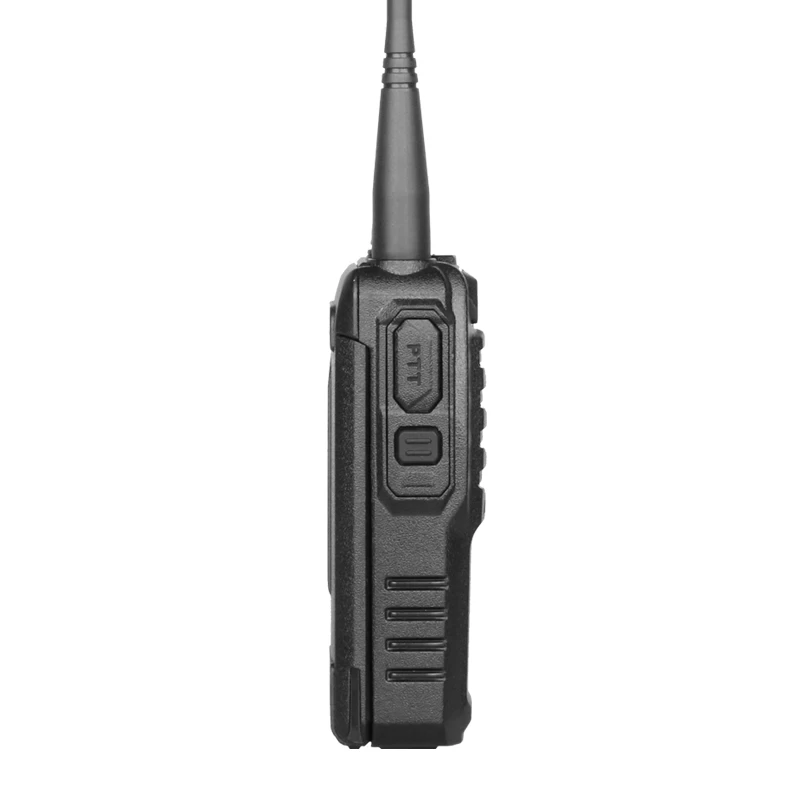

Product Name: 5W Handy Secuiry Two Way Radio
Product Features
1. 16 Channels
2. Output Power: 5W
3. Voice Annunciation
4. Time-out Timers
5. VOX Function
6. Scan Function
7. FM Radio
8. Battery Saver
9. Low Battery Warning
10. Emergency Alarm
11. Channel Lock Out
12. CTCSS/DCS
13. Squelch Level Adjust
14. Wide/Narrow Band 25KHz/12.5KHz
Technical Specifications
|
General
|
|
Model No.
|
8501
|
|
Frequency Range
|
UHF 400-470MHz
|
|
VHF 136-174MHz
|
|
Channel Capacity
|
16CH
|
|
Channel Spacing
|
12.5KHz/25KHz
|
|
Operating Voltage
|
7.4V-8.4V DC
|
|
Battery Capacity
|
1950mAh (Li-Ion )
|
|
Operating Temperature
|
-20℃ to +50 ℃
|
|
Frequency Stability
|
±2.5ppm
|
|
Antenna Impedance
|
50Ω
|
|
Dimension
|
60x37x130mm
|
|
Weight
|
260g
|
|
Transmitter
|
|
Output Power
|
5 watts
|
|
Modulation Type
|
16kφF3E(Wide Band)
|
|
11kφF3E(Narrow Band)
|
|
MAX. Frequency Deviation
|
<5KHZ(Wind Band)
|
|
<2.5KHZ(Narrow Band)
|
|
Adjacent Channel Power
|
≥60dB
|
|
S/N
|
≥45dB
|
|
Audio Distortion
|
≤3%
|
|
Audio Response
|
6dB/Each octave
|
|
FM
|
≤-36dB
|
|
Receiver
|
|
Sensitivity(12dB SINAD)
|
≤0.25uV(Wide Band)
|
|
≤0.35uV(Narrow Band)
|
|
Intermodulation
|
65dB
|
|
Adjacent Channel Selectivity
|
≥65dB(Wide Band) ≥60dB(Narrow Band)
|
|
S/N
|
≥50dB
|
|
Audio Response
|
6dB/Each octave
|
|
Rated Audio Distortion
|
≤3%
|
|
Audio Output Level
|
22dBMW(10%hours)
|
|
Rated Audio Output power
|
1000mw
|
|
Spurious Rejection
|
≥80dB
|
|
MAX. Frequency Deviation
|
<5KHZ(Wind Band) <2.5KHZ(Narrow Band)
|

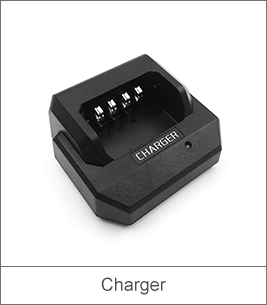

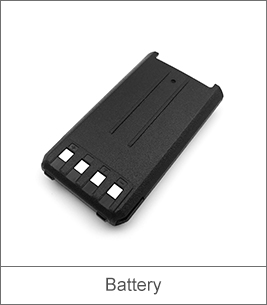

Standard Accessories
