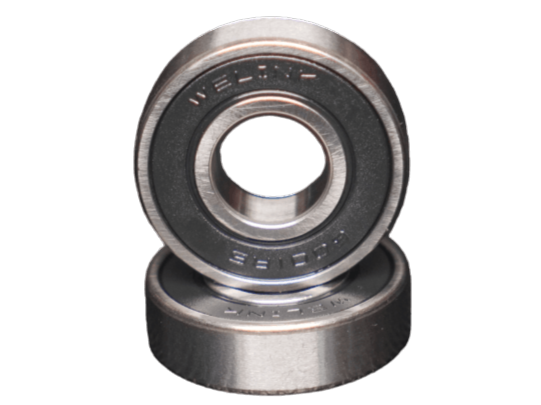

6001-2RS Double Rubber-Sealed Deep Groove Ball Bearing for Electric Motors and Industrial Appliances | 12×28×8 Mm

The 6001-2RS is a Double Rubber-Sealed Deep Groove Ball Bearing built to deliver reliable, long-lasting performance in environments where protection against moisture, dust, and contaminants is critical. Fitted with two rubber contact seals (2RS) on both sides, this bearing ensures effective sealing to retain lubrication and prevent ingress of fine particles or fluids. Featuring a 12 mm bore, it is an ideal choice for electric motors, appliances, and general industrial machinery where space constraints, environmental protection, and smooth operation are essential design considerations.

Facebook Twitter Pinterest LinkedIn 分享

6001-2RS Deep Groove Ball Bearing 12×28×8 mm | ISO 60 Series – Extra Light | Double Rubber Sealed

Featuring a robust deep groove construction, this sealed bearing is rated for stable operation at speeds up to 24,000 r/min (Oil). Designed to handle moderate radial loads and light axial loads in both directions, the 6001-2RS is a reliable selection for electric motors, appliances, and machinery where effective sealing against moisture and contaminants is required for consistent, long-term performance.

6001-2RS Sealed Deep Groove Ball Bearing for Electric Motors and Industrial Appliances | 12×28×8 Mm

Comprehensive Applications

Designed for a broad range of applications requiring sealed operation, moderate load support, and consistent performance in compact assemblies:

Industrial & General Machinery
  • Small Industrial Motors & Gearboxes
  • Pumps, Compressors & Fan Assemblies
  • Conveyor Rollers & Idler Wheels
  • Agricultural & Lawn Equipment Components
Automotive & Transportation
  • Automotive Alternators & Starters
  • Electric Window & Wiper Motors
  • Small Vehicle Accessory Drives
  • Material Handling Equipment
Electric Motors & Drives
  • AC/DC Motors & Fan Motors
  • Servo & Stepper Motor Applications
  • Power Tool Drives & Spindles
  • Appliance Motors (Washers, Dryers, Dishwashers)
Consumer & Commercial Equipment
  • Household Appliances & HVAC Fans
  • Commercial Food Processing Equipment
  • Vending Machines & Dispensers
  • Fitness & Exercise Equipment

Key Performance Features

01. Compact & Versatile Design Profile

Manufactured to extra-light series dimensions (12×28×8 mm), this bearing offers an optimal balance between load capacity and compact design, making it suitable for applications where space efficiency and reliable performance are both required.

02. Precision-Engineered for Smooth Operation

Available with precision grades up to ABEC 5 (P5), the 6001-2RS features optimized internal geometry and raceway finishing to ensure low noise, minimal vibration, and consistent performance across various speed ranges and load conditions.

03. Effective Dual Rubber Seal Design

Two rubber contact seals (2RS) provide reliable protection against moisture, dust, and contaminants while maintaining stable internal lubrication. This sealing solution is ideal for applications operating in humid, dirty, or wash-down environments.

Technical Specifications

Bearing Type Single Row Deep Groove Ball Bearing
ISO Dimension Series 60 Series – Extra Light
Basic Designation 6001
Suffix 2RS (Double Rubber Contact Seals)
Bore Diameter (d) 12 mm
Outer Diameter (D) 28 mm
Width (B) 8 mm
Material (Races & Balls) Chrome Steel (GCr15 / SAE 52100)
Precision Class Standard / P5 Grade Available
Cage Material Steel Stamped
Dynamic Load Rating (Cʳ) 5.60 kN
Static Load Rating (C₀ʳ) 2.85 kN
Limiting Speed (Grease) 18,000 r/min
Limiting Speed (Oil) 24,000 r/min
Weight (approx.) 23 g

Interchange Part Numbers

Common manufacturer equivalents include:

  • SKF: 6001-2RS
  • NSK: 6001 2RS
  • FAG: 6001-2RS
  • NTN: 6001LLU
  • KOYO: 6001LLB

Design & Configuration

The 6001-2RS is supplied as standard with dual rubber contact seals, offering optimal protection in demanding environments. For applications where non-contact dust protection is sufficient, the double steel shielded version (6001-ZZ) is available as an alternative configuration.

"Choose the 6001-2RS for electric motors, appliances, and industrial applications where effective sealing against moisture and contaminants ensures reliable long-term operation."
