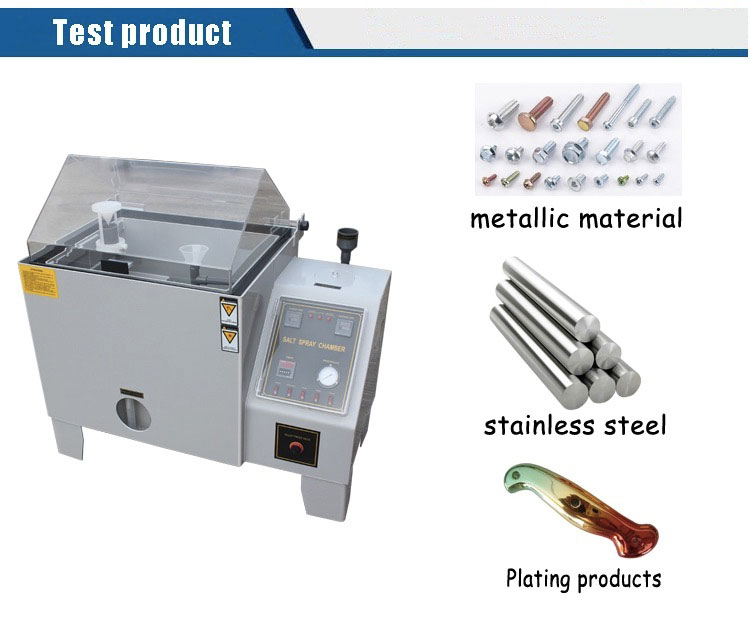

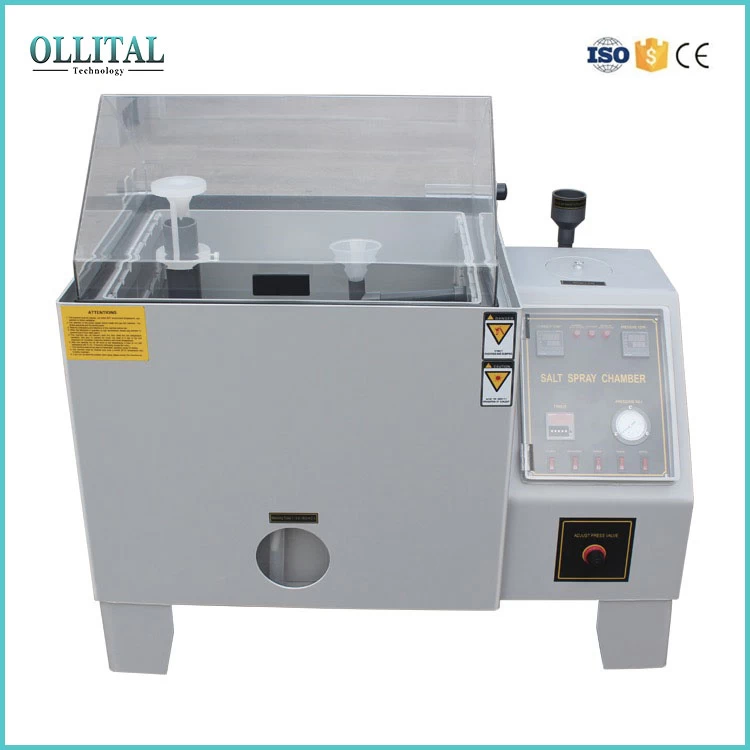

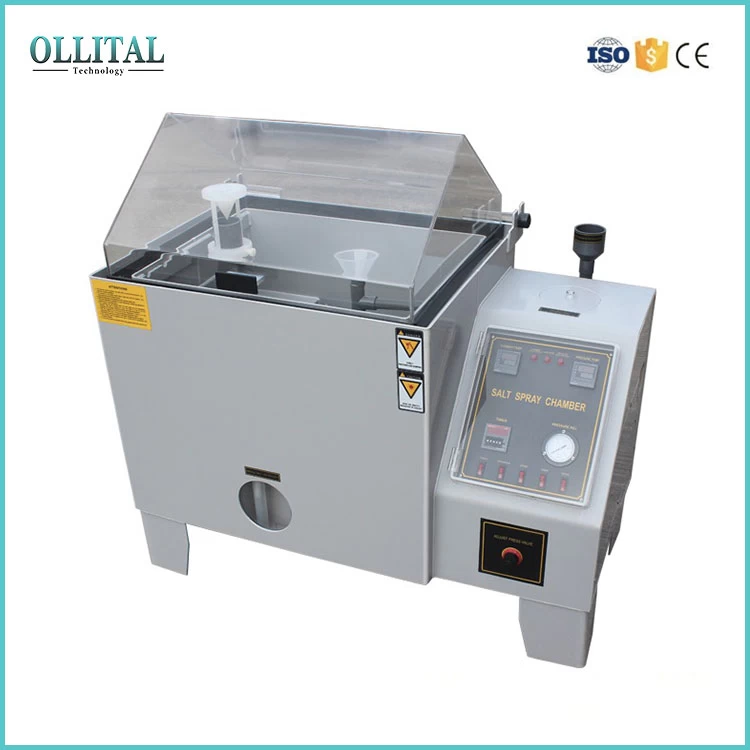

Salt fog spray corrosion test cabinet can be used for all kinds of material surface treatment, including coating, electroplating, organic and inorganic coating, anodizing, rust proof oil and preservative treatment test of its corrosion resistance, so as to establish the quality of the products.
|
Model
|
OLT-60A
|
OLT-90A
|
OLT-120A
|
OLT-200A
|
|
Standards
|
ISO9227, CNS3627,3885,4159,7669,8886, JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO 3768, 3769, 3770, ASTM B-117, B-268, GB-T2423, GJB 150.
|
|
Test chamber capacity (L)
|
108L
|
270L
|
600L
|
1440L
|
|
Temperature
|
Test chamber
|
NSS.ACSS 35°C±1°C/CASS 50°C±1°C
|
|
Air cylinder
|
NSS.ACSS 47°C±1°C/CASS 63°C±1°C
|
|
Test chamber size
LxWxD(cm)
|
60*45*40
|
90*60*50
|
120*100*50
|
200*120*60
|
|
Max volum of test liquid (L)
|
15
|
25
|
40
|
40
|
|
Volume LxWxD(cm)
|
107*60*118
|
141*88*128
|
190*130*140
|
270*150*150
|
|
Power
|
AC108V-240V,10A
|
AC108V-240V,15A
|
AC108V-240V,30A
|
AC108V-240V,30A
|
|
Spray quantity
|
1.0~2.0ml/80cm2/h
|
|
PH
|
6.5~7.2 3.0~3.2
|
Customize parts for Corrosion Test Chamber:
1. Inner chamber size
2. Inner chamber structure
3. PID programmable controller or PLC touch screen controller
1.LCD display and a pid controller or touch screen programmable controller.
2.Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products,strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.

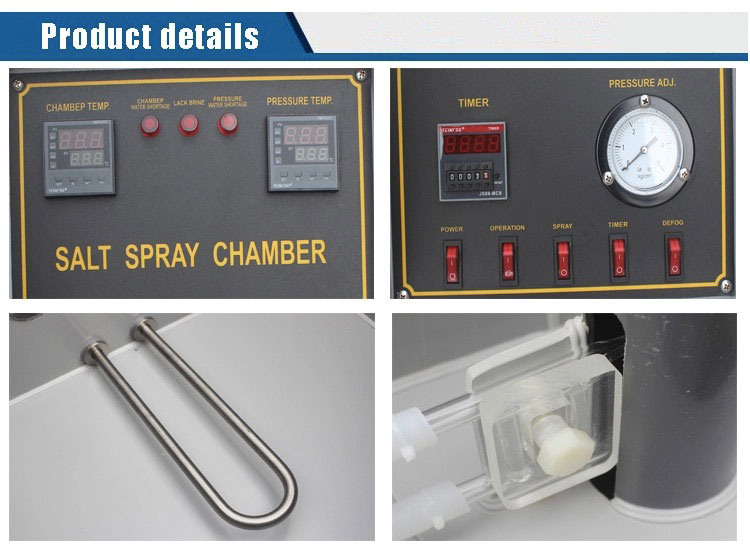

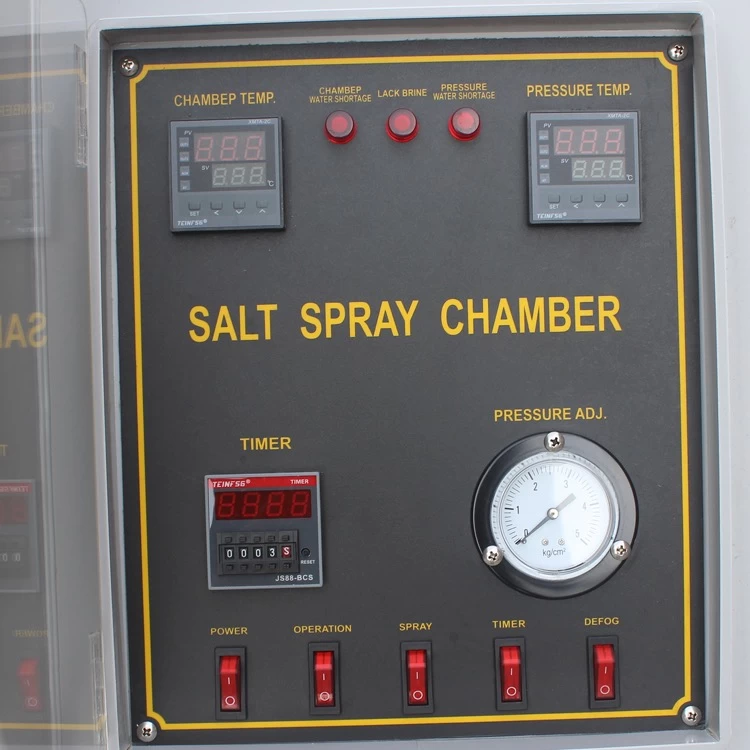

3.Controller are in the same panel, the operation simple and clear.
4.Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory.
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
|
Shipping method
|
Note
|
|
Express
|
Door to door, very convenient, don't need to clearance or pick-up
|
|
By air
|
Airport to airport, you need to do the customs clearance and pick up the
goods at your local airport, which you can have a local shipping agent to do for you.
|
|
By sea
|
Port to port and you need to do the customs clearance and pick-up the goods
at your local port, which you can have a local shipping agent to do for you.
|
