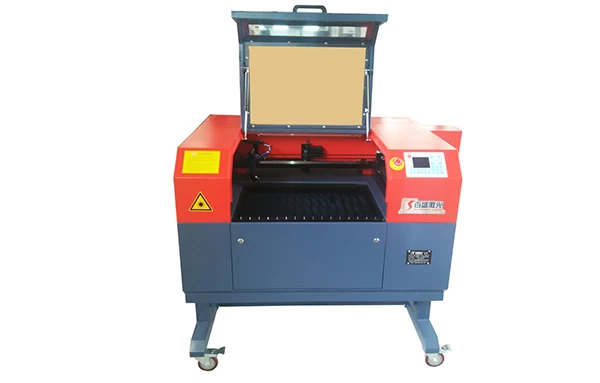

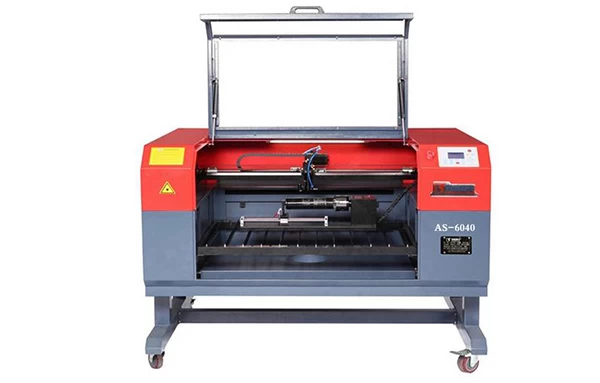

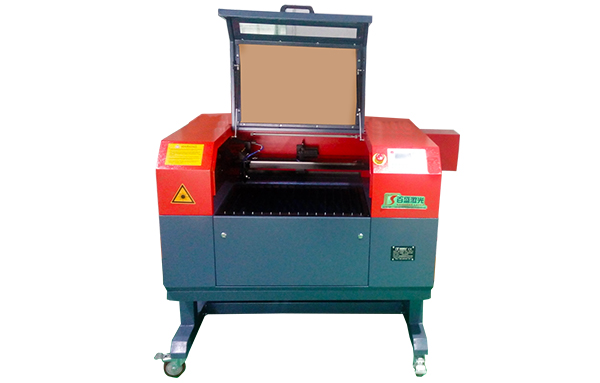

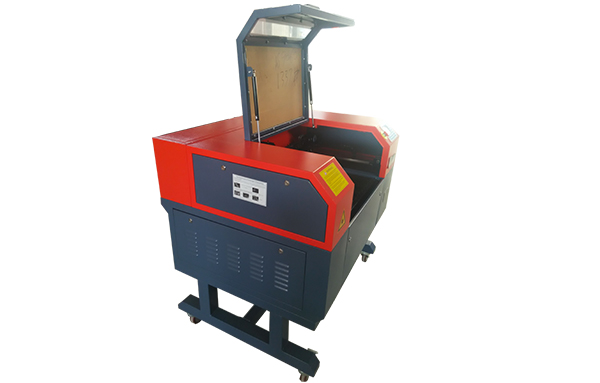

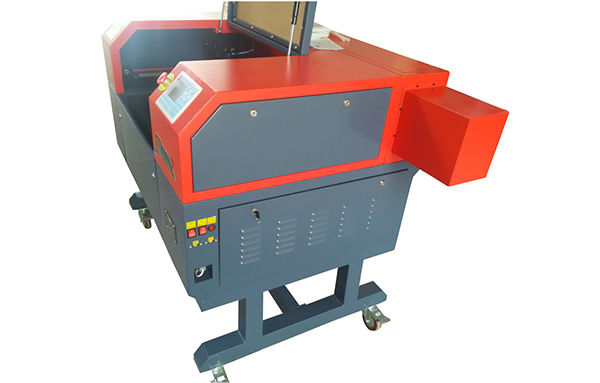

Brand

Baisheng LASER

Model

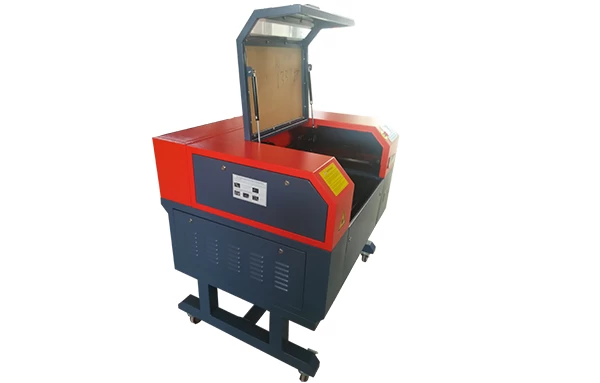

AS-6040

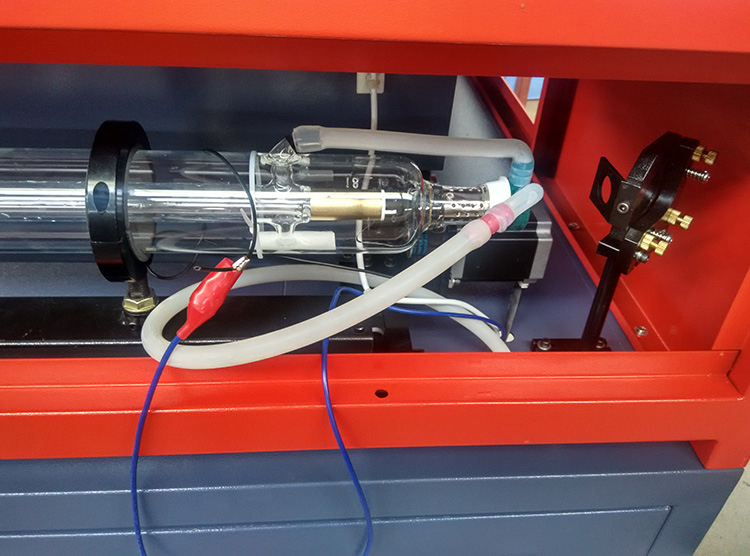

Laser Type

Sealed  CO2 laser Glass Tube

Laser power/brand

60W 80W, CDWG / Reci brand

Gross Power

<1300W

Net Weight

150KG

Gross wight

200KG

Processing Area

600mm*400mm

Machine Dimension

120*90*101

Packing Dimension

161*110*113

Minimum sharping character

Chinese Character 2mm/ letter 1mm

Power supply

220V±10% 50 HZ±10HZ (customizable)

Cutting/engraving Speed

0-64m/min

X/Y Positioning Accuracy

0.025mm

X/Y Repeated Positioning Accuracy

≤±0.01mm

Laser Control System

 China  Ruida or Topwisdom co2 laser control system

Data Transfer Port

PC cable ,USB port

Design software

Coreldraw AutoCAD Photoshop…AI

Graphic File Formats Supported

AI,DXF,PLT,DST,DSB,BMP,GIF,JPG,PNG,ICO

Operating temperature

0-45℃

Accessories

Exhaust fan/pipe. Air Compressor .air duct/water pipes , /user manual. Water

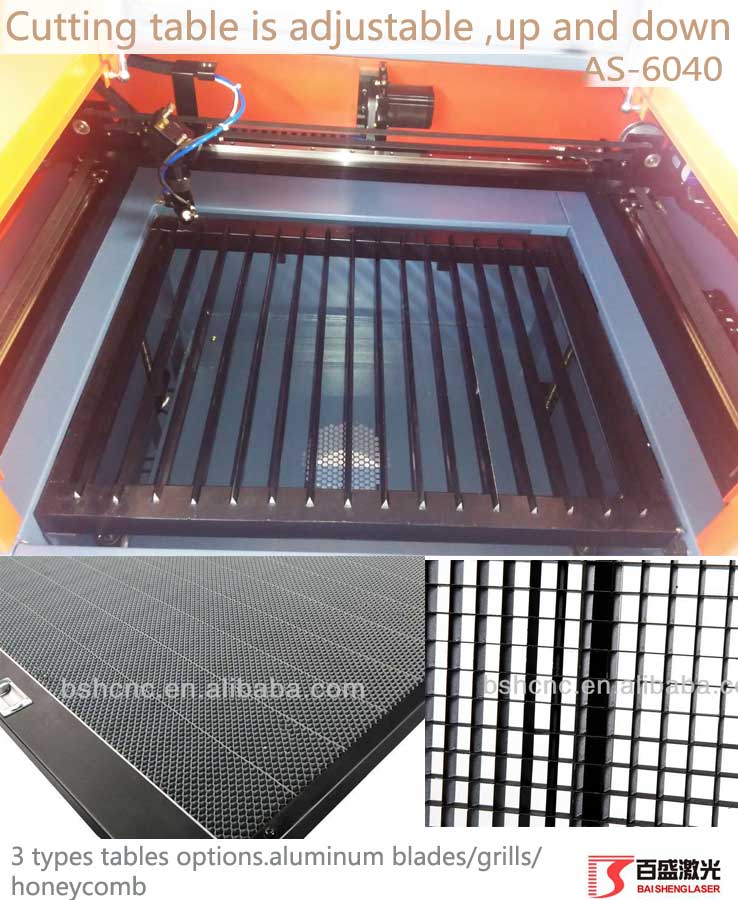

Pump,Reflective mirrors ,len,wheels.one of 3 platforms(Metal honeycomb,                            knife edge Aluminum bars, Grid )…

optional

Red dot pointer positioning system/ CW water chiller/the other 2 platform

Consumable parts(recommend to be spared)

Laser tube, Mirrors, lens. power supply
