PRODUCT DESCRIPTION:

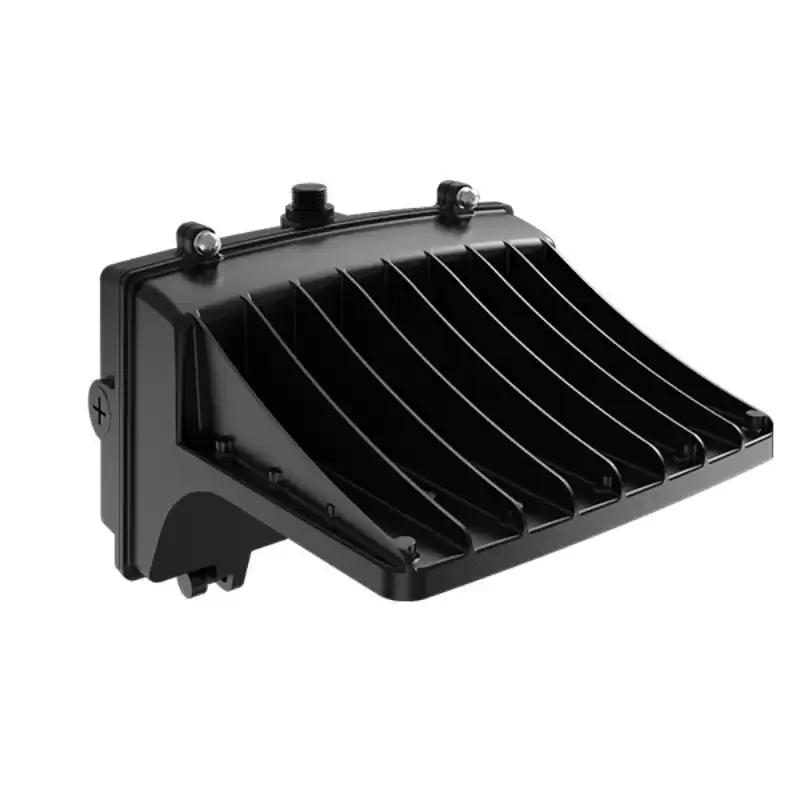

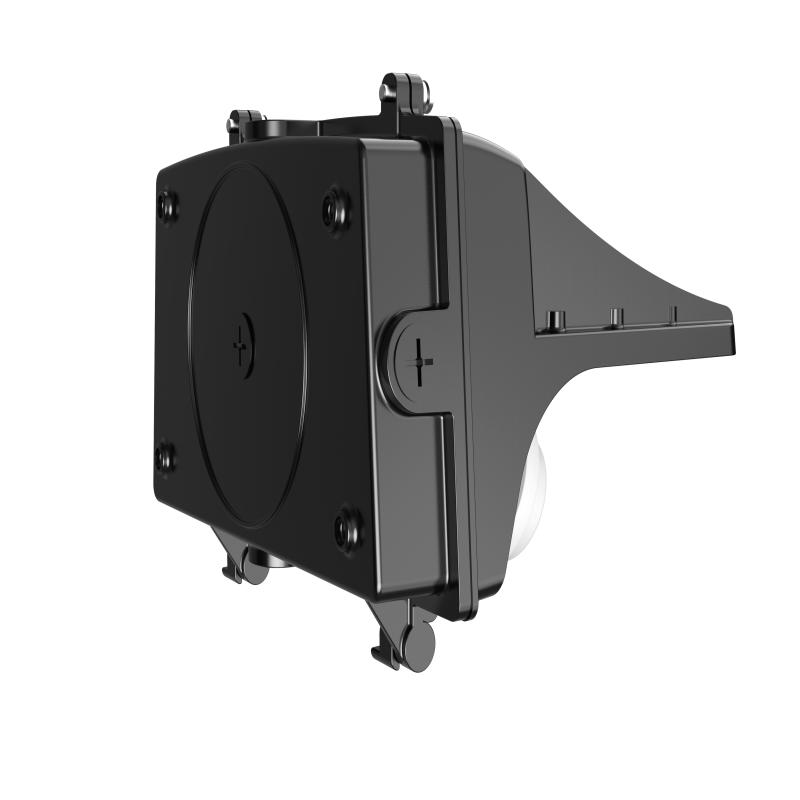

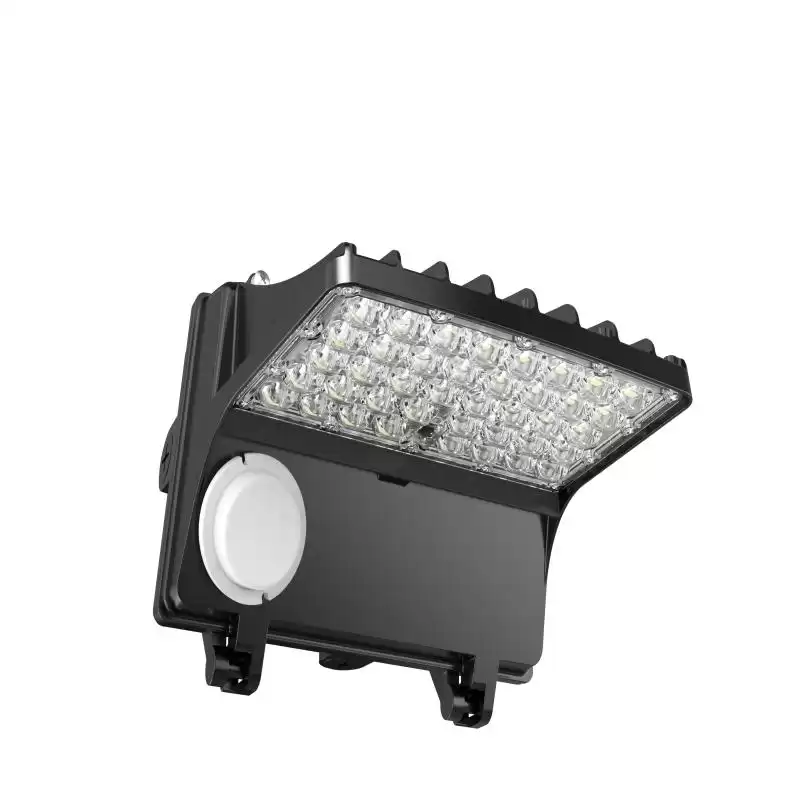

Designed with American style, this wall pack with automatic lighting system is popular in American and Canadian market.Using safety isolated driver, 120-277VAC/120-347VAC optional for different countries and applications, remote controlled wall pack lightis available 12V output andcapable of installing various controls. Therefore customers can add own controls. There are hinges at the bottom of fixture body, which is convenient for one-person installation. Outdoor wall-mount applications: building facade, commercial, industrial, retail, hospitality buildings that demand long service life and low maintenance.
FEATURES:
• Easy installation
• ETL/cETL/DLC premium certificate
• Wet location rated IP65
• Emergency power 4W & operating time 1.5 hours
• Photocell and motion sensor options
• Type III distribution optics standard/Other optics available by
request
CONSTRUCTION：
• UV-resistant polycarbonate refractor lens
• Durable die-cast aluminum housing
• light weight, and low transportation cost
WARRANTY:
7-year standard warranty with labor allowance* (further details
available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application
per the Product Data Sheet (PDS); operated <16 hrs; in ambient of
-40°F to 113°F.

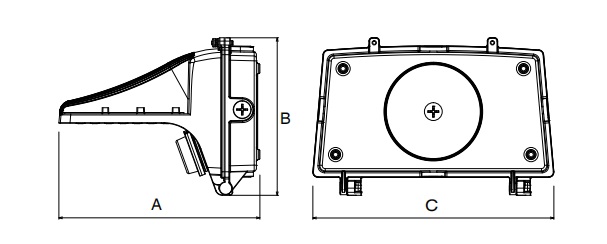

DIMENSION DRAWING:
|
MODEL
|
A (INCH)
|
B (INCH)
|
C (INCH)
|
|
60W
|
8.70″
|
6.73″
|
9.08″
|
SPECIFICATION：
|
ITEM
|
SPECIFICATION
|
Normal Type
|
|
GENERAL
PERFORMANCE
|
Power Consumption
|
60W
|
|
Equivalent Wattage
|
200W MH
|
|
Lumens Delivered
|
7800lm
|
|
Efficacy
|
130LM/W (±10%)
|
|
CRI
|
Ra>80
|
|
Color Temperature
|
4000K/5000K/5700K adjustable
|
|
L70 Lumen maintenance
|
50,000hrs
|
|
ELECTRICAL
|
Power Factor
|
≥0.90
|
|
Input Voltage
|
120-277VAC/120-347VAC
|
|
Dimming
|
0-10V
|
|
PHYSICAL
|
Mounting
|
wall-mounted
|
|
Operating Temperature
|
-22°F to 113°F
|
|
Humidity
|
Operating Humidity: RH<90%
|
|
QUALIFICATION
|
Qualifications
|
ETL/cETL DLC Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Outdoor IP65
|
|
Warranty
|
7 Years Warranty
|
LUMINOUS INTENSITY DISTRIBUTION CURVE:
MORLINK CONTROLS:
Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use.
Some networks want simple solutions that reduce energy consumption and meet code compliance while others are
more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of
things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and
high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future,
easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your
business.
• Morlink® Lite: Local area wireless controls
• Morlink® Home: Wireless lighting controls based on smart home
• Morlink® Pro: Networked Lighting Controls for Smart Building & IoT Enablement.
Note：
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product
2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor
Main Functions of Morlink Commercial Lighting Solution
|
Energy Management
• Create actions and scenes that can be automatically executed to implement energy-saving strategies.
• Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather conditions, etc.
• View, compare and analyze the power consumption of devices and groups by day, month or year.
Device Control
• View and control devices from a map of the lighting layout.
• Monitor device conditions including, status, operation time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal status” and notification to maintenance team.
|
Human Centric Lighting
• Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
ACCESSORIES：
|
MODEL NUMBER
|
DESCRIP TION
|
|
|
Photocell
|
Photocell Dusk to dawn 120-277V
|
|
|
Battery
|
Emergency battery back up
|
|
|
Switch
|
DIP Switch
|
|
ACCESSORIES (For APP Smart Fixture):
|
MODEL NUMBER
|
DESCRIPTION
|
|
|
Motion sensor
|
Bluetooth Microwave motion sensor
|
|
FAQ：
1. How can smart lamps save money?
A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.
2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.
3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.
4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
