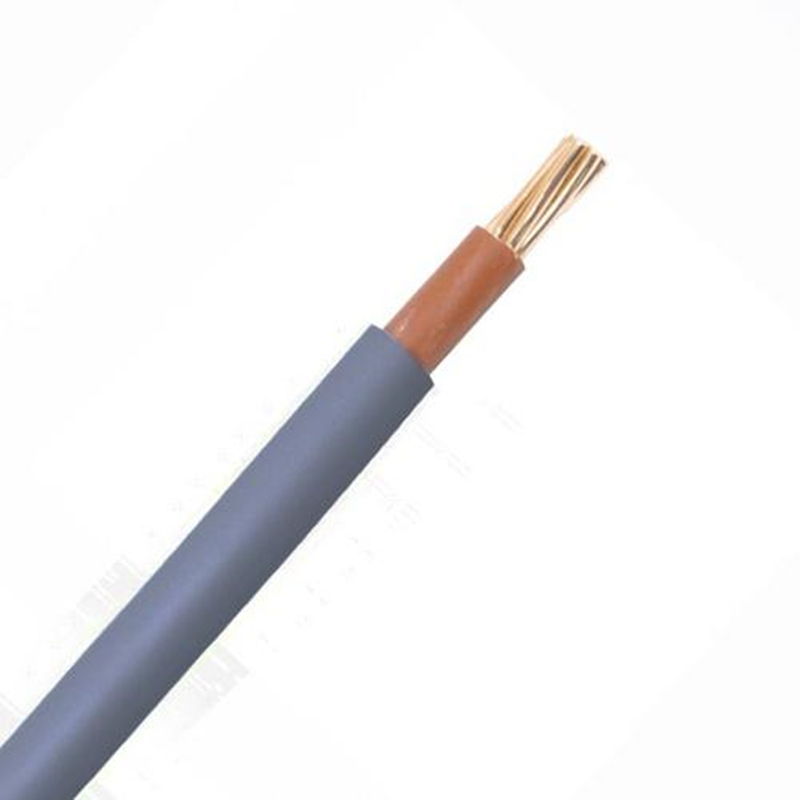

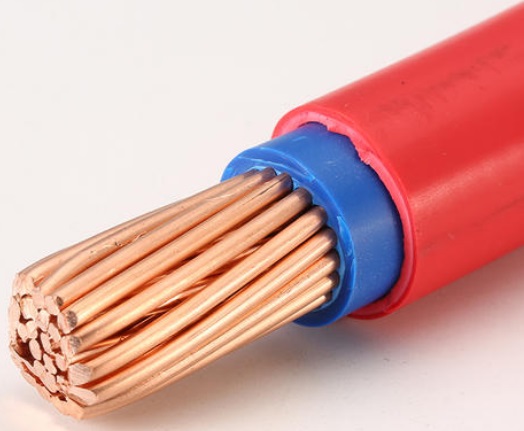

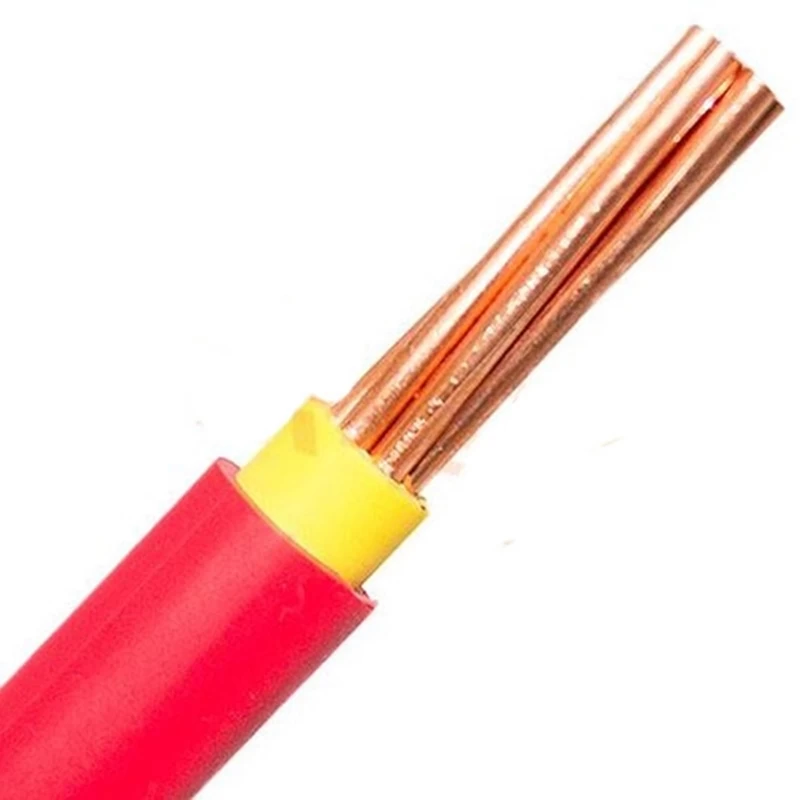

Single Core Double PVC Insulated NYM BVV Electrical Wire and Cables

PRODUTS KEYWORDS

BVV, BVVR, NVV, NYM, NYM-J, NYJ-O, 6181Y, H05VV-U, H07VV-U, H07VV-R, SDI Insulated Cable,

60227IEC10 BVV, CU/PVC/PVC.

APPLICATION AND CHARACTERISTICS

The single core BVV cable can be used for general purpose, for installation in raceway and shall be protected water into raceway, but do not install in duct in ground or direct burial in ground. The BVV cable has add one layer of insulation base on BV cable, it can better protect conductor and insulating material, wear resistance, oil resistance, acid resistance and alkali resistance.

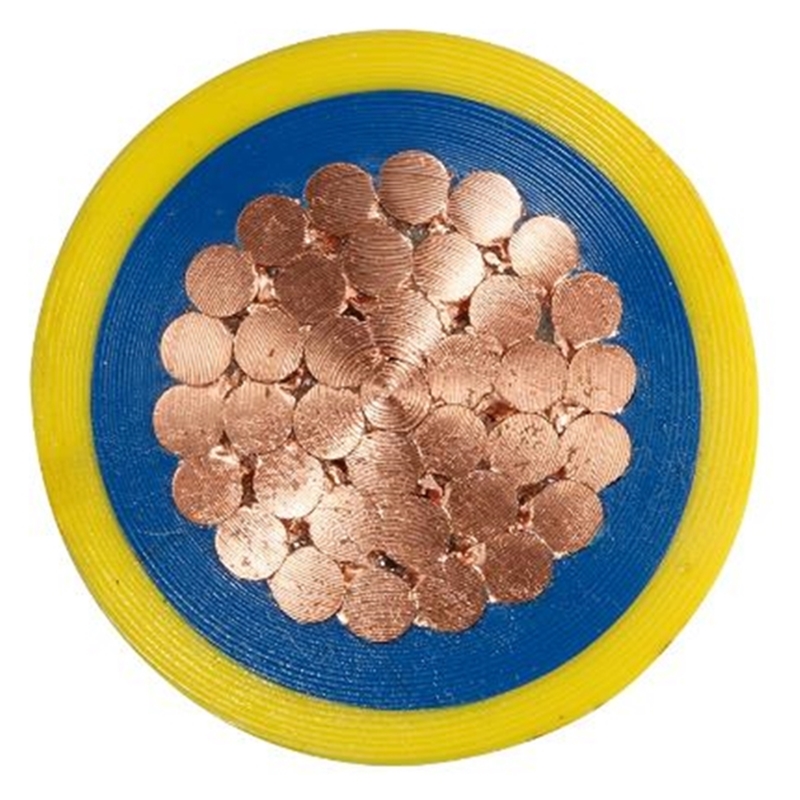

PRODUCTS STRUCTURE

---Conductor Material

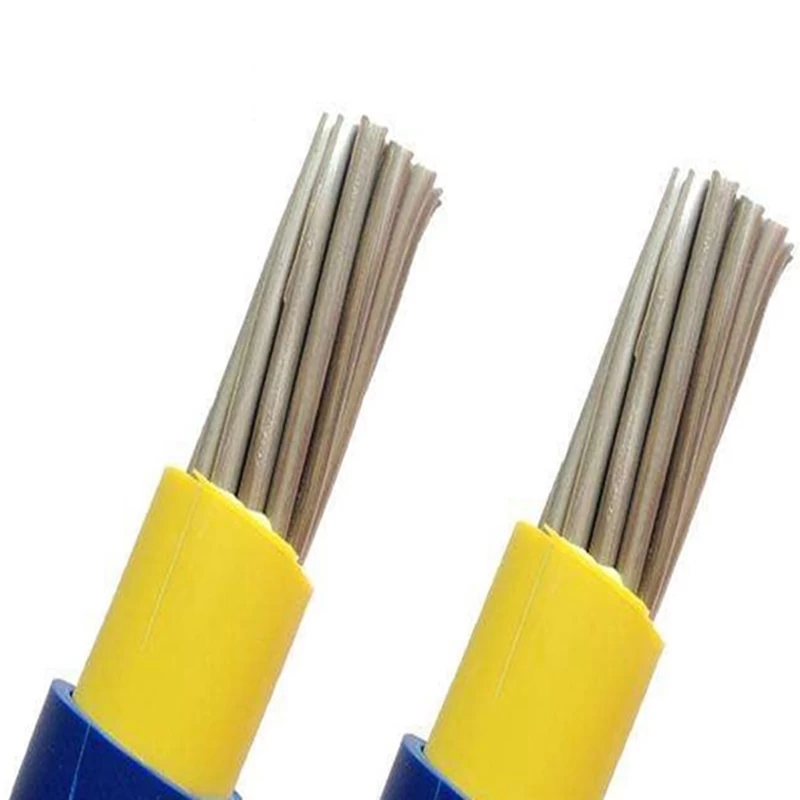

    Pure annealed copper or aluminum wire; solid class 1, or strand class 2.

---Insulation Material

    PVC (Polyvinyl chloride).

---Insulation Color

    Red, yellow, blue, green, black, brown, and other colors.

---Sheath Material

    PVC (Polyvinyl chloride).

---Sheath Color

    Red, yellow, blue, green, black, brown, yellow/green, and other colours.

---Core Number

    Single core, 1C.

---Voltage Rate (U₀/U)

    300/300V (0.75～1.0 mm²), 300/500V (1.5～185 mm²), 450/750V (AS/NZS 5000.2)

---Working Temperature

    -15℃～+70℃.

---Minimum Bending Radius

    Up to 10 mm²: 5 x O.D., above 10 mm²: 6 x O.D.

---Production Standard

   JB/T 8734, GB/T 5023, IEC 60227, BS 6004, VDE 0250, TIS 11 part 4-2553.

---Products Packing

   100 meters each roll, reel, coil, plastic reel, wooden pallet, wooden drum, or others.

---Products Delivery

   Within 3-5 working days as soon as we received the deposit.

REMARK

---The above information only for you reference, for the formal data, please refer the actual products.

---The product can have flame retardant, fire-resistant, low smoking zero halogen properties, and the working temperature can be 90 or 105 degree, but the production process, materials and production standard maybe has a few of different.

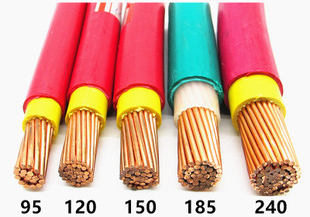

---For the single core BVV cable, according to the practice, the common specification is 1.5～185 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS


RAW MATERIAL



PRODUCTION PROCESS

INSPECTION PROCESS

FAQ
1. Are you the manufacturer or trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
