65mm Diameter Twin Screw Plastic Extruder Production Line

65mm Diameter Twin Screw Plastic Extruder Production Line

Model: SHJ65A, SHJ65B, SHJ65C, SHJ65D,SHJ65G

HS CODE: 8477.2010.00

This machine line is wild used for many business field, like  filler, master batch, engineering granules, bio mass, bio-degradable extrusion, GFL ( glass Fibre added) and other modification plastic business scope.





65mm Diameter Twin Screw Plastic Extruder Production Line

Model: SHJ65, SHJ65A, SHJ65B, SHJ65C, SHJ65D, SHJ65G

HS CODE: 8477.2010.00

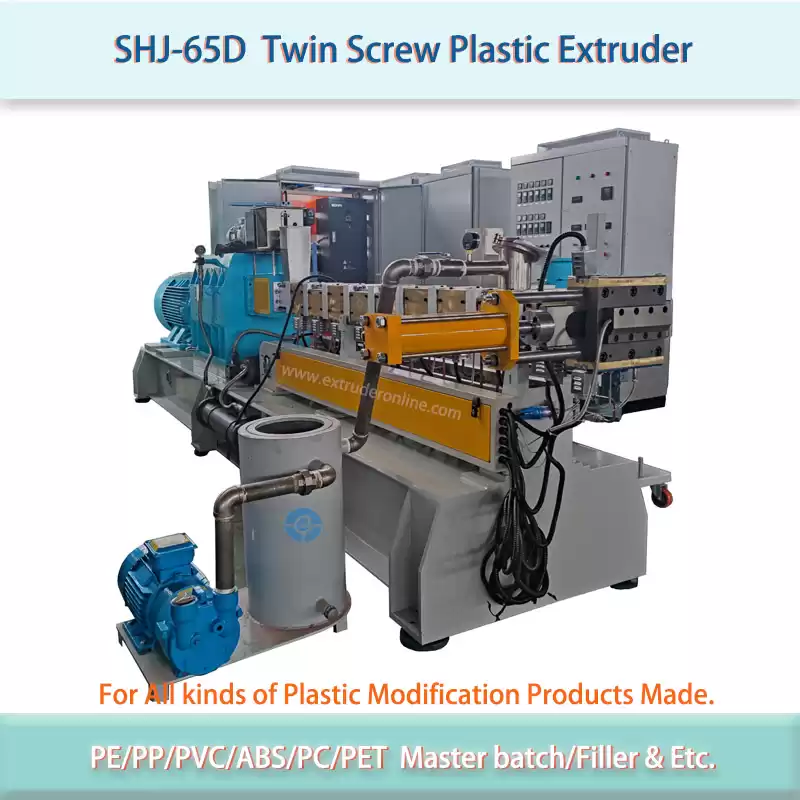

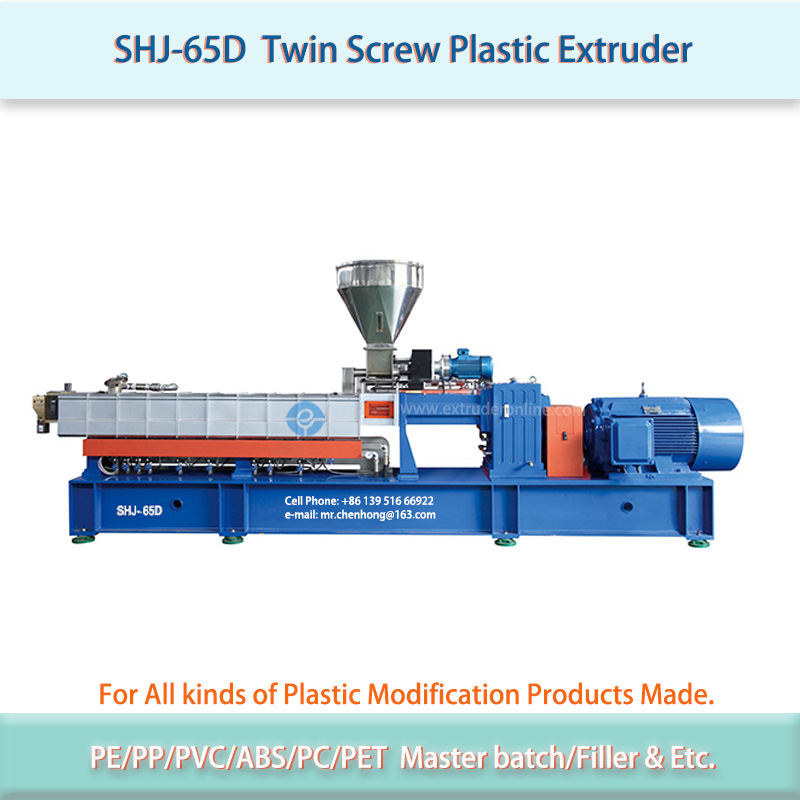

 SHJ65 EXTRUDER

 This machine line is wild used for many business field, like to say, filler, master batch, engineering granules, bio mass, bio-degradable extrusion, GFL ( glass Fibre added) and other modification plastic business scope.

This machine line has different kind of cutting system:

1) air cooling hot-face cutting system;

2) air cooling belt convoying system;

3) strand bathing water cooled pelletizing system;

4) water-ring cooled hot-face cutting system;

5) under water cutting system;

 FEEDER FOR TWIN SCREW

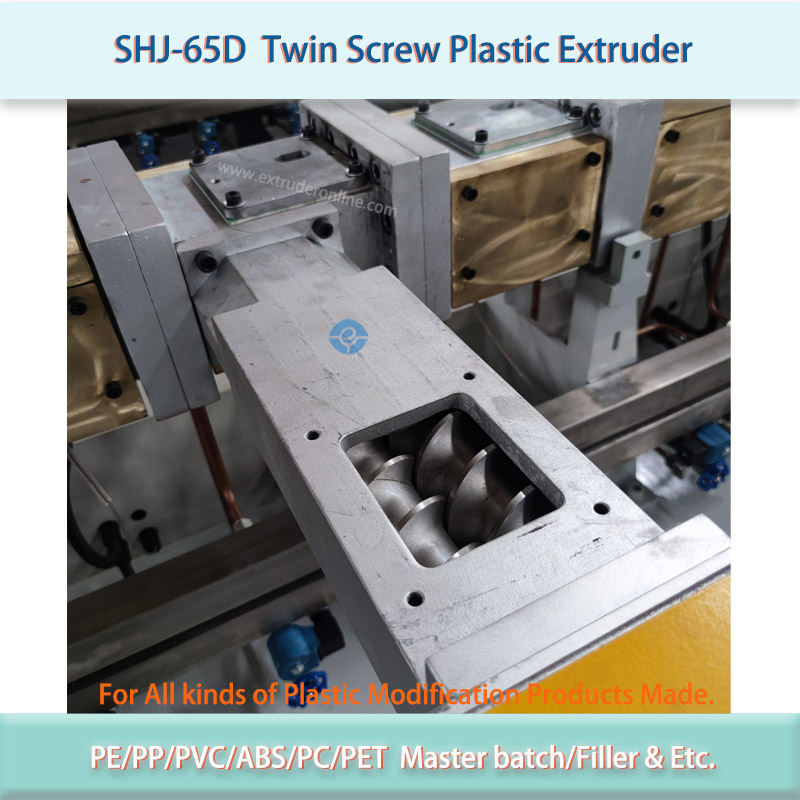

Co-rotating Parallel Twin Screw Plastic Polymer Extruder

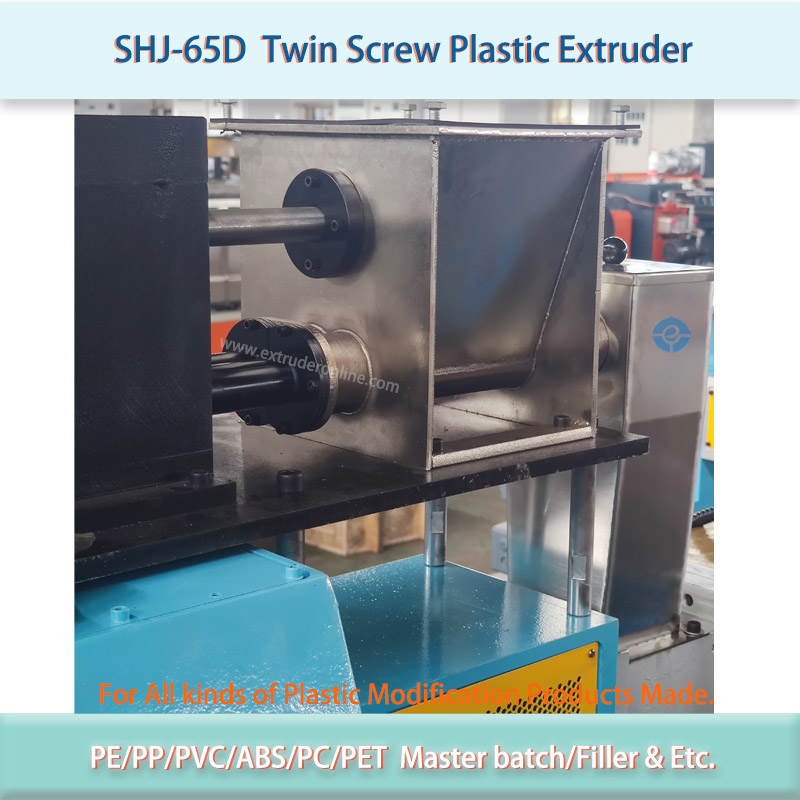

This machine line also could be equipped side feeder for other auxiliary materail added, like CaCo3 powder, BaSo4 powder,  color pigments, Glass fibre and Etc.;

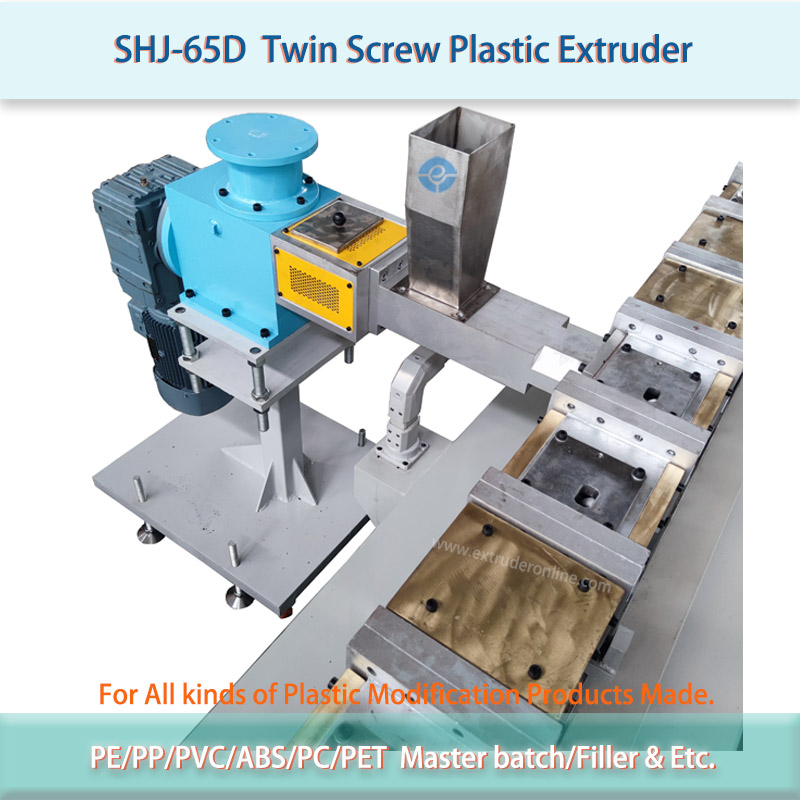

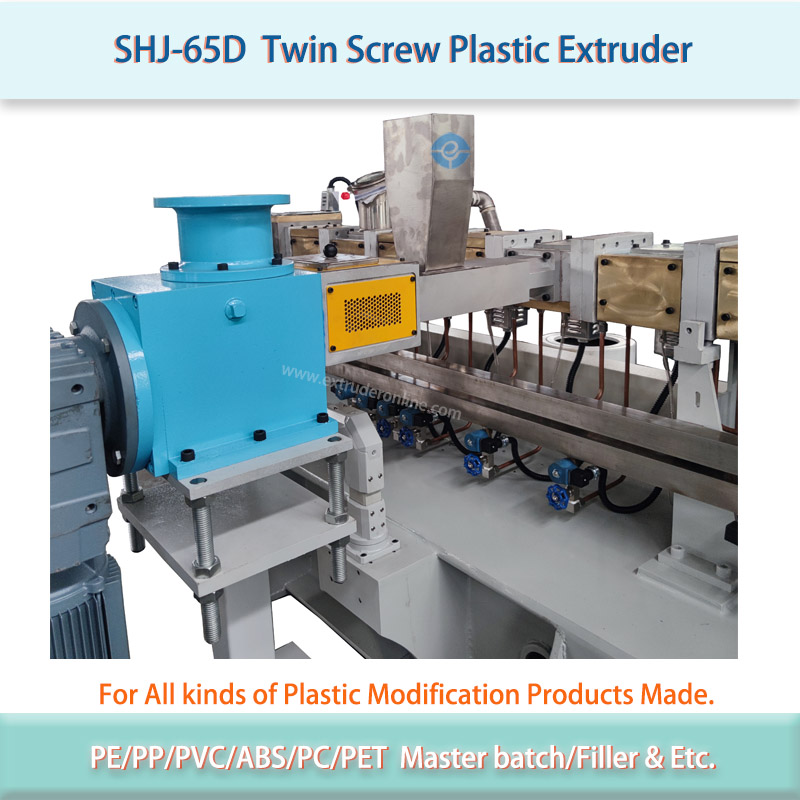

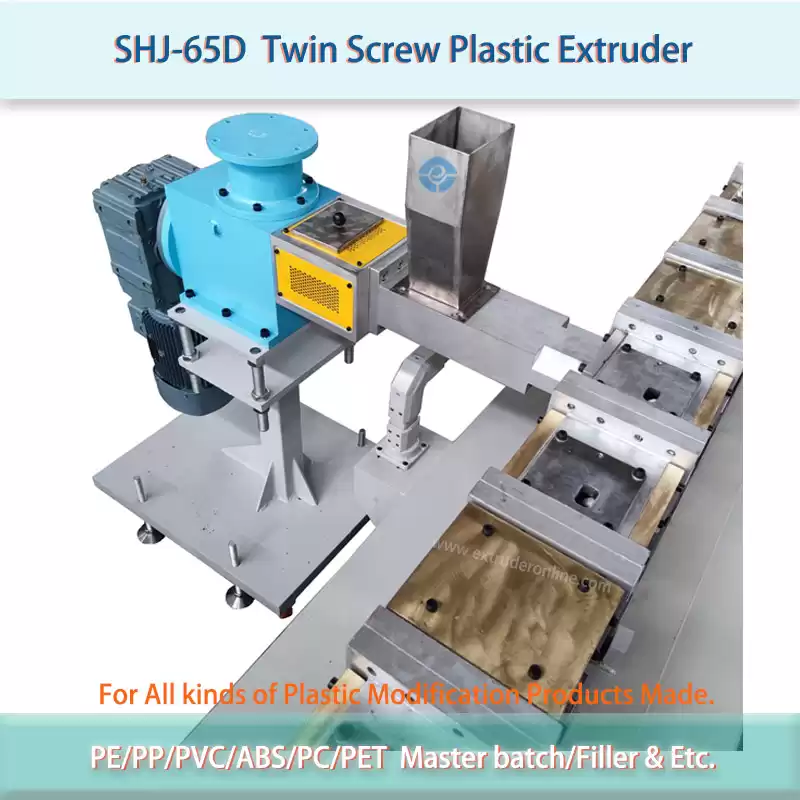

sidefeeder



Rough configuration for strand bathing water cooled system:

Model: SHJ-65 (A/B/C/D/G)

Output capacity: around 180-400Kgs/h, the output capacity is

L/D ratio401 (STANDARD)<36-60 is possible for special request>

Screw Dia.: 62.4mm

Barrel hole Dia.: 63mm

Whole hardness: 62-64

Screw Speed: 400/500/600 rpm

Motor power: 75Kw/90Kw/110Kw, Wannan or Siemens-beide brand;

Machine line includs HOST, Power cabinet, water trough, air knife, pelletizer and some spare parts.

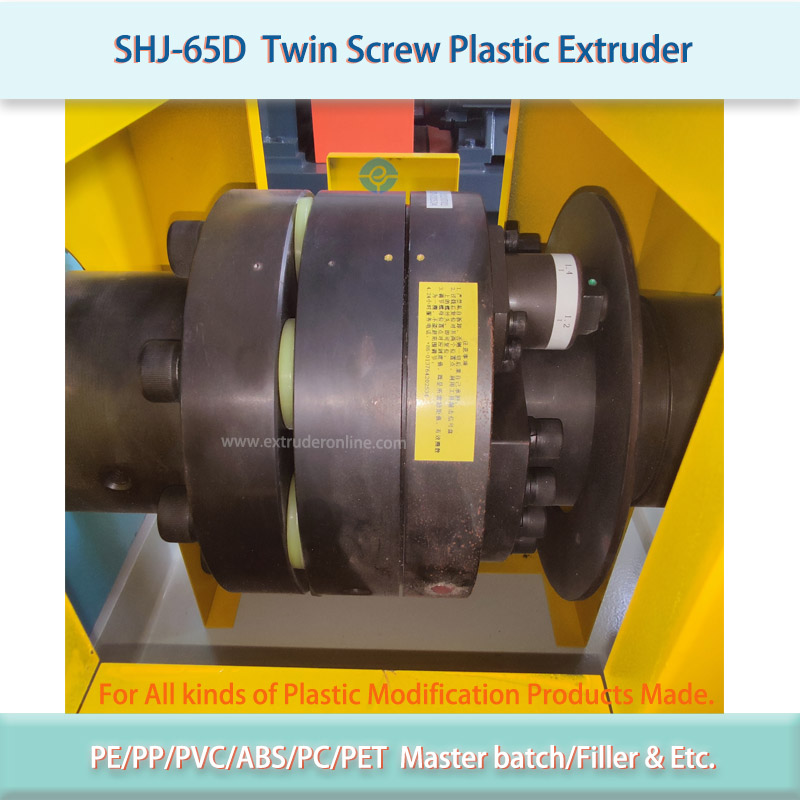

 coupling



This SHJ-65 Twin Screw Plastic Polymer Extruder is for wild usage, not only for engineer granules making, but also for single color(white, black, red or other single color large output capacity orders.) master batch, functional granules(anti-static, anti-flame, fire retared, anti-UVanti-aging granules.)  production.  If you need to produce the sheet or panel, then just change the die-head when you place the order to us or equipped extra die-head and other auxiliary equipments ( Auxiliary machine, like three rollers calander, dragging machine and others.)

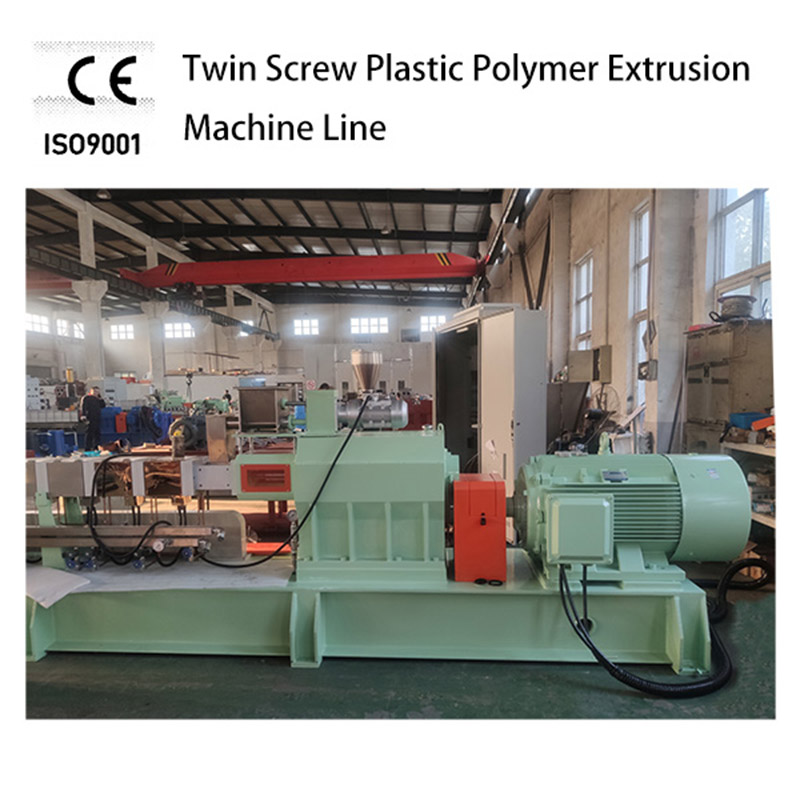

twin screw extruder workshop

Our machine can process the following materials:

Process

Representative materials

Mixing nature-changing

PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.

PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.

Filling nature-changing

PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder

ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.

PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder

Functional machine pellets

PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets

PE,PP,PS, etc+ starch: de-composing machine pellets

PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets

PE,EVA=ABS etc+ carbon black: black machine pellets

Colored machine pellets

PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary

Intensified glass fibers and carbon fibers

PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.

Various cables

HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,

PE peroxide silicon alkyl crossing cables: radialization crossing cables

Special materials

EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material

Reaction extruding

Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.

Exhausting and volatilization

Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene

Powder paint

Polyester, ring oxide, lactide, polyurethane, acrylate
