Product Name

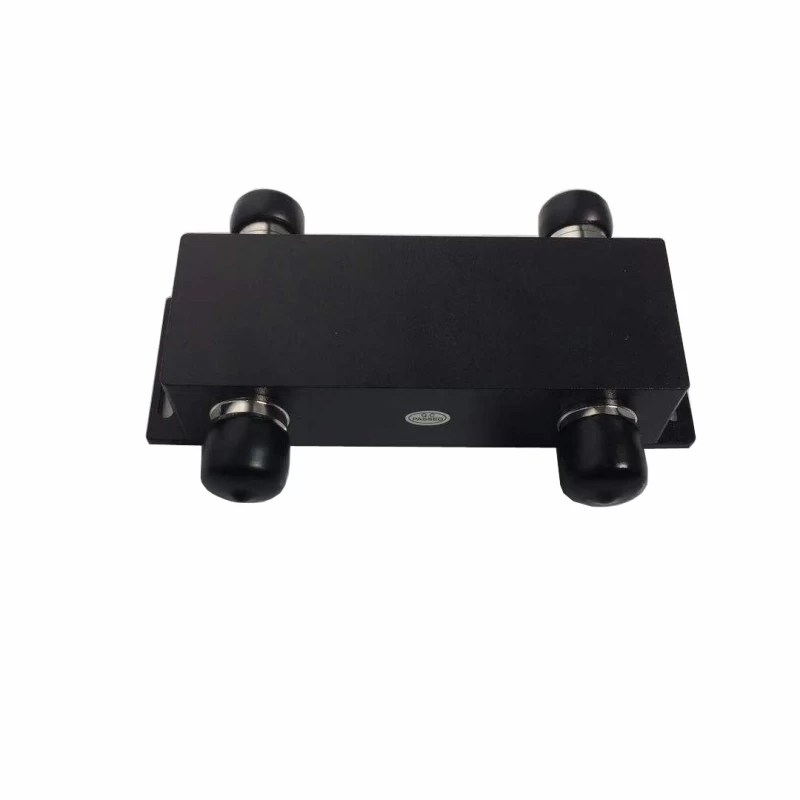

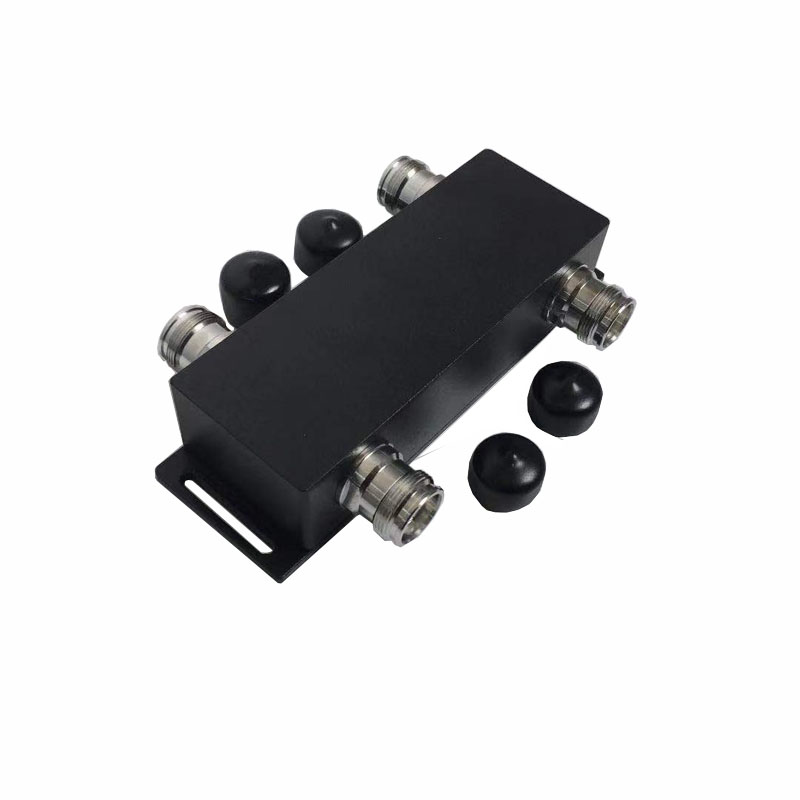

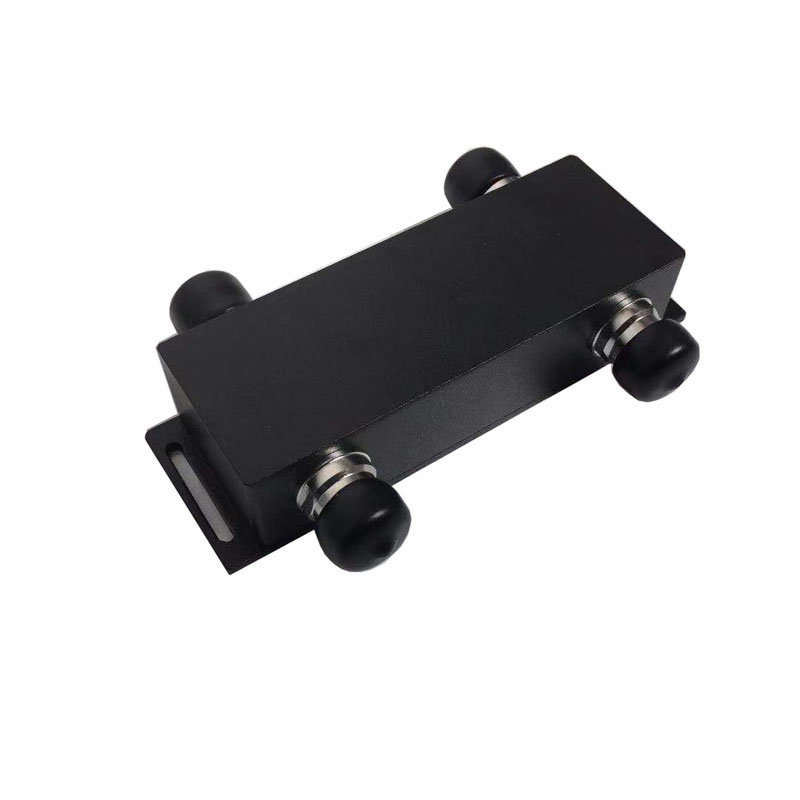

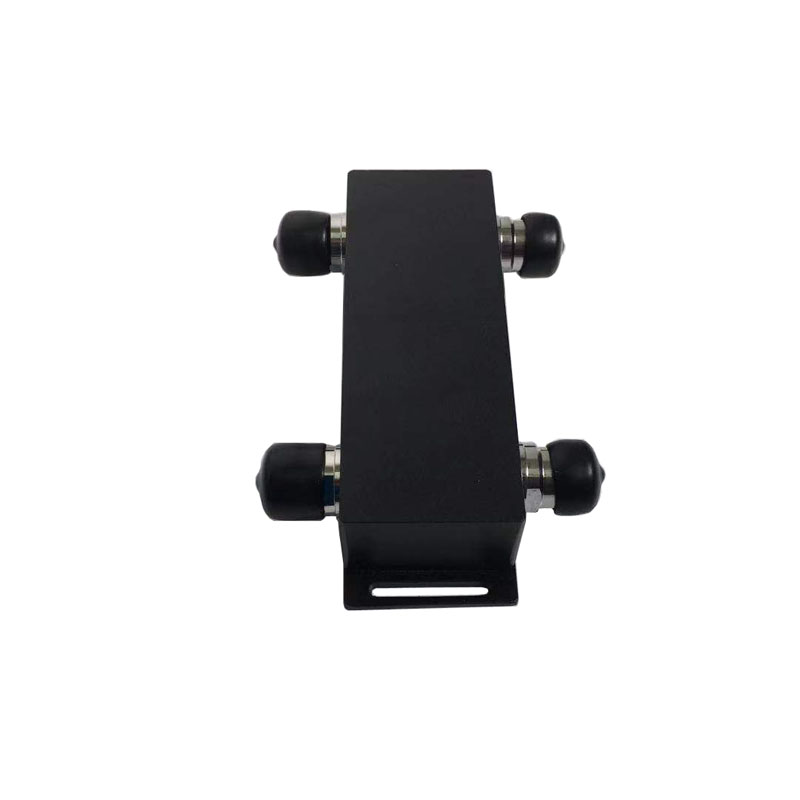

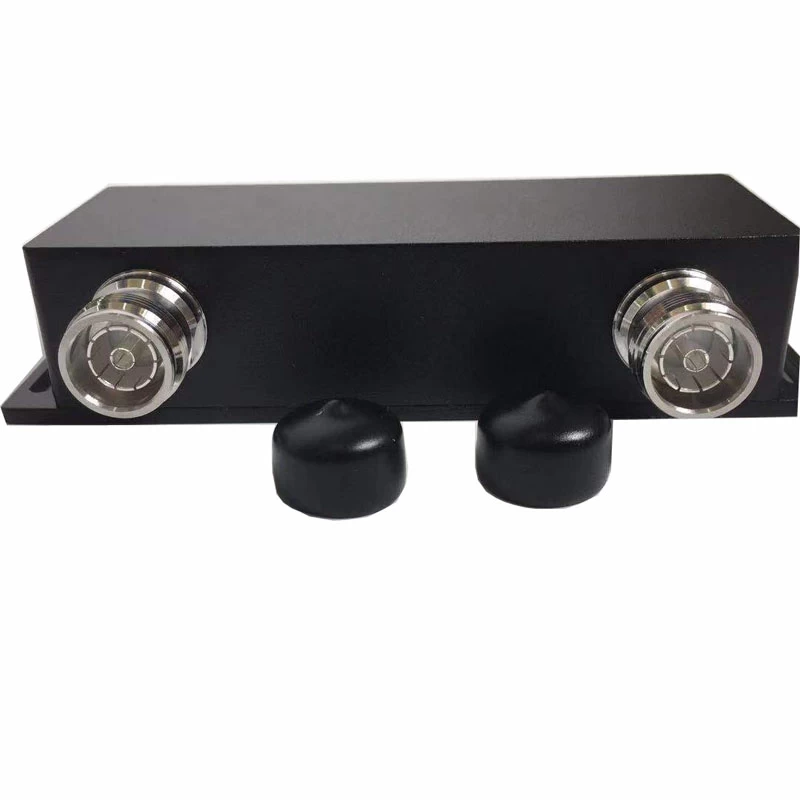

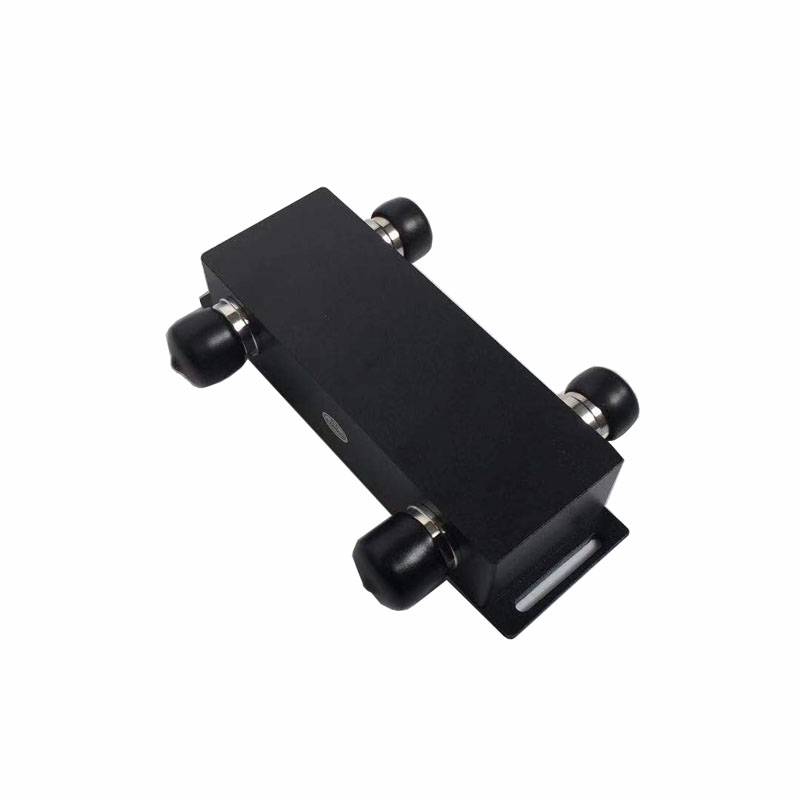

2:2 Hybrid Coupler (698-2700MHz, 200W,4.3-10F,-160dBc, IP65),90 Hybrid Combiner,90 Hybrid Coupler,2x2 Hybrid Coupler
Product Features
◆ 698-2700MHz Hybrid Coupler Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low Passive Inter-modulation
◆ Low VSWR &Insertion Loss
◆ 2x2 Hybrid Coupler High Isolation, Indoor &Outdoor, IP65
◆ 3dB Hybrid Coupler Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MHC-727-22-4F-160
|
|
Freq(MHz)
|
698-2700
|
|
Coupling(dB)
|
3.1
|
|
Insertion Loss(dB)
|
≤0.6
|
|
Port Isolation(dB)
|
≥23
|
|
VSWR
|
≤1.25
|
|
3rd PIM(dBc)
|
≤-160dBc@2*43dBm
|
|
Average Power(W)
|
200W each port
|
|
Impedance
|
50 ohm
|
|
Connector
|
3*4.3-10 Female
|
|
Color
|
Black
|
|
Temp(deg)
|
-35~+65
|
|
Application
|
Indoor &Outdoor, IP65
|
|
Relative Humidity
|
5%-95%
|
|
Dimensions(mm)
|
150*91*32 (Connectors Included)
|
OUR SERVICES
1. Professional skills support for 698-2700MHz 2*2 Hybrid Coupler
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
