Product Name

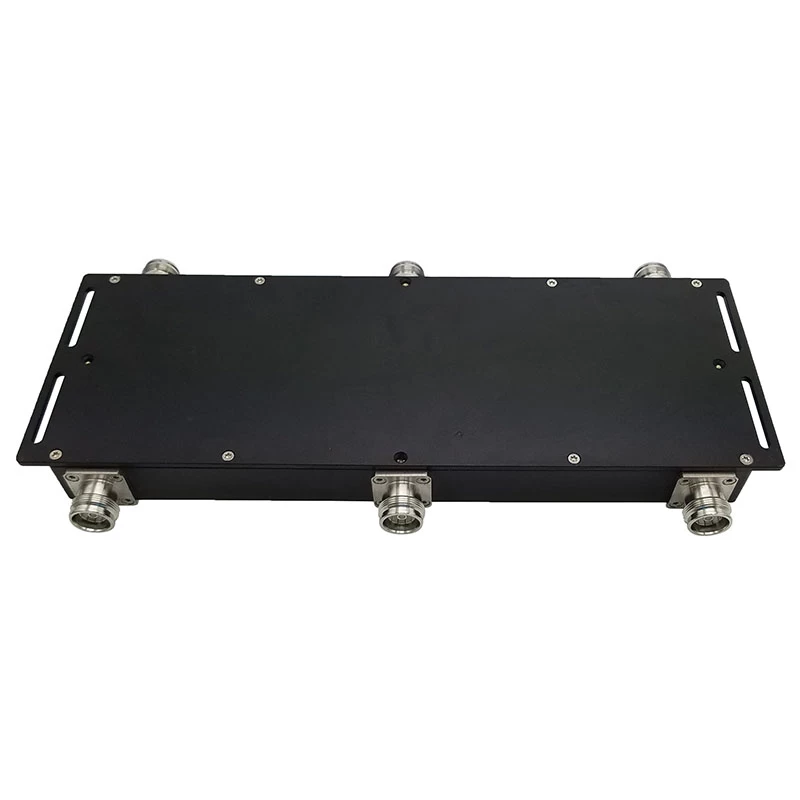

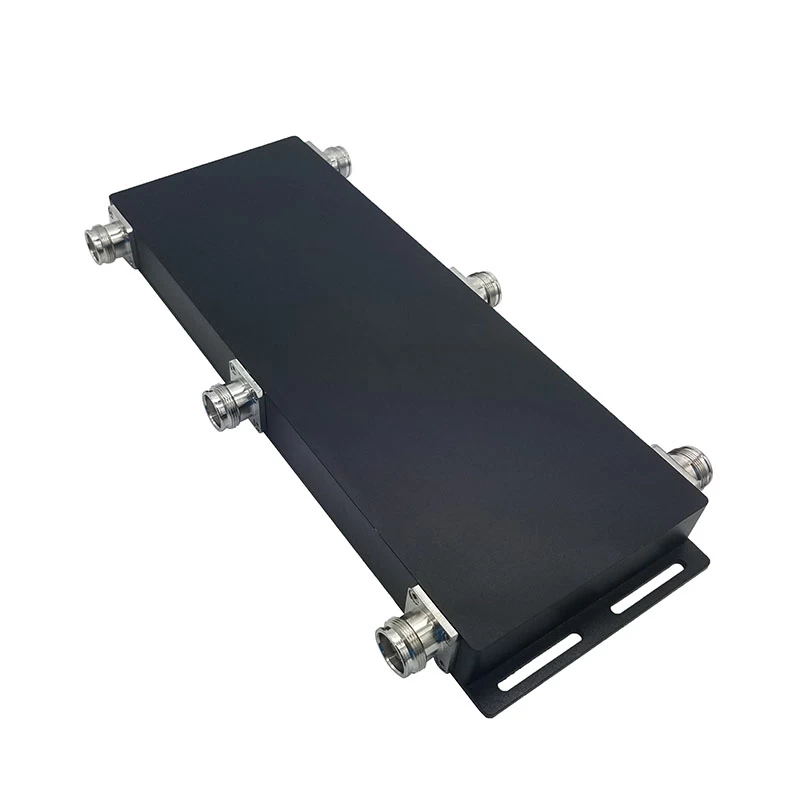

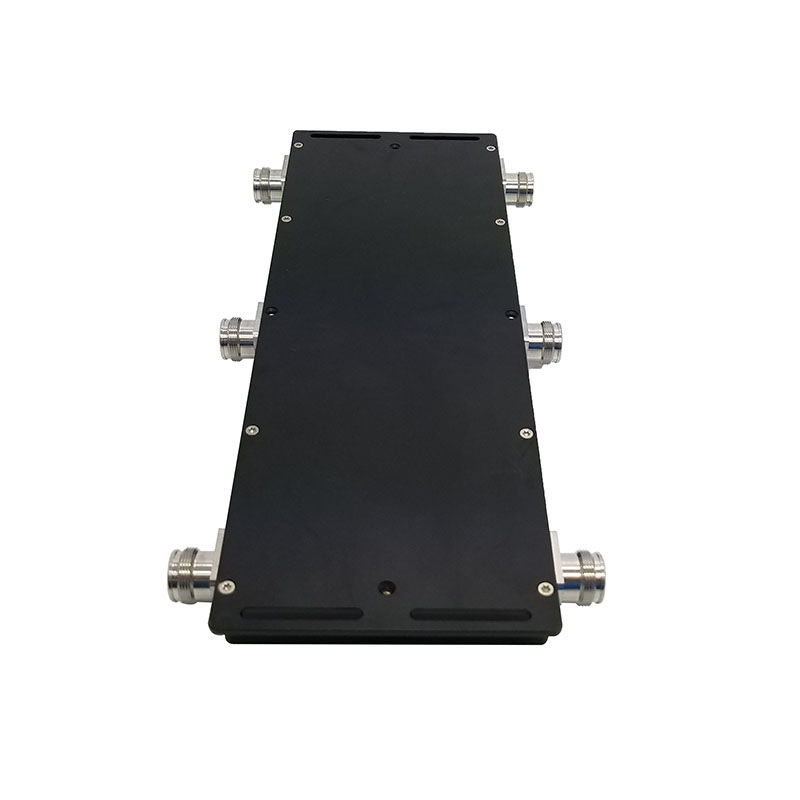

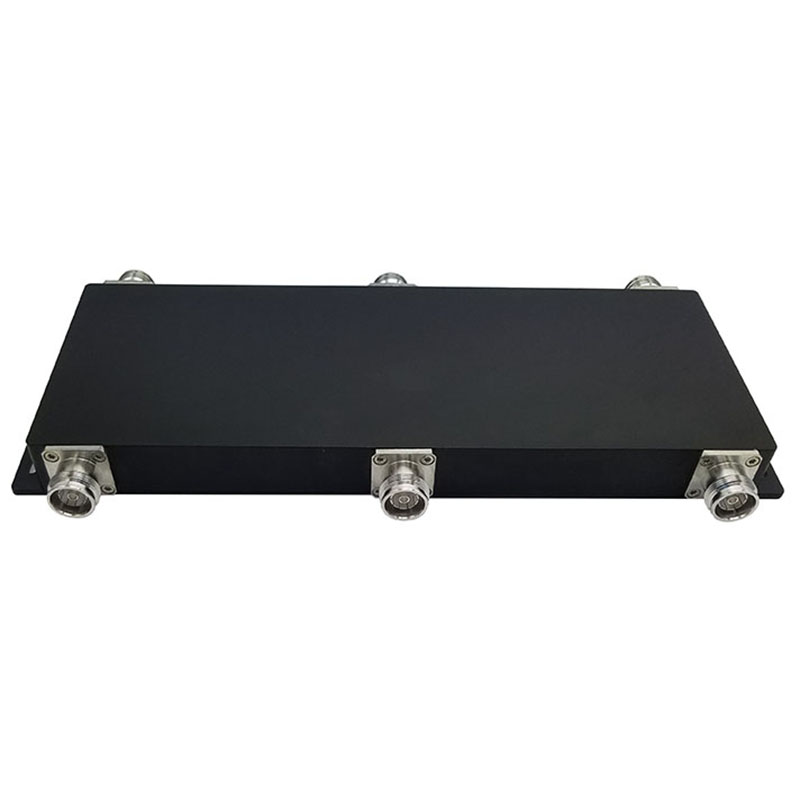

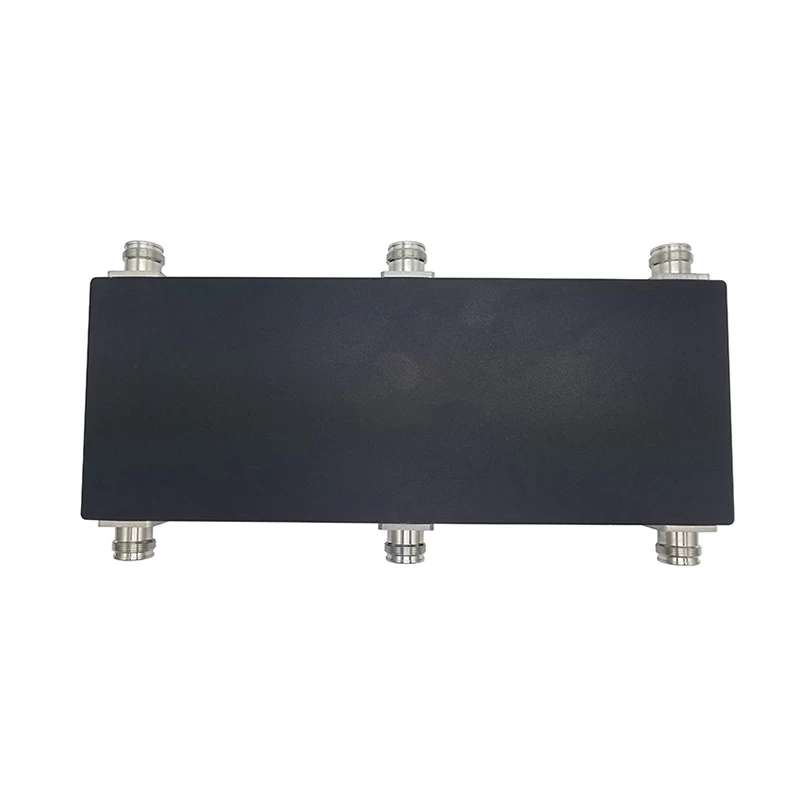

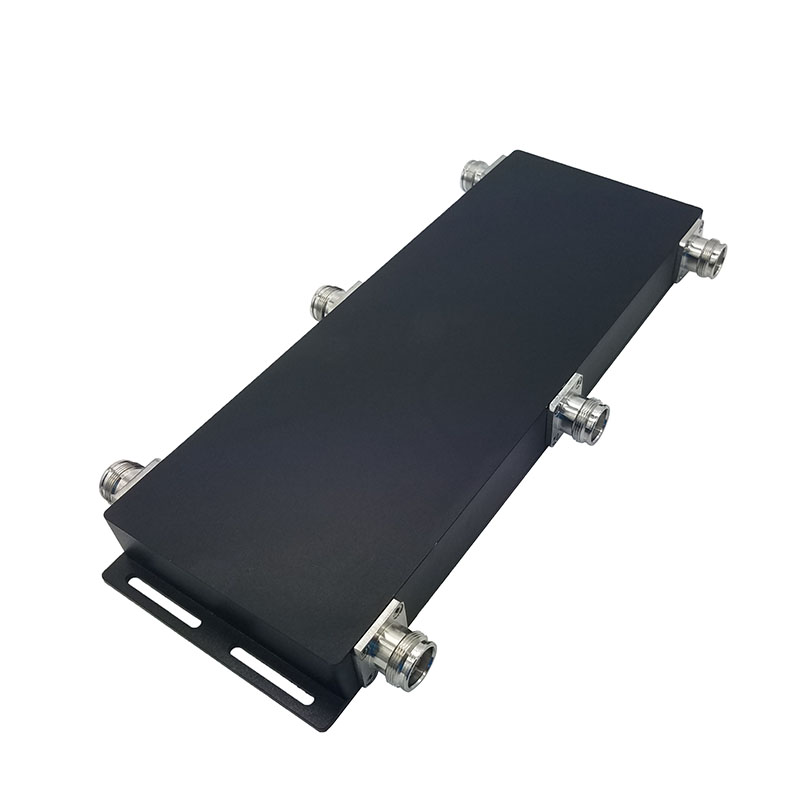

3:3 Hybrid Coupler (790-2700MHz, 300W,4.3-10F,-160dBc, IP65)
Product Features
790-2700MHz 3x3 Hybrid Coupler is Wide Frequency Band,Widely used for In-building Solutions with Low PIM,IP65
Technical &Mechanical Specifications
|
Model No.
|
MHC-727-33-4F-160
|
|
Freq(MHz)
|
790-2700
|
|
Coupling&Variation(dB)
|
5.0±1.0
|
|
Dissipative Loss(dB)
|
≤6.0
|
|
Port Isolation(dB)
|
≥23
|
|
VSWR
|
≤1.25
|
|
3rd PIM(dBc)
|
≤-160dBc@2*43dBm
|
|
Average Power(W)
|
300W each port
|
|
Impedance
|
50 ohm
|
|
Connector
|
3*4.3-10 Female
|

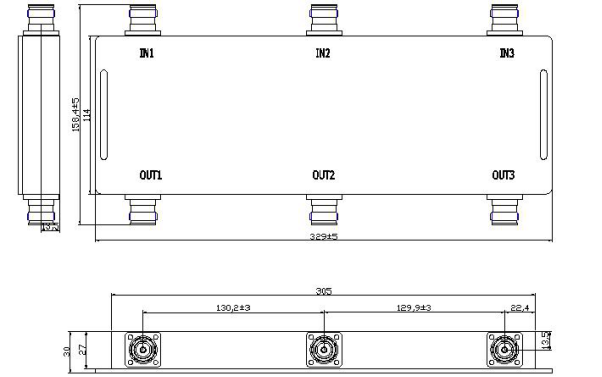

Outline Drawing
