Product Name

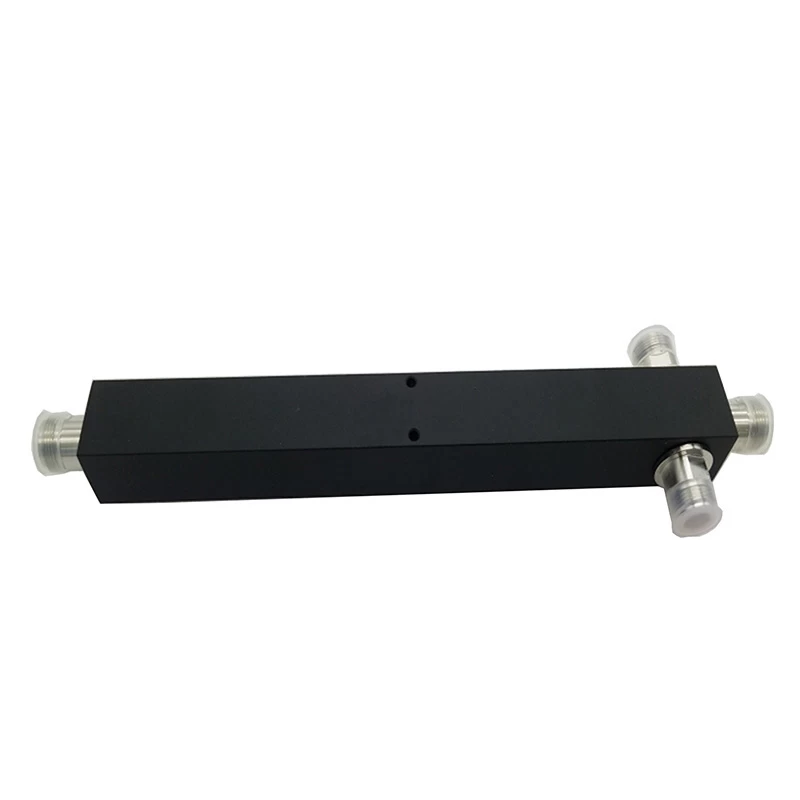

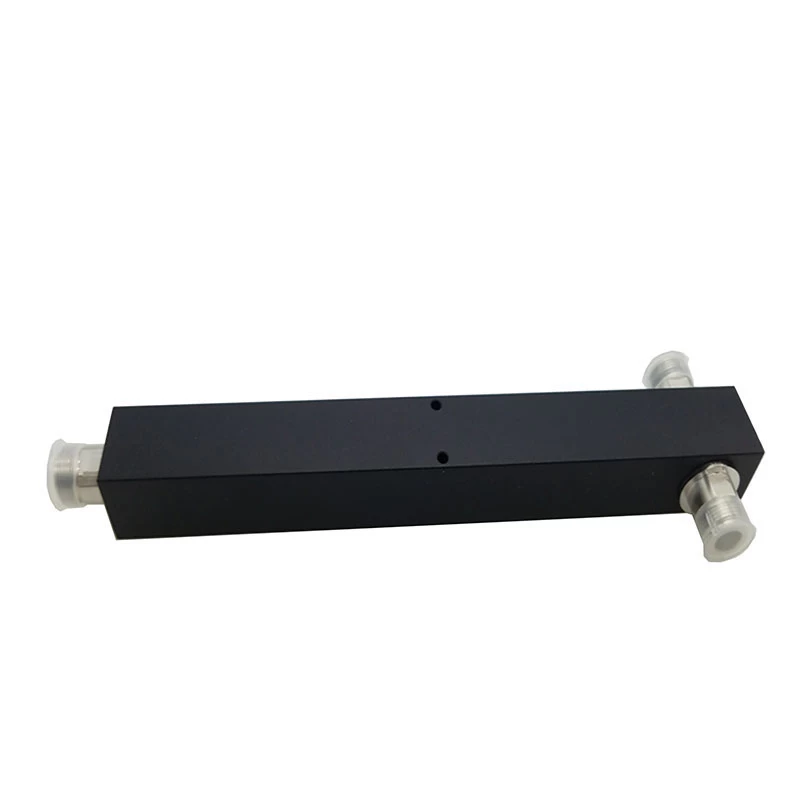

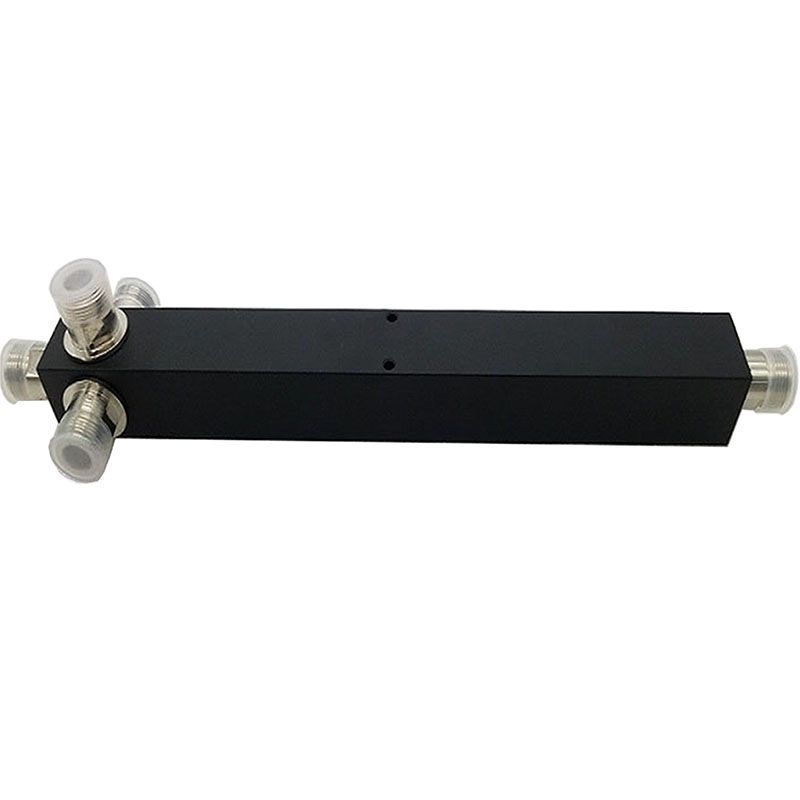

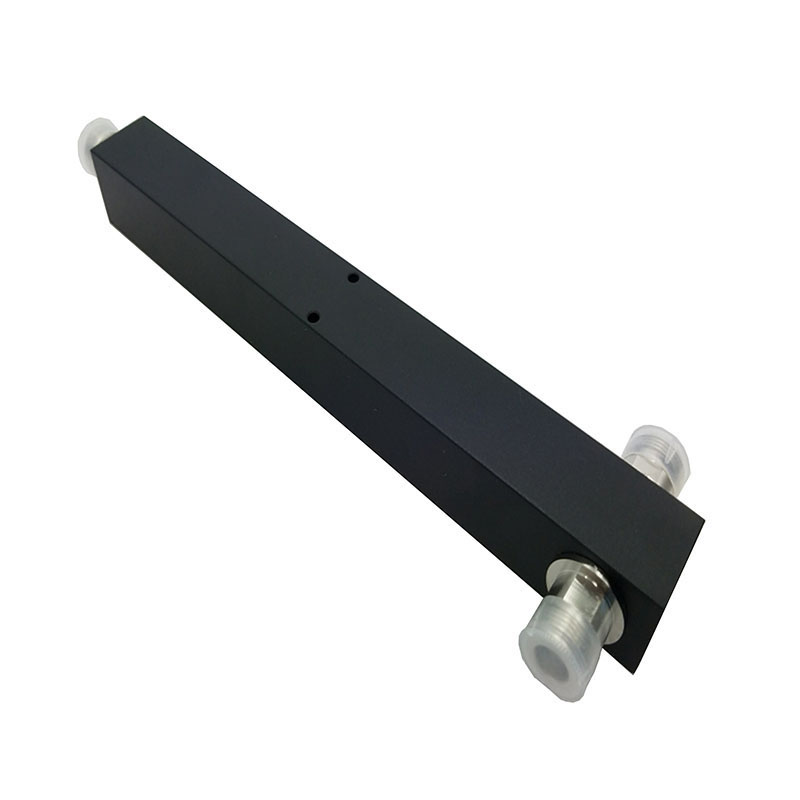

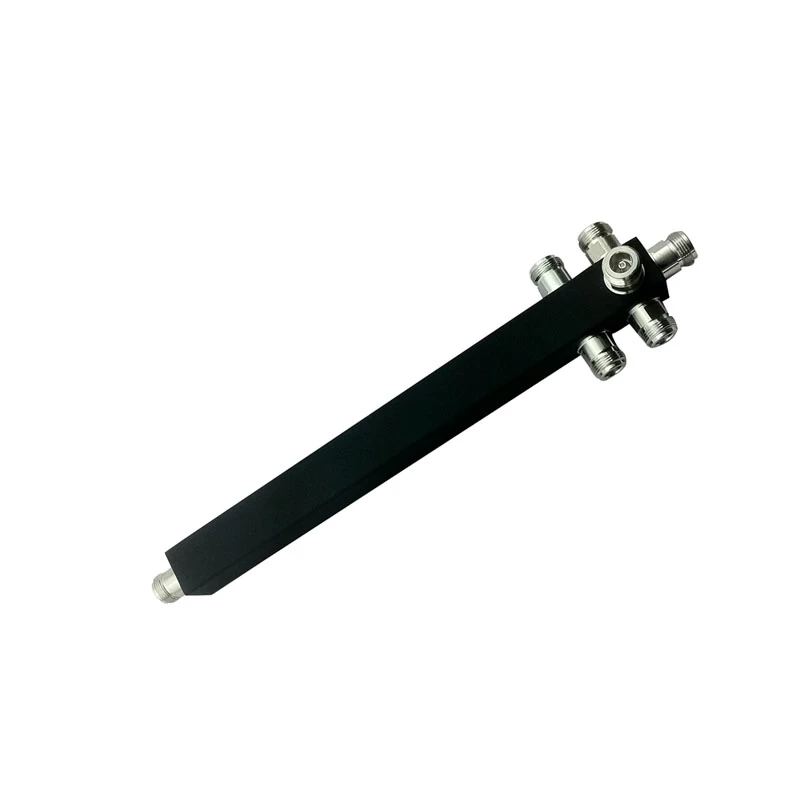

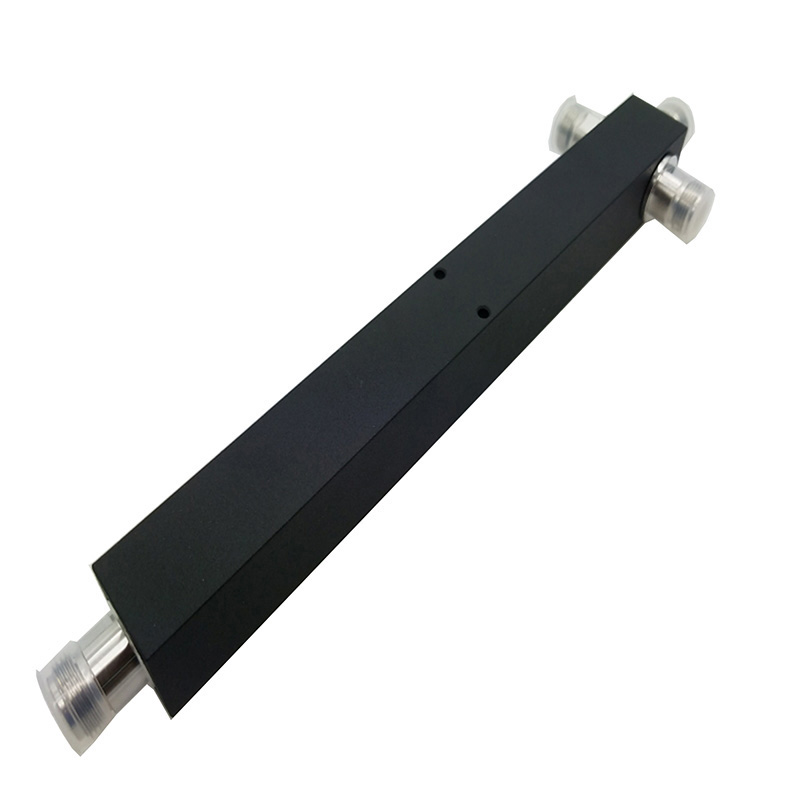

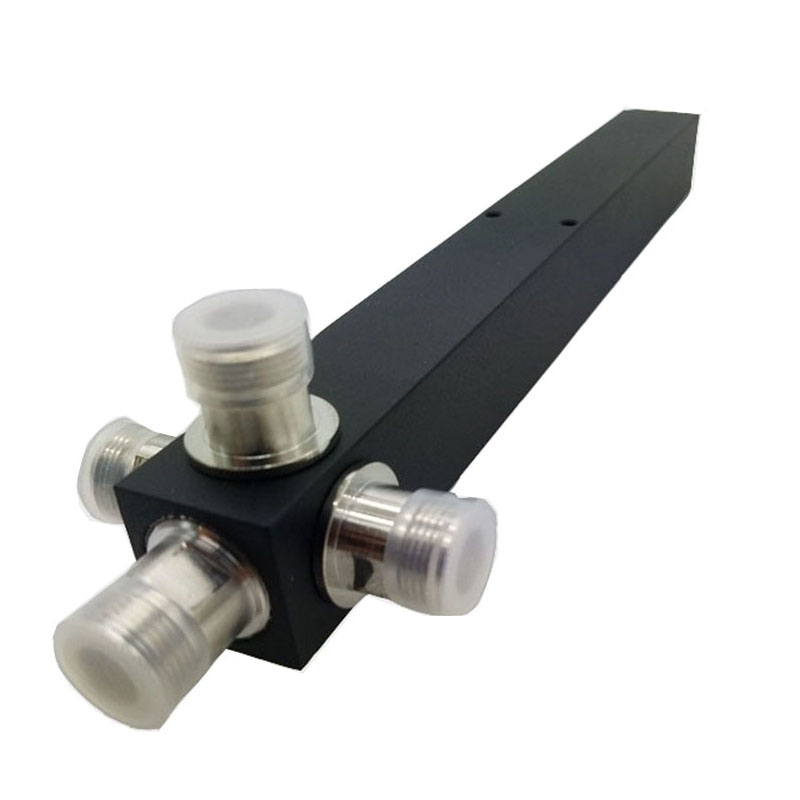

698-2700MHz N-F Type 2Way/3Way/4Way/6Way Cavity Power Splitter/Divider with Low PIM-160dBc
These DAS Splitters usually combine with jumper cables,adapters or other rf components.
Product Features
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆4310 F and 7/16 F are also available
◆ Widely used for In-building Solutions and Outdoor application.

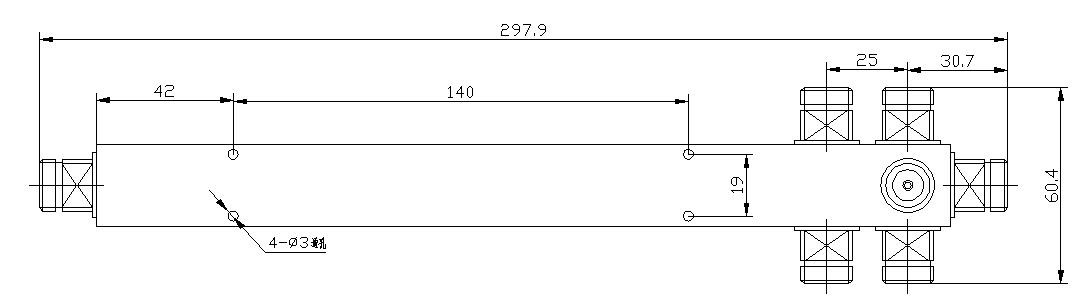

Technical &Mechanical Specifications
|
Model No.
|
MPS-727-02-NF-160
|
MPS-727-03-NF-160
|
MPS-727-04-NF-160
|
MPS-727-06-NF-160
|
|
Freq(MHz)
|
698-2700
|
|
Input
|
2-way
|
3-way
|
4-way
|
6-way
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
7.8
|
|
IL(dB)
|
≤0.3
|
≤0.5
|
≤0.5
|
≤1.2
|
|
VSWR
|
≤1.3
|
|
PIM(dBc)
|
≤-160dBc@2*43dBm
|
|
Power(W)
|
200
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
|
Application
|
Indoor or Outdoor, IP65
|
OUR SERVICES
1. Professional skills support for 698-2700MHz
N type 2Way/3Way/4Way/6Way RF Cavity Power Splitter/Divider withLow PIM-160dBc
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
