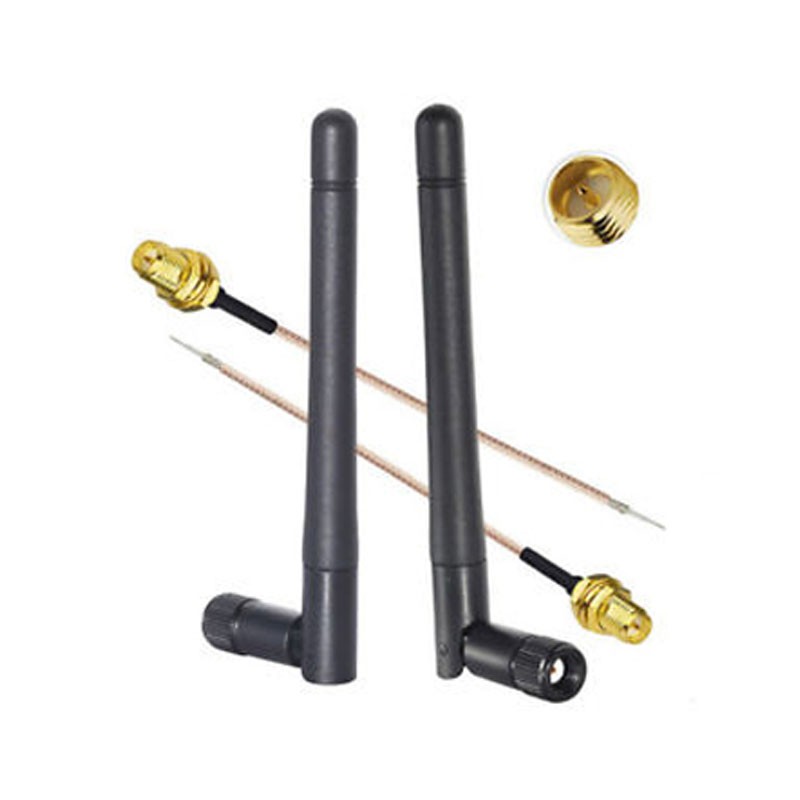

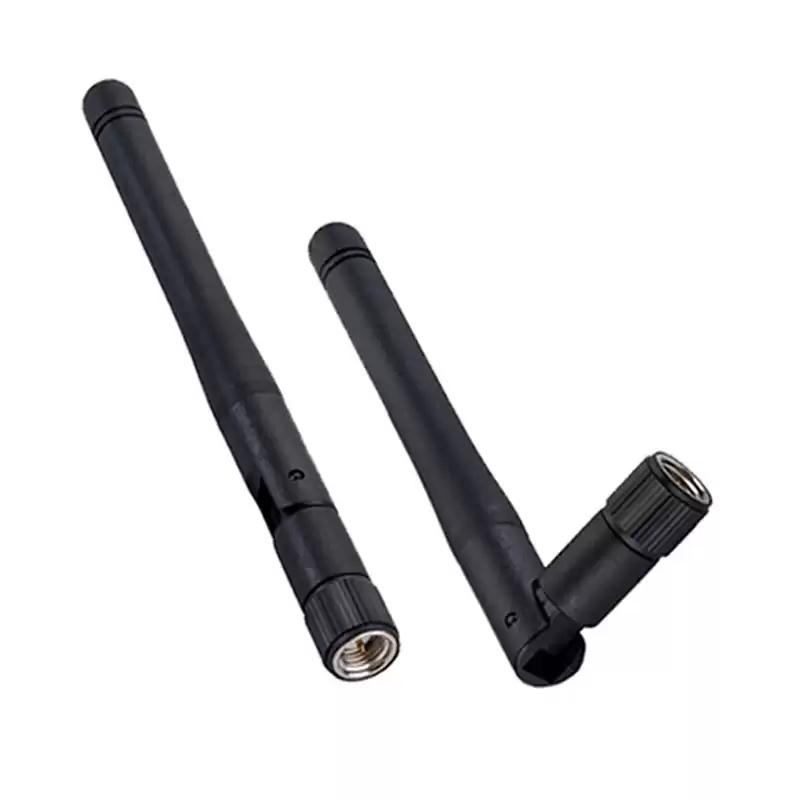

698-960MHz 1710-2700MHz 2dBi Omni Direction Collapsible Rotatable 4G LTE Terminal Antenna with SMA Connector

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



698-960MHz 1710-2700MHz 2dBi Omni Direction Collapsible Rotatable 4G LTE Terminal Antenna with SMA Connector

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  698-960MHz/1710-2700 MHz
VSWR  ≤1.5
Gain(dBi)   2dBi
Input Impedance(Ω)  50
Cable Type /
Connector Type  SMA or RP SMA Male
Mounting  /
Housing Black/White
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags 2dBi 4G LTE Terminal Antenna          1710-2700MHz 4G LTE Terminal Antenna          698-960MHz 2dBi 4G LTE Antenna          698-960MHz 4G LTE Antenna          2dBi 4G LTE Terminal Antenna          4G LTE Terminal Antenna
