HC01 motor protector for home appliances
HC01 motor thermal protector for domestic appliances protect the motors by sensing current and temperature. We adopt the chips imported from the United States to make products have very precise trip time to prevent the motors from overheating.HC01 series small size motor protectors are often used in washing machine motors and vacuum cleaner motors.
Features
Small size, long life and high reliability.
High level bimetal ensure that it can withstand the current of normal circuit.
The combination of bimetal and heater strip can action snappily.
Accurate trip off time can prevent motor from overheating.
Both temperature and current sensitive.
Each type of parts strictly implemented European ROHS environmental standards.
Terminals are optional and customized.
Available terminal specifications: A. same insert B. opposite insert C. same terminal D. opposite terminal E.
Wires are optional and customized.
Specifications
|
Item No.
|
HC01/6AP
|
|
Electrical specifications
|
45 amps/15 volts DC
|
|
15 amps/30 volts DC
|
|
28 amps/250 volts AC
|
|
30 amps/125 volts AC
|
|
Operating temperature range
|
30°C-180°C (optional and customized)
|
|
Temperature tolerance
|
±5°C,±8°C,±10°C
|
|
Trip off current range
|
1-45A
|
|
Trip off time
|
4-10s
|
|
Case material
|
Metal
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |
| Lawn mowers |

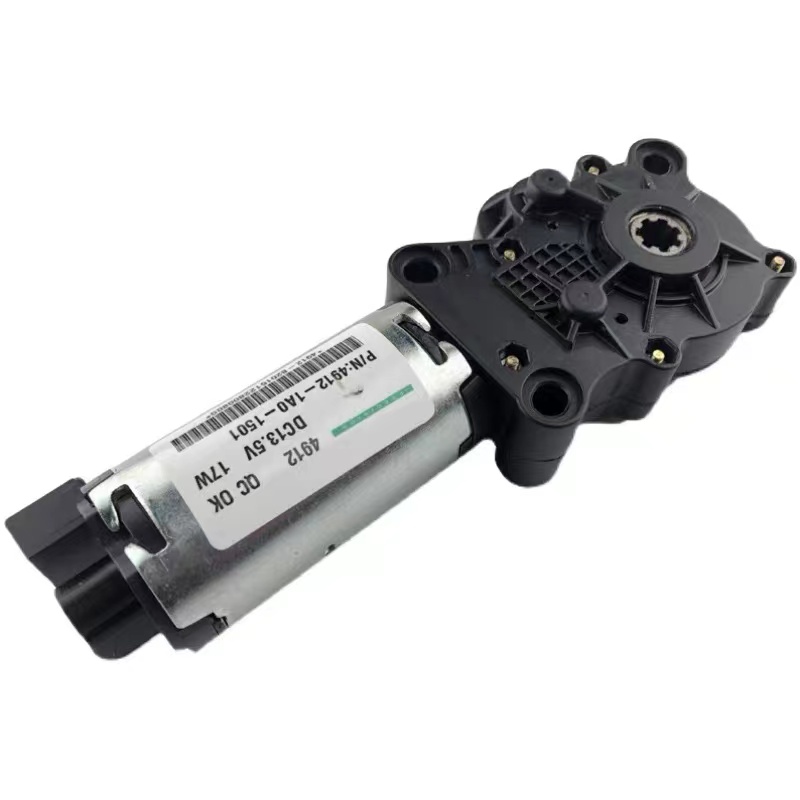

Seat motors |

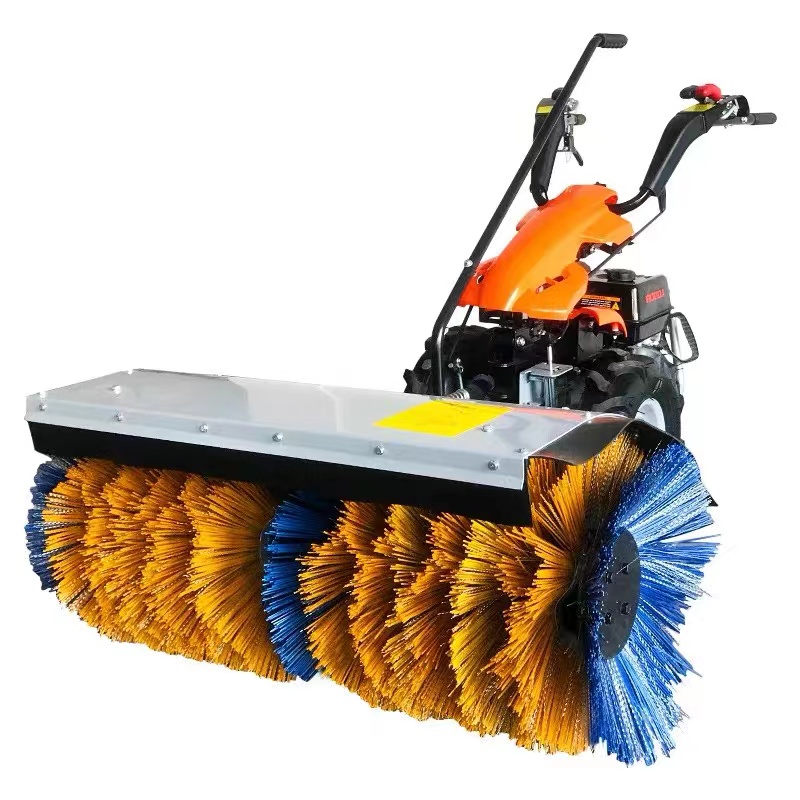

Snowplows |
Soybean milk machines |
 |
 |
 |
 |
| Vacuum cleaners |
Washing machines |
Window motors |
Wiper motors |

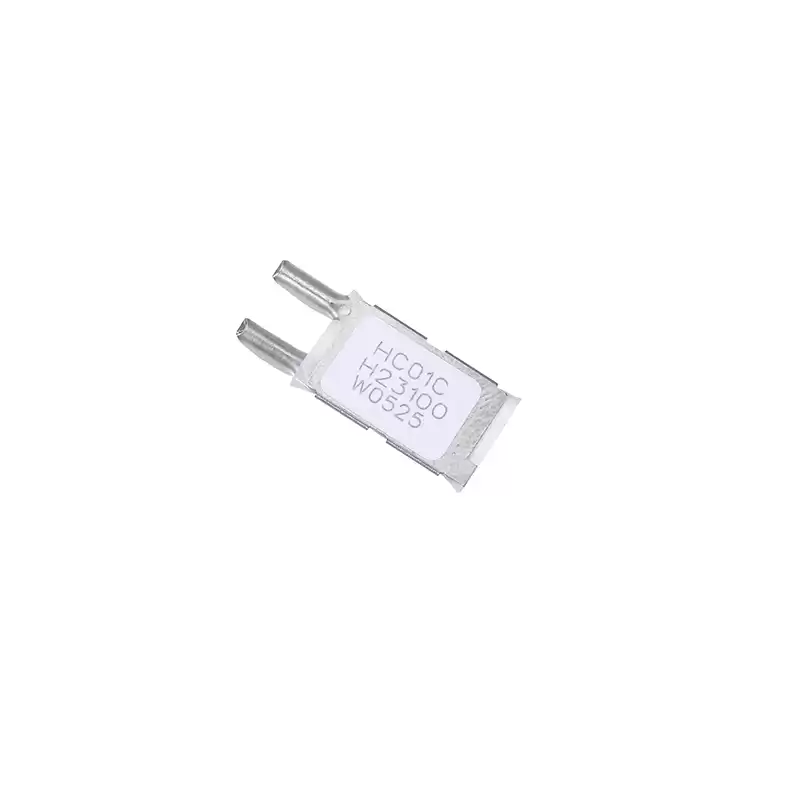

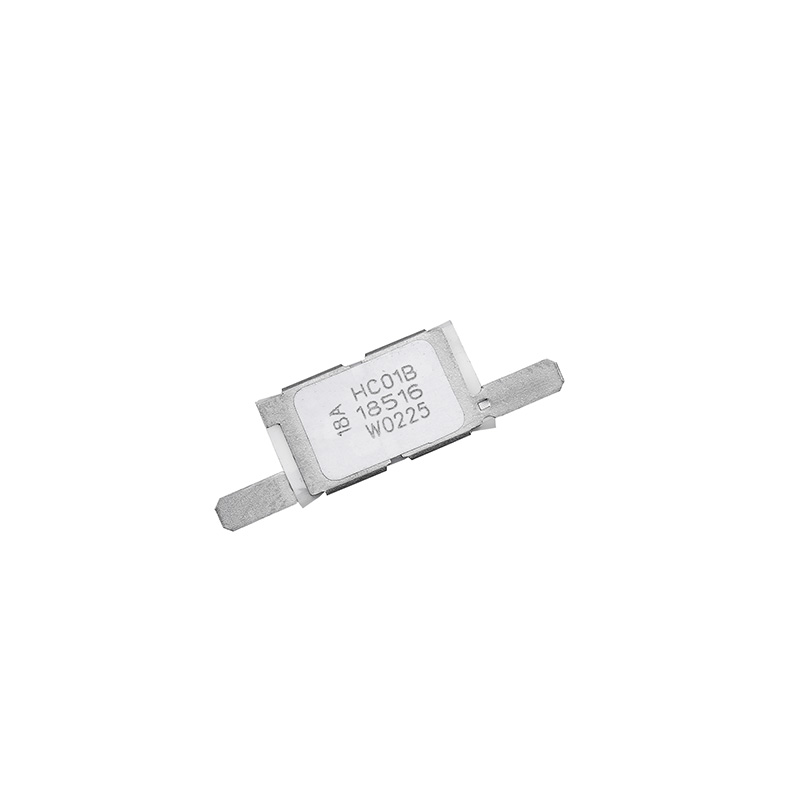

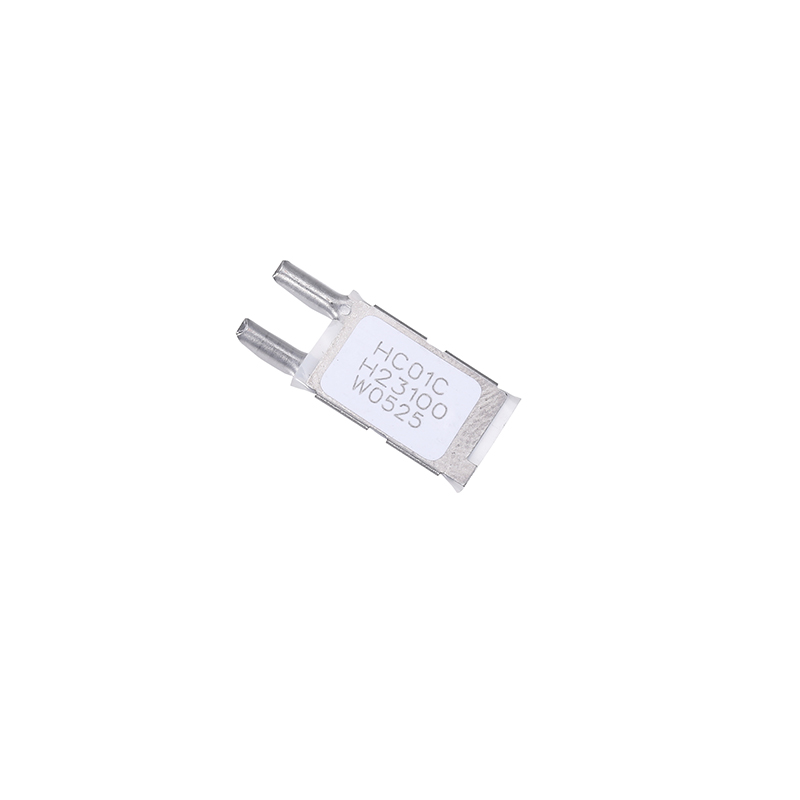

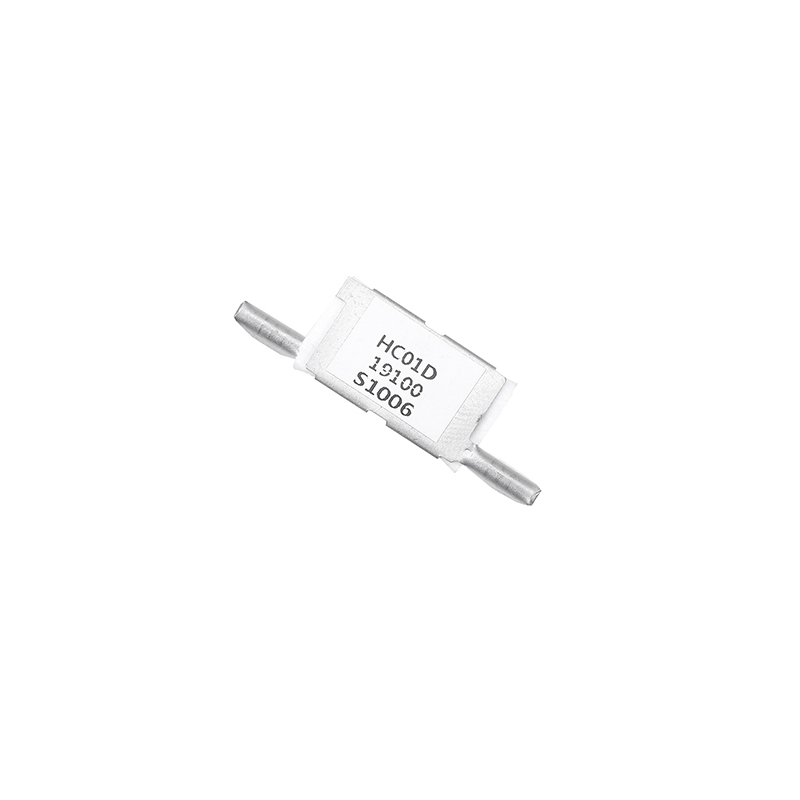

Product display

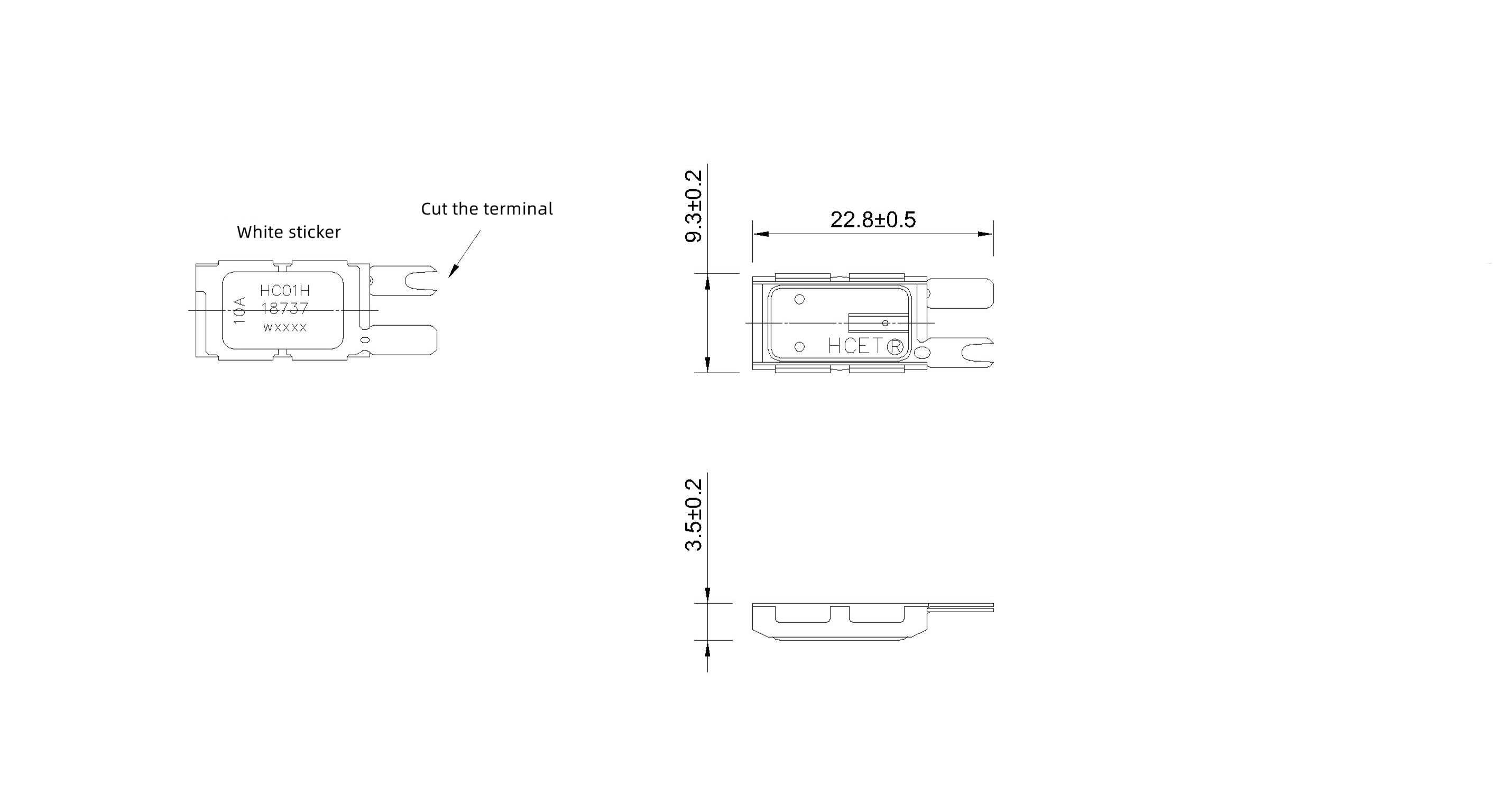

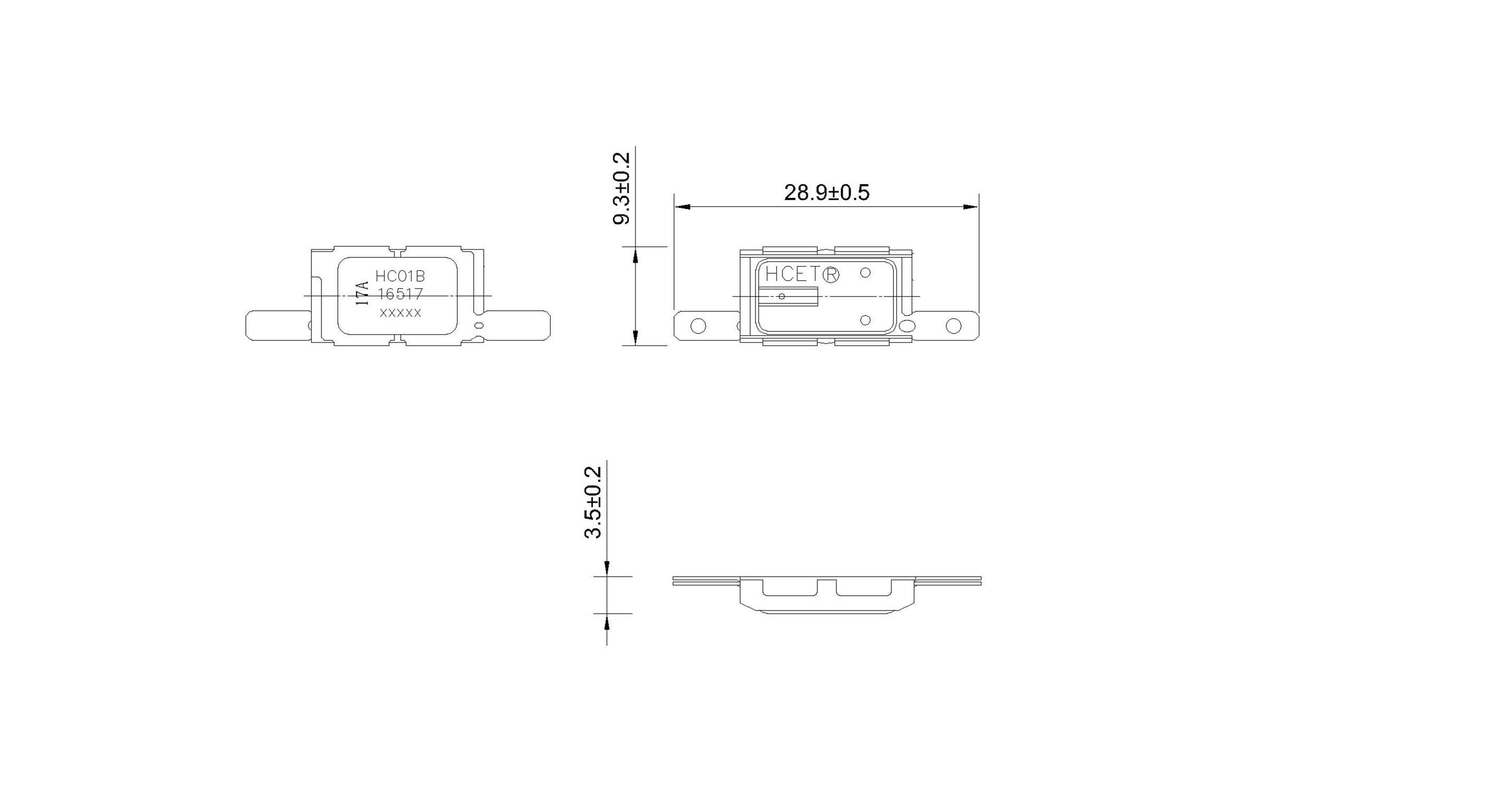

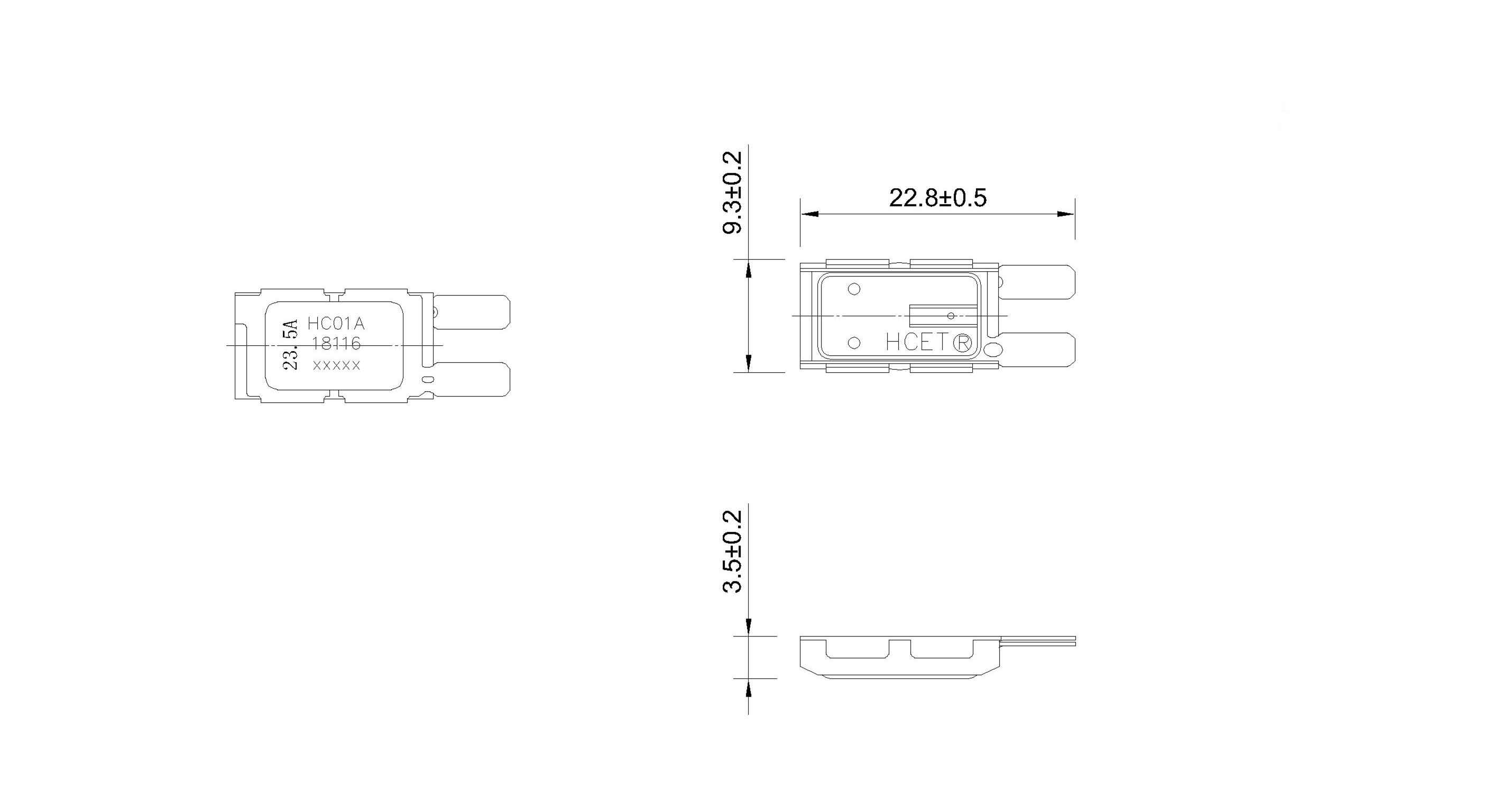

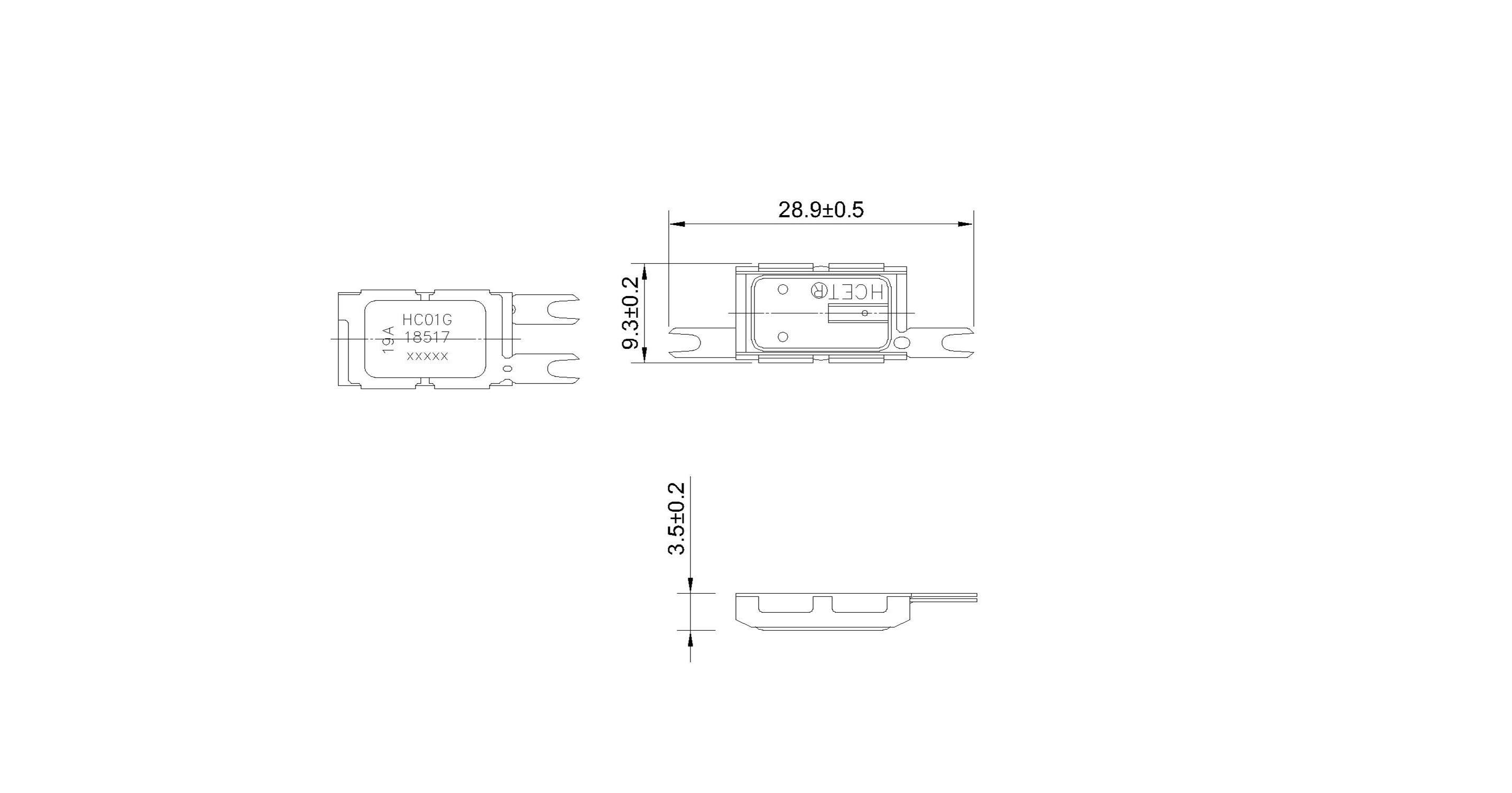

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
Why choose HCET
1. We have our own R&D team and have obtained dozens of patents.
2. Our products have passed UI, TUV, CQC, ISO/TS16949, CTI, SGS and other international authoritative certifications, and the quality is stable and reliable.
3. Our products have complete functions and specifications, and can also be customized according to customer requirements.
4. We have complete equipment, high productivity and can deliver quickly.
