RFID antennaJT0128 is pleasing in appearance, environmental adaptability, easy installation
Application:
Radio-frequency reader antenna, used for terminals, parking lots, shopping malls, toll station,Warehouse management, inventory counting, meeting sign-in
Specification:
|
TYPLE
|
JT-0128
|
|
Performance parameters
|
|
|
Working Frequency
|
902~928 MHz or 865~868MHz
|
|
Antenna gain
|
6dBi
|
|
Polarization
|
Circular polarization
|
|

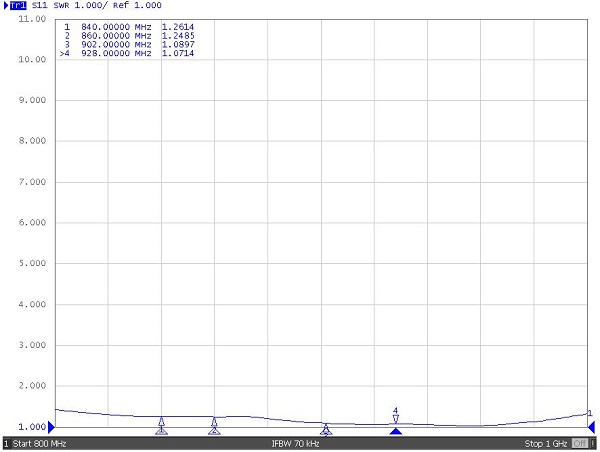

VSWR
|
≤1.3
|
|

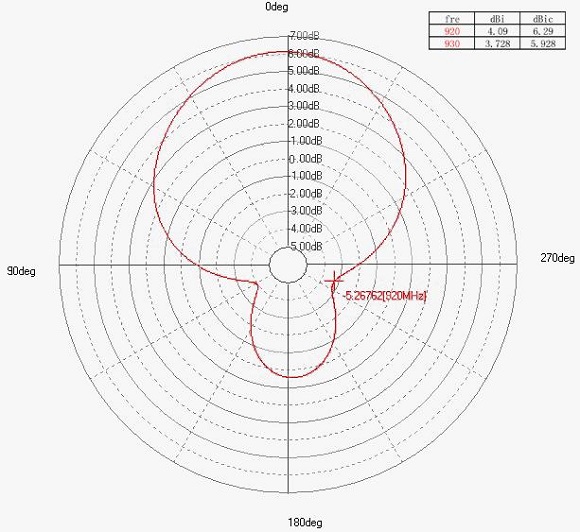

Beam Width H-Plane(°)
|
70°
|
|
Beam Width E-Plane(°)
|
70°
|
|
Impedance(Ω)
|
50
|
|
Connector
|
SMA Outer female connector
|
|
Physical parameters:
|
|
|
size
|
158x158x38mm
|
|
Package size
|
180x180x50mm
|
|
Net weight
|
2Kg
|
|
Material
|
Aluminum
|
|
Radome color
|
White
|
|
Radome material
|
ABS
|
|
Working temperature
|
-40℃~+85℃
|
|
Storage temperature
|
-45℃~+95℃
|
|
Protection class
|
IP67
|
