6pcs Solar Modules Ground Pole Mounting System
Jesfer 6pcs solar panel ground pole bracket included pole support 1508X808MM for 6pcs pv modules ,1pcs pole 140X1490MM,1pcs adjustable bar ,2pcs purlin C100X2600MM ,1pcs beams 80X1300MM and other accessories and fastens.foundation is concrete with pre-buried bolt,the Pole rack system's material used include hot-dip galvanized steel and Anodized AL6005-T5 and to be applied for the insllation of solar pv projecton uneven lands like hillside,suitable for on-grid system and off-grid system.

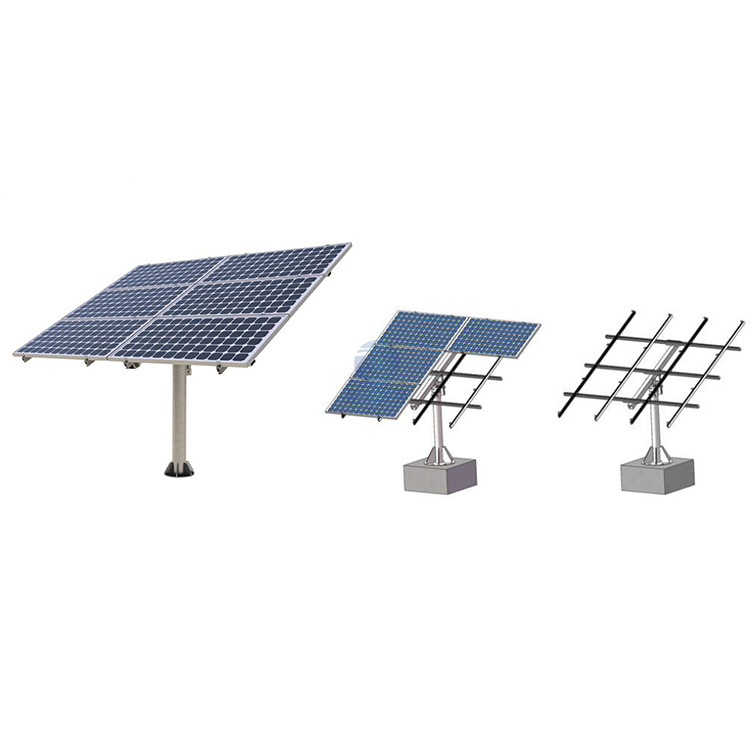

Structure
Single Pole Structure for Solar Energy System
Technical Parameters
System Name
|
Ground Single Pole Rack System
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Concrete Foundation or Ground Screw
|
Material
|
Q235B (Hop-Dip Galvanized) ,AL6005-T5(Anodized)
|
|
Tilt Angle
|
10-60degrees
|
Fastener
|
Hop Dip Galvanized & SUS304
|
Snow Load
|
1.3KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
32m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Ground Clearance
|
200-2000mm
|
Small Components
|
Anodized AL-6005-T5
|
Project Reference
Warranty
1.Quality Standards
The production shoud be conducted with the local "National Industrial Production Standards" and fully meets the local calculation requirements. We mainly use high-quality stainless steel 304 and 6005 grade high-strength aluminum alloy materials.
2.Warranty Period
In order to make it easy for customers to use Jesfer products, Jesfer solar provides a 10-year quality guarantee for all mounting racks, during which the company shall be liable for defects in materials and workmanship.
3.Warranty Conditions and Contents
Jesfer Solar guarantees that at the time of goods delivery conditions, all components of the supplied products should be 100% new products and the raw materials are brand new materials, and resolutely resist scrap aluminum and iron. If it is reasonably proved that the product is defective from the date of delivery to the date of delivery, Jesfer Solar shall repair or replace the defective product. At the end of the warranty period, the product must be installed in accordance with the customer's design requirements and installed in accordance with Jesfer's written installation instructions, and then the construction party's insulation and construction quality inspections.
