Carbon Steel Dual Pille Solar Modules Ground Mounting Structure

Jesfer Carbon Steel solar ground mounting system GM12 are especially suitable for flat open spaces. High-quality hop dip galvanized Q235B  structure with pre-assembly parts, easy to install, short construction time and lower installation cost.



Carbon Steel Dual Pille Solar Modules Ground Mounting Structure

Jesfer structure Dual Pille Ground Mounting Structure is designed as mechanics and engineering, height and angle can be adjusted as the actual requirement,which can be installed easily and quickly and provides a stable installation system at lower cost.


System Structure

Galvanized Steel Solar Panel Structure

Advantage

1.Symmetrical Design of Tilt-in-Nut and Rail Channel, Dual-Pile Design, No Drill on Portrait Beam.

,Compatible to Varied Solar Modules.

2. High quality and competitive price. We have more than 15 years of manufacturing experience.

3.We guarantee a 12-year warranty and a 25-year service life, and all parts are fully anodized.

4. Our engineering team are all PhD graduates, with more than 10 years of work experience, and have excellent design capabilities.

5.Each set of brackets is pre-assembled before shipment, which can save about 40% of installation time.


Components Details

Solar Rail FactoryRail

Material:Steel Q235B(hop dip galvanized)

C Shape Solar ComponentsC-Shape Pile

Material:Steel Q235B(hop dip galvanized)

Inter Clamp Kit Solar Accessories

                        Inter Clamp Kit

Components: Inter Clamp Rhombus Nut M8

Spring Washer M8

Hexagon Socket Head Bolt


End Clamp Kit Solar Racking

                     End Clamp Kit

Components:Rhombus Nut M8

Spring Washer M8

Hexagon Socket Head Bolt

Beam Connertor Solar Mounting

Beam Connector

Material:Steel Q235B(hop dip galvanized)

Pile Solar Mounting System

Pile

Material:Steel Q235B(hop dip galvanized)


Technical Parameters

 System Name
 Ground Mount System GM12
 Panel Layout
 Landscape or Portrait
 Foundation
 C-Shape,I -Shape
 Material
 Q235B (Hop-Dip Galvanized)

 Tilt Angle

 0-60degrees
 Fastener
 Hop Dip Galvanized & SUS304
 Snow Load
 1.6KN/㎡
 Color
 Customized or Silver
 Wind Load  60m/s  Design Standard
 AN/NZS1170,DIN1055,JIS C8955,etc.
 Applicable Solar Module
 Framed or Frameless
 Warranty
 10 Years
 Ground Clearance  500-2000mm  Small Components  Anodized AL-6005-T5

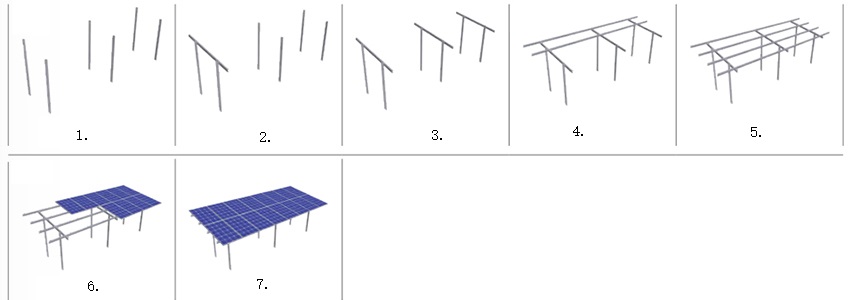

Installation Guide

Solar Steel Structures


1.Install the C-shape Pile based on project solution.

2.Install Inclined Support.

3.The installation of

Inclined Support is done.

4.Install Beam.

5.The installation of Beam is done.

6.Fix the solar module with Inter Clamp Kit & End Clamp Kit.

7.Installation is done.


Business Terms and Other Details of Jesfer Solar:

1).Delivery Terms:FOB, CNF, CIF are available.

For some countries, we can cooperate with DDP, such as Philippines, Malaysia, Thailand, Vietnam, Botswana and so on.

2).Terms of payment:Deposit before production by T/T, The balance shall be paid after inspection and before shipment.

3).Production time:Sample order normally take about 3-7days .and bulk orders usually take about 20-30 days.

4).Time of shipment:

For Southeast Asia:10-15days

For Europe:around 30days

For Africa:around 20-30 days

For the Middle East :around 20-30 days

For South American countries:around 40-50 days

Production and transportation of Bifacial Ground Solar Racking Structure

1).Production:We have a lot of production equipment, for large orders, we can complete production faster than many competitors.

2).Transportation:Our city has international seaport by Xiamen and international airport  by Gaoqi, goods can be easily transported to all parts of the world.

Excellent quality made us more competitive in the markets, we are always looking for good partners for long cooperation, if you are interested in High Quality & Free Design For solar panel ground mounting kit, pls contact us right now.Jesfer! Your Best Choice, Your Reliable Supplier!
