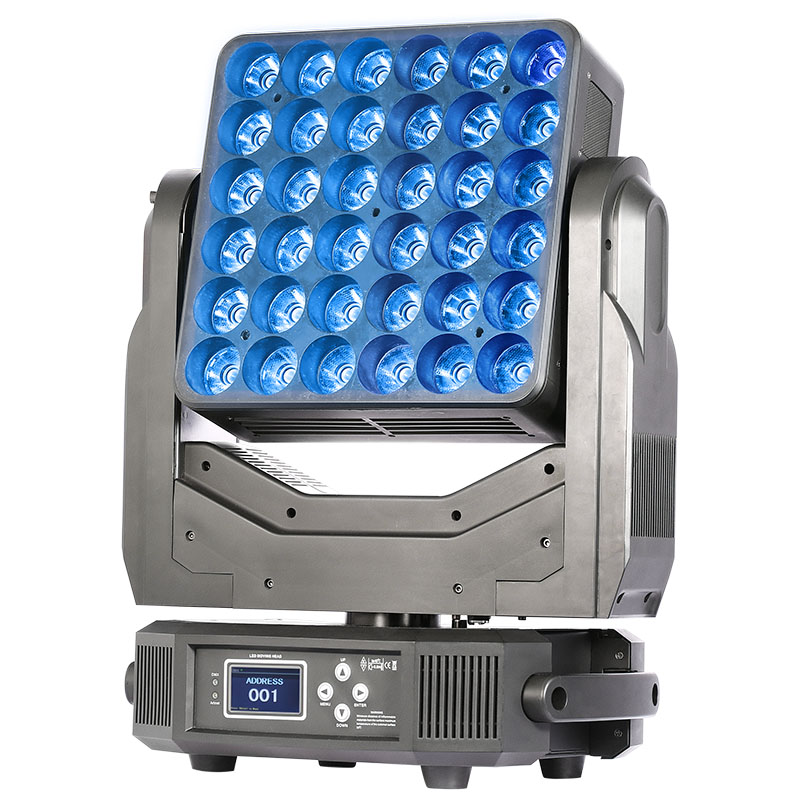

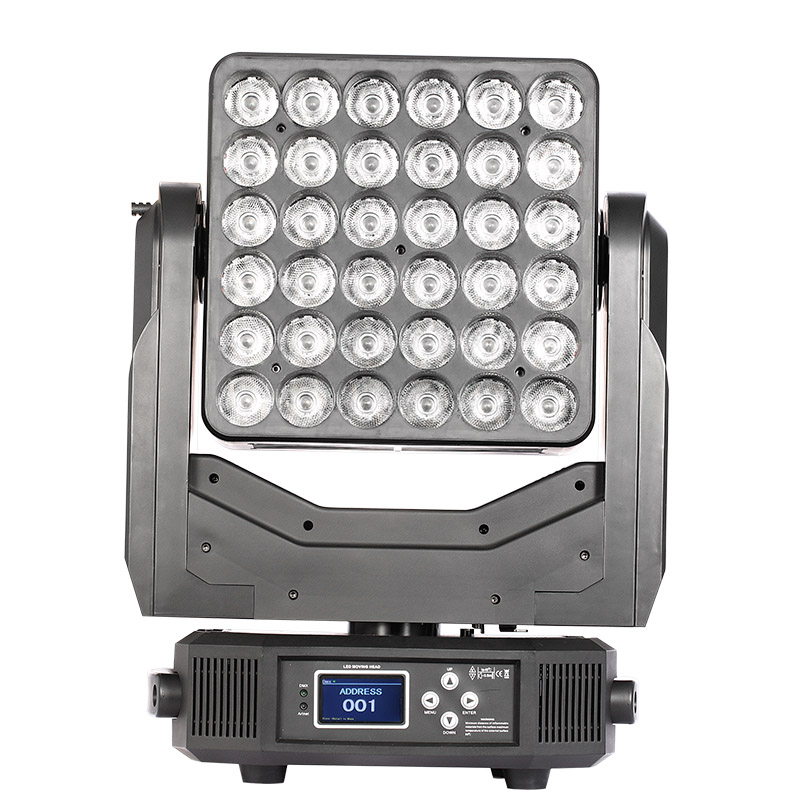

This LED matrix moving head light, it uses 36 x15W high-brightness LEDs as light source, unique appearance design. Special optical system. 7 ° lens. Pan / tilt axis 2 operation modes (Pan / tilt axis wireless rotation, Pan: 270 °, Tilt: 540 °). 36 single-dot control LEDs, which can form chase effect and rainbow effect, and each lamp bead can form dot matrix effect. Has an excellent blue LCD display. DMX channels: 18/20/160 channels and Artnet control (input and output).

●  Optics

. LED : 36x15W 4-in-1 RGBW LED, uniform and delicate color mixing effect

. Beam angle: 7 °

. Life span 50000H, low power consumption, energy saving and environmental protection

●   Scanning

. Pan /Tilt operation:

                               ※ 8bit and 16bit fine-tuning

                               ※ Smooth and precise positioning

                               ※ Pan: 540 ° ,Tilt 270 ° rotation

                               ※ Pan and Tilt high-speed stepless operation with adjustable speed

                               ※ The scanning position can be memorized, and it will be reset automatically after no expected operation.

                               ※ Pan and Tilt with error correction function

●  Color

. Uniform RGBW color mixing system and rainbow effect

. White balance can be adjusted manually

. LED can be controlled by a single piece to create a more colorful chase effect

●  Specification

. 3 DMX channel modes: 18/20/160 international standard DMX512 channels

. 4 control modes: DMX512, Artnet, voice control, master-slave

. 0-20HZ strobe, pulse strobe, random strobe effect

. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4 colors and light off at the same time

●  Display

. LCD display

. Can set key lock

. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.

●  Software

. Software update :Update via DMX link

. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time

●  Other functions

. Setting and addressing: RDM

. ArtNet input and output

. Fan cooling (fan changes speed with temperature change)

. LED temperature detection system to protect the life of lamp beads

●  Power / DMX connect

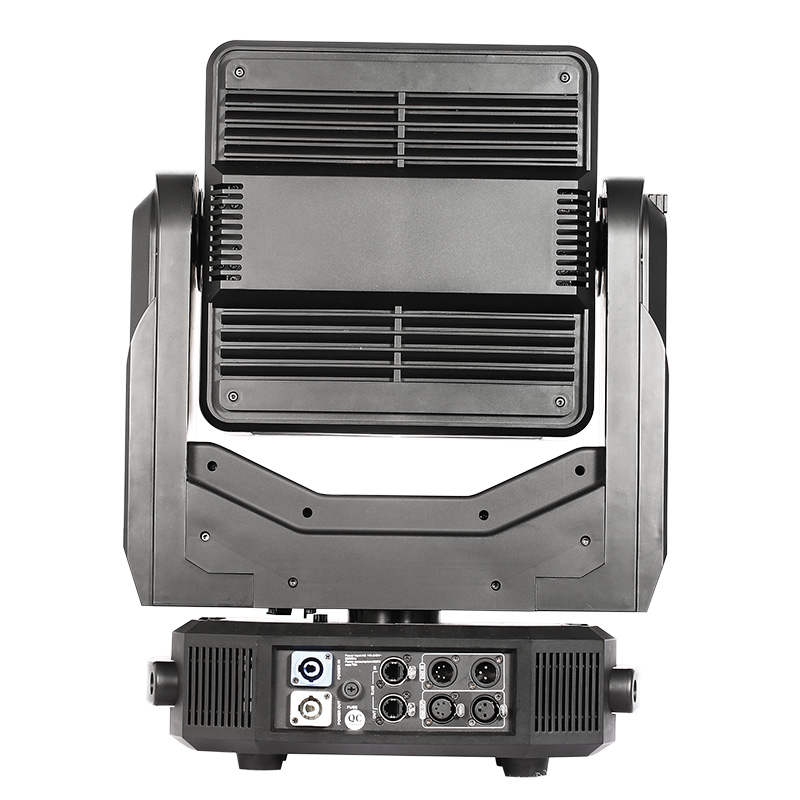

. Power connection: PowerCON input & output

. DMX XLR socket : 3 Pin, 5Pin XLR socket input and 3 Pin, 5 PinXLR socket output

●  Power

. AC100-240V 50/60HZ

. Power Consumption：600W

●  Protection class

. Housing material: ABS plastic fireproof material

. Waterproof level: IP20

●  Working environment

. Indoor working temperature: -20 ° C～+ 40 ° C

●  Size and weight

. Packing size: 500x395x570mm

. Net weight: 20KG

. Gross weight: 23.2KG

●  Certification

. CE,ROHS
