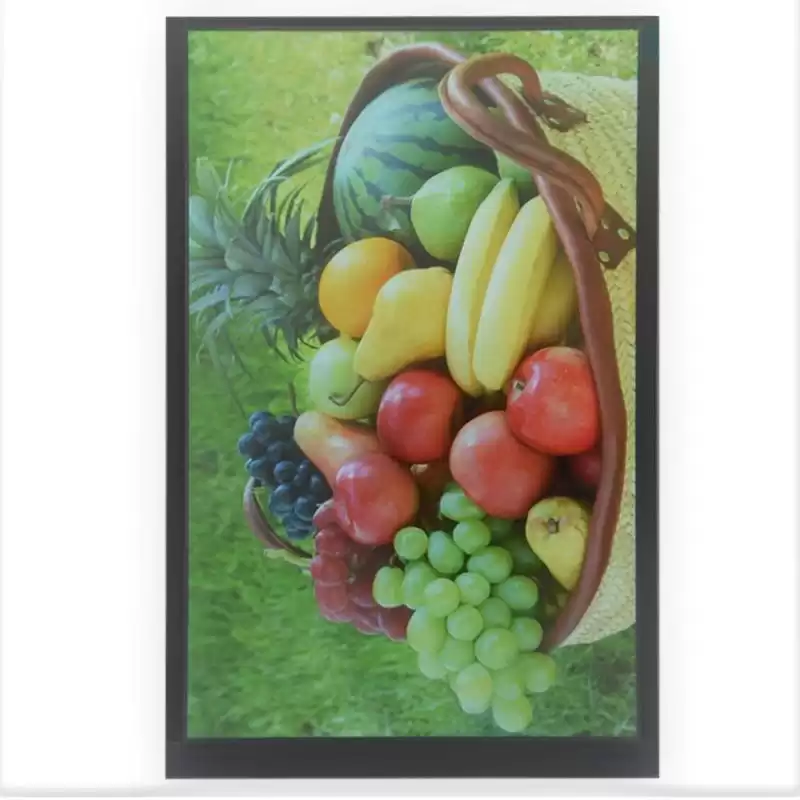

7.0 Inch IPS 800(RGB)*1280 display module with 1000 nits, or 500 nits brightness

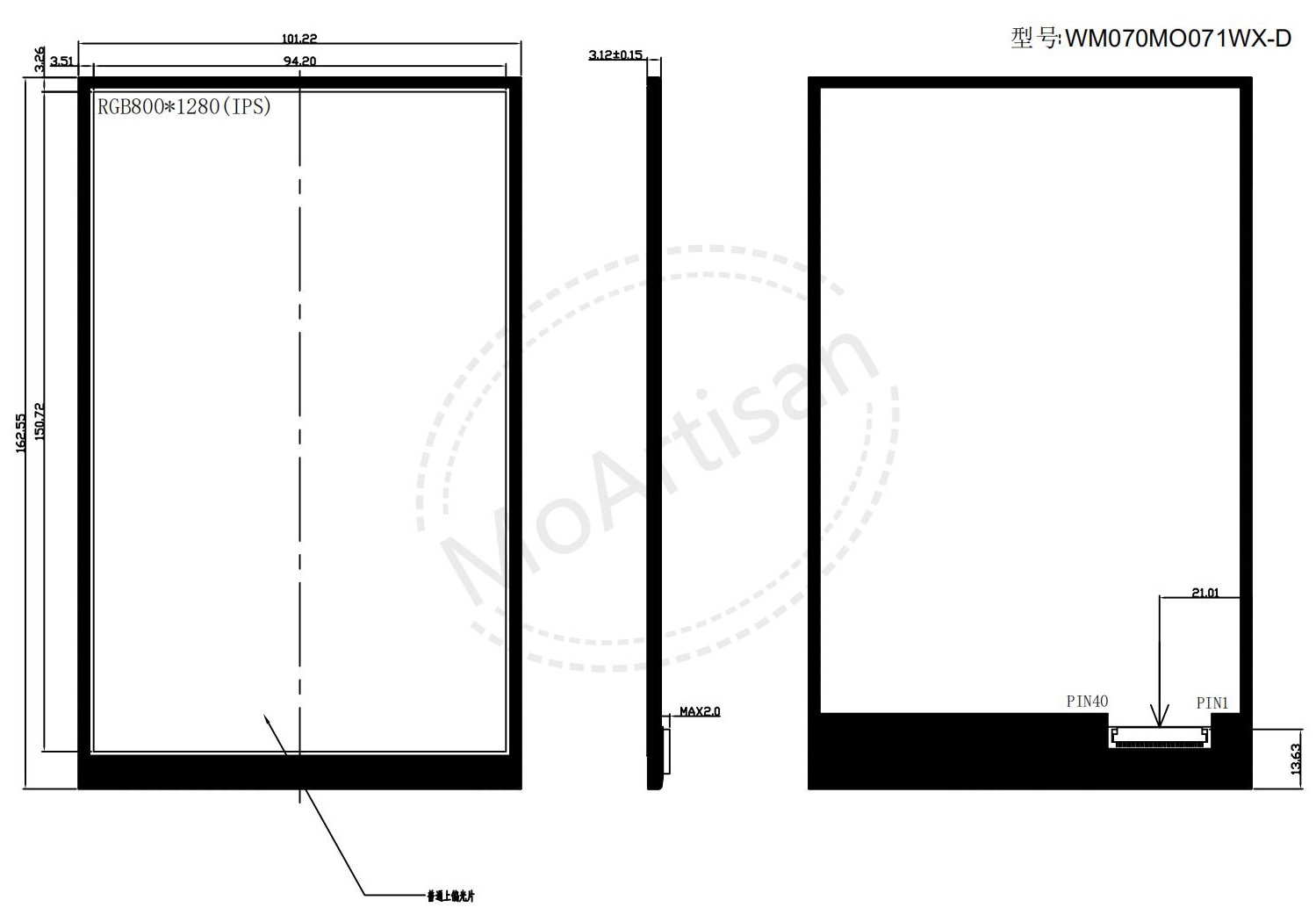

Production Drawings
WM070MO071WX-D Introduction
-
A 7.0 inch
diagonally measured active display area.
-
WXGA (800 horizontal by 1280 vertical pixel) resolution.
-
7.0 inch IPS WXGA LCD module with 1000 nits brightness.
-
20 PIN FPC, MIPI.
-
WM070MO070WX-B, surface brightness 500 nits.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
WXGA, 800RGB*1280, IPS, portrait screen
|
101.22*162.55*3.12
103.13*162.45*2.45
|
6X3
4x5
LED (50K)
|
40 PIN FPC, 8-Bit, MIPI
|
1000 nits/850
500 nits/850
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM070MO071WX-D
WM070MO070WX-B
|
Production Applications
Mobile, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for sample: 3~4
weeks.
FAQ:
what is the diffirence between WM070MO071WX-D and WM070MO070WX-B?
ANSWER:
Both WM070MO071WX-D and WM070MO070WX-D use the same type of FOG.
If you want that the LCM is more lighter and thinner, then you can choose WM070MO070WX-B.
And if you want its surface is more higher brightness, then you may choose WM070MO071WX-D.
Both are very popular due to good display picture and phone-like experience feeling.
