7.0 Inch TFT 800(RGB)*480 module with a PCAP, or a RTP

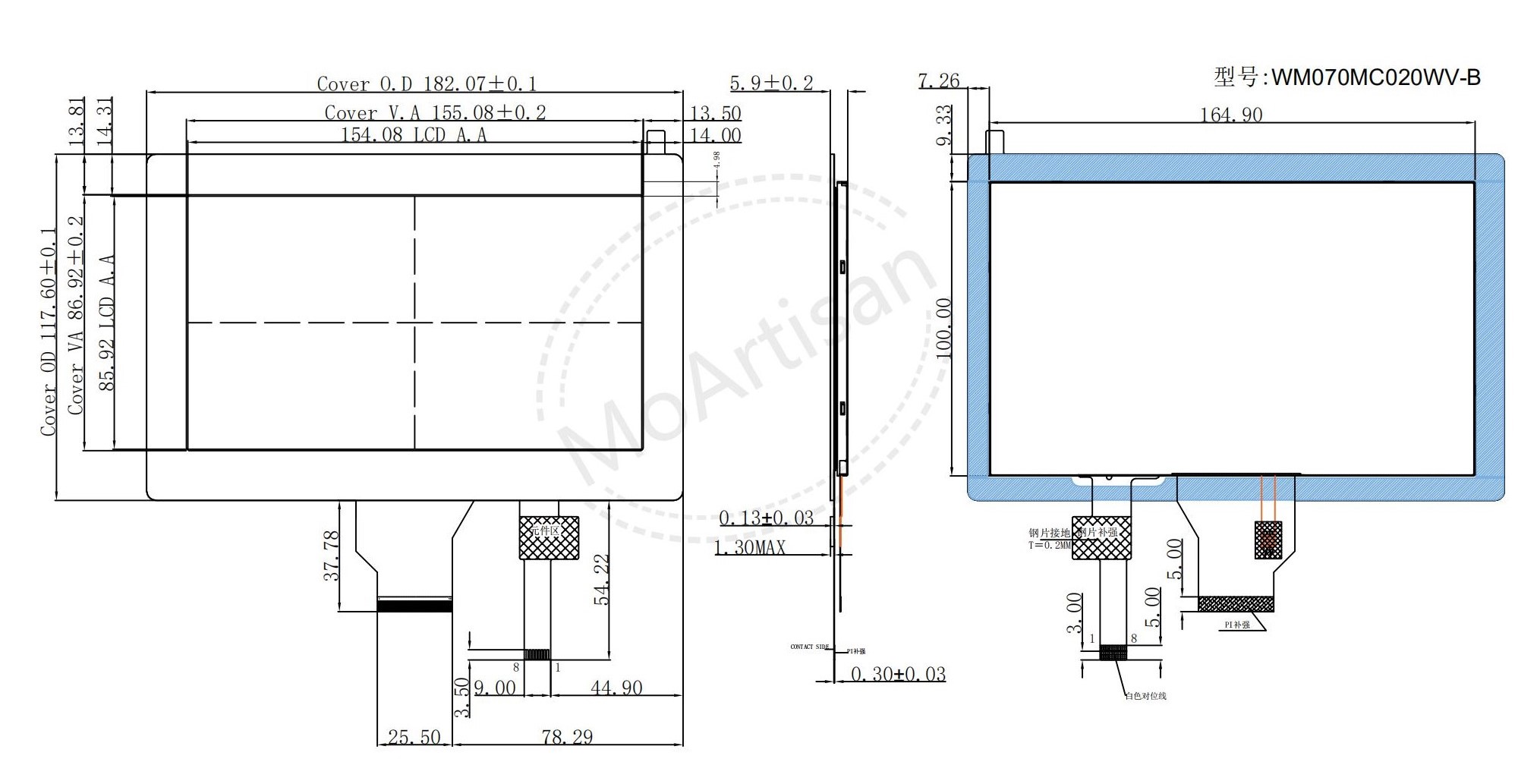

Production Drawings

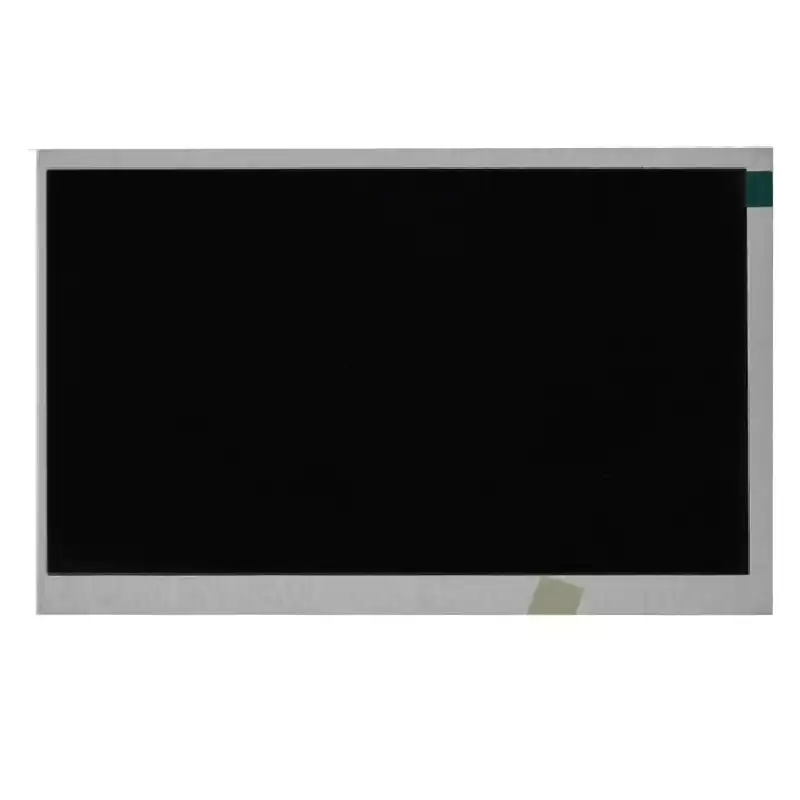

WM070MC020WV-B Introduction
-
7.0 (16:9 Diagonal) inch
diagonally measured active display area.
-
WVGA (800 horizontal by 480 vertical pixel) resolution.
-
7.0 inch TN WVGA LCD module with 250 nits brightness.
-
PCAP, a capacitance touch panel.
-

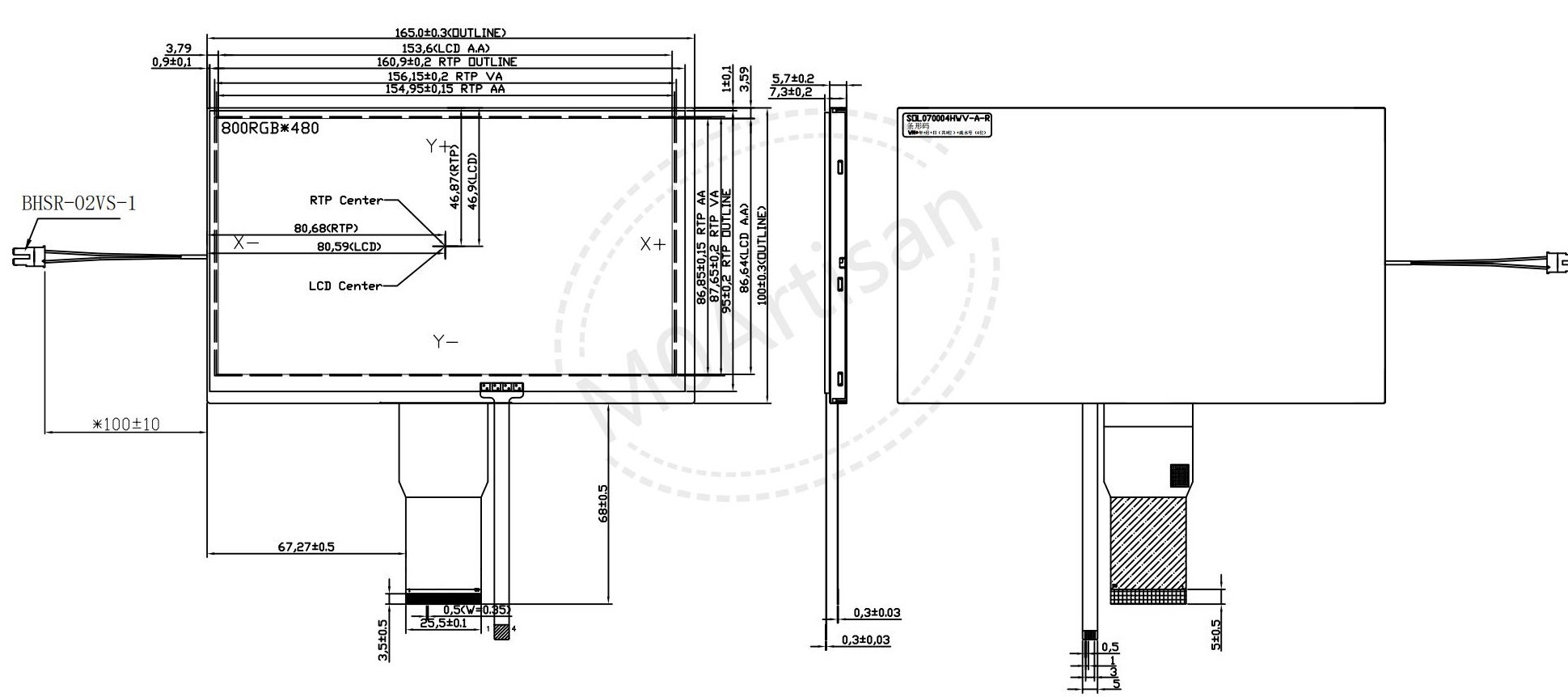

WM070MR010WV-D, RTP, a resistance touch panel.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
WVGA, 800RGB*480, TN, 6 O'clock, landscape view screen, PCAP, or a RTP
|
182.07*117.6*5.9
165*100*7.3
|
6X3
9x3 LED (50K)
|
50 PIN FPC, 24-Bit, RGB
|
250 nits/500
400 nits/500
|
Topa: -20~+70
Tstg: -30~+80
|
60/70/70/70
60/70/75/75
|
WM070MC020WV-B
WM070MR010WV-D
|
Production Applications
Mobile NB, GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Note:
This product is just an ordinary high brightness product.You can match a capacitive or resistive touch panel.
