7 years warranty 12vdc 100w for led ceiling light driver

The 12vdc 100w LED driver is a self-contained power supply which has outputs that are matched to the electrical characteristics of the LED(s). This helps people to design new led lighting fixtures.


  • CertificationCE UL ROHS FCC
  • Size230*70*43mm
  • Dimming modenon-dimming
  • Working ModeConstnat voltage
  • Output Current8.33A
  • Output Voltage12vdc
  • Input Voltage100-277VAC

7 years warranty 12vdc 100w for led ceiling light driver


It’s often been quoted “People will forget what you said and did, but they’ll never forget how you made them feel.” With 12vdc 100w constant voltage led driver from Smarts, LED mirror have a unique and memorable new way to leave their guests feeling pleasantly surprised, thoroughly delighted, and eager to have.


  Features


  1. Output constant voltage
  2. Input voltage range 100-277VAC
  3. Built-in PFC function, PF> 0.98, Efficiency > 87%
  4. Protections:short circuit/over voltage/over heat
  5. IP67 design for indoor or outdoor installations
  6. Cooling by free air convection
  7. Suitable for LED lighting and moving sign applications
  8. Compliance to worldwide safety regulations for lightings.
  9. 7 years warranty


  Specification


model

SMT-012-100VWN

SMT-024-096VWN

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

8.00A

4.0A

Rated power

100W

96W (class 2)

Input

Voltage Range

100~277V AC

Frequency Range

47~63HZ

THD(Typ.) @full load

<15%@120VAC  <20%@230VAC  <20%@277VAC

Power Factor ( Typ.)

0.99@120VAC, 0.97@230VAC 0.95@277VAC

0.99@120VAC, 0.97@230VAC 0.97@277VAC

Full Load Efficiency(Typ.)

83%@120VAC, 85%@230VAC,87%@277VAC

82%@120VAC, 85%@230VAC 88%@277VAC

AC Current(Typ.)

1.52A/110VAC

Inrush Current (Typ.)

20A, 50%, 1.6ms@120VAC; 30A,50% 200us@230VAC; 25A,50%,1.2ms@277VAC

Leakage current

﹤0.5mA/110V

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Over Loading

≤120% constant current limiting, auto-recovery

Over voltage

≦140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P:1.90KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level (surge4KV)

Others

Net Weight

1.08Kg

Size

230*70*43mm(L*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

1.  All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

Label



Triac dimmable led driver
dali led power supply
0-10v led driver
waterproof led driver

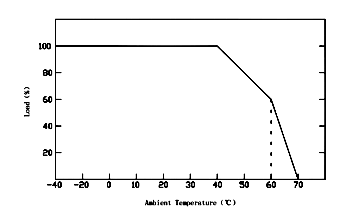

  Derating Curve

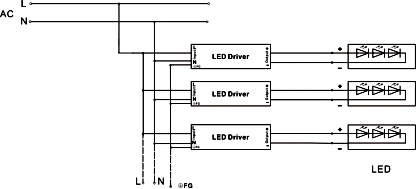

  Connection diagram

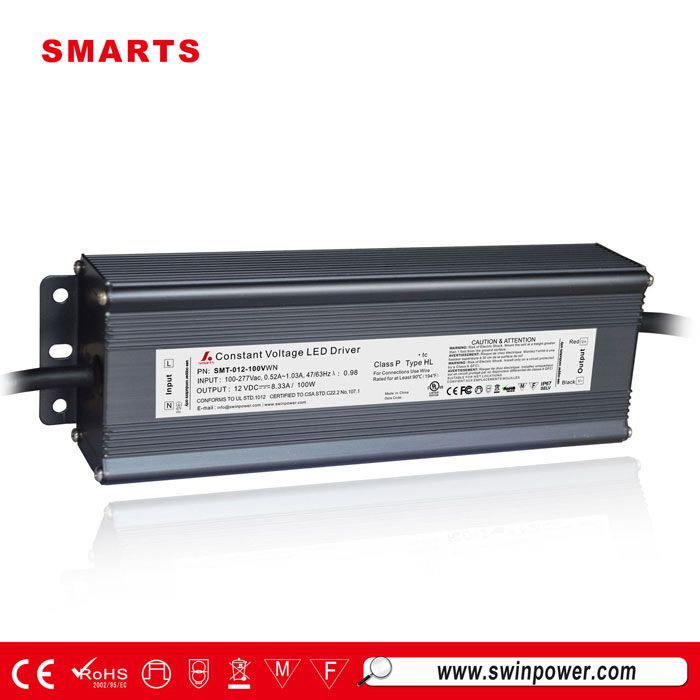

led power supply 100w

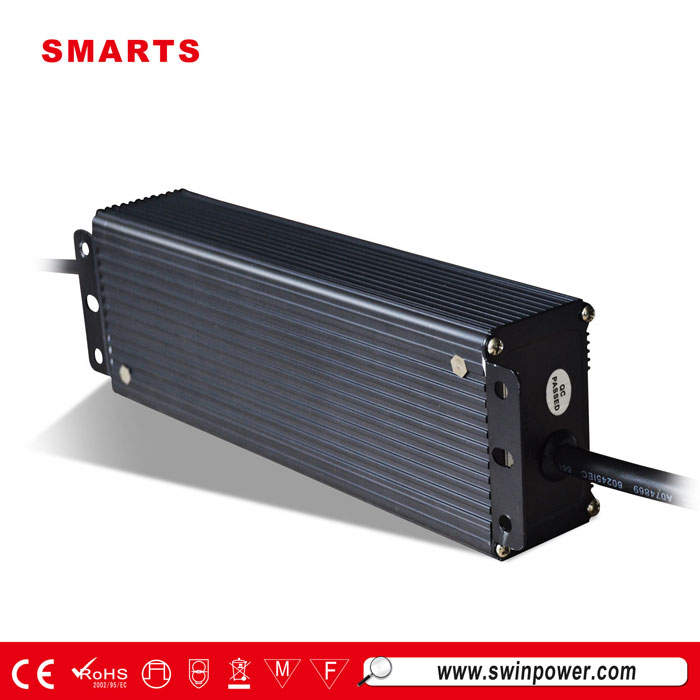

led driver 100w
