7 years warranty 30W power supply 12v 24v DC Isolated led driver for LED lighting

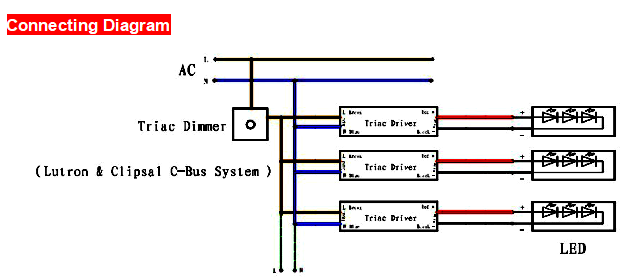

12v 30w led dimming driver the Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground.Output: Red is（DIM+）,Black is（DIM-）
Specification
|
model
|
SMT-012-030VTH
|
SMT-024-030VTH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
|
Rated power
|
30W
|
30W
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.97/277V
|
|
|
Full Load Efficiency（Typ.）
|
>82%
|
>84%
|
|
|
AC Current（Typ.）
|
0.33A/110VAC / 0.13A/277VAC
|
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.95Kg
|
|
|

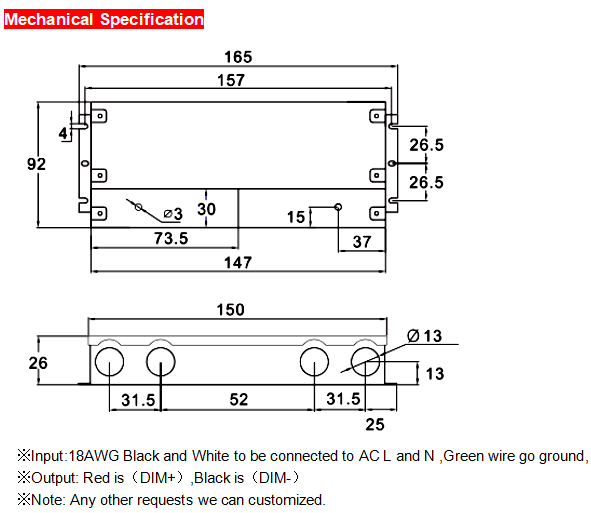

Size
|
165*92*26mm (L*W*H)
|
|
|
packing
|
355*215*215mm / 10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
Label
|
|
Application
All of our drivers are got ETL CE SAA ROHS listed .OEM Welcome.
Our led drivers are widely used for:
-
1.Indoor LED illuminating lights
-
2.LED Neon, LED urban Decoration
-
3.LED Lighting Advertising,LED Display
-
4.Safety Protection Apparatus
-
5.Telecommunications, Networks
-
6.Vehicle Lights, Controller Panels
