700C 27.5'' Carbon Gravel Bike Frame R07

ADVANTAGES:

1, Material: Toho carbon fiber.

2, EPS foam molding process, inner smoothly, better strength.

3, Customized painting / Decals is acceptable.

4, Strict develop test and mass production test. (exceed 30% of ISO4210)

PRODUCTS DESCRIPTION:

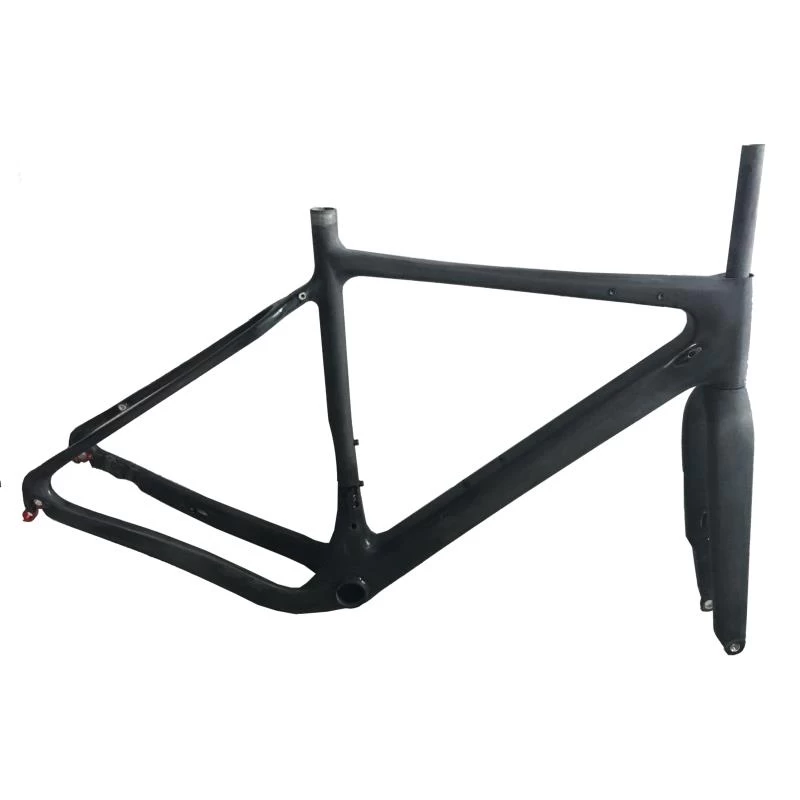

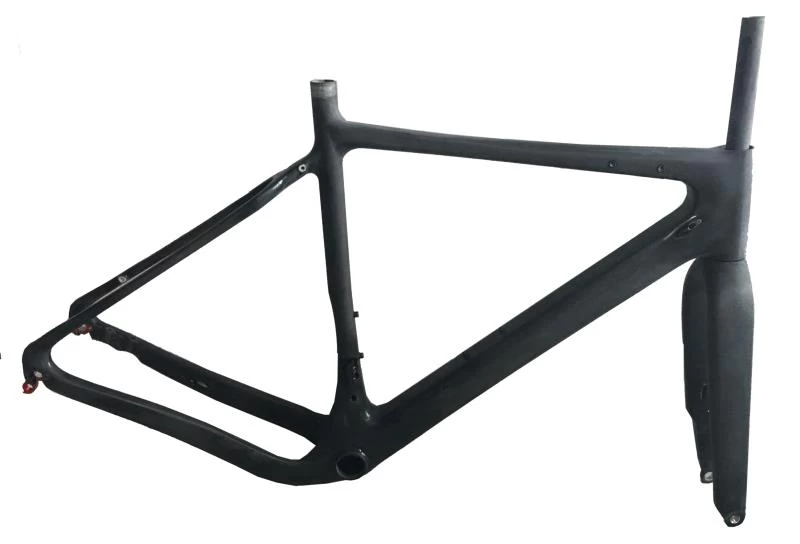

700C Carbon Gravel Bike Frame R07

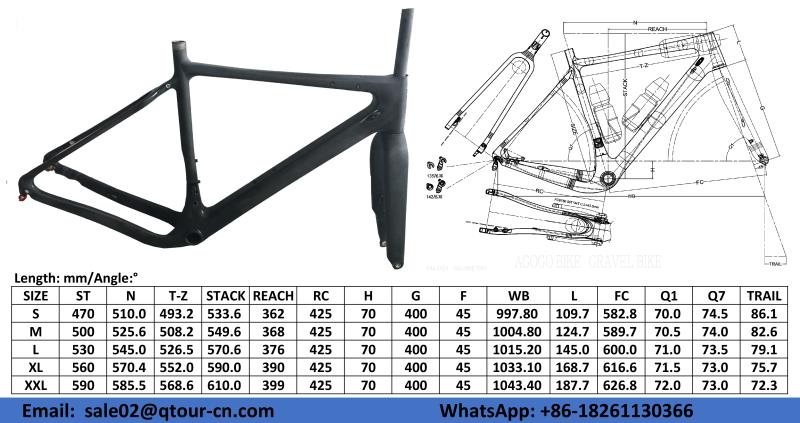

PRODUCT DETAIL:

Frame: 700C*45c Carbon Gravel Bike Frame R07                 Brake: Disc brake (Flar Mount)

Size: 470mm/500mm/530mm/560mm/590mm                   Headtube: Tapered 1-1/8'', 1-1/2''

Motort: BB86                                                                Seatpost: 27.2mm

O.L.D: Frame 142mm*φ12mm(ta) / 135mm*φ10mm(QR)    Max Tire: 700C*45C

Weight: 1050g±50g(Frame) / 530g±20g(Fork)                   Test Standards: EN / ISO4210

Finish: UD matt / glossy (customized painting acceptable)      Warranty: 2 years

OUR FACTORY:
1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.
    Our plant covers 8.5 acres, 42,000m2 workshop, 450m2 testing room.
2, Production Capacity per year：
120,000 sets Carbon Bicycles Parts,
(Include Carbon Frame, carbon e-bike frame, carbon Rim, carbon Fork, carbon Handlebar ect)
3, We have over 10 years production experience in carbon fibre business.
4, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,
    laser cutting tech, EPS foam molding, monocoque and robot painting equipments.
5, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.
6, Small order and sample order are accepted, OEM & ODM avilable too.

Test Standards: ISO4210. In order to make our products more stiff and strong we have raised up 30% for strict test.

Carbon road bike frame, carbon e-bike frame, carbon e-mtb frame, carbon e-racing frame, carbon e-gravel frame, carbon mtb frame,

Carbon gravel frame, carbon suspension frame;

700C Carbon Gravel Bike Frame R07
