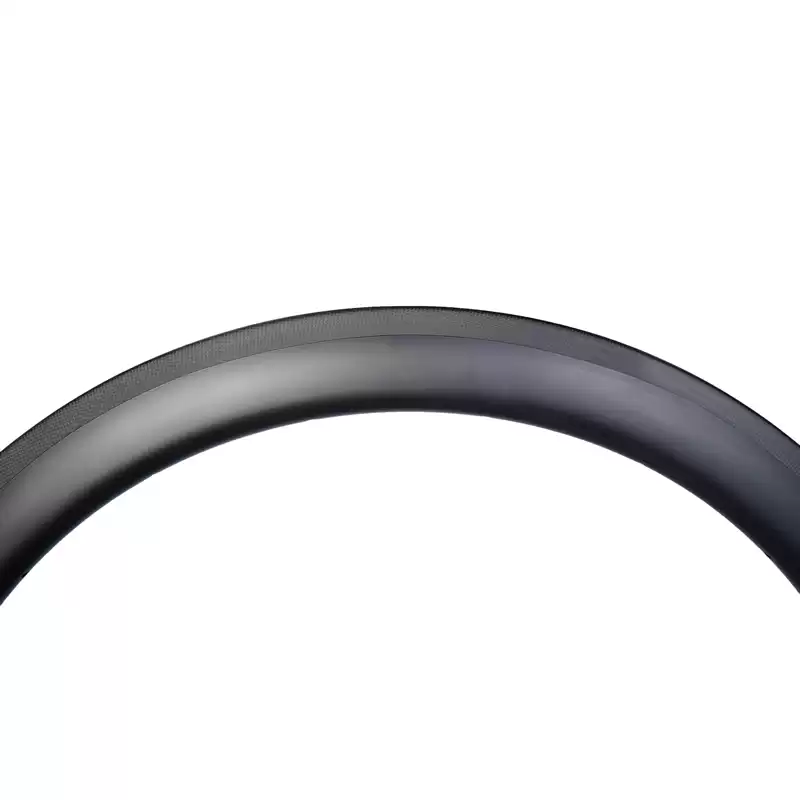

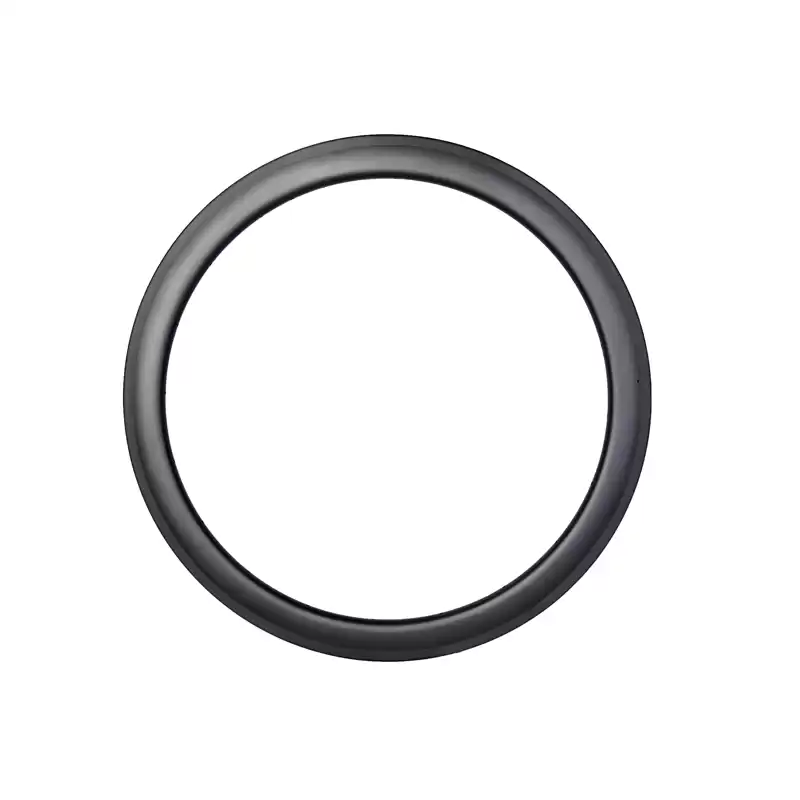

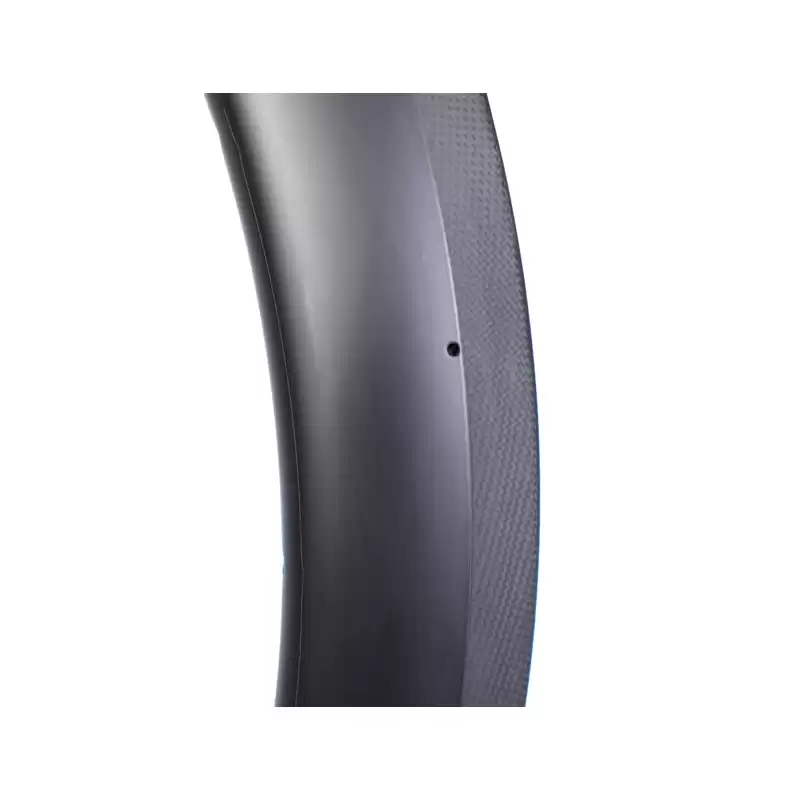

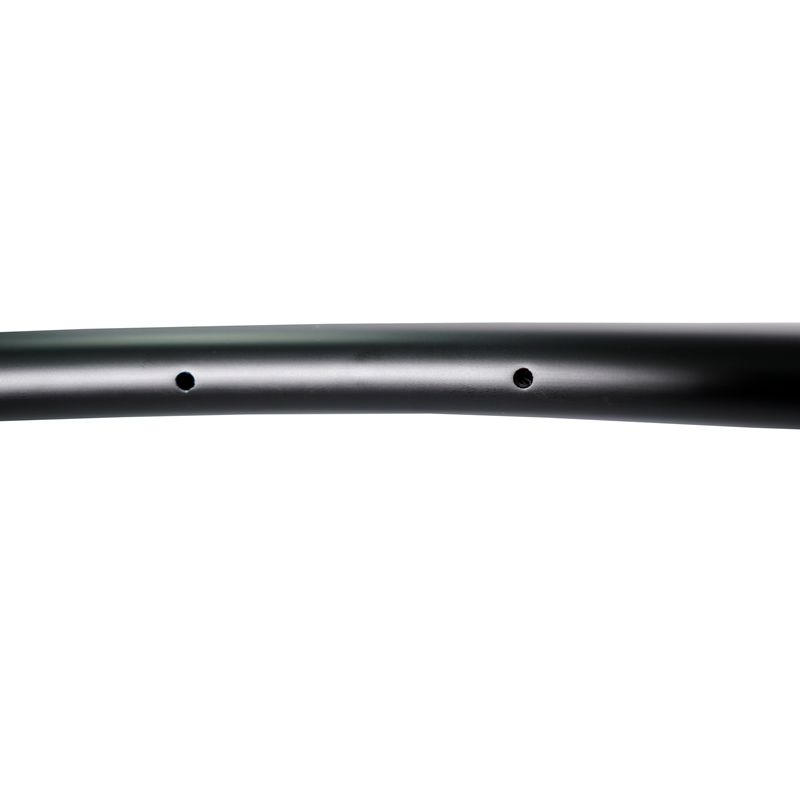

Product Model：700C Full carbon 36mm/38mm/45mm Deep Asymmetric disc brake rims
36mm Deep Asymmetric Clincher rims,Wider U shape design,offers improved aerodynamics and stiffness.
better handing in crosswinds condition and faster riding.Asymmetrical 27mm wide 250°C high TG resin system,can tolerate max 250°C high temperature from braking.
The newest style of Asymmetric tubeless road bicycle wheels for disc brake,it will hepl to equalice the sopke tension between drive side and non-drive side.
Tubeless ready design,easy for tire mount.lightweight rim,best strength to weight ratio with no expense spared.
High quality carbon wheels manufaturer,specially designed,good service and fast delivery.
Features:
1.Our carbon wheels use premium Toray T700 & T800 carbon fiber,it has Super lightweight, best strength to weight ratio with no expense spared.
2.Asymmetrical wheels with 250°C high temperature,better for disc bike wheels.
3.Wider U shape design better for aerodynamics and strength.
4.New bead lock system,can prevent air leaking,and better for tire holding.
5.We can product different patterns of brake surface optional (customs patterns can also be made).
6.High quality carbon wheels manufacturer,reasonable prices,good service,fast delivery.
7.5 years warranty
Specification:
|
Model
|
TR36C-23 Asymmetrical
|
TR38C-27 Asymmetrical
|
TR45C-27 Asymmetrical
|
|
Size
|
700C
|
700C
|
700C
|
|
Sectional Drawing
|
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
36mm
|
38mm
|
45mm
|
|
Wide
|
23mm
|
27mm
|
27mm
|
|
Weight
|
450+/-15g
|
465+/-15g
|
495+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
568mm
|
564mm
|
540mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>280kg
|
>300kg
|
>300kg
|
|
Ultimate Strength
|
>200kg
|
>300kg
|
>300kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
>50kg
|
|
Tire Size Recommended
|
700*23-25c
|
700*25-28c
|
700*25-28c
|

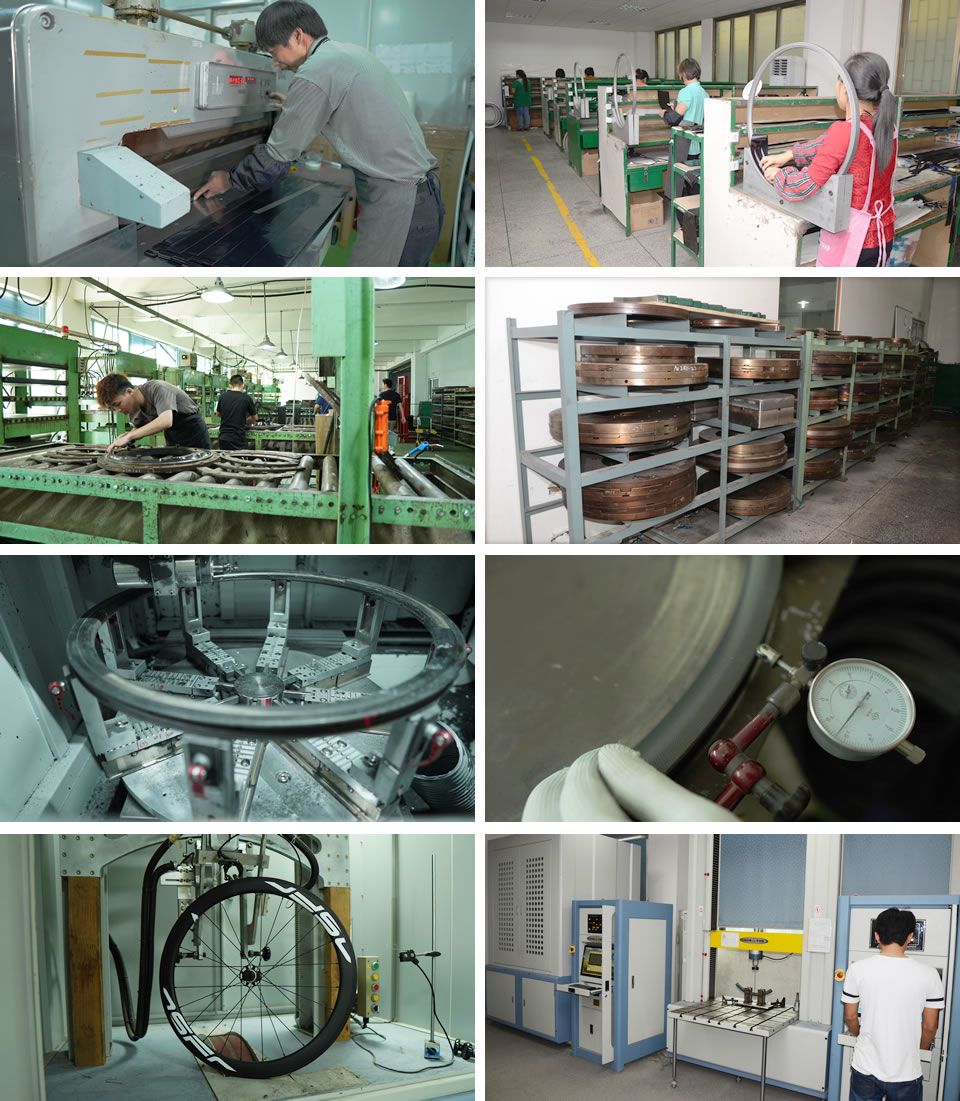

Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
