700C Asymmetrical 58mm Deep carbon rims

Type:30mm wide Asymmetrical clincher carbon rim

Material: Toray T700&T800

2021 New Style Carbon Rim

High temperature resin carbon rim 700C road bike wheels

Disc brake or V brake

Basalt braking surface for road bike wheels

High quality bicycle rims manufacture





Product Model:700C 30mm/45mm/50mm/58mm Width Clincher bicycle rims

30mm wide Asymmetrical rim Made of Full carbon Toray T700, have 35mm,45mm,50mm and 58mm Deep clincher wheel. Tubeless rdady rim is light but stiff.Spoke angles and balance better for aerodynamics and stiffness,more compliant and reliable road bicycle wheels.

The 700C carbon wheels appearance has 3k/UD/12K or customized.Finish Disc brake or basalt brake,matte or glossy.

250°C high TG resin system and High TG brake surface.Low braking failure rate.

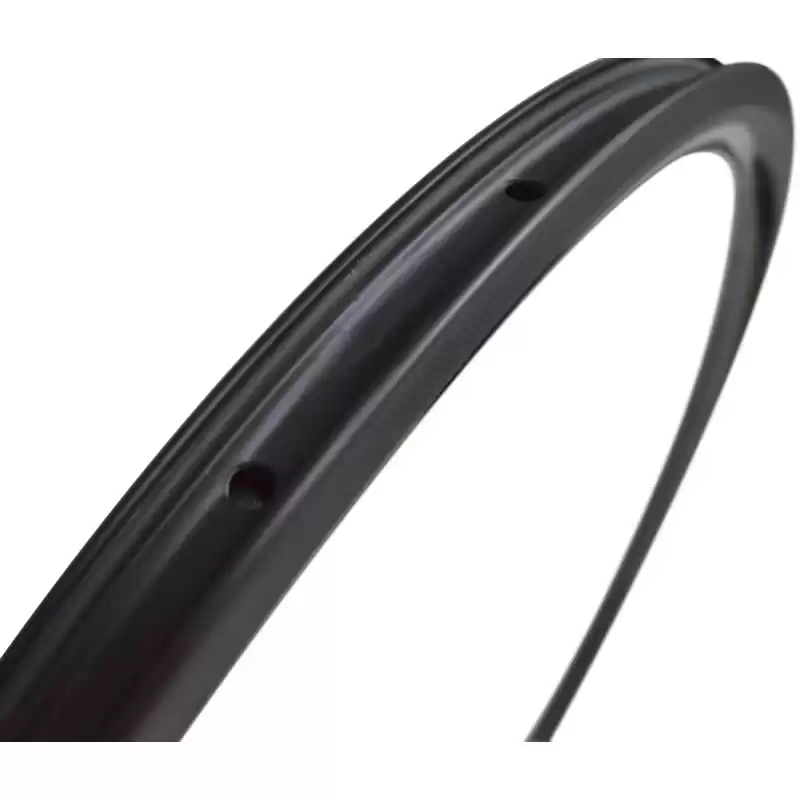

Offset spoke holes for better triangulation of spoke angles and balance of tensions in a wheels bulid.

Asymmetrical clincher rim with specially designed,strong technical force,fast delivery.

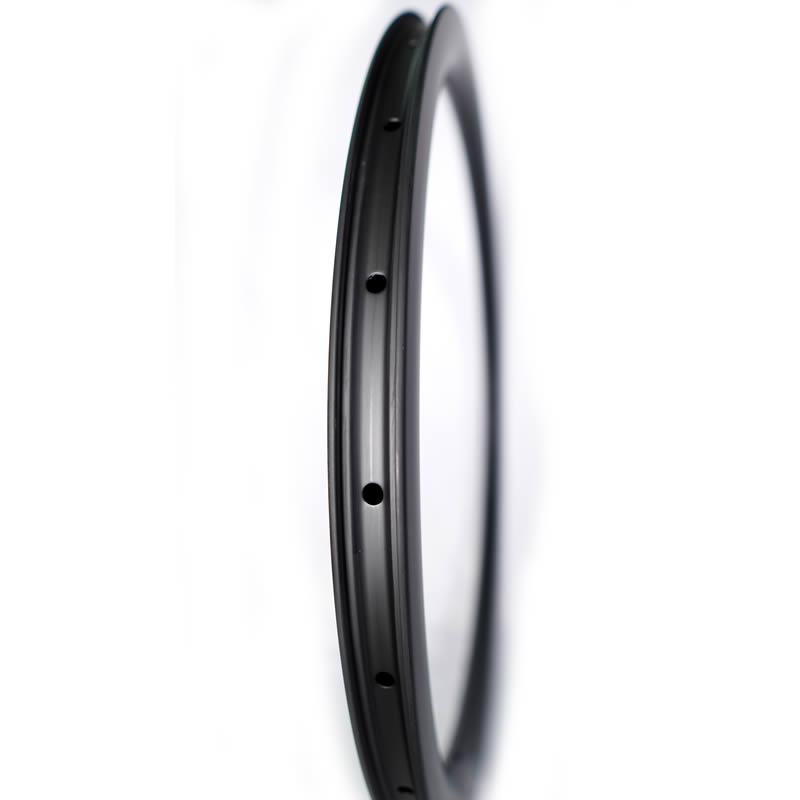

30mm wide Asymmetrical rim

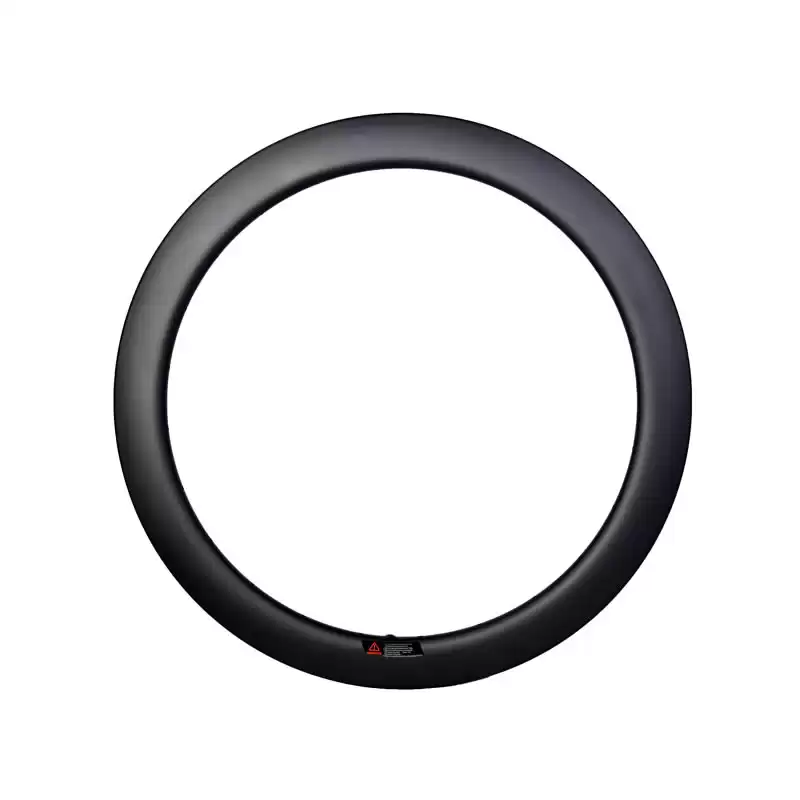

Deep 58mm clincher rim

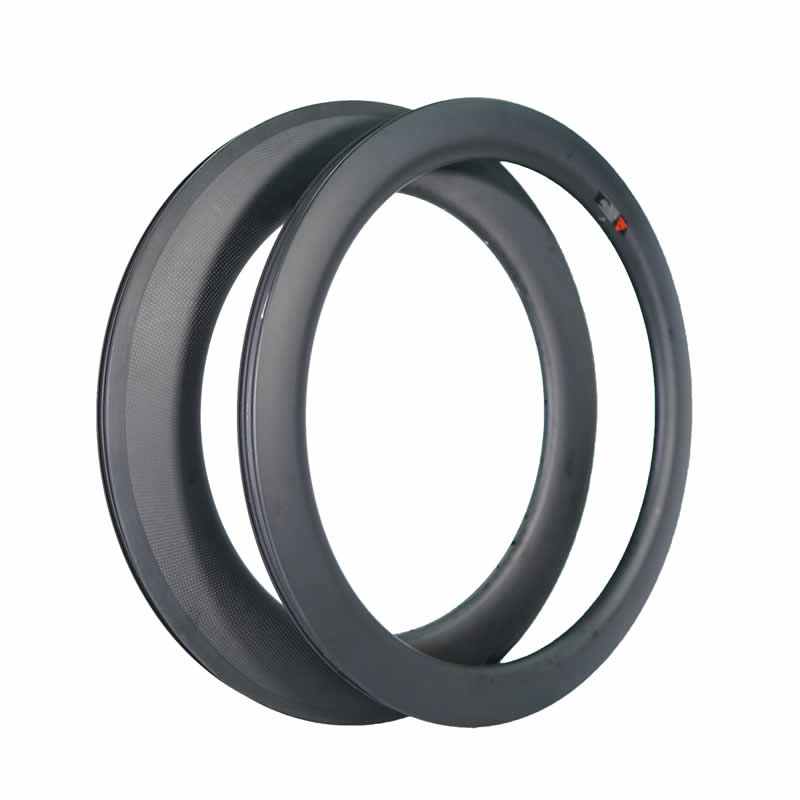

wide 30mm tubeless rim


Features:

1.The wheels Use 250°C high TG resin system.

2.All wheels made of Full Toray T700 & T800 carbon fiber.

3.Super lightweight rims,high quality wheels.

4.Asymmetric rim profile with offset spoke holes,better triangulation of spoke angles and balance of tensions in a wheel build.help to equalice the spoke tension between drive side and non-drive side.

5.Design for reinforced nipple bed,for larger spoke tension.

6.Asymmtrical of 30mm wide U shape design,better strength and aerodynamics.

7.We offer decal and painting service for OEM your brands.

8.We can customized Different patterns of brake surface.

9.High quality carbon wheels manufacturer,reasonable prices,good service and fast delivery.

10. 5 years warranty


Specification:

Model

TR35C-30

TR45C-30

TR50C-30

TR58C-30

Size

700C

700C

700C

700C

Sectional Drawing

35mm Deep hookless rim

700C carbon rim

700C 50mm carbon rim

58mm asymmetrical wheel

Material

Toray T700 & T800

Toray T700 & T800

Toray T700 & T800

Toray T700 & T800

Depth

35mm

45mm

50mm

58mm

Wide

30mm

30mm

30mm

30mm

Weight

455+/-15g

510+/-15g

515+/-15g

560+/- 15g

Appearance

3K/UD OrCustomized

3K/UD OrCustomized

3K/UD OrCustomized

3K/UD OrCustomized

Spokes holes

18-36#Customized

18-36#Customized

18-36#Customized

18-36#Customized

ERD

570mm

550mm

540mm

524mm

Assembly Hole Dia.

7.6mm

7.6mm

7.6mm

7.6mm

Spokes hole Dia

4.2mm

4.2mm

4.2mm

4.2mm

Valve hole Dia.

6.6mm

6.6mm

6.6mm

6.6mm

Flatness

<0.25mm

<0.25mm

<0.25mm

<0.25mm

Roundness

<0.5mm

<0.5mm

<0.5mm

<0.5mm

Max Spoke Tension

>300kg

>300kg

>300kg

>300kg

Ultimate Strength

>200kg

>300kg

>300kg

>300kg

Torsion Strength

>50kg

>50kg

>50kg

>50kg

Tire Size Recommended

700*28-50C

700*28-50c

700*28-50c

700*28-50c

Max Tire Pressure

125psi/8.6bar

125psi/8.6bar

125psi/8.6bar

125psi/8.6bar

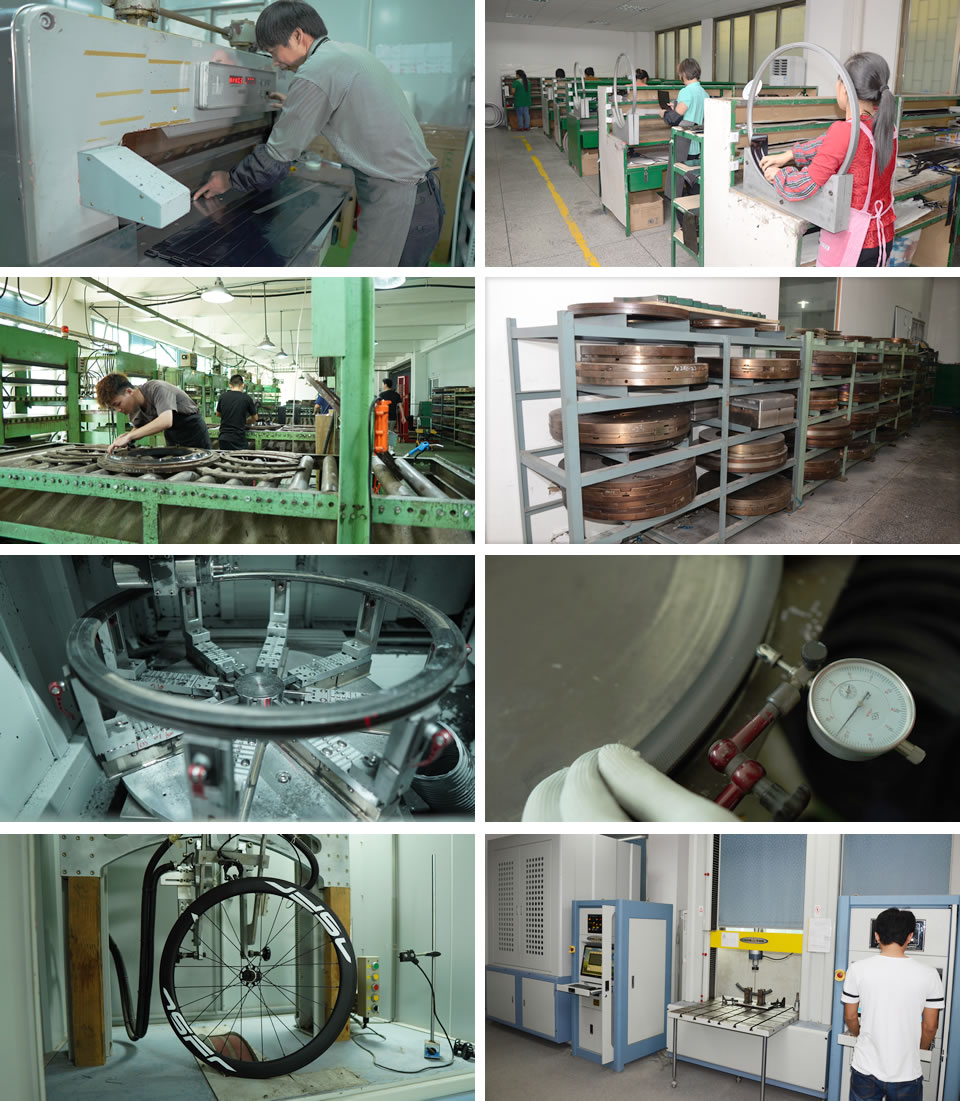

Factory production manufacture

50mm clincher carbon rim


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.
