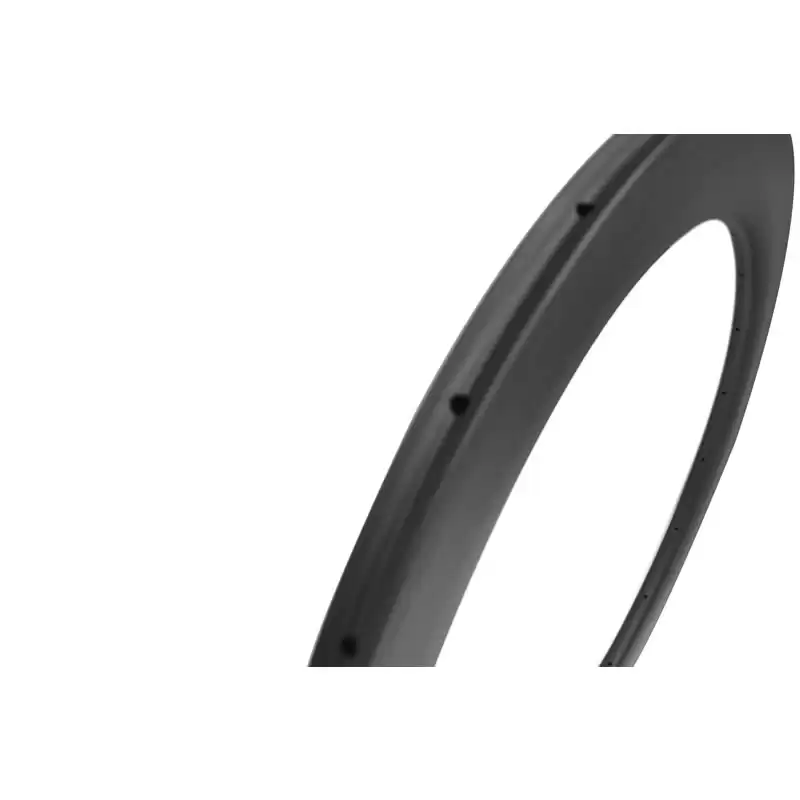

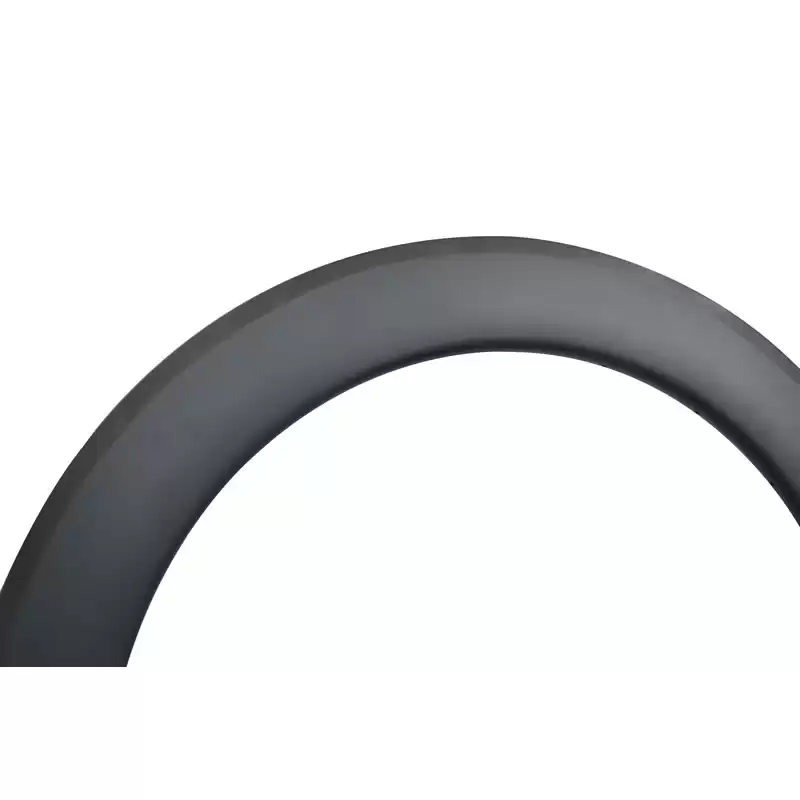

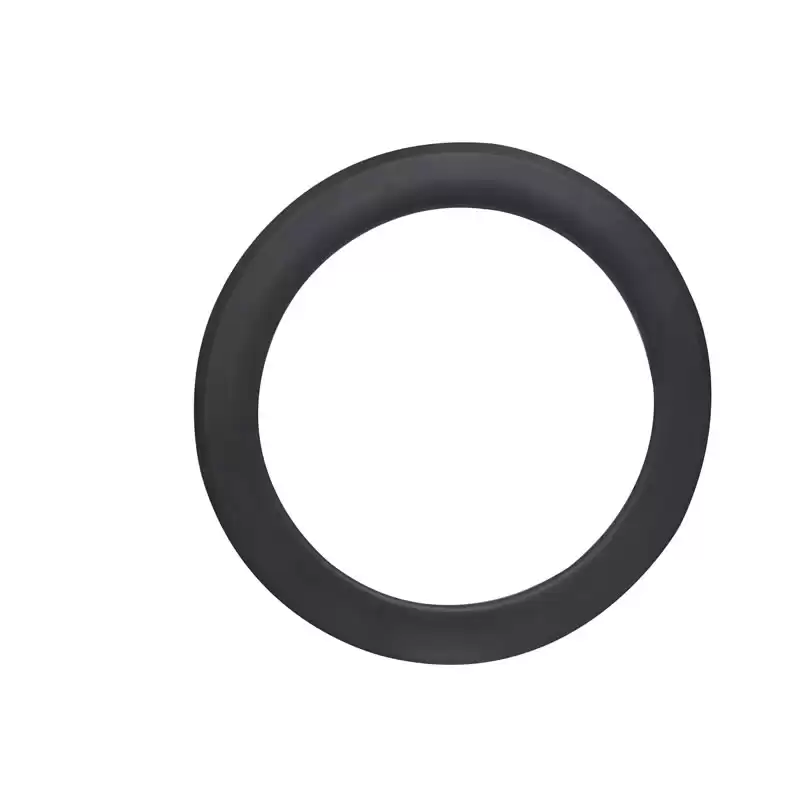

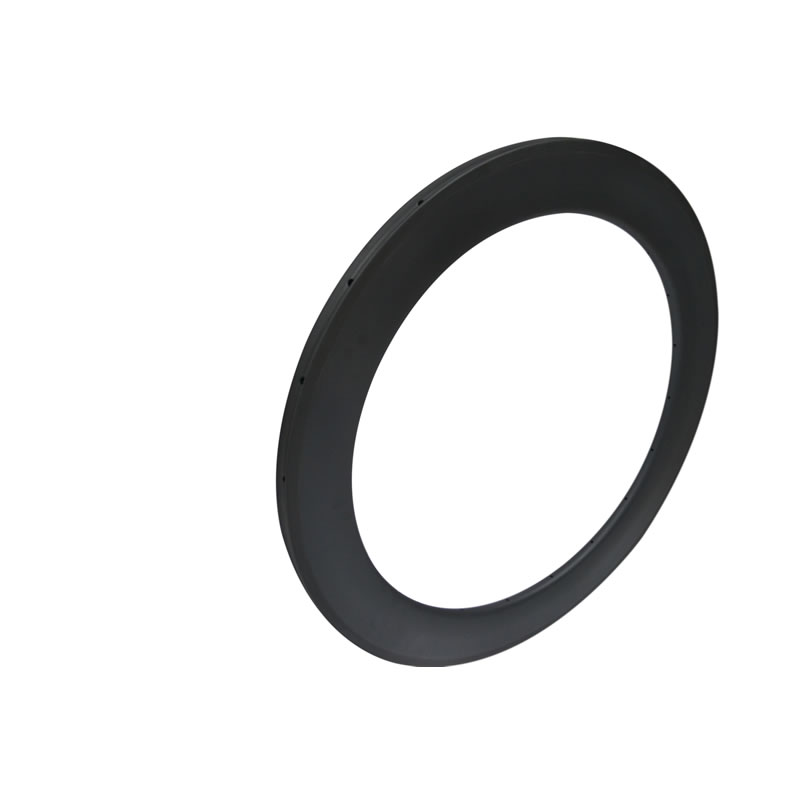

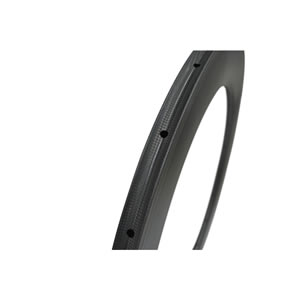

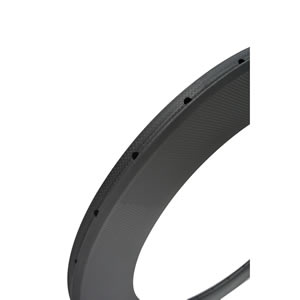

700C Road bicycle Tubular wheels 75mm Depth U shpae carbon Rims

Type:Road carbon wheels 75mm Deep 700C superweight tubular carbon rims

Material: Toray T700

Depth:75mm

Width:23mm/25mm

Appearance:3K/UD/12K or customized
Brake track:Basalt,Disc brake

250°C high TG braking temperature

700C carbon tubular rims for road bike and track bike

High quality bicycle rims manufacturer



Product Model:700C 75mm Deep tubular carbon rims road bicycle carbon wheels

This 75mm Depth tubular carbon rims with U shape.

700C 75mm Depth tubular carbon rims made of Toray T700 and T800 carbon fiber.better aerodynamics and sitffness.

High TG Tubular carbon rims use high TG basalt brake surface,can tolerate high temperature from braking.

New design of one piece molding.

High quality tubular carbon rims with the wholesale price.

700C carbon rim tubular
75mm tubular rims
tubular carbon rims


Features:

1.High TG carbon tubular rims,use high TG basalt brake surface,can tolerate max 250°C high temperature from braking.

2.Super lightweight,made of Full Toray T700 & T800 carbon fiber,better aerodynamics and sitffness.
3.Tubular rims New design for one piece molding,making by complete carbon fiber,stronger and more stable,better finish for rims.

4.High quality tubular carbon rims use basalt brake track,high temperature resistance,brake system is important for riding,more safety for cyclist.

5.This tubular rim with U shape design,making the rim less susceptible to cross winds and improveds aerodynamics in a rang of real life wind conditions.better for rider.

6.We have not MOQ limit,sample order are avaliable,we also can mixed product to order.

7.We offer decal and painting service for OEM your brands.

8.We can customized Different patterns of brake surface .

9.High quality carbon wheels with reasonable prices, good service and fast delivery.

10.5 years warranty


Specification:

Model

T75-23

T75-25

Size

700C

700C

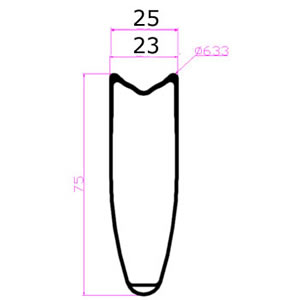

Sectional Drawing


Material

Toray T700 & T800

Toray T700 & T800

Depth

75mm

75mm

Wide

23mm

25mm

Weight

500+/-15g

500+/-15g

Appearance

3K/UD OrCustomized

3K/UD OrCustomized

Spokes holes

18-36#Customized

18-36#Customized

ERD

490mm

490mm

Assembly Hole Dia.

7.6mm

7.6mm

Spokes hole Dia

4.2mm

4.2mm

Valve hole Dia.

6.6mm

6.6mm

Flatness

<0.25mm

<0.25mm

Roundness

<0.5mm

<0.5mm

Max Spoke Tension

>300kg

>300kg

Ultimate Strength

>300kg

>300kg

Torsion Strength

>50kg

>50kg

Max Tire Pressure

125psi/8.6bar

125psi/8.6bar


Factory production manufacture

customication carbon wheel


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.
