Model
|
RV38C
|
RV38TL
|
RV38T
|
|
Sectional Drawing
|
|
|
|
|
Material
|
Toray T700
|
Toray T700
|
Toray T700
|
|
Inner/Out Width
|
16mm/23mm
|
15.3mm/23mm
|
23mm/—
|
|
Depth
|
38mm
|
38mm
|
38mm
|
|
Rim Type
|
Clincher
|
Tubeless Ready
|
Tubular
|
|
Brake System
|
Rim Brake
|
Rim Brake
|
Rim Brake
|
|
Weight
|
440+/-15g
|
440+/-15g
|
330+/-15g
|
|
ERD
|
568
|
568
|
568
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
Matte/Glossy
|
|
Spoke Hole
|
16/18/20/21/24H
|
16/18/20/21/24H
|
16/18/20/21/24H
|
|
Max Spokes Tension
|
130 kgf
|
130 kgf
|
130 kgf
|
|
Max Tyre Pressure
|
120 Psi/8.5 Bars
|
120 Psi/8.5 Bars
|
120 Psi/8.5 Bars
|
|
Max Rider Weight
|
125 Kg
|
125 Kg
|
125 Kg
|
|
Warranty
|
2 Years
|
2 Years
|
2 Years
|
Features:
-T800 tubular road bike rims provide more rigid for wheels , what’s more,V shape rims provide better aerodynamics.
- The V shape rims is lighter than U shaped rims
-Tubeless ready rim type,easy for tire mount.
-38mm carbon rims is classic design,always popular in bicycle market.
-The 38mm carbon tubular rims profile is our light weight tubular offering with perfect climbing and more aero.
-Special brake surface design will faster braking heat elimination.
-2 years warranty with crash replacement policy.

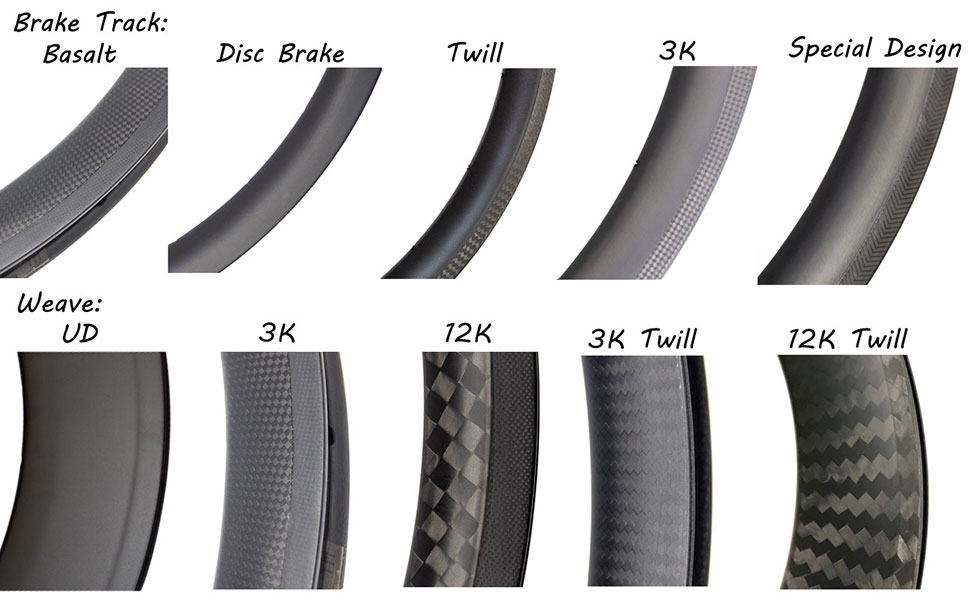

More Brake Surface And Weave You Can Choose:
