700T Hot Sale Die Casting Machines for making heating radiators

According to the specific needs of customers, combined with our experience, we design and manufacture professional die casting machines for customers.

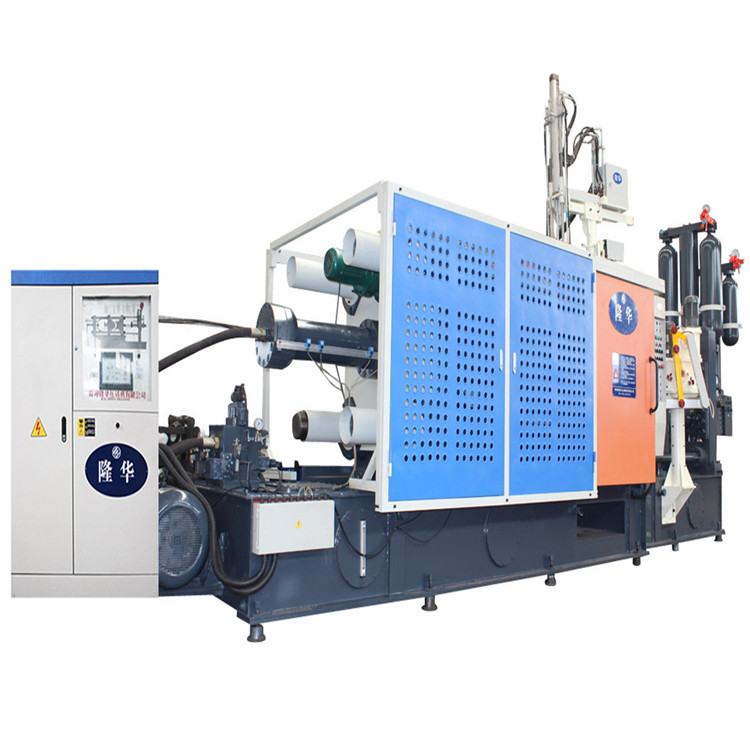

700T Hot Sale Horizontal Cold Chamber Die Casting Machine

Horizontal Cold Chamber Die Casting Machine



Features of die casting machine:

1.This die casting machine is suitable for die-casting of various non-ferrous alloys and ferrous metals;

2.Die casting machine models are available;

3.The die casting machine has the advantages of few operation, high efficiency and easy automation;

4.The injection position of die casting machine is easy to adjust, which can adapt to the opening of eccentric gate, or the center gate;

5.The injection system of die casting machine has high technical content;

6.The classification and segmentation of the injection process of the die casting machine are obvious and easy to be realized. which can meet the different requirements of the die casting process to a large extent, and adapt to the production of various types and requirements of the die casting;


700T Hot Sale Horizontal Cold Chamber Die Casting Machine parameter

Items

Unit

Specification

Hydraulic Working Pressure

MPa

14

Clamping Force

KN

7000

Space Between Tie Bars

mm

750*750

Tie Bar Diameter

mm

¢170

Die Opening Stroke

mm

650

Injecction Force(intensify)

KN

670

Plunger launch distance

mm

295

Injection position

mm

0  --  250

Plunger Diameter

mm

¢70----¢100

Injection Stroke

mm

715

Casting pressure (intensify)

MPa

153/117/92

Casting Fiange Protrusion

mm

15

Casting Fiange Diameter

mm

165

(40Mpa) Max Casting Area Under 40Mpa

CM2

1750

lnjection Weight(Al)

Kg

11

Die Height(Min--Max)

mm

350~900

Ejector Force

KN

315

Ejector Steoke

mm

260

Motor Capacity

Kw

30

Machine Dimensions  (L*W*H)

m

8.4*2.2*3.1

Referential Machine Weight For Uplifting

T

30

Oil Tank Capacity

L

1250

WE reserve the right to make any technical improvement without further notice


On-purchase Service:

By guiding customers to install the water and electricity of die casting machines, commissioning new machines training customers' technicians and operators, the machine placement is standardized and reasonable.And enable relevant personnel to be familiar with the operation of the company's machinery, understand the maintenance of machinery, maintenance.

1. Installation and commissioning of die casting machine.

2.Die casting operator training.

3.Training of relevant technical personnel.
