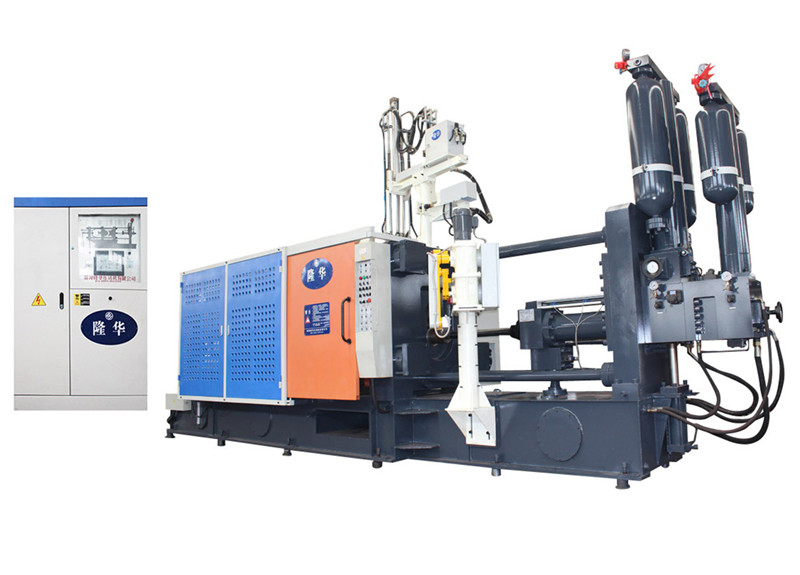

Aluminum accessories manufacturing machines automatic die casting machines(LH-700T)

Die casting machine can effectively use the production method of aluminum casting to make some high quality auto parts, such as pipe fitting on auto engine, cylinder head of gasoline engine cylinder, etc.



Product Item:

Aluminum accessories manufacturing machines automatic die casting machines(LH-700T)


This die casting  machine is widely used for mass production of  foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of auto mobiles, motorcycles, meters and instruments, hardware and military supplies.


how to operating the die casting machinealuminum die casting machine processhow to select the die casting machine

LH SERIES OF STANDARD PARAMETER TABLE (LH-700 T)

ITEMS

UNIT

SPECIFICATION

HYDRAULIC WORKING PRESSURE

MPA

14

CLAMPING FORCE

KN

7000

SPACE BETWEEN TIE BARS

MM

750*750

TIE BAR DIAMETER

MM

¢170

DIE OPENING STROKE

MM

650

INJECTION FORCE(INTENSIFY)

KN

670

PLUNGER LAUNCH DISTANCE

MM

295

INJECTION POSITION

MM

0  --  250

PLUNGER DIAMETER

MM

¢70----¢100

INJECTION STROKE

MM

715

CASTING PRESSURE (INTENSIFY)

MPA

153/117/92

CASTING FIANGE PROTRUSION

MM

15

CASTING FIANGE DIAMETER

MM

165

MAX CASTING AREA UNDER 40MPA

CM2

1750

LNJECTION WEIGHT(AL)

KG

11

DIE HEIGHT(MIN--MAX)

MM

350~900

EJECTOR FORCE

KN

315

EJECTOR STROKE

MM

260

MOTOR CAPACITY

KW

30

MACHINE DIMENSIONS  (L*W*H)

M

8.4*2.2*3.1

REFERENTIAL MACHINE WEIGHT FOR UPLIFTING

T

30

OIL TANK CAPACITY

L

1250

PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE

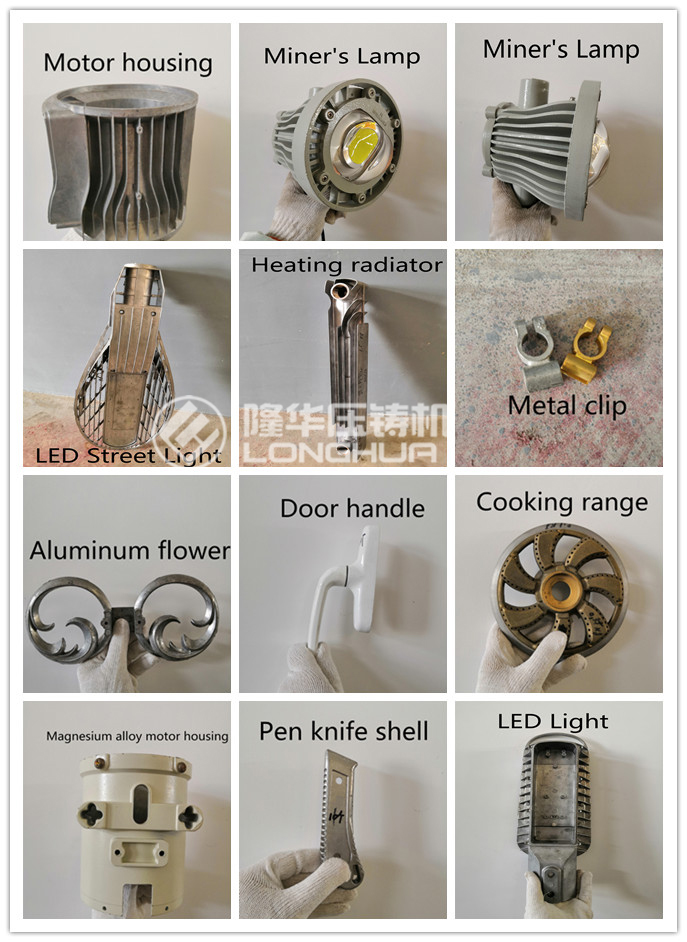

Die casting product display


Longhua die casting machine is reasonable in design and safe in use.Widely used in automobile, motorcycle, home appliances, communications, gifts, toys, hardware, kitchen, IT and other industries, fully meet the requirements of various types of die-casting production technology.



Die casting product display



Packaging & Shipping




We have been producing die casting machines for 37 years, our products are all over the world, andwe have rich export experience.



Our Promise

Customer satisfaction is our eternal pursuit, longhua always pay attention to customer needs, in order to reduce customer mechanical failure time, longhua service center after ten years precipitation a set of perfect server process, with the fastest response cycle for customers to repair machines, improve customer machine operating rate.



Pre-sale Service

By providing customers with pre-sales services of investment budget, plant planning and other forms, customers' planning is reasonable, standardized and cost saving.

1.Investment budget:die casting machine selectionand auxiliary equipment matching and budget

2.Plant planning: provide installation size of equipment foundation, equipment layout, workshop ventilation, exhaust, water transportation, wiring, lifting equipment design services.

3.Provide information of various casting auxiliary equipment.


On-purchase Service

By guiding customers to install the water and electricity ofdie casting machines, commissioning new machines training customers' technicians and operators, the machine placement is standardized and reasonable.And enable relevant personnel to be familiar with the operation of the company's machinery, understand the maintenance of machinery, maintenance.

1. Installation and commissioning ofdie casting machine.
2.Die casting operator training.
3.Training of relevant technical personnel.


After-sales Service

1.For customers who purchase longhua products, we have trained professional engineers to enable them to operate, use and maintain longhua products independently;

2.Timely answer technical problems, our company can promptly send people to the user site to assist and guide;

3.Provide technical guidance when users need new equipment or expansion (modification) construction;

4.After upgrading the company's products, give priority to the replacement work of previous users as required.
