EC-GW01S 2.0MP Wifi IP camera
Comparing with the traditional IP camera, Wholesaling Wireless CCTV Camera System is low cost, and it connects with simple operation and no wiring troubles. But, the stability and anti-interference of the wireless camera is still a little bit worse than the traditional IP cameras. Therefore,no matter you choose the wireless camera or the traditional IP camera,it depends on the installation environment, actual needs and network conditions.
So, how to install this Wireless IP Bullet Camera? First of all, it is necessary to connect the wireless trigger through a network cable. After completing the basic wireless configuration on the NVR or the client, you can unplug the network cable and install the camera in any place that can receive the same local area network. This Day night bullet camera provides full high definition 1080p with powerful night vision up to 25m. It is suitable to install outdoor with its IP66 waterproof protection grade.
Features:
1.1/2.7" 2.0M AR0237 CMOS; ICR
2. 0.1Lux@F1.6(Color), 0.01Lux@F1.6(B/W IR on)
3. 2.0M/1080p@25/30fps; 3M HD Lens
4. H.264/MJPEG, Mobile phone, UPNP
5. Support ONVIF (Profile S), CGI, Hikvision, Dahua, XM
6. IP66
7. Product Guarantee: 2 years
Specifications:
|
Model
|
EC-GW01S
|
|
Image Sensor
|
1/2.7" 2.0M AR0237
CMOS; ICR
|
|
Lens
|
3.6mm (6mm Option)
|
|
Electronic
shutter
|
1/25s-1/30,000s
|
|
Low Lux
|
0.1Lux@F1.6(Color), 0.01Lux@F1.6(B/W IR
on)
|
|
IR Light
|
36 ф5mm LEDS, up
to 25m IR distance
|
|
WDR
|
D-WDR
|
|
Video parameter
|
Rotate mode,
Rotate mode, Saturation, brightness, contrast ratio and color tone can be
adjusted by customer end or IE explorer
|
|
Audio-video
coding parameters
|
|
Compression
|
H.264/MJPEG
|
|
Video bit rate
|
0.1M-16Mbps,
customized
|
|
Triple Bit stream
type
|
Support
|
|
Audio compress
|
G.726, G.711
|
|
Audio bit rate
|
16Kbps
|
|
|
|
Video resolution
|
1920*1080P
|
|
Video flame rate
|
PAL: 1-25 FPS,
NTSC: 1-30FPS
|
|
Function
|
|
Intellectual
alarm
|
Mobile detection,
video shielding, video loss, network breakdown, abnormality in storage
|
|
Protocols
|
TCP/IP, ICMP,
HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, NAS, P2P
|
|
Basic functions
|
Heartbeat
mechanism, One-key reset, password protection, watermark technology, IP auto
pop-out at customer end
|
|
Interface
|
|
Network port
|
1 pcs, RJ45
10M/100Mbps self-adaptable Ethernet port
|
|
Wireless network
|
|
Cell phone
monitor
|
Support
|
|
WIFI
|
Support (IEEE
802.11 b/g/n)
|
|
Others
|
|
POE
|
Optional
|
|
Power supply
|
DC12V/1.5A
|
|
Power consumption
|
<6W
|
|
Working temp.
|
-10℃ ~ +55 ℃
|
|
Color Box Size
|
220*120*105mm
|
|
Gross Weight
|
568~579g
|

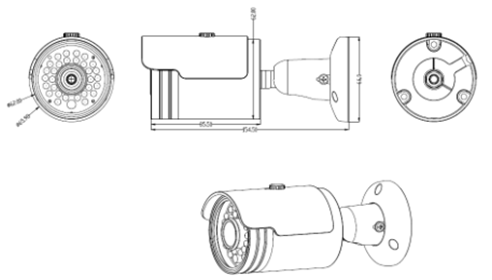

Structure:
More Infomation:
