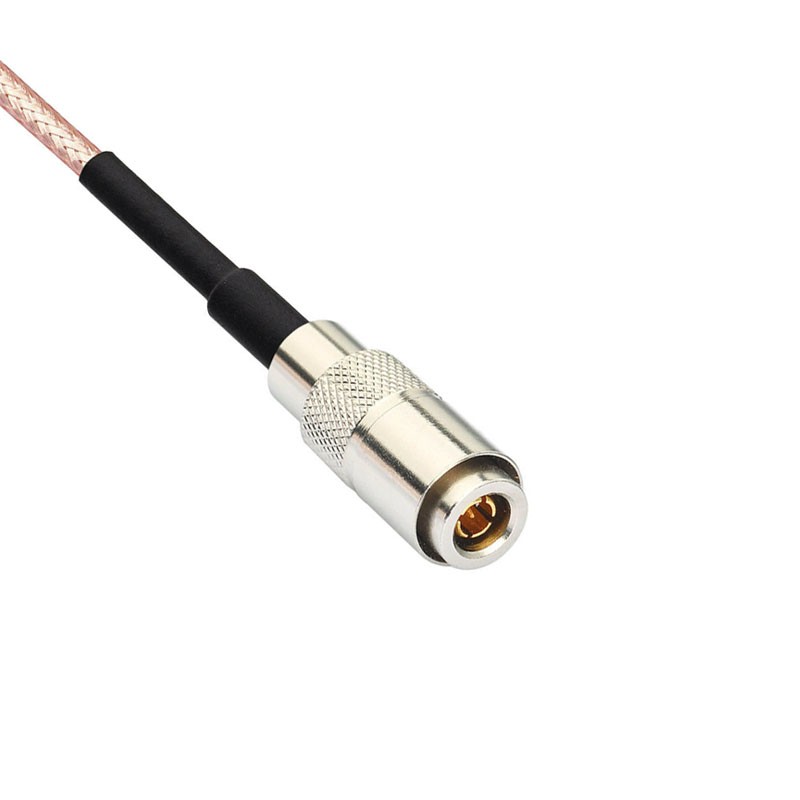

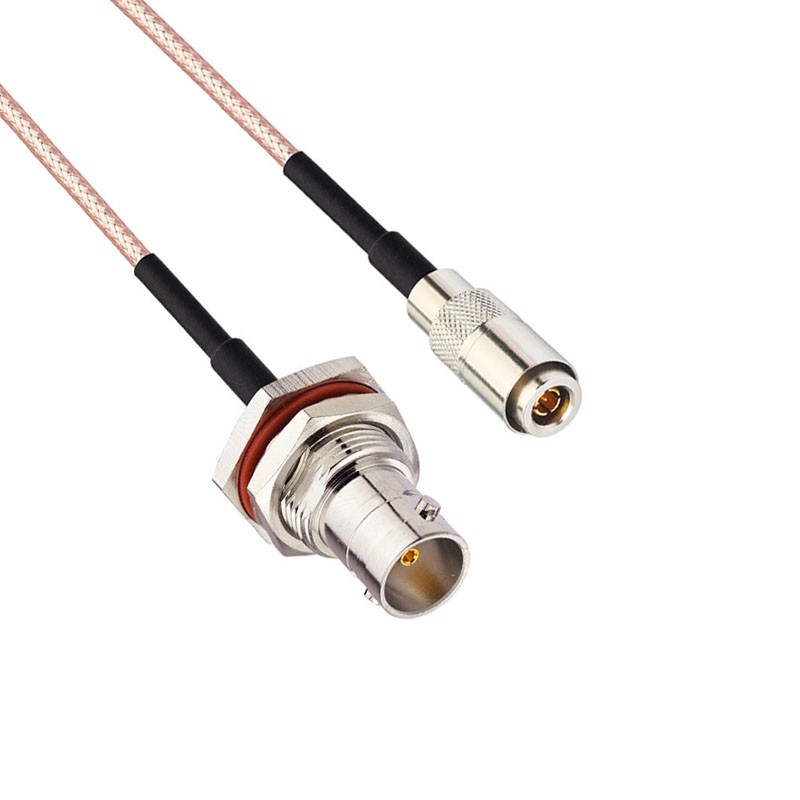

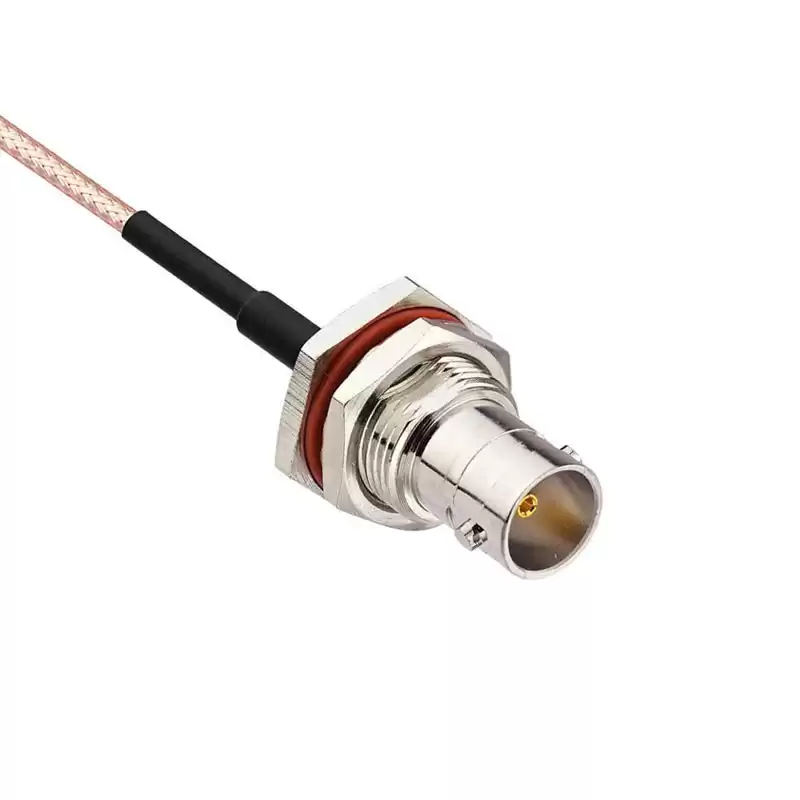

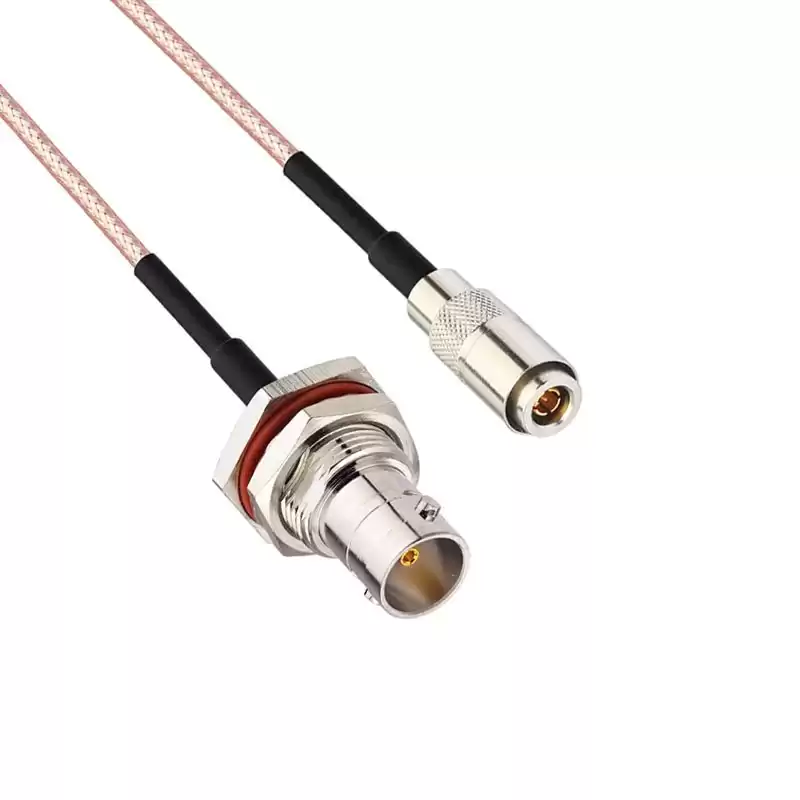

75 ohm RF Coaxial DIN 1.0-2.3 Male to BNC Female with RG179 Cable Assembly
The DIN 1.0-2.3 cable assembly can use flexible coaxial cable such as RG316、RG179、LMR100; the body of 1.0-2.3 DIN to BNC cable assembly is straight connectors which is plug to female or plug to male gender. This DIN 1.0-2.3 plug to BNC female cable assembly uses a 50ohm straight 1.0-2.3 for connector 1 and a 50ohm straight BNC for connector 2, Cable is a 50ohm flexible RG179.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
75ohm 1.0-2.3 |
| Connector 1 Style |
Str Male |
| Cable Type |
RG179 |
| Connector 2 Series |
BNC |
| Connector 2 Style |
Str Female |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
3 GHz |
| Working Temperature |
-65°C to +165°C |
| ELECTRICAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Laboratory RF test
- Measurement
- Defense, military
- Telecom antenna tower component jumper connection
