DIN 1.0-2.3 Male Plug to BNC Male Connector RF Coaxial Cable Assembly with RG316 Cable

1.0-2.3 Cable assembly Features:

  • Can be combined with 1.0-2.3, or BNC connector;
  • Broadband performance with low reflection;
  • Quick connect/disconnect snap-on mating reduces installation time;
  • Body is straight with male genders.

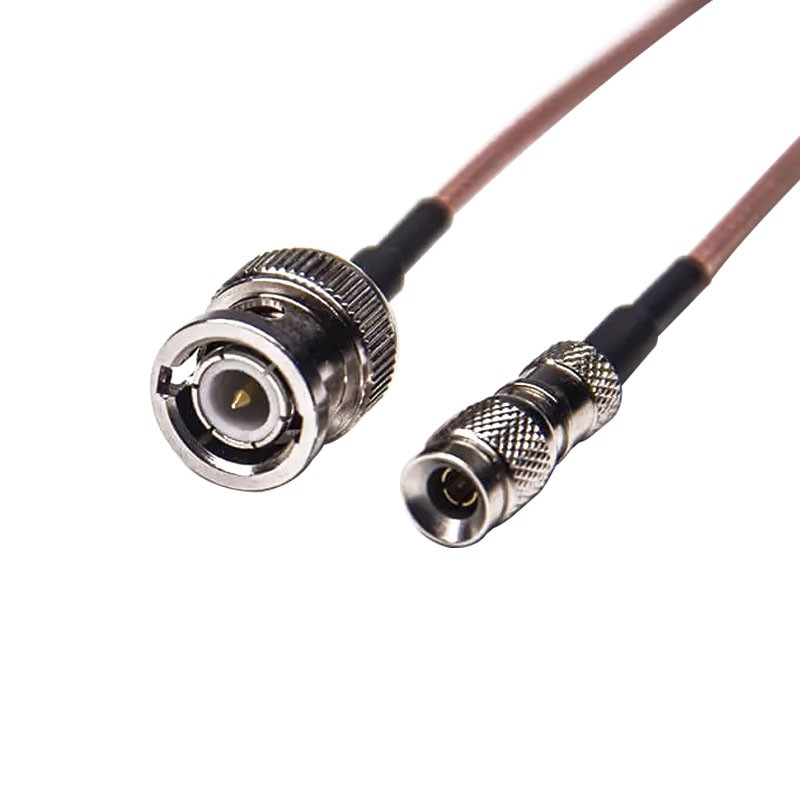

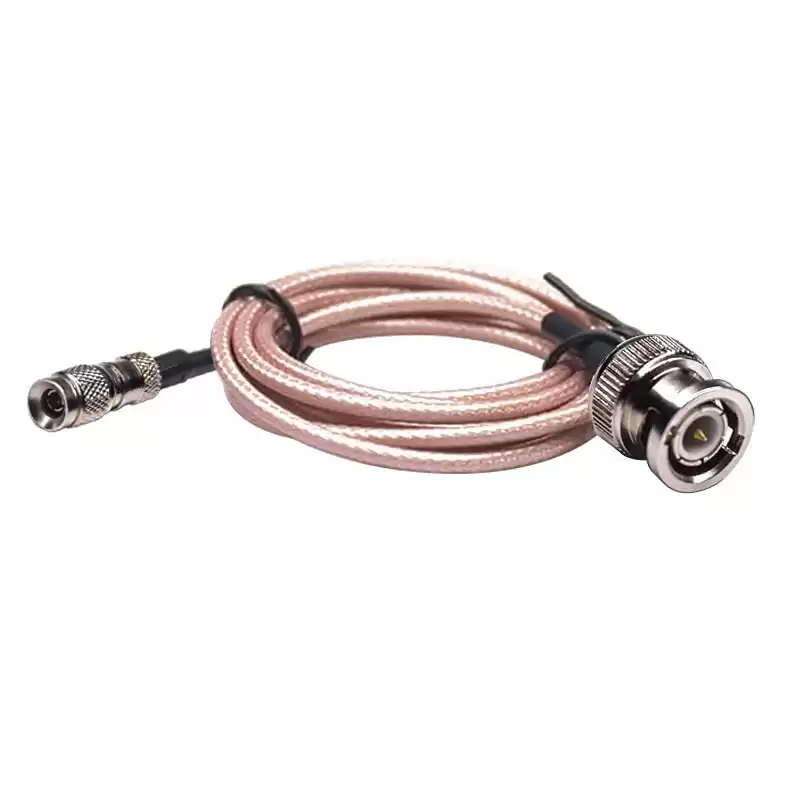

DIN 1.0-2.3 Male Plug to BNC Male Connector RF Coaxial Cable Assembly with RG316 Cable



The DIN 1.0-2.3 cable assembly can use flexible coaxial cable such as RG316、RG179、LMR100; the body of 1.0-2.3 DIN to BNC cable assembly is straight connectors which is  plug to female or plug to male gender. This DIN 1.0-2.3 plug to BNC male cable assembly uses a 50ohm straight 1.0-2.3 for connector 1 and a 50ohm straight BNC for connector 2, Cable is a 50ohm flexible RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series DIN 1.0-2.3
Connector 1 Style Str Plug
Cable Type RG316
Connector 2 Series BNC
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 3 GHz
Working Temperature -65°C  to +165°C
ELECTRICAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Laboratory RF test
  • Measurement
  • Defense, military
  • Telecom antenna tower component jumper connection
