Product Name
2:1 Hybrid Coupler (790-2690MHz, 150W,DIN-F,-160dBc, IP65)
Product Features
790-2690MHz 2in 1out Low PIM Hybrid Coupler is Widely used for In-building Solutions,low VSWR,low PIM,IP65
Technical &Mechanical Specifications
|
Model No.
|
MHC-727-21-DF-160
|
|
Freq(MHz)
|
790-2690
|
|
Coupling(dB)
|
≤3.2±0.5dB
|
|
Insertion Loss(dB)
|
≤0.5
|
|
Port Isolation(dB)
|
≥23
|
|
VSWR
|
≤1.3
|
|
3rd PIM(dBc)
|
≤-160dBc@2*43dBm
|
|
Average Power(W)
|
150W each port
|
|
Impedance
|
50 ohm
|
|
Connector
|
3*DIN Female
|
|
Color
|
Black
|
|
Temp(deg)
|
-35~+65
|
|
Application
|
Indoor &Outdoor, IP65
|
|
Relative Humidity
|
5%-95%
|
|
Dimensions(mm)
|
200x200x103mm (Connectors Excluded)
|

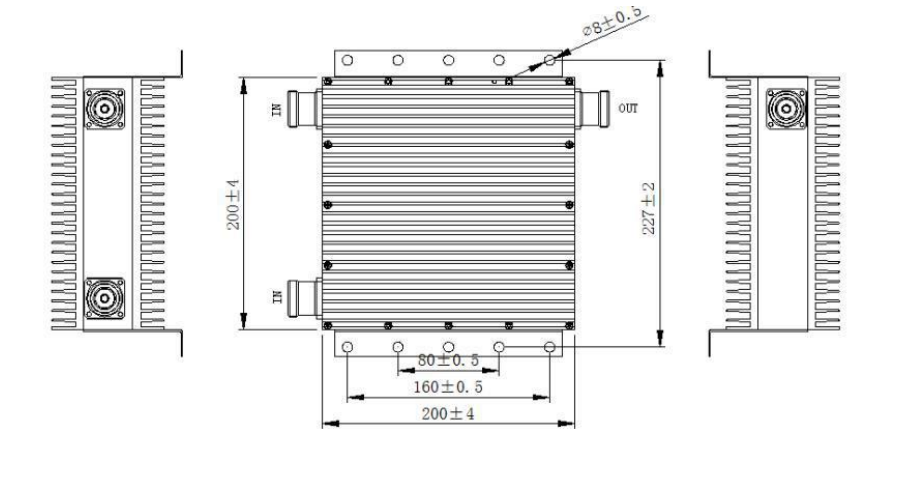

Mechanical Drawing
