Product Features
Low insertion loss
High isolation between each input port
Low PIM as -153dBc@2x43dBm
Modularity: Single or Double
Available for all indoor and outdoor application
Connectors: N type female
|
Electrical Specifications
|
|
Port
|
Band 1
|
Band 2
|
Band 3
|
|
Frequency Range
|
790-960MHz
|
1710-1880MHz
|
1920-2170MHz
|
|
Return Loss
|
≥20dB
|
≥20dB
|
≥20dB
|
|
Insertion Loss
|
≤ 0.25dB
|
≤ 0.5dB
|
≤ 0.5dB
|
|
Power Handling
|
200W
|
200W
|
200W
|
|
Isolation
|
≥45dB@1710-1880MHz
≥45dB@1920-2170MHz
|
≥45dB@790-960MHz
≥40dB@1920-2170MHz
|
≥45dB@790-960MHz
≥40dB@1710-1880MHz
|
|
DC Pass
|
3A
|
3A
|
3A
|
|
PIM
|
≤-153dBc@2x43dBm inputs
|
|
Impedance
|
50Ω
|
|
Mechanical Specifications
|
|
Weight
|
2.15kg / 4.30kg
|
|
Dimensions
|
168*146*51mm / 168*146*105mm
|
|
Connector
|
N type female
|
|
Colour
|
Grey or customized
|
|
Operating Humidity
|
0-95%
|
|
Operating Temperature
|
0 to 55ºC
|
|
Application
|
Outdoor
|
|
Mounting
|
Pole or Wall Mount
|
|
Waterproof grade
|
IP65
|

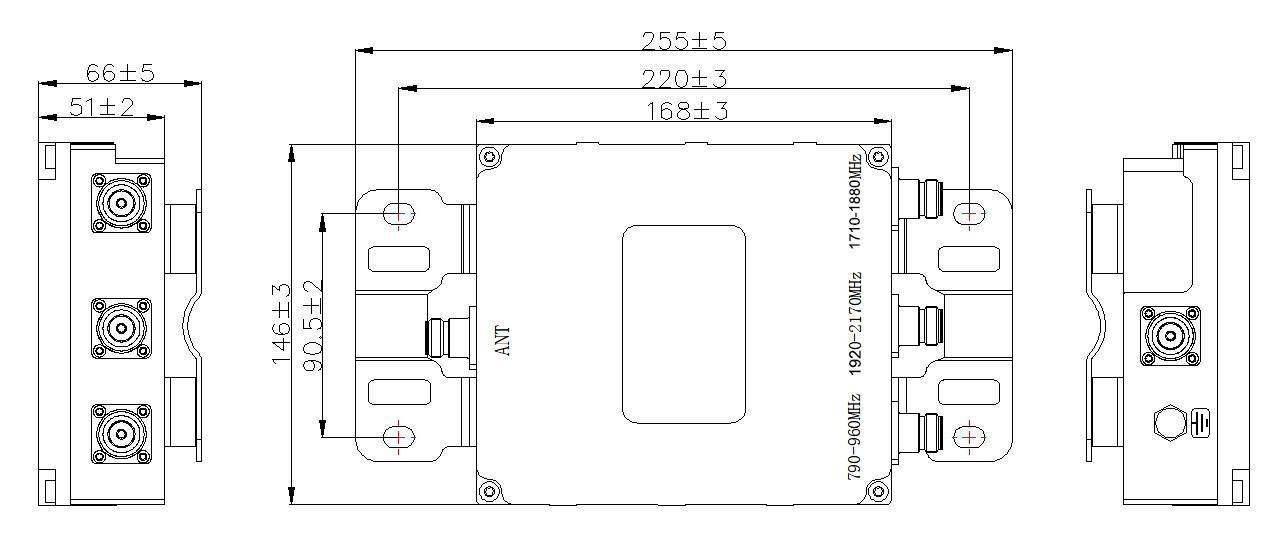

Outline Drawings
