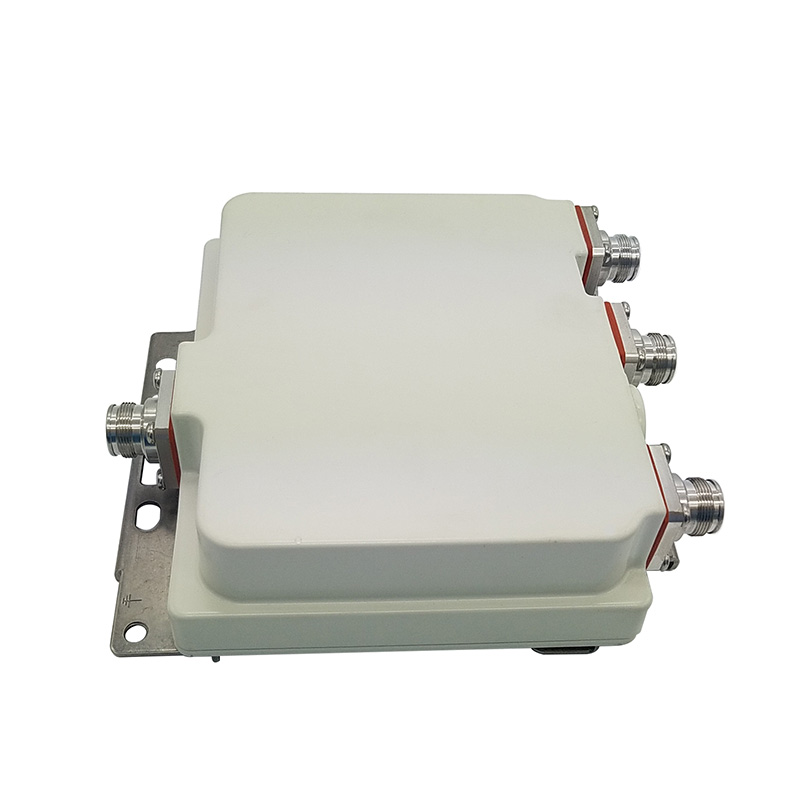

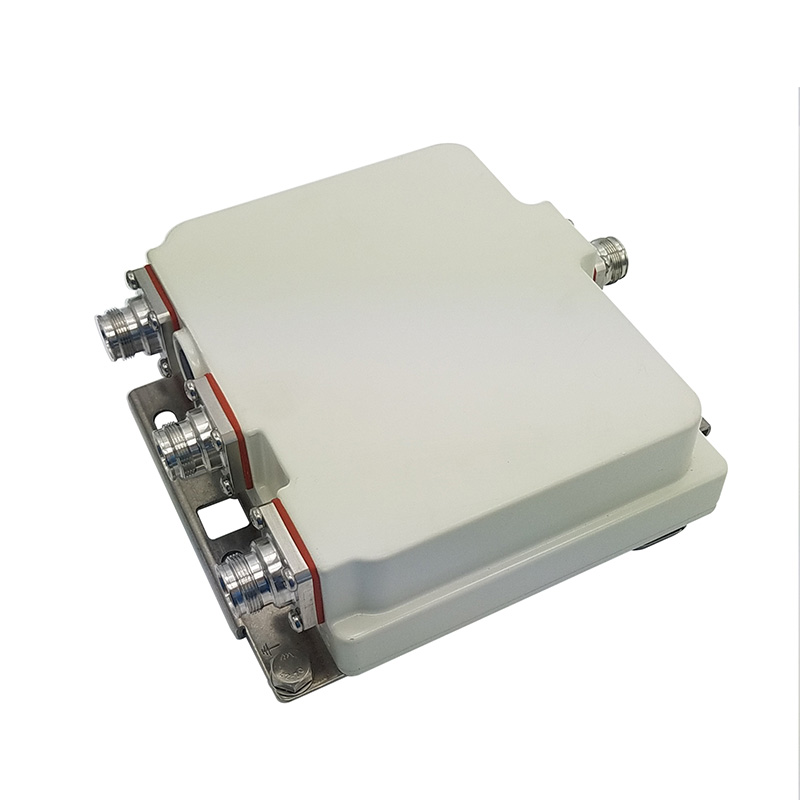

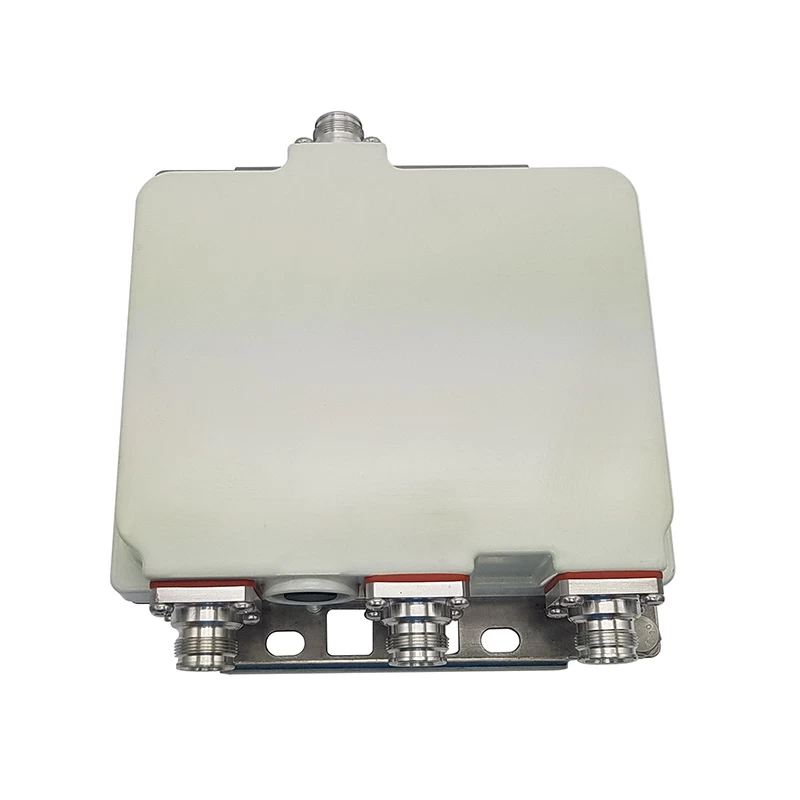

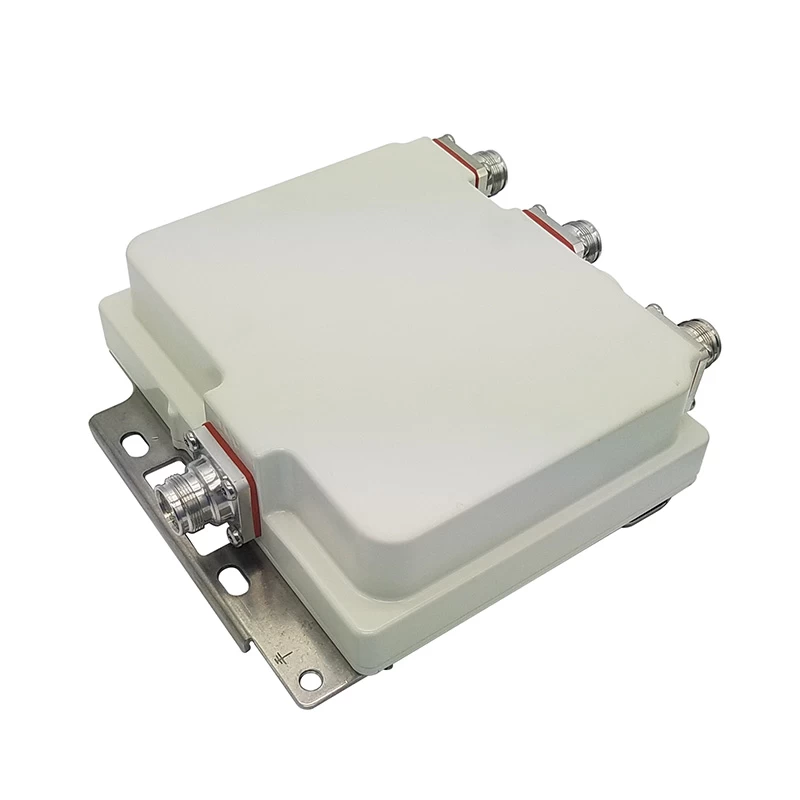

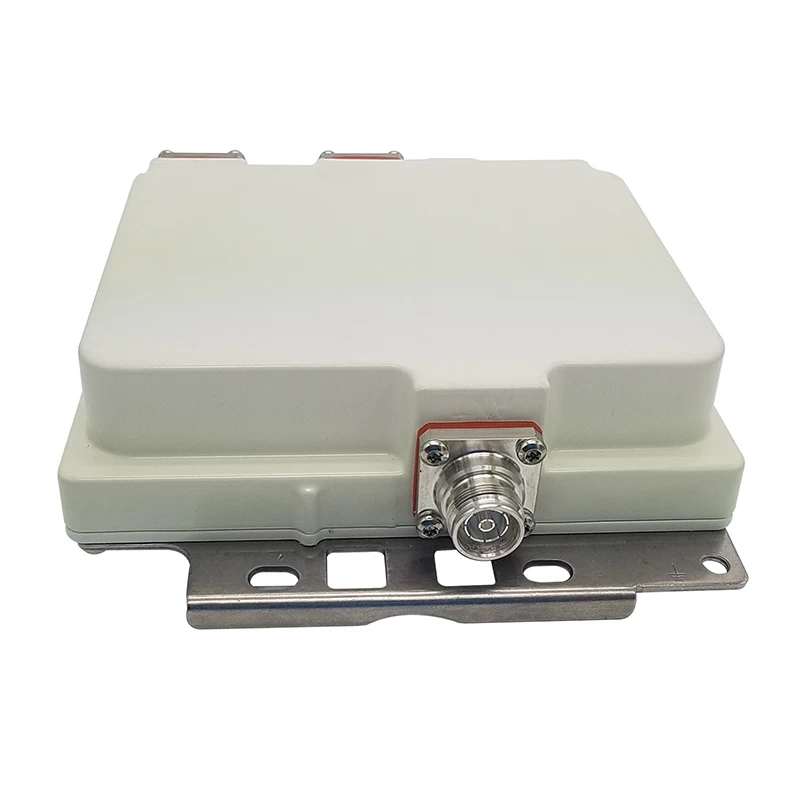

Triplexer 1710-1880MHz 1920-2170MHz 2500-2690MHzwith PIM 160dBc@2x43dBm ,4.3-10 female type
Product Features
Low insertion loss
High isolation between each input port
Low PIM as -160dBc@2x43dBm
Modularity: Single or Twin
Available for all indoor and outdoor applications
Connectors: 4.3-10 type female
Applications: wireless base station, Indoor DAS, metro coverage etc.
|
Electrical Specifications
|
|
Port
|
Band 1
|
Band 2
|
Band 3
|
|
Frequency Range
|
2500-2690MHz
|
1710-1880MHz
|
1920-2170MHz
|
|
Insertion Loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Ripple
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Power Handling
|
200W
|
200W
|
200W
|
|
Isolation
|
≥50dB@1710-1880MHz
≥50dB@1920-2170MHz
|
≥50dB@1920-2170MHz
≥50dB@2500-2690MHz
|
≥50dB@1710-1880MHz
≥50dB@2500-2690MHz
|
|
DC Pass
|
3A
|
3A
|
3A
|
|
AISG Pass
|
Yes
|
Yes
|
Yes
|
|
VSWR
|
≤1.25
|
|
PIM
|
≤-160dBc@2x43dBm inputs
|
|
Impedance
|
50Ω
|
|
Lightning Protection
|
IEC 61000-4-5; 3kA 10/350us, 8kA 8/20 us
|
|
Mechanical Specifications
|
|
Weight
|
2.52kg
|
|
Dimensions
|
218mm * 191mm * 60mm
|
|
Connector
|
4.3-10 type female
|
|
Colour
|
Grey or customized
|
|
Operating Humidity
|
5-95%
|
|
Operating Temperature
|
-40 to 65ºC
|
|
Application
|
Outdoor
|
|
Mounting
|
Pole or Wall Mount
|
|
Waterproof grade
|
IP65
|

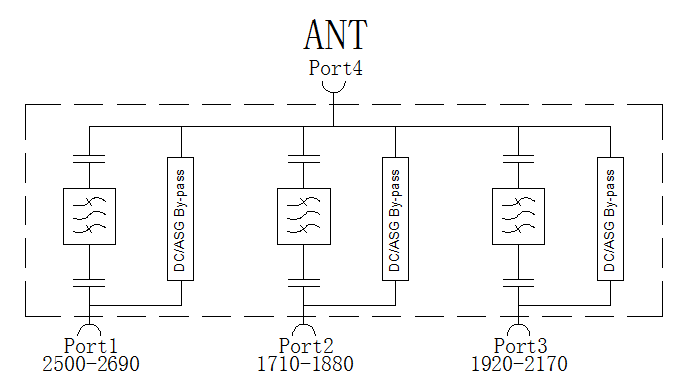

Schematic Diagram:

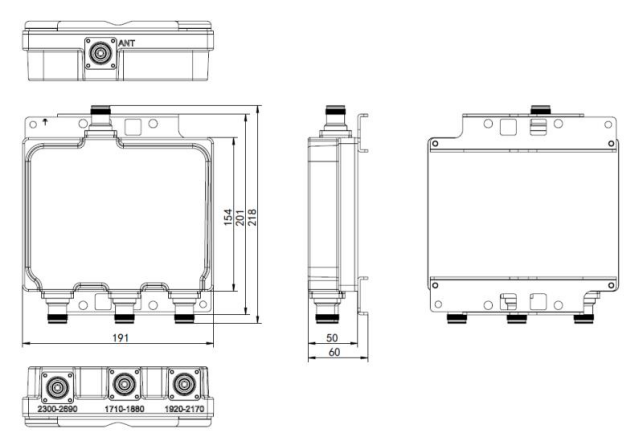

Outline Drawings:
