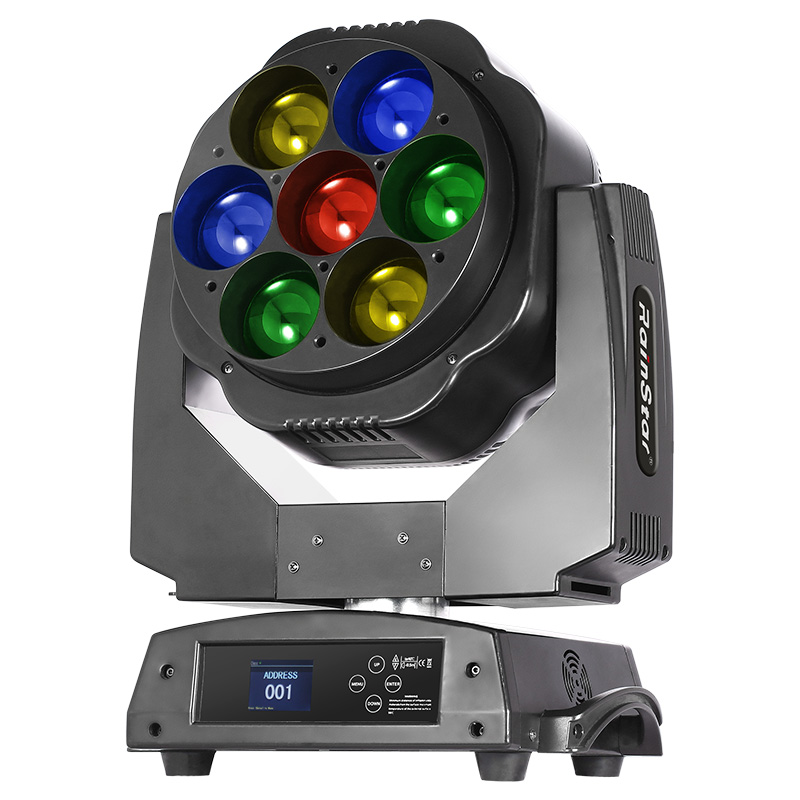

7X60W Pixel LED Effect Moving Head Light with Zoom

LED moving head light with zoom.It can take lens to rotate infinitely and owns 7x60W RGBW 4 in 1 LEDs and zoom range of 4-50°.Besides including DMX 512、Artnet、Sound and Master/Slave mode.




It is a moving head light designed with 7 high-power LEDs. The new high-efficiency optical system has a diameter of 84mm and an optical angle of 4 degrees to 50 degrees. Using RGBW LED multi-chips can produce a beam effect. Each LED can be controlled independently And the lens can rotate infinitely, making its light effect more abundant. Compact and generous structure. The precise horizontal and vertical positioning and matching of the new 60W RGBW LED and 84mm diameter high-efficiency lens emit high-efficiency brightness. This new LED light source uses a special heat pipe cooling system.

  Optics

. LED type: 7x60W 4 in 1 RGBW LED, uniform and delicate color mixing effect

. Beam angle: 4-50 °

. Multiple staggered beam effects

. Life Span: 50000H, low power consumption, energy saving and environmental protection


  Scanning

. Pan / Tilt operation:

                               ※ 8bit and 16bit fine-tuning

                               ※ Smooth and precise positioning

                               ※ Pan: 540 °, Tilt 220 ° rotation

                               ※ The scanning position can be memorized, and it will be reset automatically after no expected operation.

                               ※ Pan and Tilt with error correction function


  Colour

. Uniform RGBW color mixing system and rainbow effect

. White balance can be adjusted manually

. LED can be controlled by a single piece to create a more gorgeous chasing effect

Lighting Effect For7x60W Pixel LED Effect Moving Head Light With Zoom


  Specification

. 3 DMX channel modes: 26CH (Basic mode) / 45CH (Stand mode) / 54CH (Extend mode)

international standard DMX512 channels

. 4 control modes: DMX512, Artnet, voice control, master-slave

. Spot angle: 5-40 ° linear zoom

. 0-20HZ strobe, pulse strobe, random strobe effect

. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4 colors and light off at the same time


  Display

. 2.4-inch TFT color display

. High anti-interference four-button touch button

. The display board can be reversed by 180 °, which is suitable for installation in different positions.


  Software

. Software update :Update via DMX link

. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time

. LED refresh frequency: 3000Hz

. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer


  Other functions

. Setting and addressing: RDM

. ArtNet input and output

. Fan cooling (fan changes speed with temperature change)

. LED temperature detection system to protect the life of lamp


  Power / DMX connection

. Power connection: PowerCON power line input and output

. DMX XLR socket : 3 Pin XLR socket input, output


  Power

. AC100-240V 50 / 60HZ

. Power consumption: 600W


  Protective class

. Housing material: ABS plastic fireproof material

. Waterproof level: IP20


  Working environment

. Indoor working temperature: -20 ° C~+ 40 ° C


  Size and weight

. Packing size:470x350x660mm

. Net weight:21KG

. Gross weight:24KG


  Certification

. CE,ROHS
