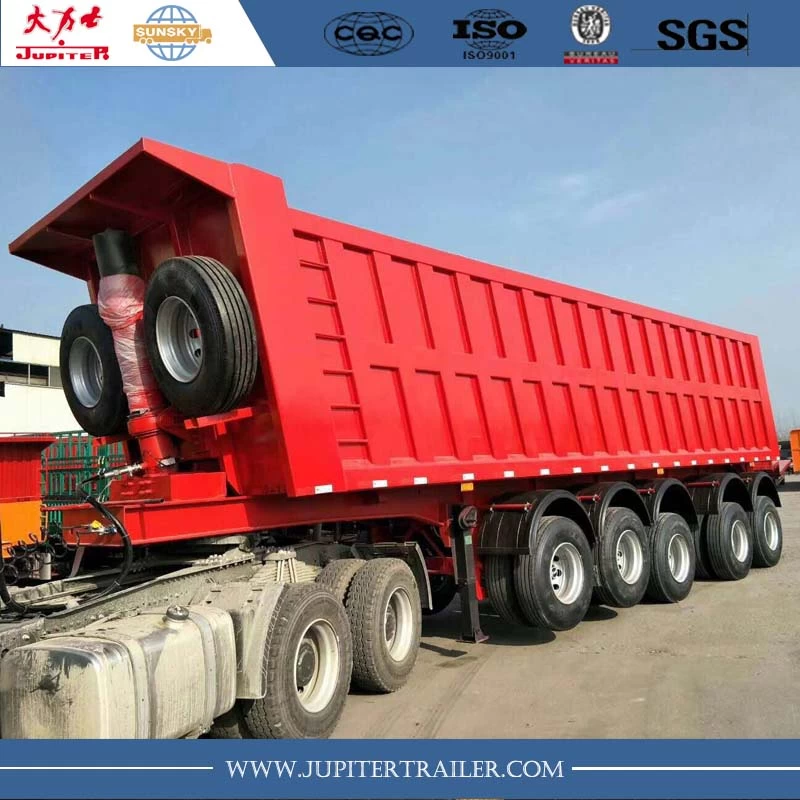

80 Tons 5 Axle Dump Trailer With Airbag suspension For Mine Transport
1.Heavy duty and extra durability design,opting for high tensible low carbon alloy Q345B steel. I beam welded by automotive arc-submerge process.
2.Equipped famous brand part in axles,suspension，landing gear.Higher property for your transportation.More reliable and ensure the long life span of trailers.
3.Use advanced over load design and welding technology for the chassis. Ensure the strong of trailer body. Make sure the tipper trailer still in good condition even in small overloading. The payload can be design max to 70 tons.
Quality guarantee
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer,more than 30 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) We can produce the trailer and truck as your drawing or requirements, help you saving the cost and time.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
Style
|
45CBM 5 Axle Tipper Trailer
|
|
Model
|
SS9800ZYX
|
|
Dimension(L*W*H)mm:
|
11500*2550*3700
|
|
Inner dimension(L*W*H)mm:
|
10300*2350*1800
|
|
The material of body
|
BS700MC high tensible 4mm
|
|
Payload(kgs):
|
80000
|
|
Volume(CBM)
|
45 CBM
|
|
Tare weight(kgs):
|
14000
|
|
Kingpin
|
JOST3.5”bolt-in
|
|
Landing gear
|
JOST19”
|
|
Tire and rim
|
12R22.5
|
|
Twist
lock
|
0
|
|
Axle
|
Germany type 12 tons/American type 13 tons
|
|
Suspension
|
3 Axle Spring suspension Plus 2 axle airbag with lifting
|
|
Brake system
|
Re-6 emergency valve
|
|
Air Chamber
|
MBA T30/30
|
|
Hydraulic
system:
|
HYVA FE172-4-05390
|
