Product Name

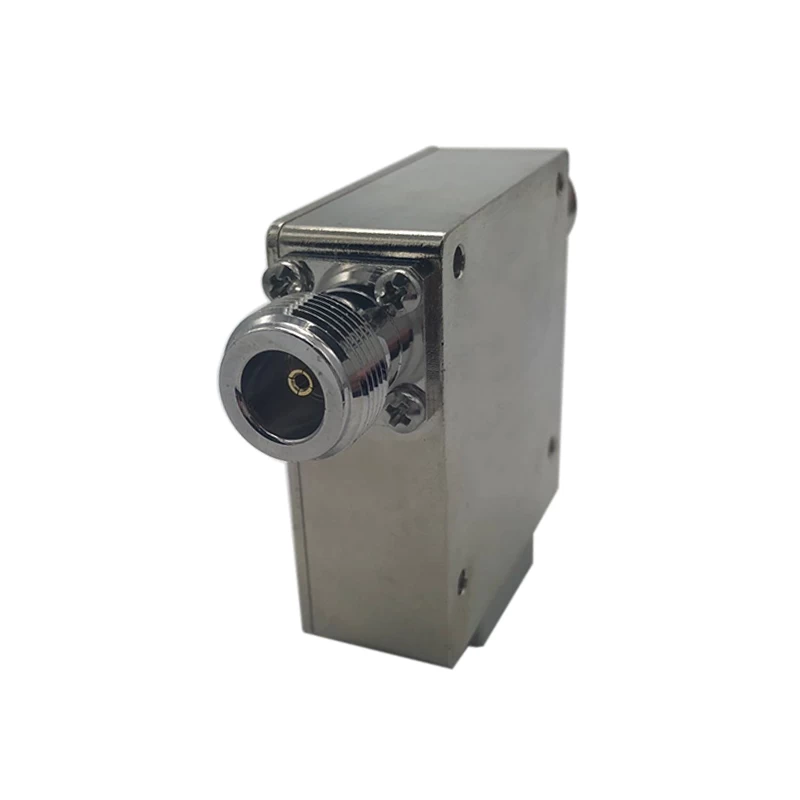

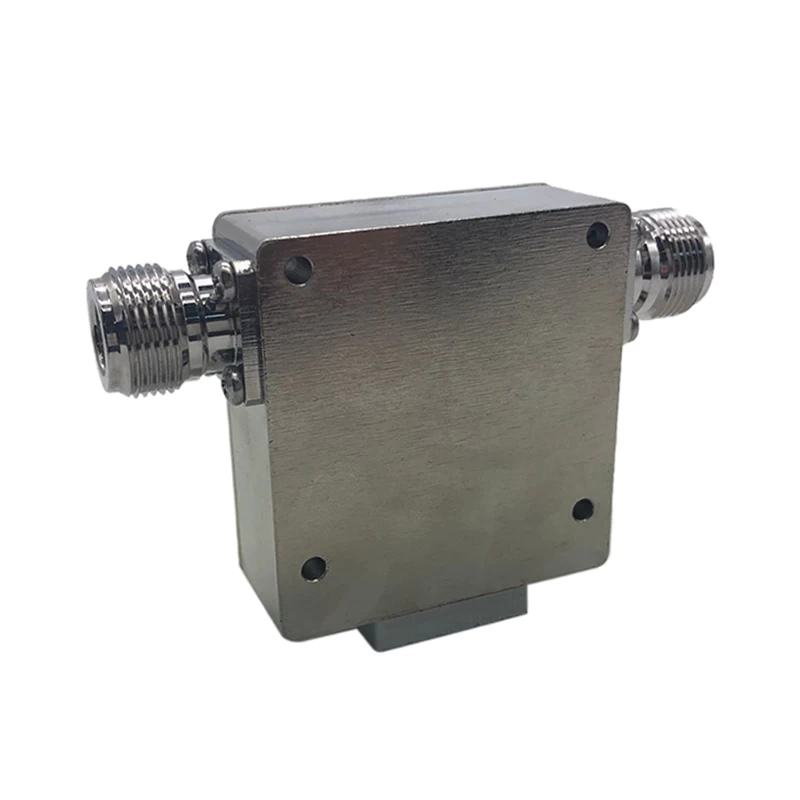

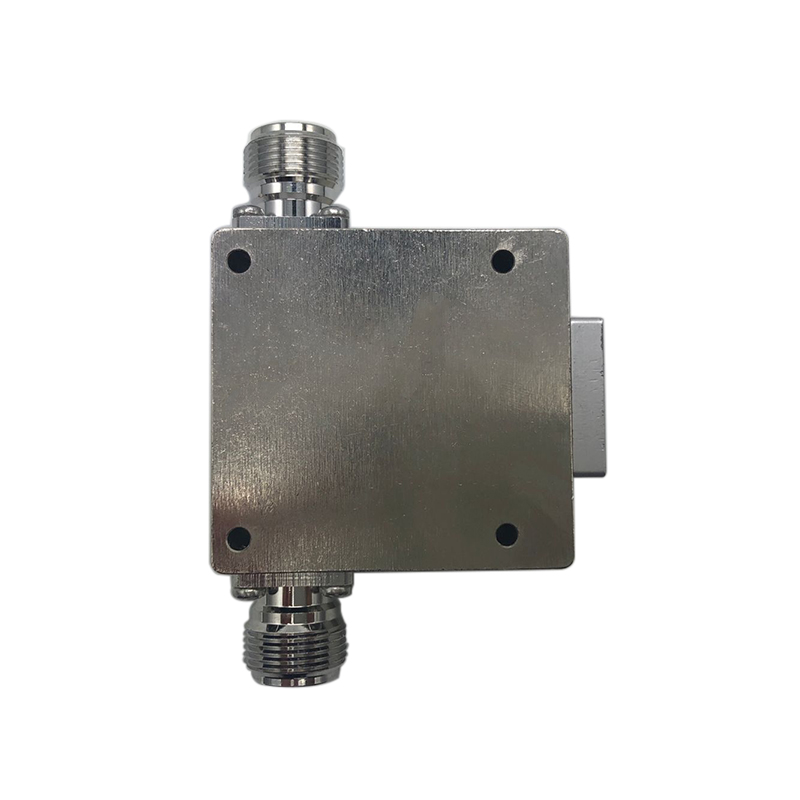

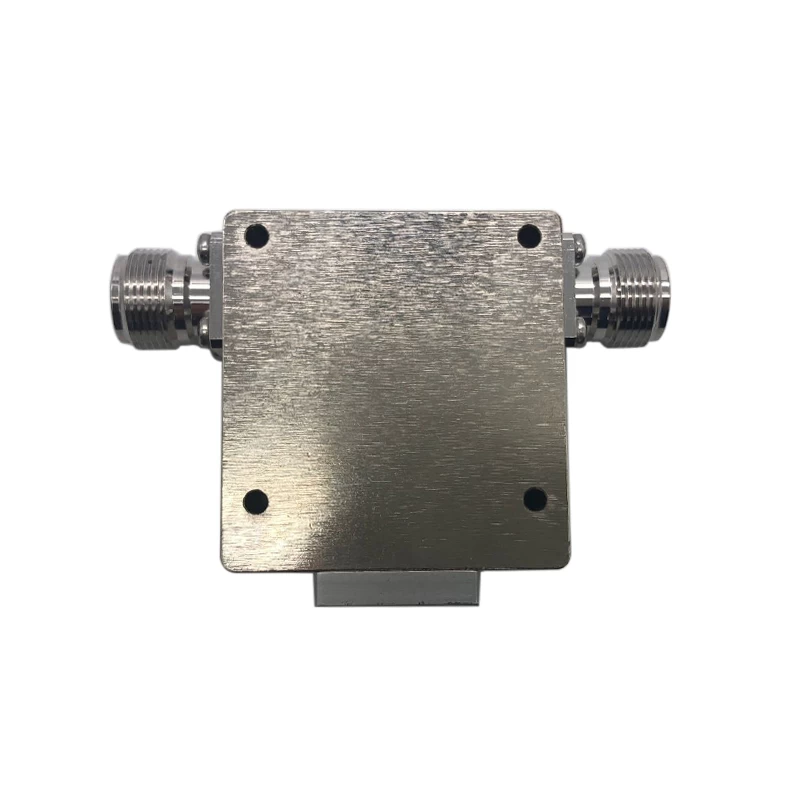

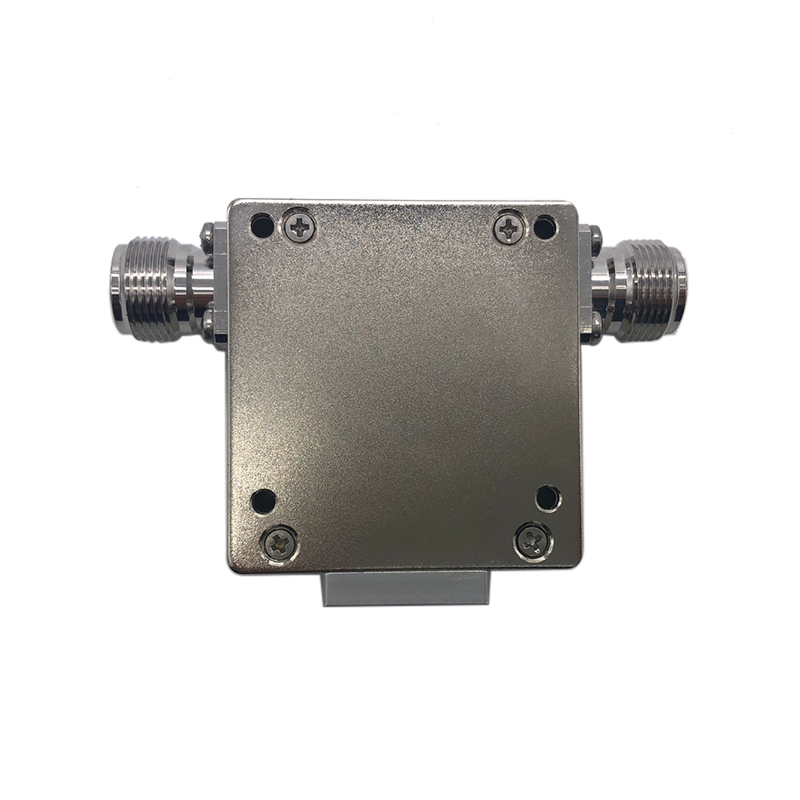

RF Isolator(800-1000MHz,N-Female connector type,100W)
Product Features
800-1000MHz 100W RF Coaxial Isolator is Low VSWR,Low Insertion loss and High Isolation and high Isolation RF Coaxial Isolator is Widely used for Military,Space and Commercial Applications
Technical &Mechanical Specifications
|
Model No.
|
MNI-800-100-NF
|
|
Freq(MHz)
|
800-1000MHz
|
|
Insertion Loss(dB)
|
≤0.4
|
|
VSWR
|
≤1.25
|
|
Isolation(dB)
|
20min
|
|
Power Rating(W)
|
100W
|
|
Operating Temperature(℃)
|
-20~70
|
|
Impedance(ohm)
|
50
|
|
Connector
|
N-Female
|

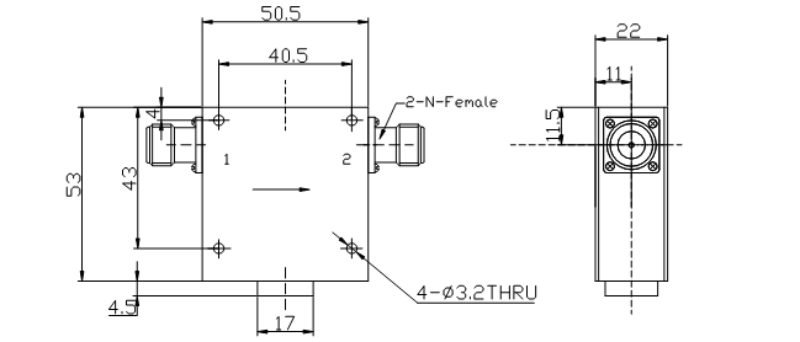

Mechanical Drawing
